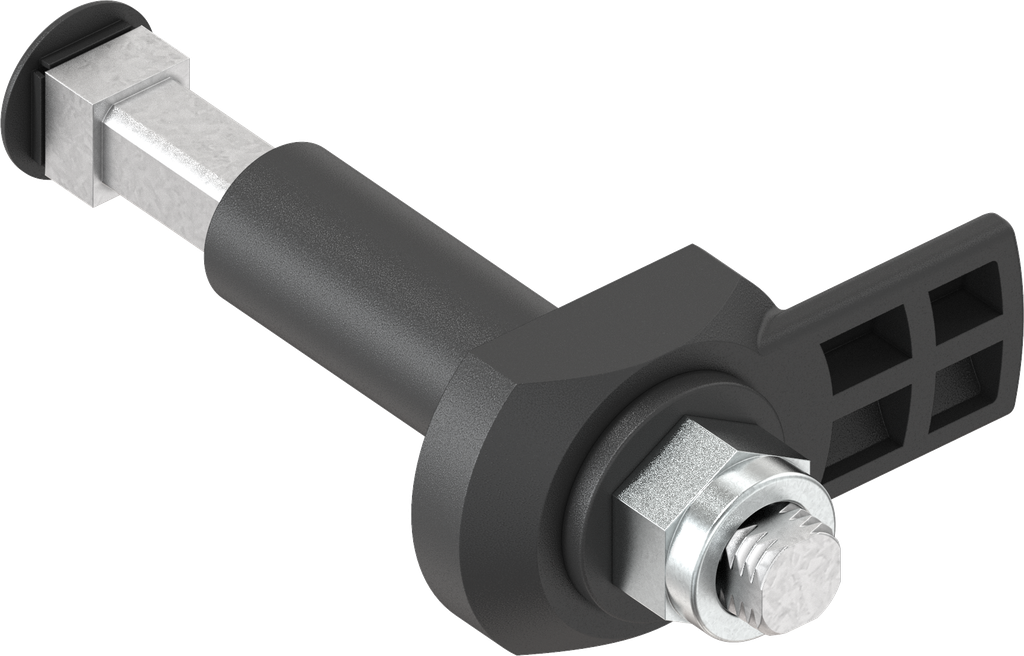

Heavy duty latch with zinc die shaft, Polyamide GF black
Heavy duty latch with zinc die shaft, Polyamide GF black

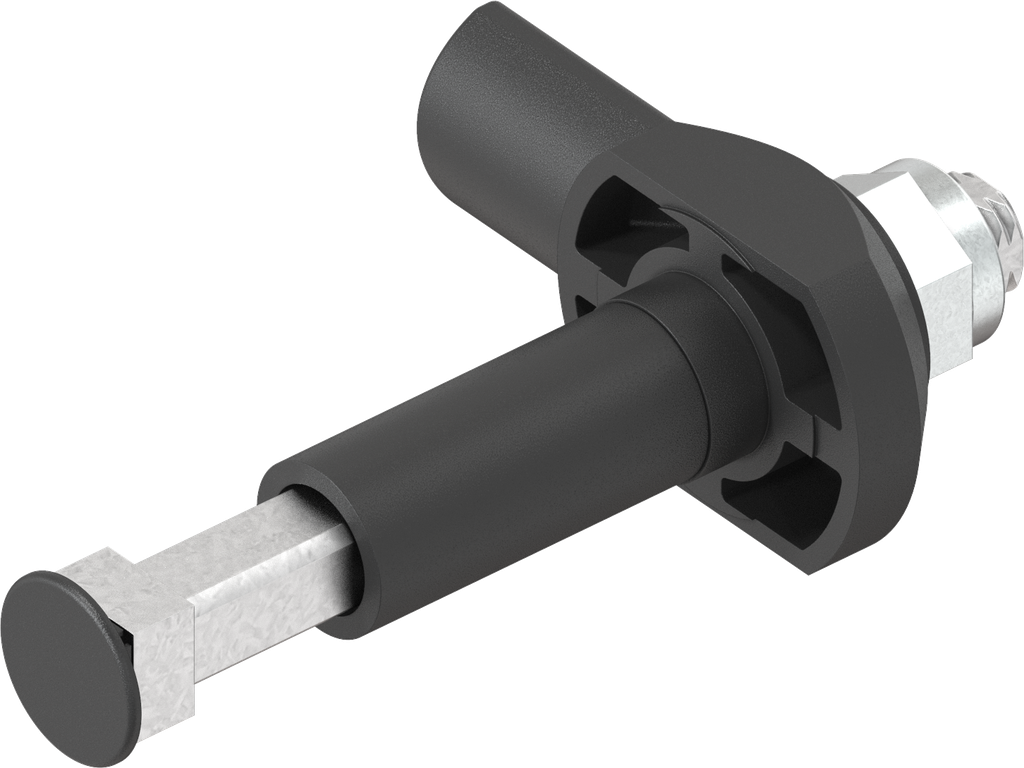

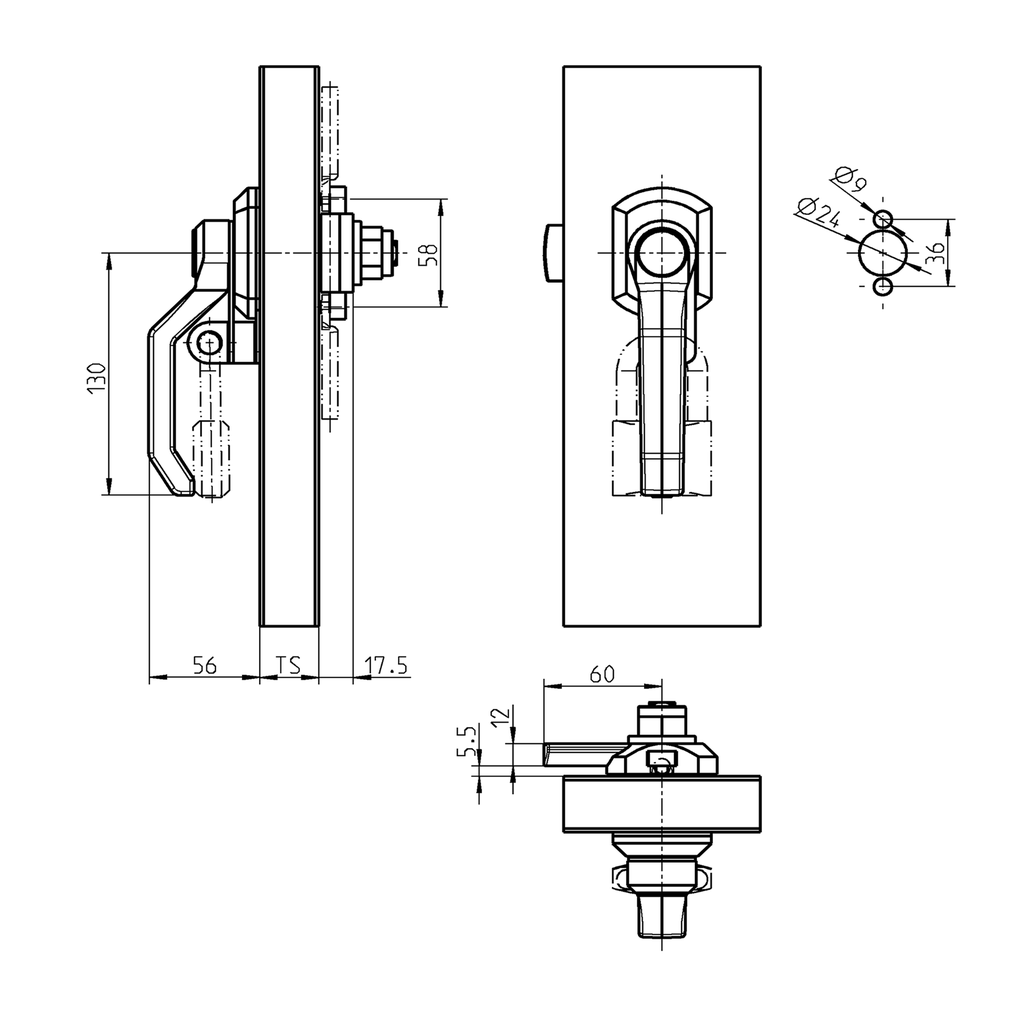

Heavy duty latch with zinc die shaft, Polyamide GF black; 1091-U82
without rod control for Ts = 51 - 70 mm

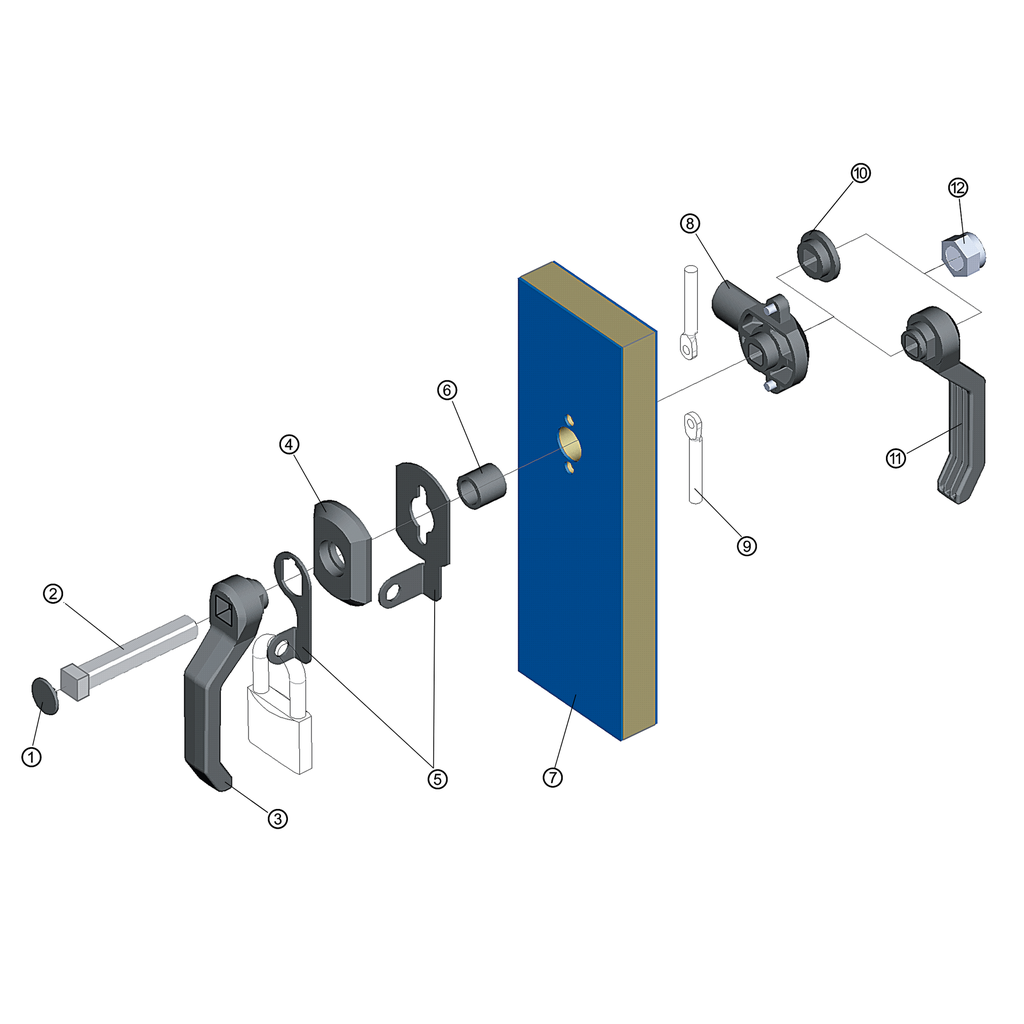

Product information:
1 = Plastic cap
2 = Zinc die shaft
3 = Outside handle and inside handle
4 = Bezel

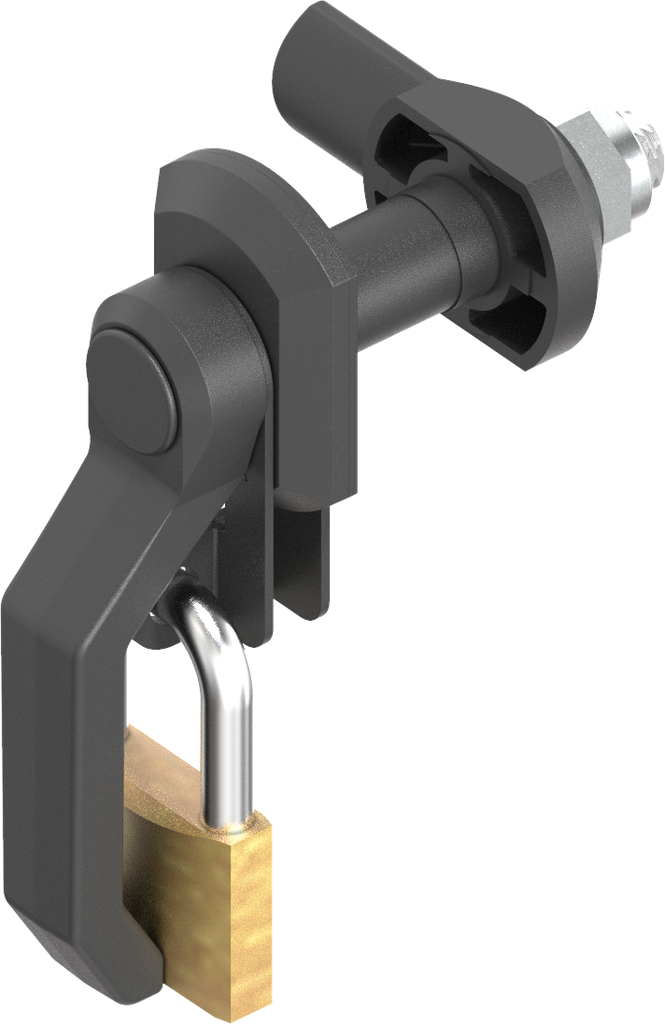

5 = Padlock facility
6 = Spacer tube
7 = Door
8 = Bezel cam with and without 3-point cam
9 = Rod (on request)
10 = Bush
11 = Outside handle and inside handle
12 = Nut
Assembly instruction:
If an inside handle is installed, the maximum door gauge is reduced by 10 mm.
Internal Reference:
1091-U82
Product Type:
Shaft
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Axis:
Zinc die shaft
Compression Value :
7 mm
Suitable for door thickness from:
51 mm
Suitable for door thicknesses up to:
70 mm
Lock Type(1):
Cam
Closure Type:
Heavy duty latch, classic
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
