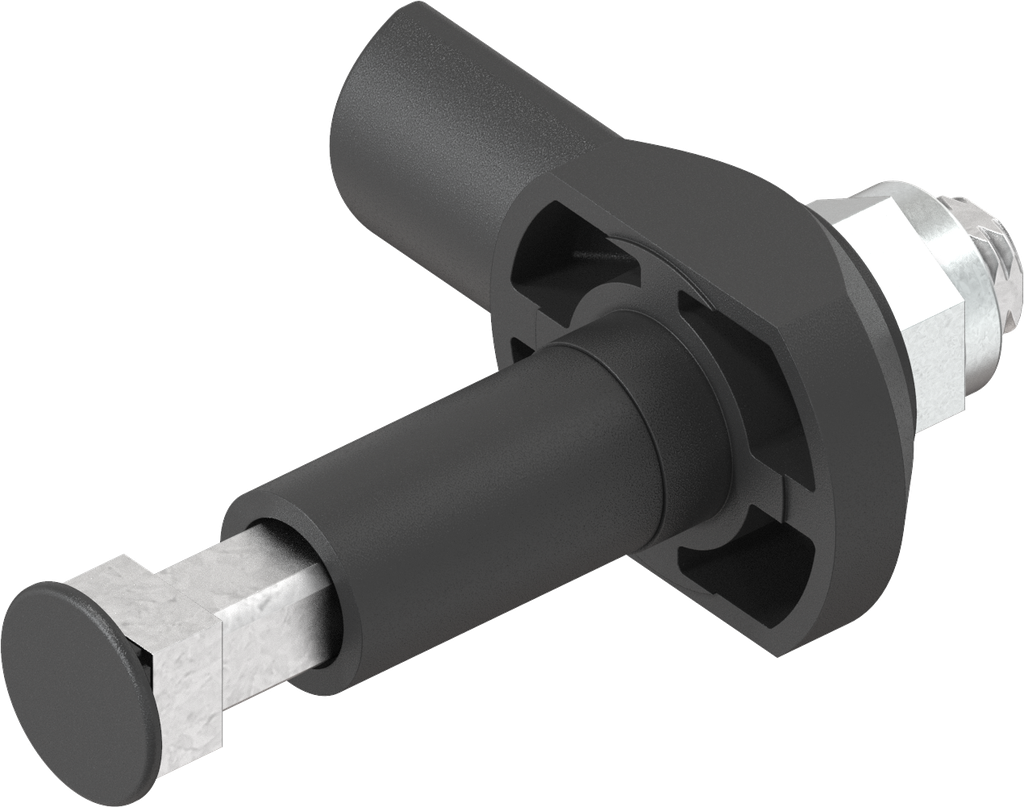

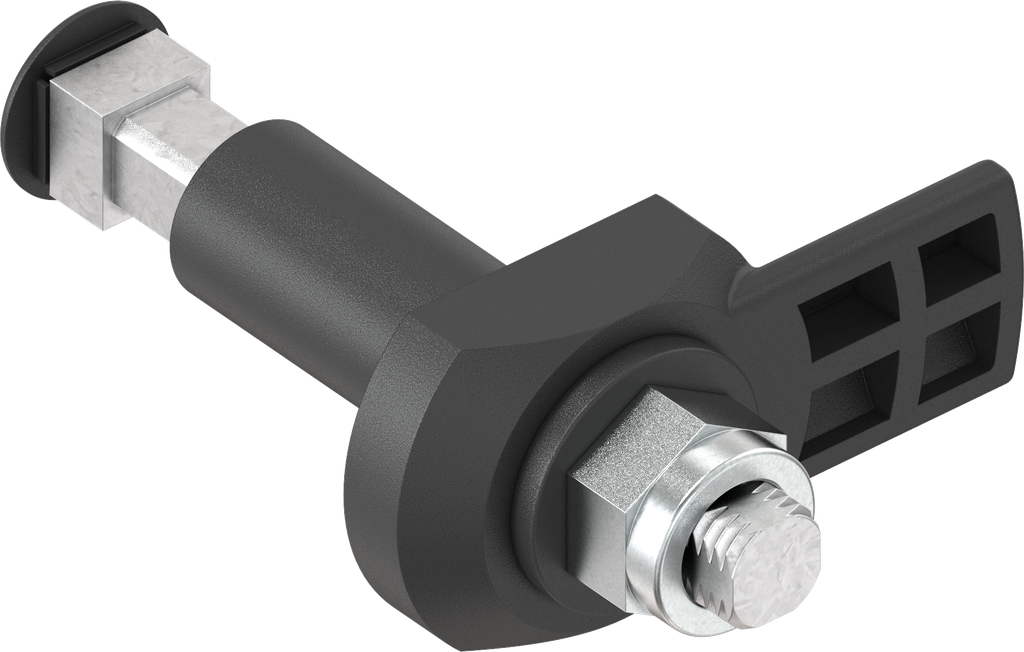

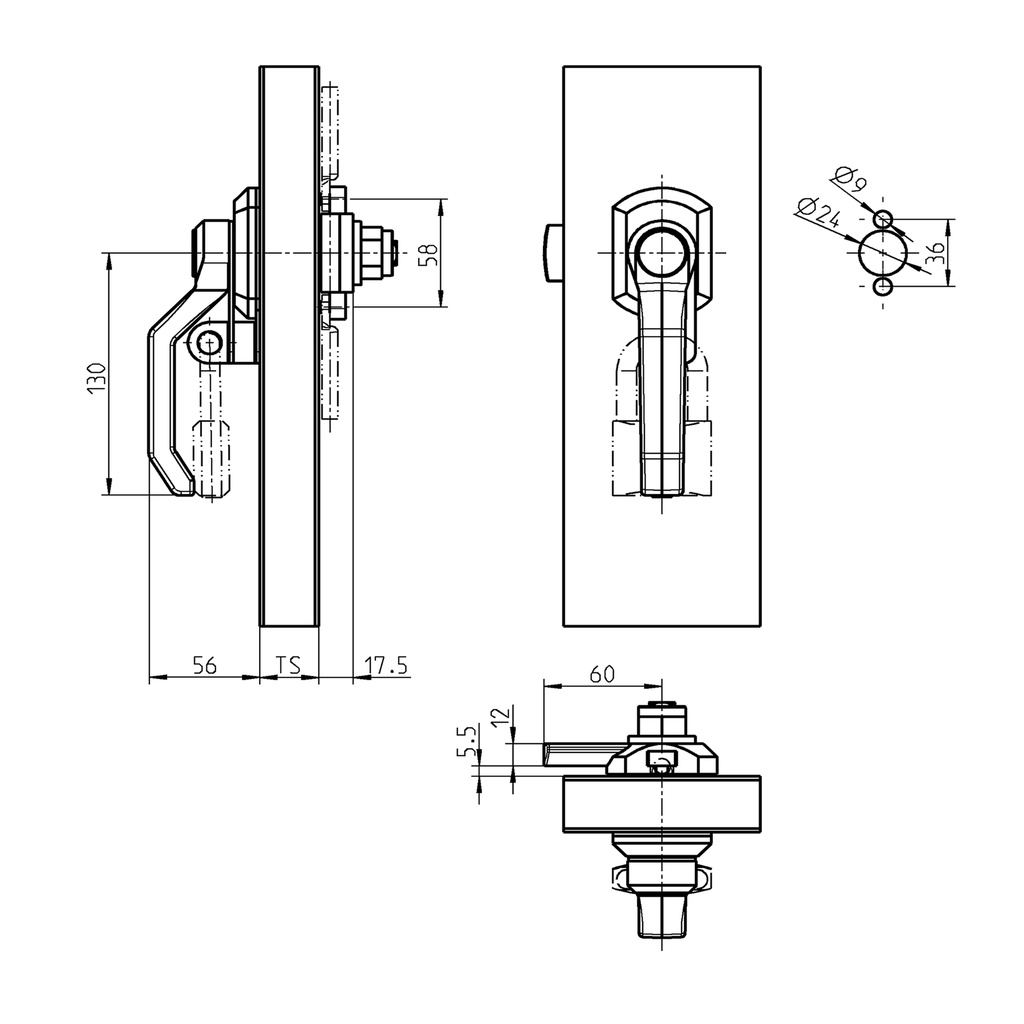

Heavy duty latch with zinc die shaft, Polyamide GF black
Heavy duty latch with zinc die shaft, Polyamide GF black
Heavy duty latch with zinc die shaft, Polyamide GF black; 1091-U81
without rod control for Ts = 31 - 50 mm
Product information:
1 = Plastic cap
2 = Zinc die shaft

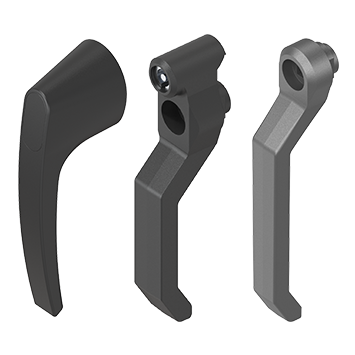

3 = Outside handle and inside handle

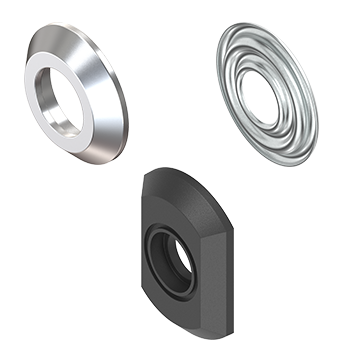

4 = Bezel

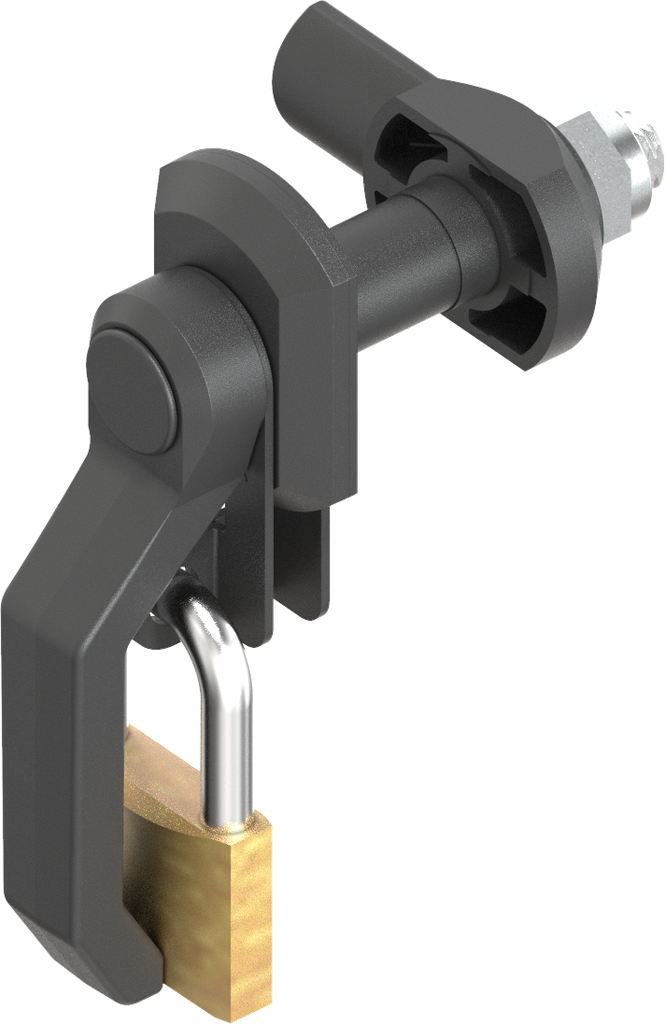

5 = Padlock facility
6 = Spacer tube
7 = Door
8 = Bezel cam with and without 3-point cam
9 = Rod (on request)
10 = Bush
11 = Outside handle and inside handle
12 = Nut
Assembly instruction:
If an inside handle is installed, the maximum door gauge is reduced by 10 mm.
Internal Reference:
1091-U81
Product Type:
Shaft
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Axis:
Zinc die shaft
Number of Possible Locking Points:
1 point
Compression Value :
7 mm
Suitable for door thickness from:
31 mm
Suitable for door thicknesses up to:
50 mm
Lock Type(1):
Cam
Closure Type:
Heavy duty latch, classic
No Specifications
