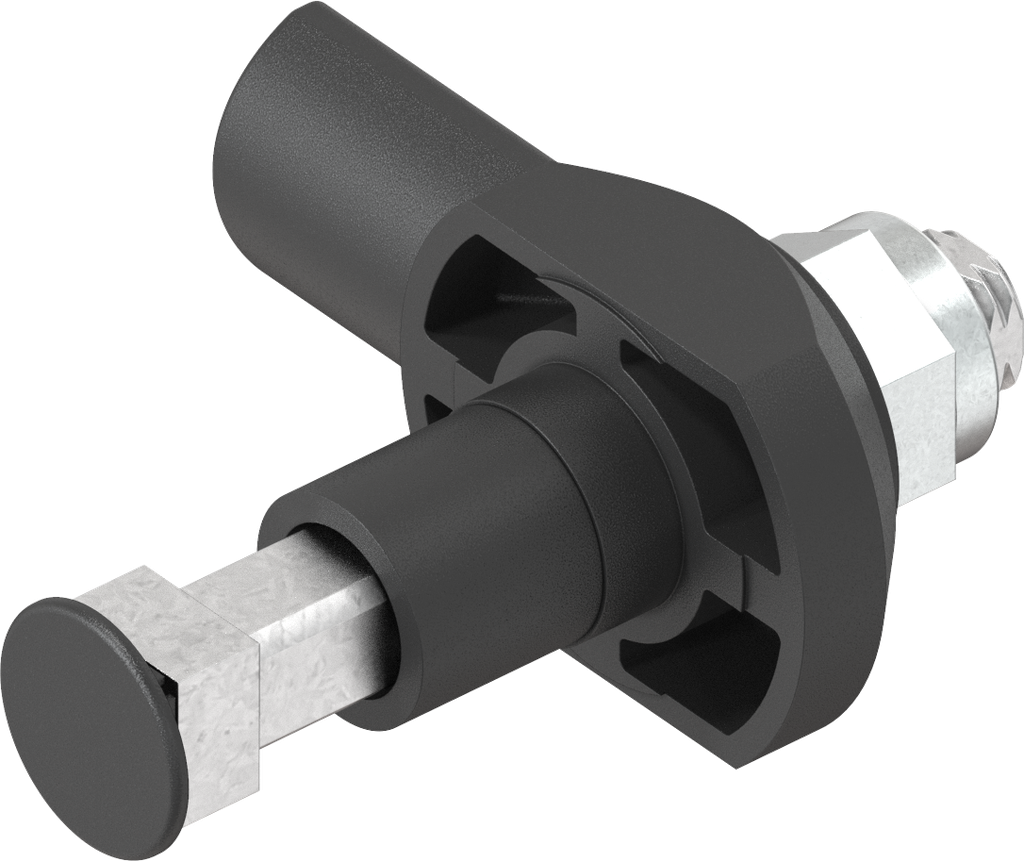

Outside handle keyed EK 333 for m.s. shaft, Polyamide GF black

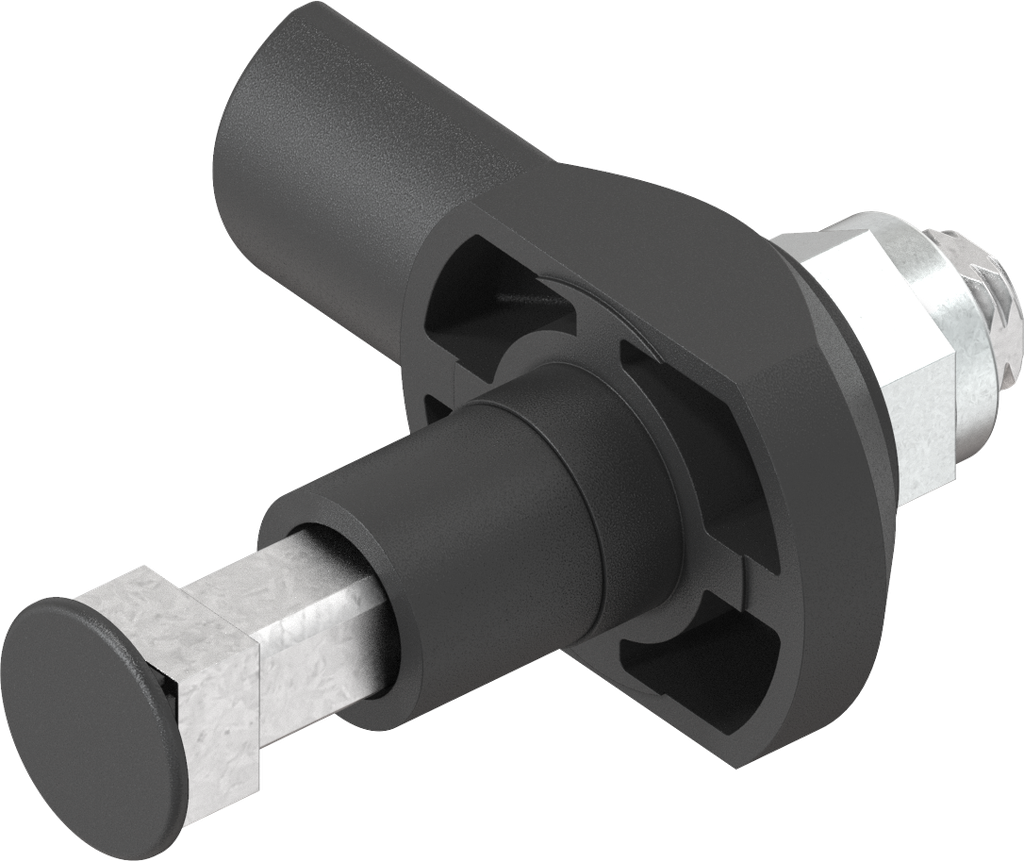

Heavy duty latch with zinc die shaft, Polyamide GF black

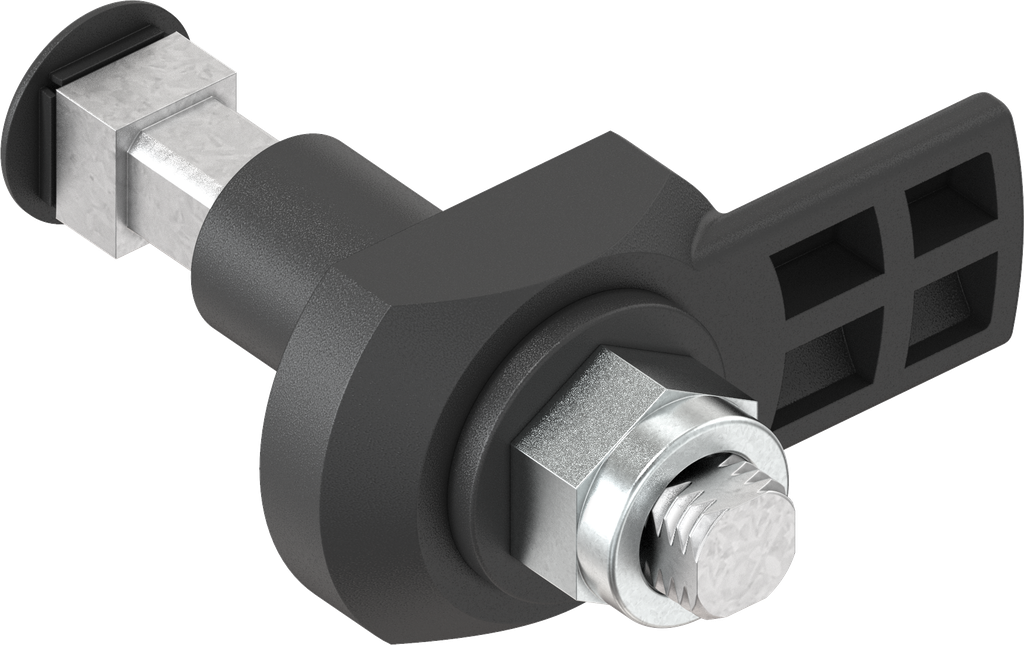

Heavy duty latch with zinc die shaft, Polyamide GF black; 1091-U80

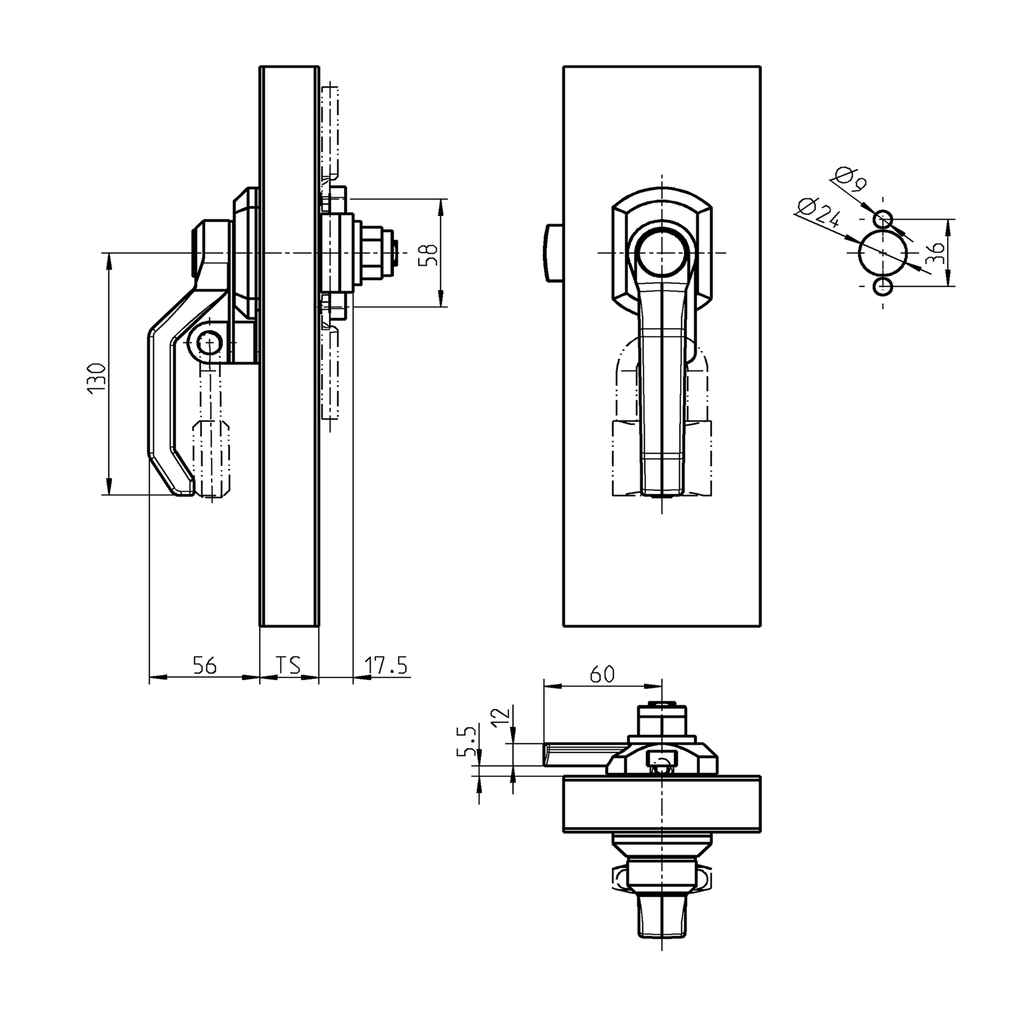

without rod control for Ts = 10 - 30 mm

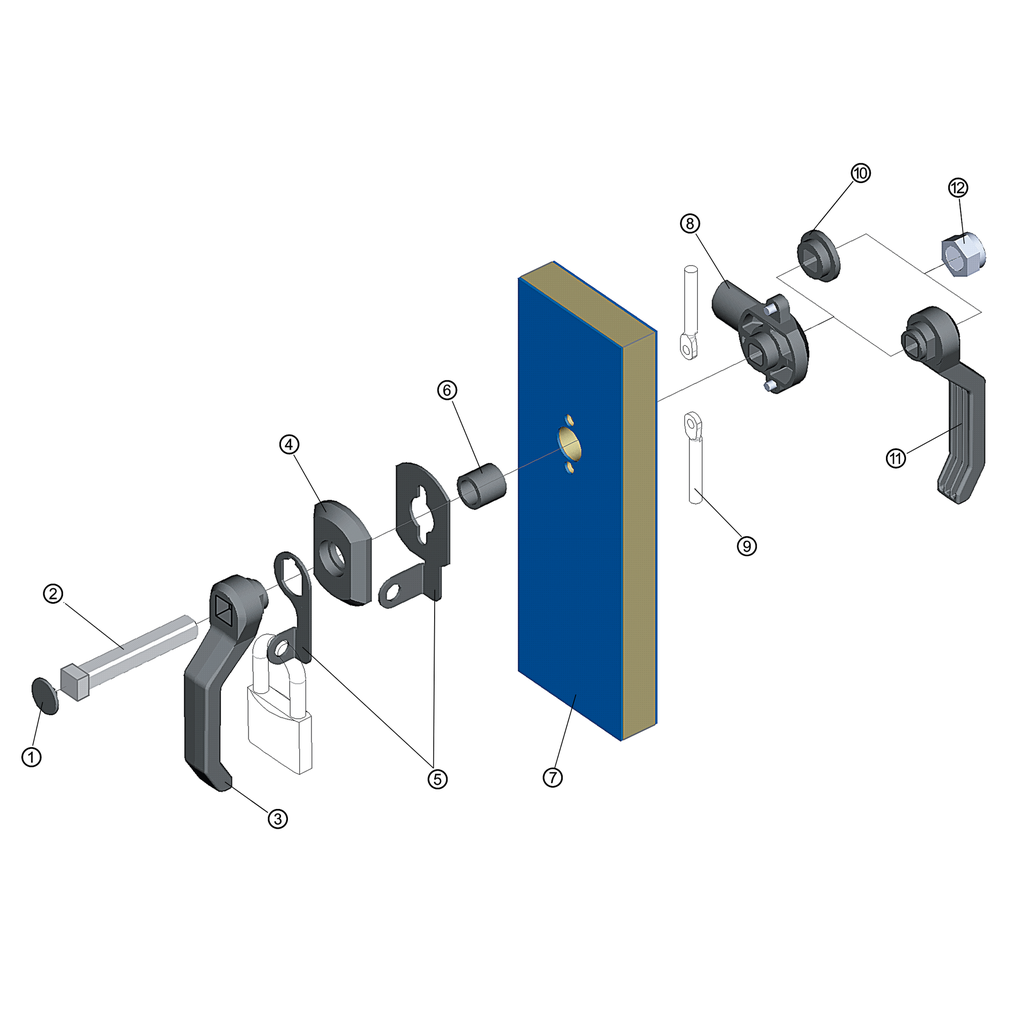

Product information:
1 = Plastic cap
2 = Zinc die shaft
3 = Outside handle and inside handle
4 = Bezel

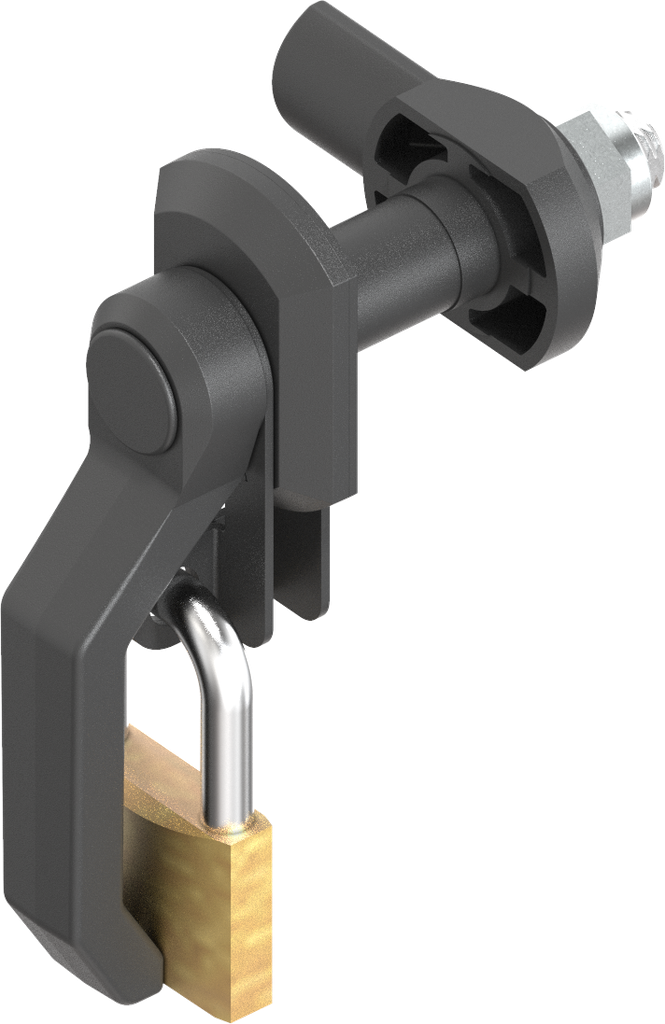

5 = Padlock facility
6 = Spacer tube
7 = Door
8 = Bezel cam with and without 3-point cam
9 = Rod (on request)
10 = Bush
11 = Outside handle and inside handle
12 = Nut
Assembly instruction:
If an inside handle is installed, the maximum door gauge is reduced by 10 mm.
Internal Reference:
1091-U80
Product Type:
Shaft
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Axis:
Zinc die shaft
Number of Possible Locking Points:
1 point
Compression Value :
7 mm
Suitable for door thickness from:
10 mm
Suitable for door thicknesses up to:
30 mm
Lock Type(1):
Cam
Closure Type:
Heavy duty latch, classic
