Shaft, Steel zinc-plated
Shaft, Steel zinc-plated
Shaft, Steel zinc-plated
Shaft, Steel zinc-plated

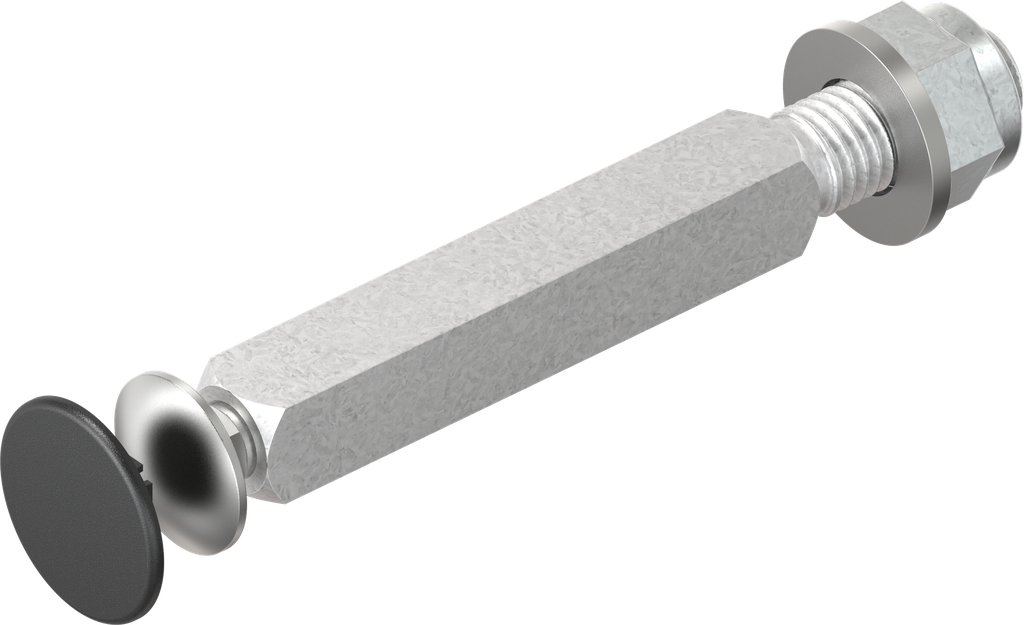

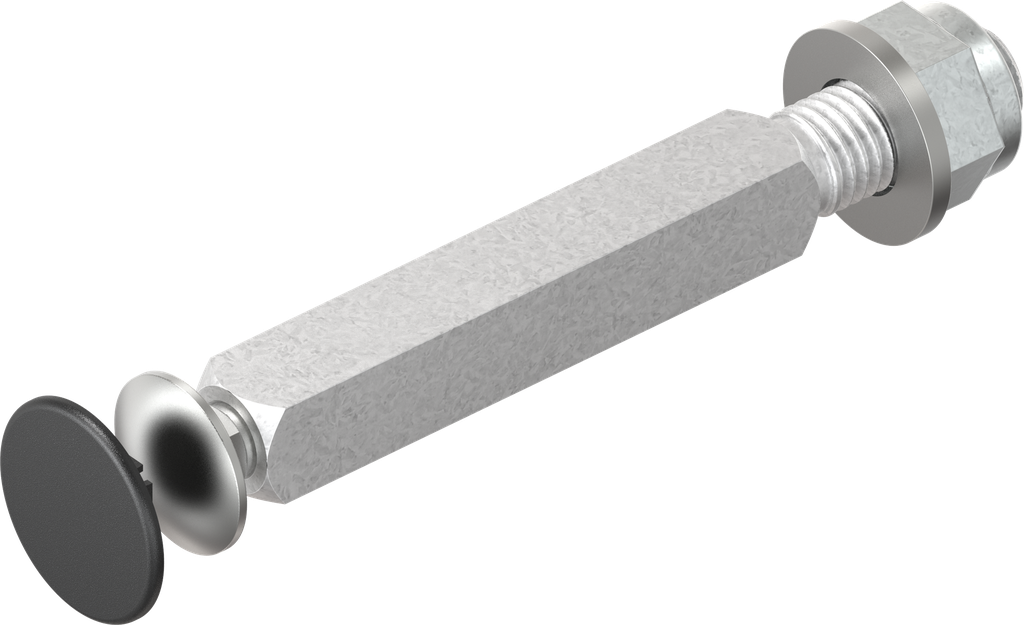

Shaft, Steel zinc-plated; 1091-U8

https://www.emka.com/products/1091-u8 https://www.emka.com/web/image/product.template/62105/image_1920?unique=1317999

    This combination does not exist.

    Contact Us

    Akeneo Note:

    Tolerance:
    Door gauge fixed for cam without inside handle = -10 mm
    Door gauge fixed for cam with inside handle = ± 5 mm
    Door gauge fixed for locking cam with inside handle or spacer = ± 5 mm
    Internal Reference: 1091-U8
    Product Type: Shaft
    Program: 1091
    Material of the module : Steel
    Surface of the module: zinc-plated
    Axis: Steel shaft
    Door thickness fixed for locking cam with inside handle or spacer: 20 mm
    Door thickness fixed for cam with inside handle: 20 mm
    Door thickness fixed for cam without inside handle: 40 mm
    Closure Type: Heavy duty latch, classic
    No Specifications
    View All Products

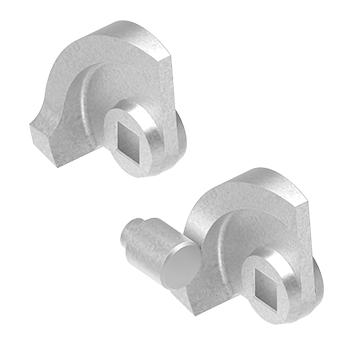

    Locking cam

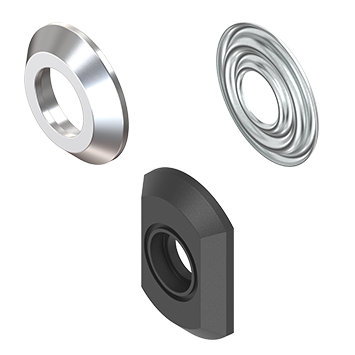

    Bezel
    Cam

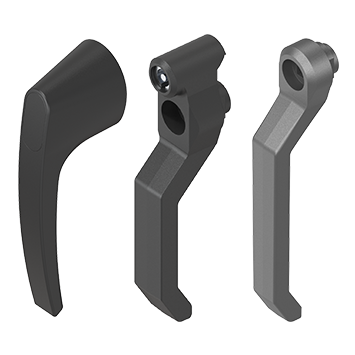

    HVACR handle outside
    HVACR handle inside
    Spacer
    Here you can find the product data sheets and CAD files of this product
