Shaft, Steel zinc-plated
Heavy duty latch with zinc die shaft, Polyamide GF black
Product information:

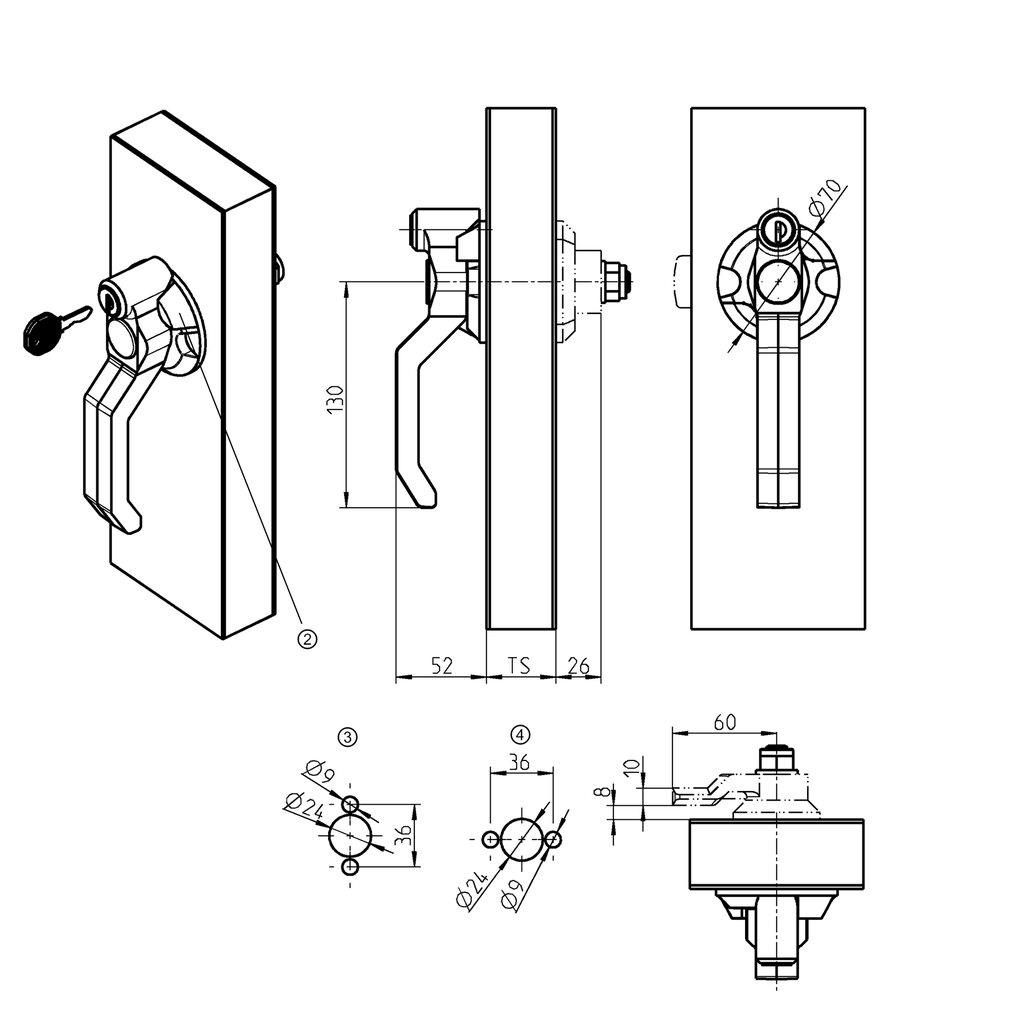

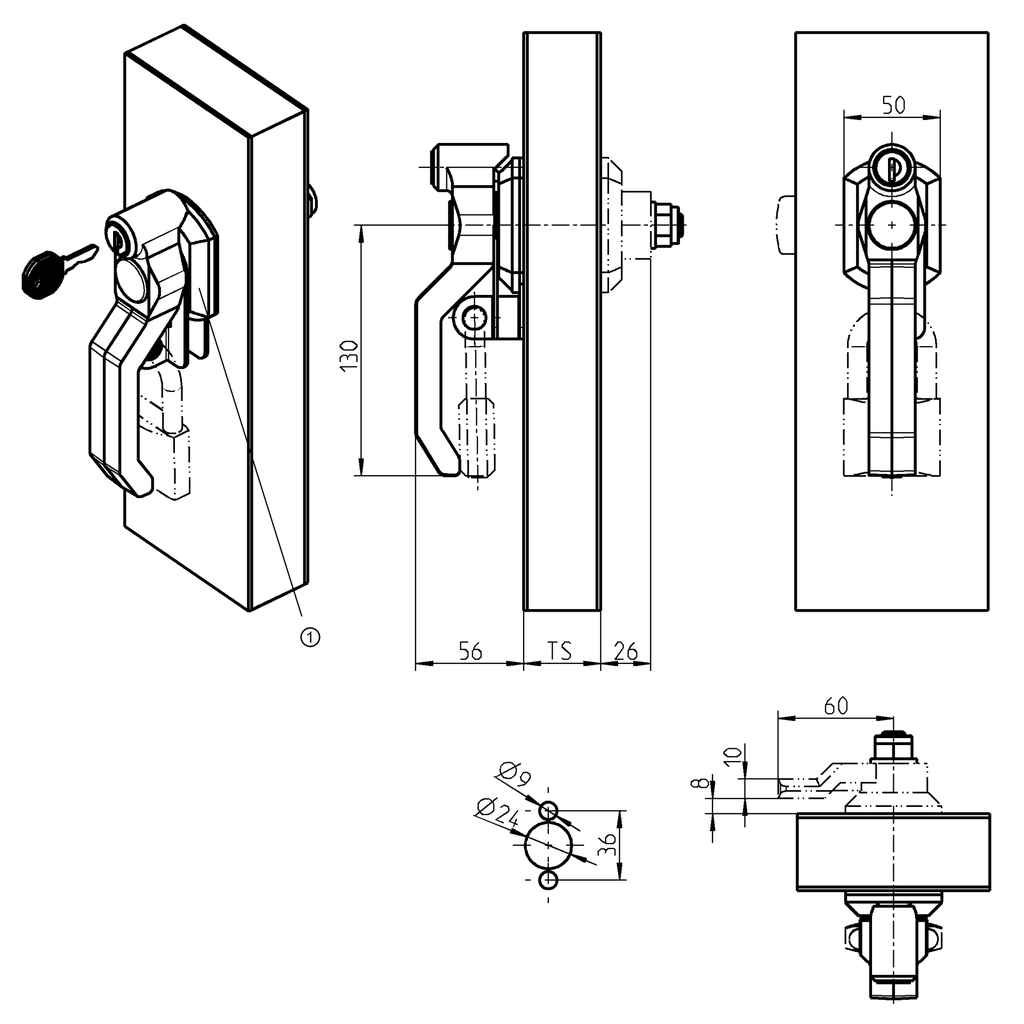

1 = Bezel with 180° or 90° stopper
2 = Bezel with 90° stopper
3 = Cut out door version left-hand
4 = Cut out door version right-hand
Internal Reference:
1091-U50
Product Type:
HVACR handle outside
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Handle Outside:
Handle short with round cylinder
Closure Type:
Heavy duty latch, classic
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
