Shaft unit E1, Zinc die and steel zinc-plated

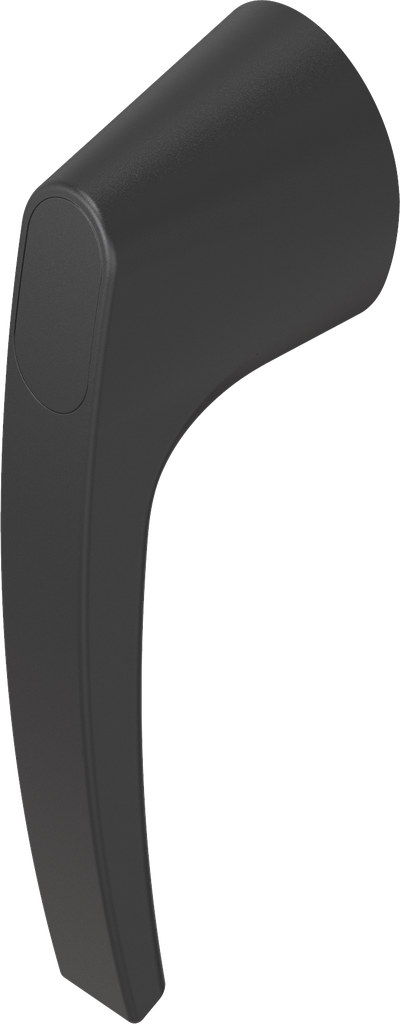

Outside handle double bit 5, Polyamide GF black
Product information:
Bezel inside with quick mounting function

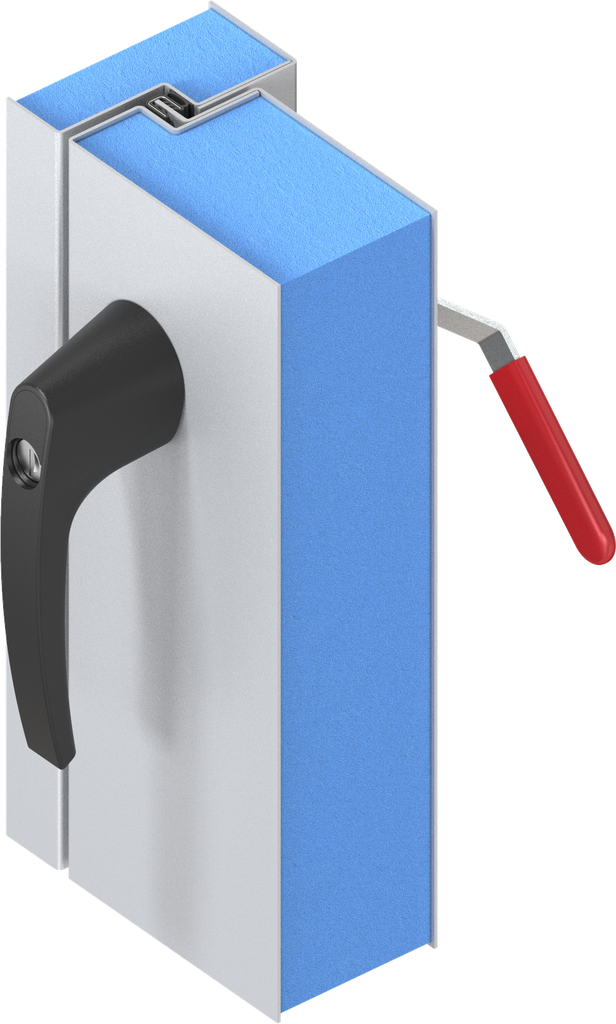

1 = Outside handle
2 = Shaft unit
3 = Roller cam
4 = Inside handle (optional)
5 = Pressure relief (optional)
Internal Reference:
1091-U159
Product Type:
HVACR handle outside
Program:
1091
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point
Handle Outside:
Handle short without locking set
Closure Type:
The modular HVACR program
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
