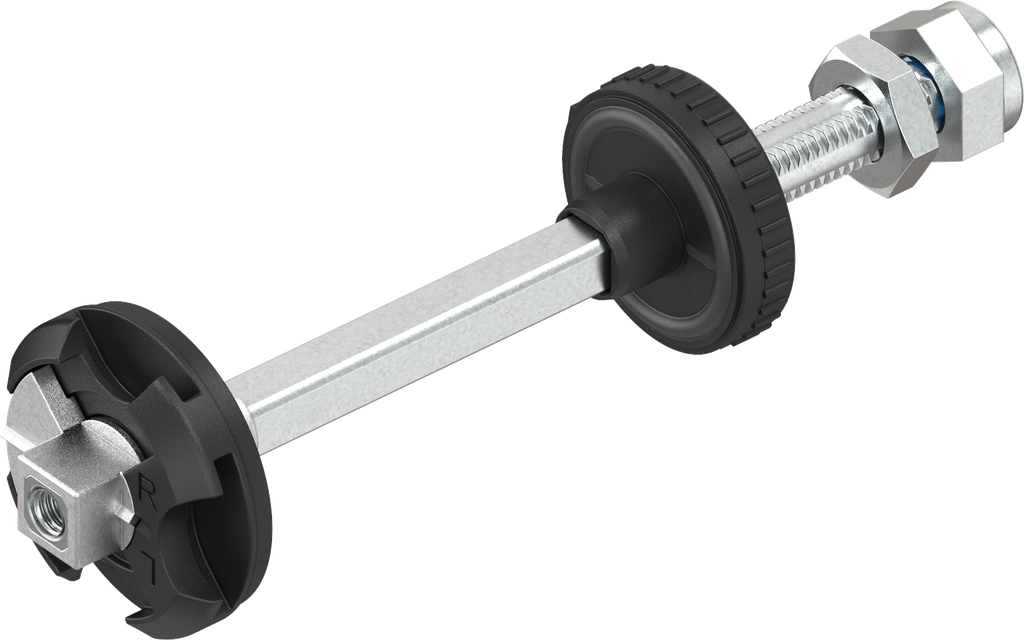

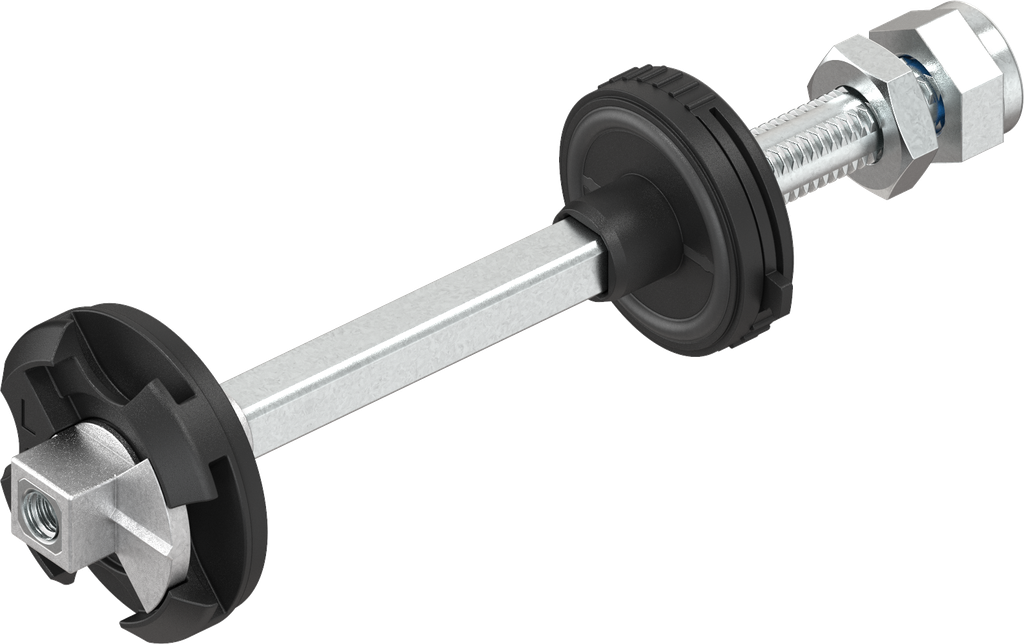

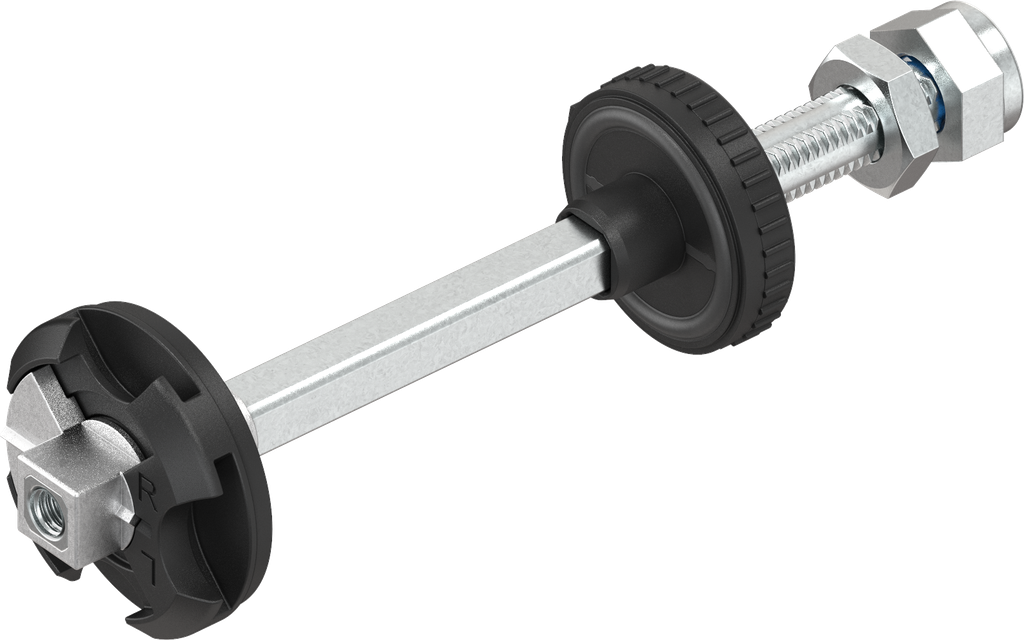

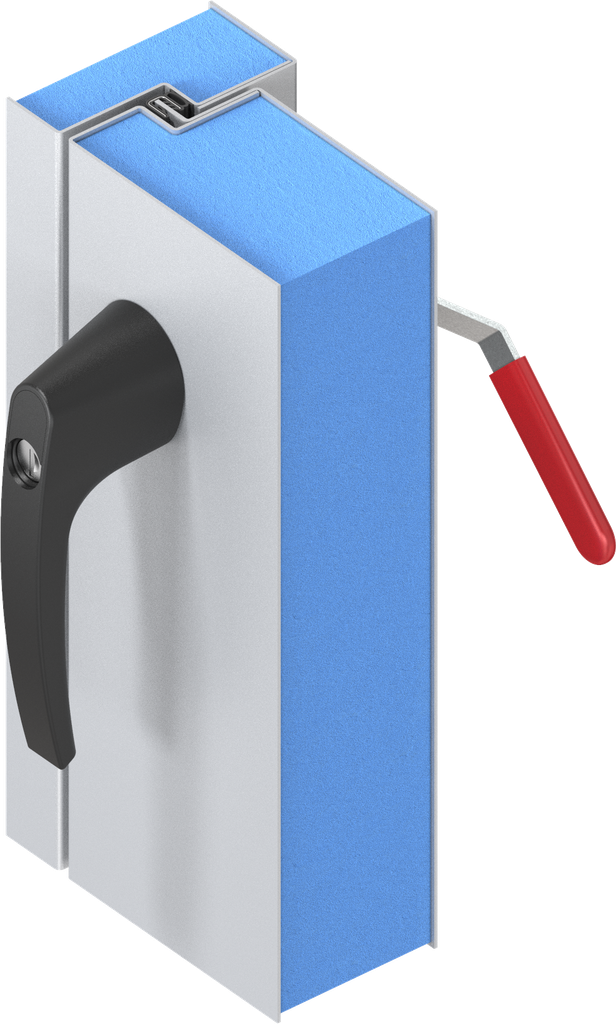

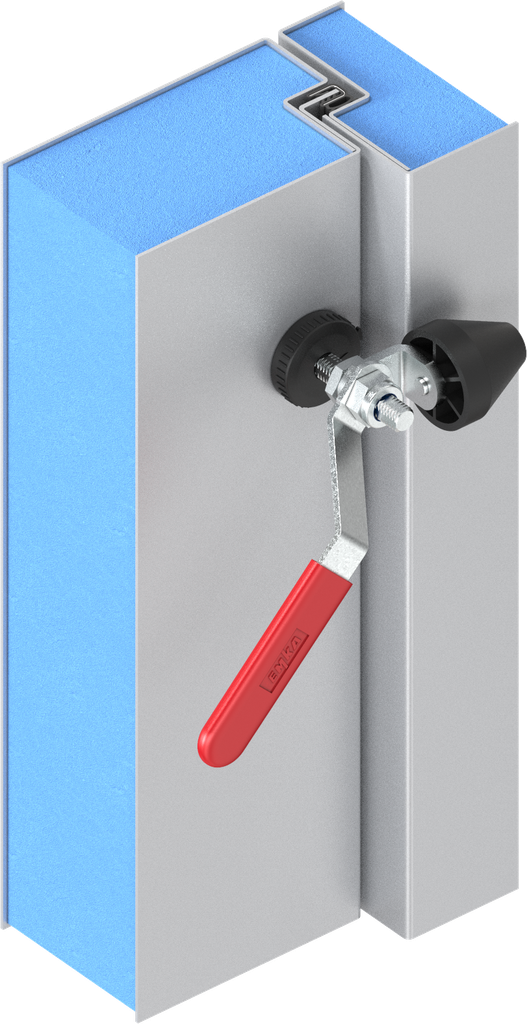

Shaft unit E1, Zinc die and steel zinc-plated
Shaft unit E1, Zinc die and steel zinc-plated

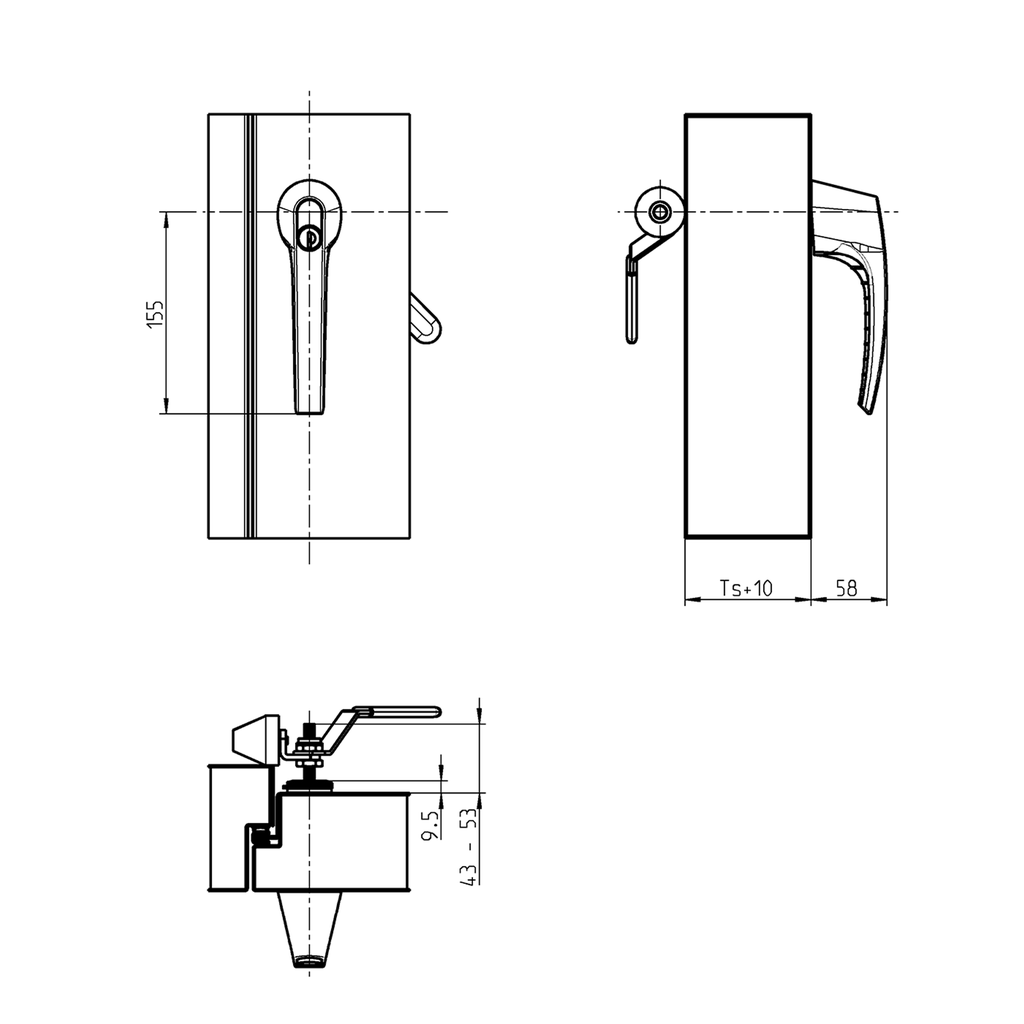

Product information:
Bezel inside with quick mounting function
1 = Outside handle
2 = Shaft unit
3 = Roller cam

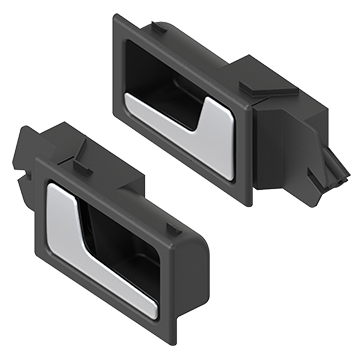

4 = Inside handle (optional)
% = Pressure relief (optional)

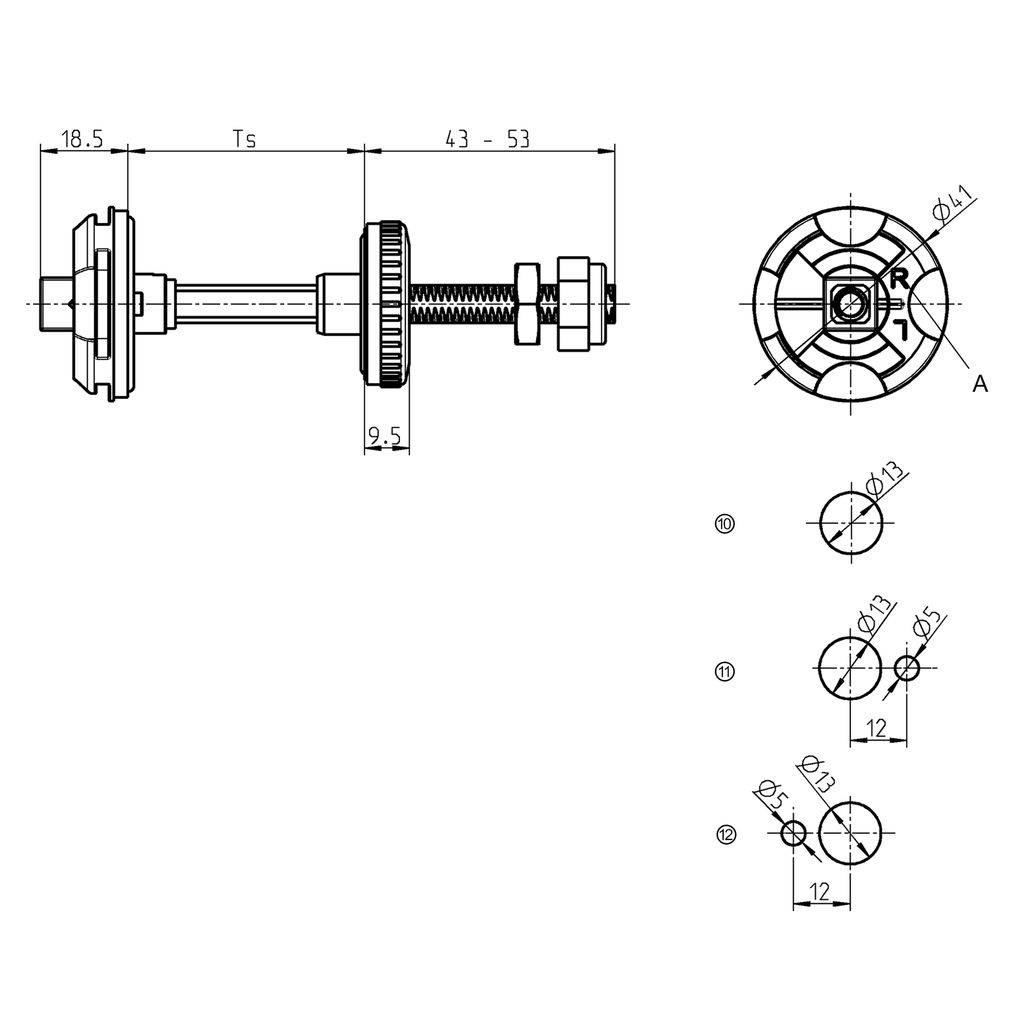

10 = Cut out inside
11 = Cut out front for right-hand stopper
12 = Cut out front for left-hand stopper

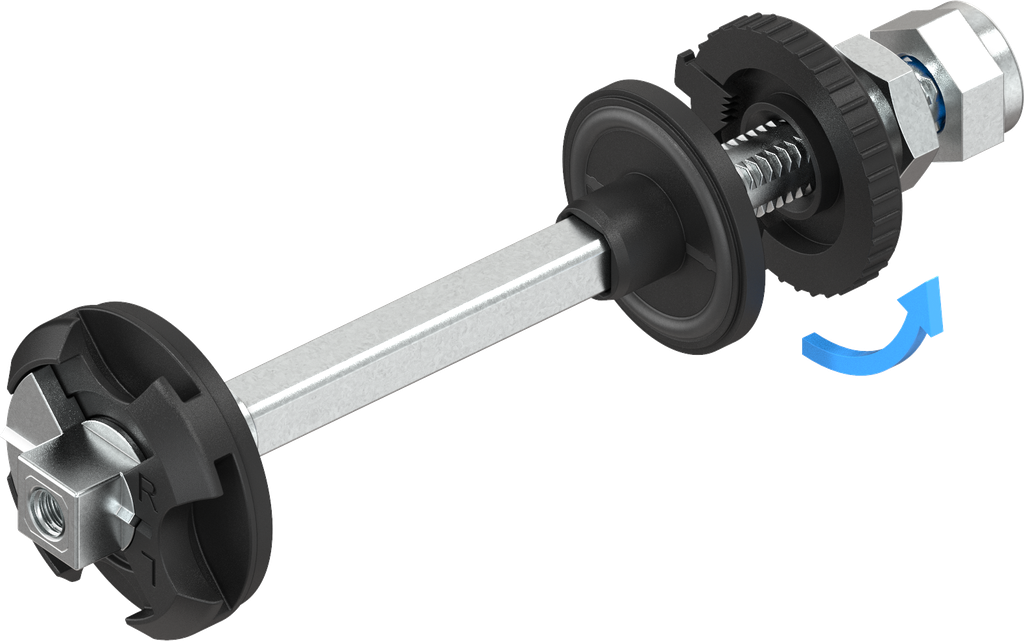

Assembly instruction:
The cut out of the shaft unit is only required if there is no bezel.
Internal Reference:
1091-U158-75
Product Type:
Shaft
Program:
1091
Material of the module :
Zinc die and steel
Surface of the module:
zinc-plated
Axis:
Steel and zinc die combined
Number of Possible Locking Points:
1 point
Integrated seal:
Yes
Suitable for door thickness from:
75 mm
Suitable for door thicknesses up to:
85 mm
Closure Type:
The modular HVACR program
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
