Locking set with profile half cylinder acc. to DIN 18252 keyed 110319 with 3 keys, Polyamide GF black
Locking set with profile half cylinder acc. to DIN 18252 keyed 110319 with 3 keys, Polyamide GF black

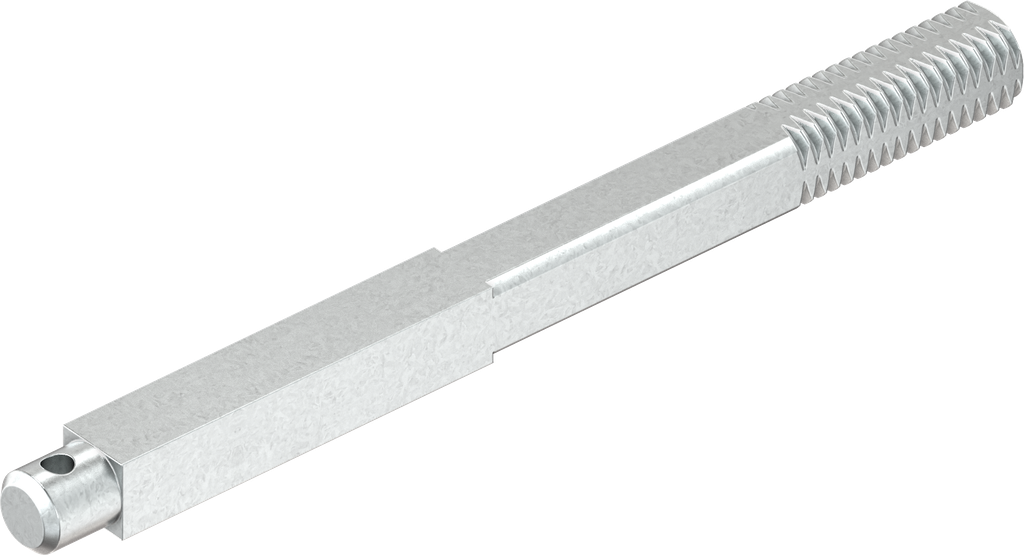

Shaft, Steel zinc-plated
Shaft, Steel zinc-plated

Shaft, Steel zinc-plated; 1091-59-04

https://www.emka.com/products/1091-59-04 https://www.emka.com/web/image/product.template/214480/image_1920?unique=8c45b77

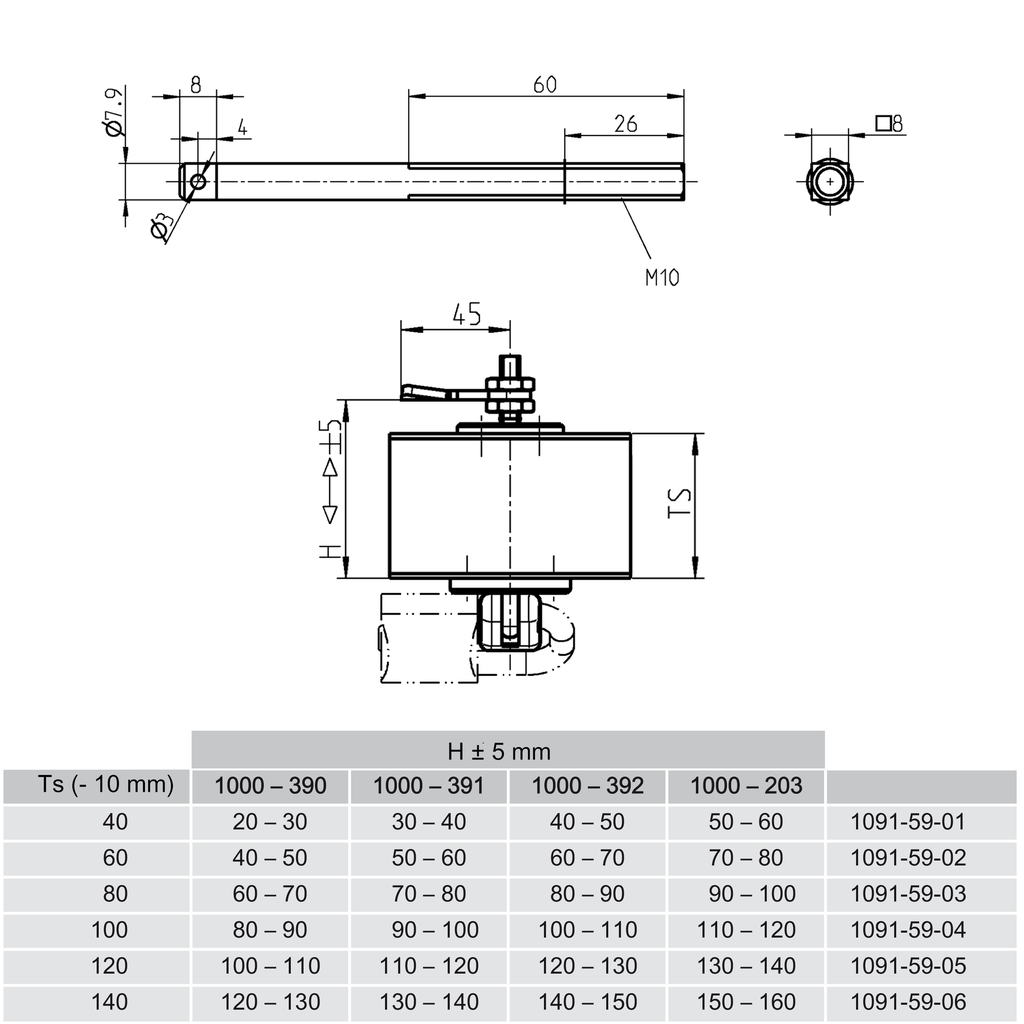

for Ts = 90 - 100 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1091-59-04
    Product Type: Shaft
    Material: Steel
    Program: 1091
    Surface: zinc-plated
    Axis: Steel shaft
    Suitable for door thickness from: 90 mm
    Suitable for door thicknesses up to: 100 mm
    Closure Type: HVACR compression latch
    No Specifications
    View All Products

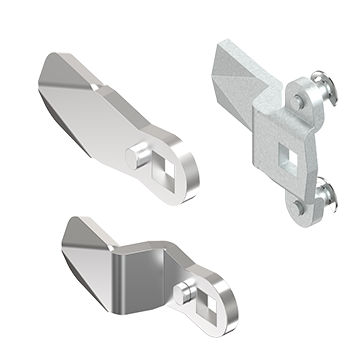

    Cam

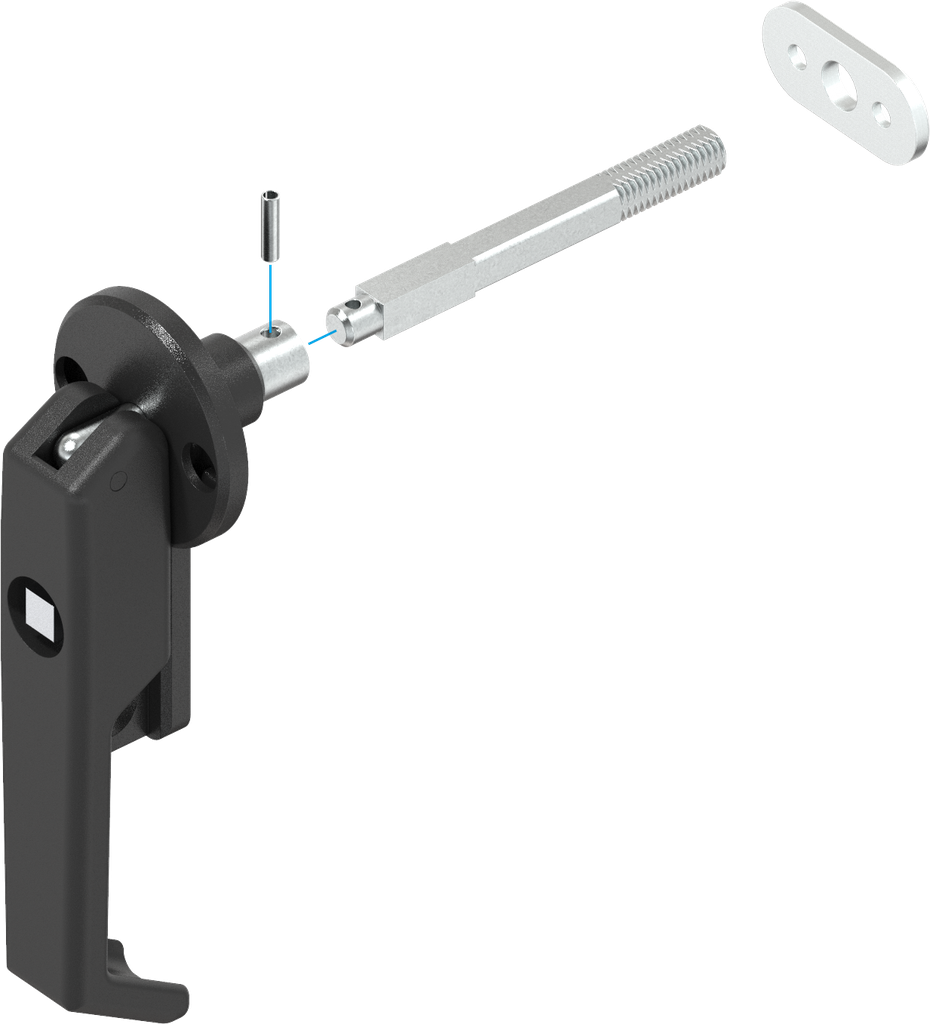

    Assembly
    HVACR
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1091-59-04_igs
    CAD file | 1091-59-04_stp
