Outside handle and inside handle for zinc die shaft, Polyamide GF black
Outside handle and inside handle for zinc die shaft, Polyamide GF black
Shaft, Steel zinc-plated
Shaft, Steel zinc-plated

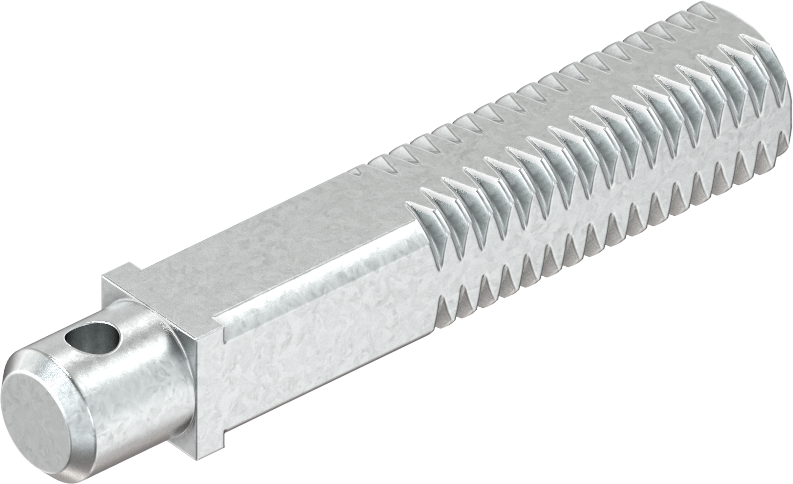

Shaft, Steel zinc-plated; 1091-59-01

https://www.emka.com/products/1091-59-01 https://www.emka.com/web/image/product.template/61990/image_1920?unique=020cb78

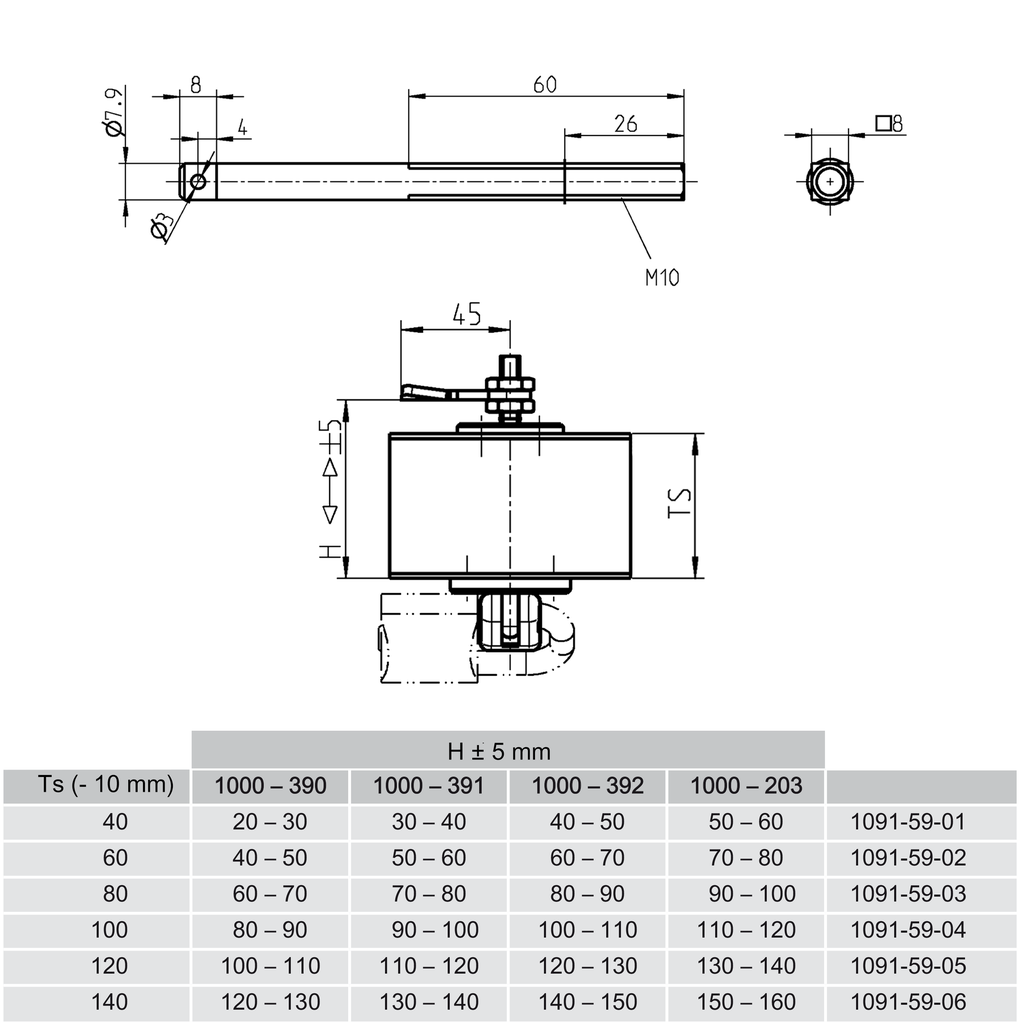

for Ts = 30 - 40 mm

    This combination does not exist.

    Contact Us
    Internal Reference: 1091-59-01
    Product Type: Shaft
    Material: Steel
    Program: 1091
    Surface: zinc-plated
    Axis: Steel shaft
    Suitable for door thickness from: 30 mm
    Suitable for door thicknesses up to: 40 mm
    Lock Type(1): Cam
    Closure Type: HVACR compression latch
    No Specifications
    View All Products
    Cam

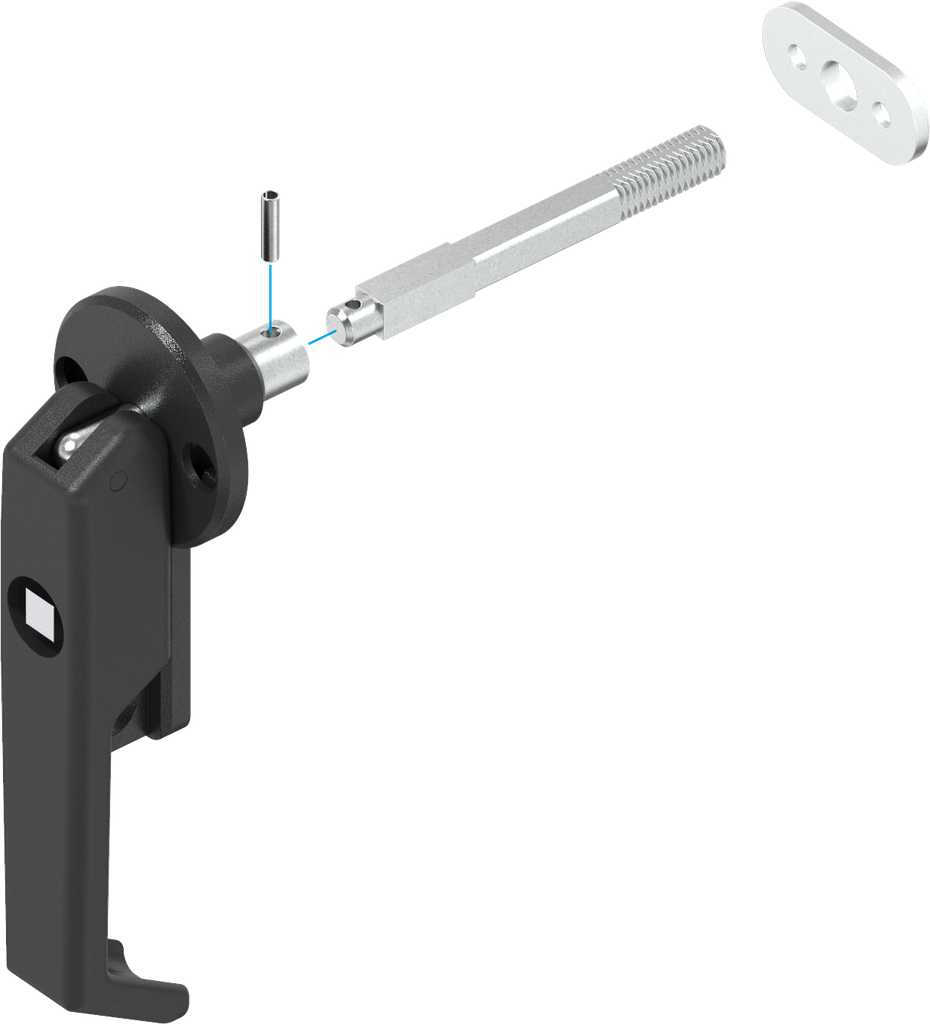

    Assembly
    HVACR
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1091-59-01_igs
    CAD file | 1091-59-01_stp
