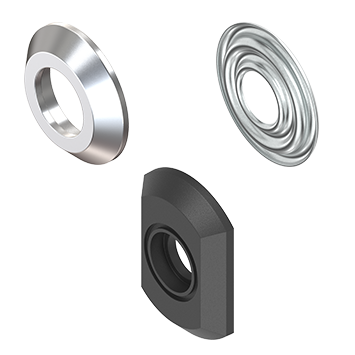

Bezel, Polyamide GF black
Shaft, Steel zinc-plated

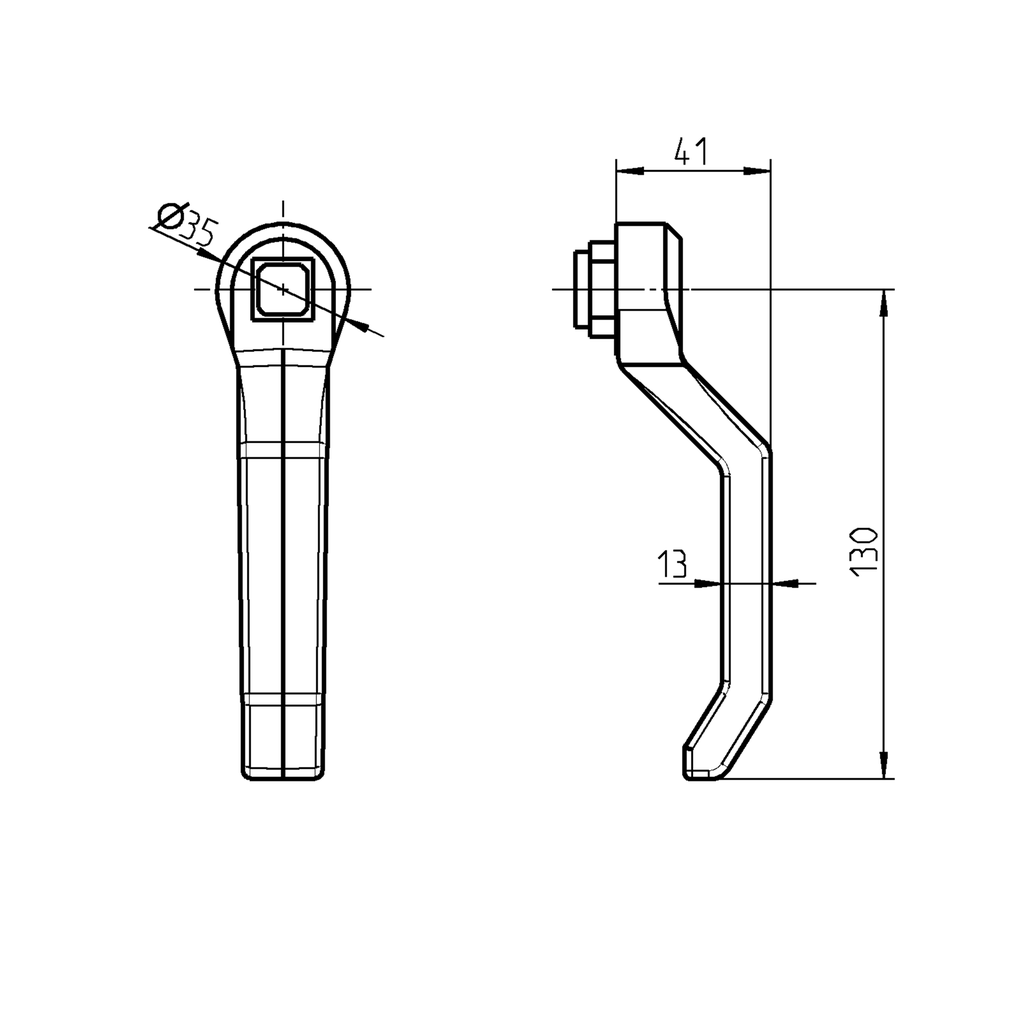

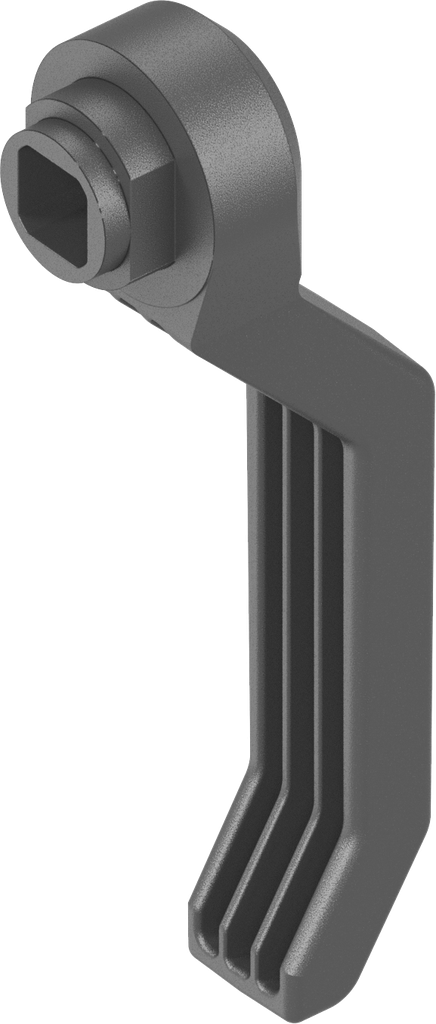

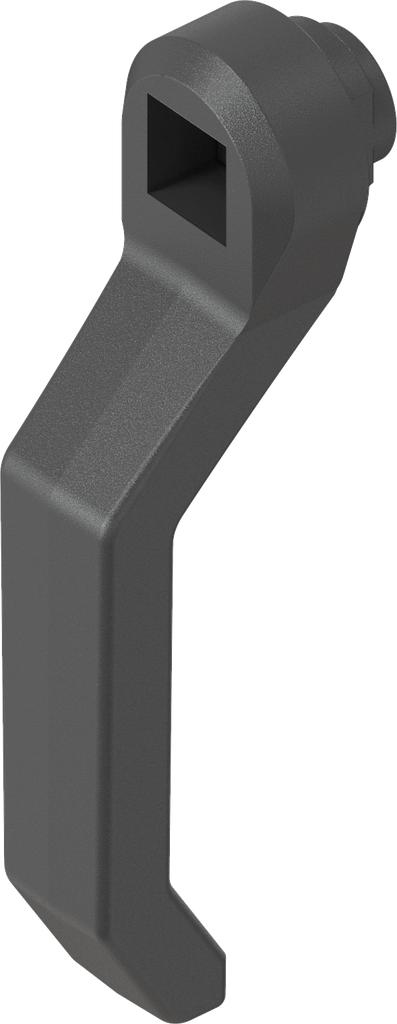

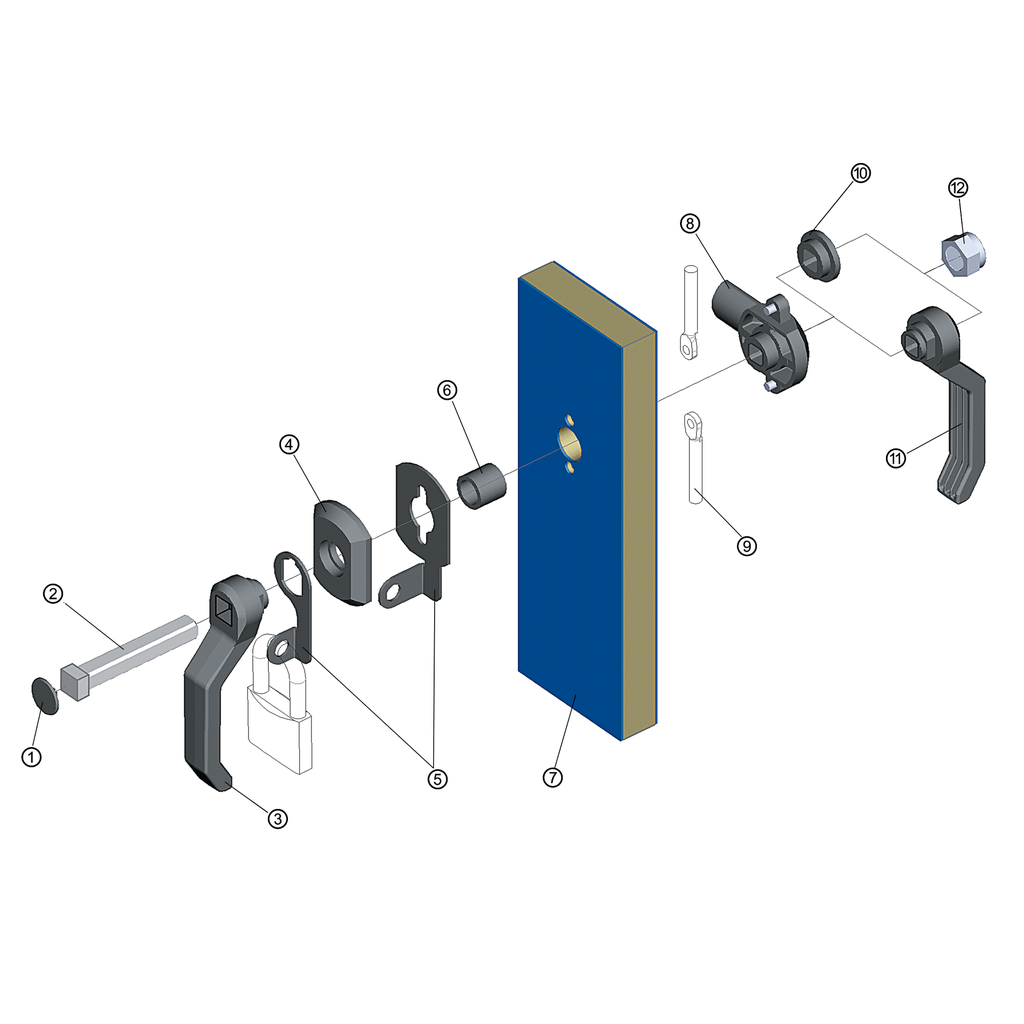

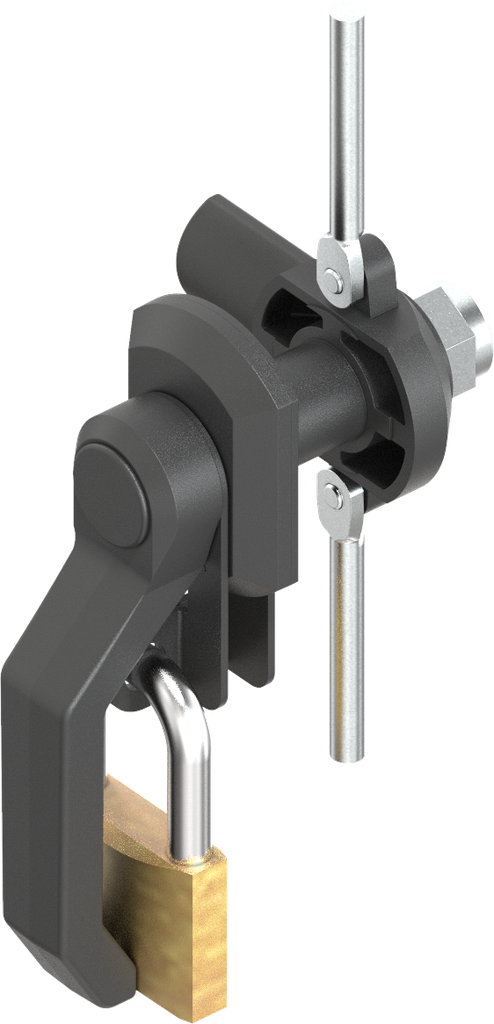

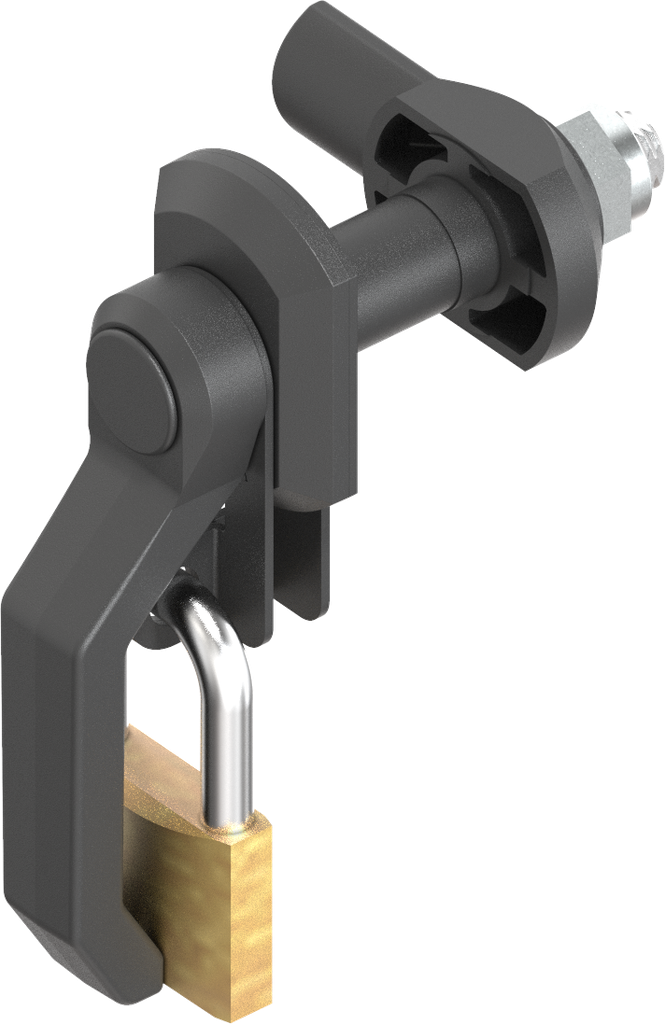

Product information:
1 = Plastic cap
2 = Zinc die shaft
3 = Outside handle and inside handle
4 = Bezel
5 = Padlock facility
6 = Spacer tube
7 = Door
8 = Bezel cam with and without 3-point cam
9 = Rod (on request)
10 = Bush
11 = Outside handle and inside handle
12 = Nut
Assembly instruction:
If an inside handle is installed, the maximum door gauge is reduced by 10 mm.
Akeneo Note:
Can be used outside and inside
Internal Reference:
1091-42
Product Type:
HVACR handle outside
Material:
Polyamide GF
Program:
1091
Surface:
black
Handle Outside:
Handle short without locking set
Handle Inside:
Handle short
Lock Type(1):
3-point cam
Closure Type:
Heavy duty latch, classic
