Bezel foamed, Polyamide GF black
Bezel foamed, Polyamide GF black
Bezel with 180° stopper for lockable heavy duty latch, Polyamide GF black
Bezel with 180° stopper for lockable heavy duty latch, Polyamide GF black

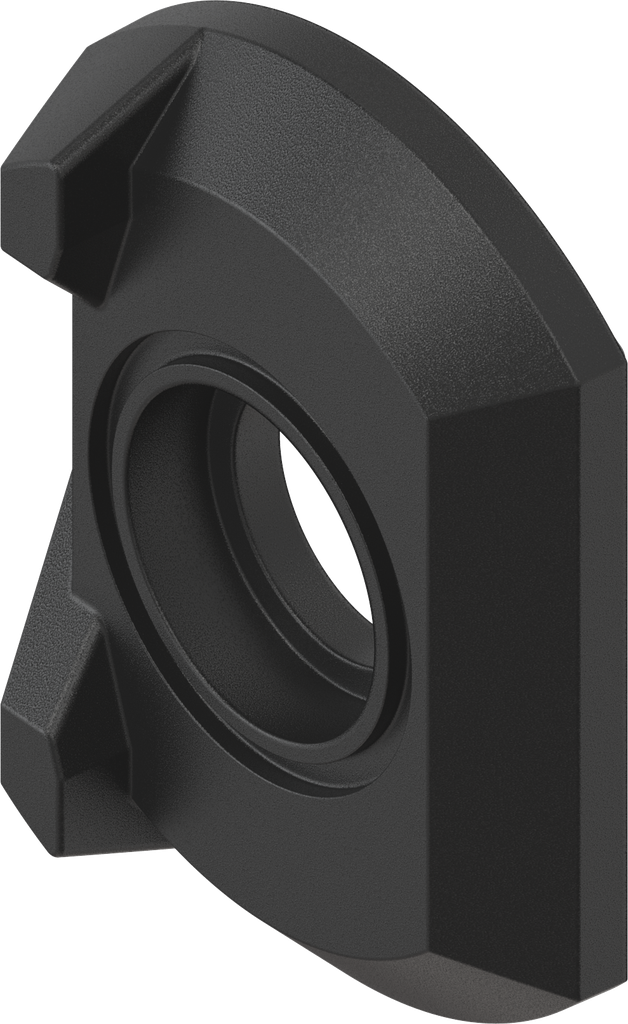

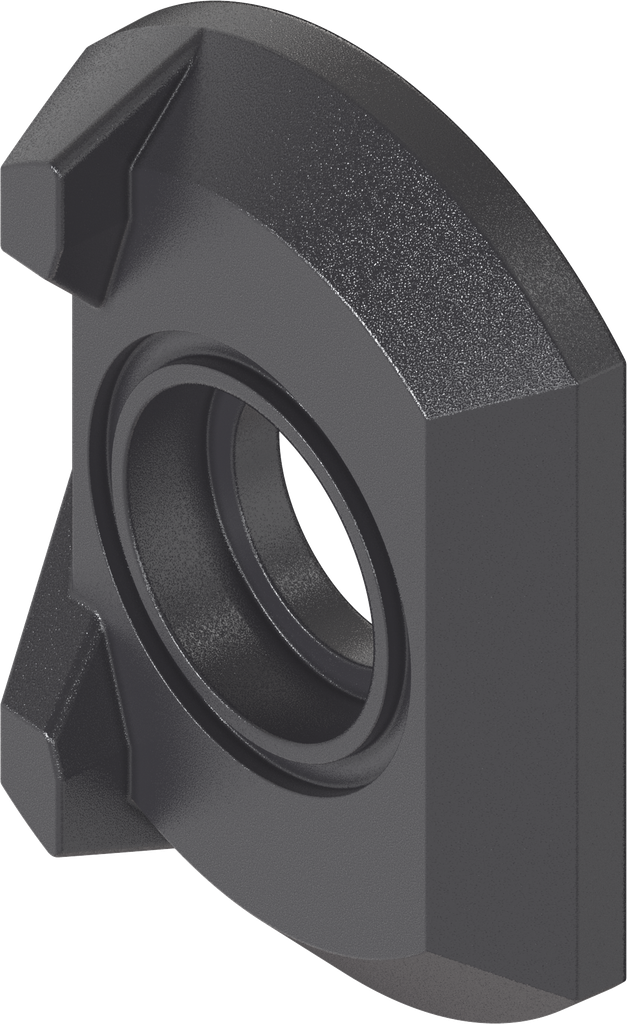

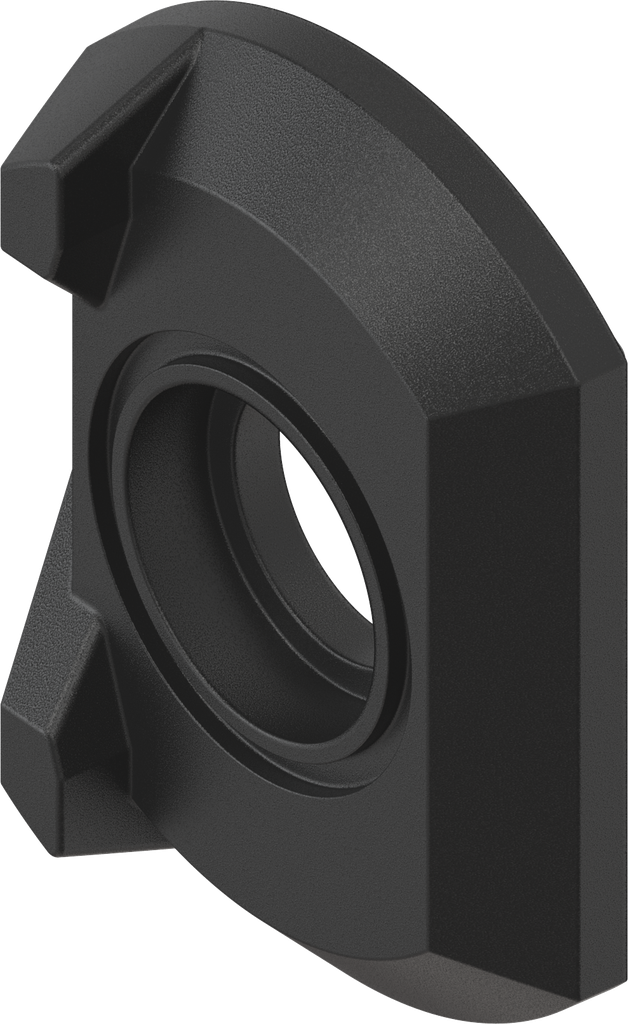

Bezel foamed with dogs, Polyamide GF black; 1091-17-1G

https://www.emka.com/products/1091-17-1g https://www.emka.com/web/image/product.template/61931/image_1920?unique=142ce7a

    This combination does not exist.

    Contact Us

    Product information:

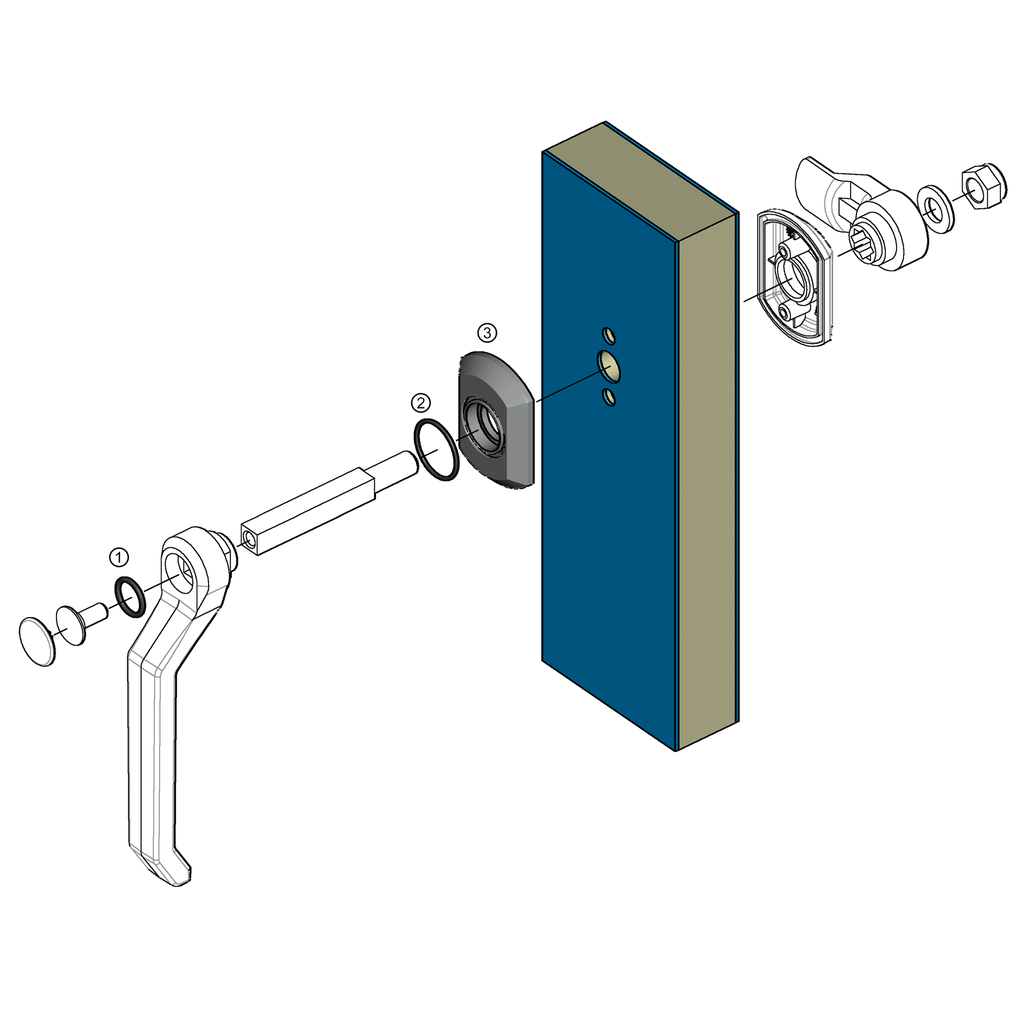

    1 = O-ring for outside handle

    2 = O-ring for bezel

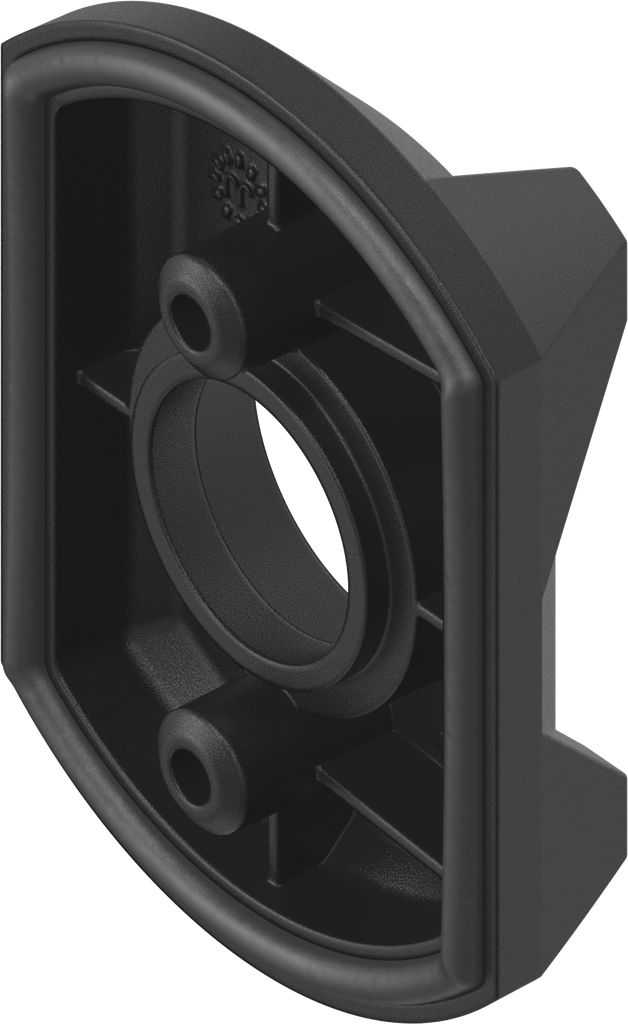

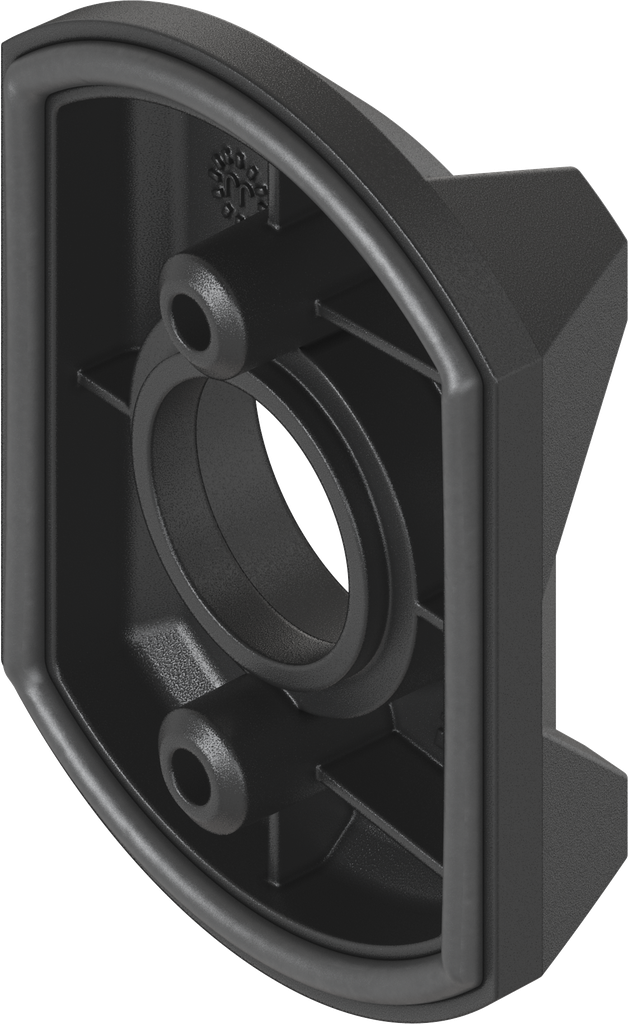

    3 = Foamed bezel

    IP 65 is achieved using O-ring set 1091-U90
    Internal Reference: 1091-17-1G
    Product Type: Bezel
    Material: Polyamide GF
    Program: 1091
    Surface: black
    Integrated seal: Yes

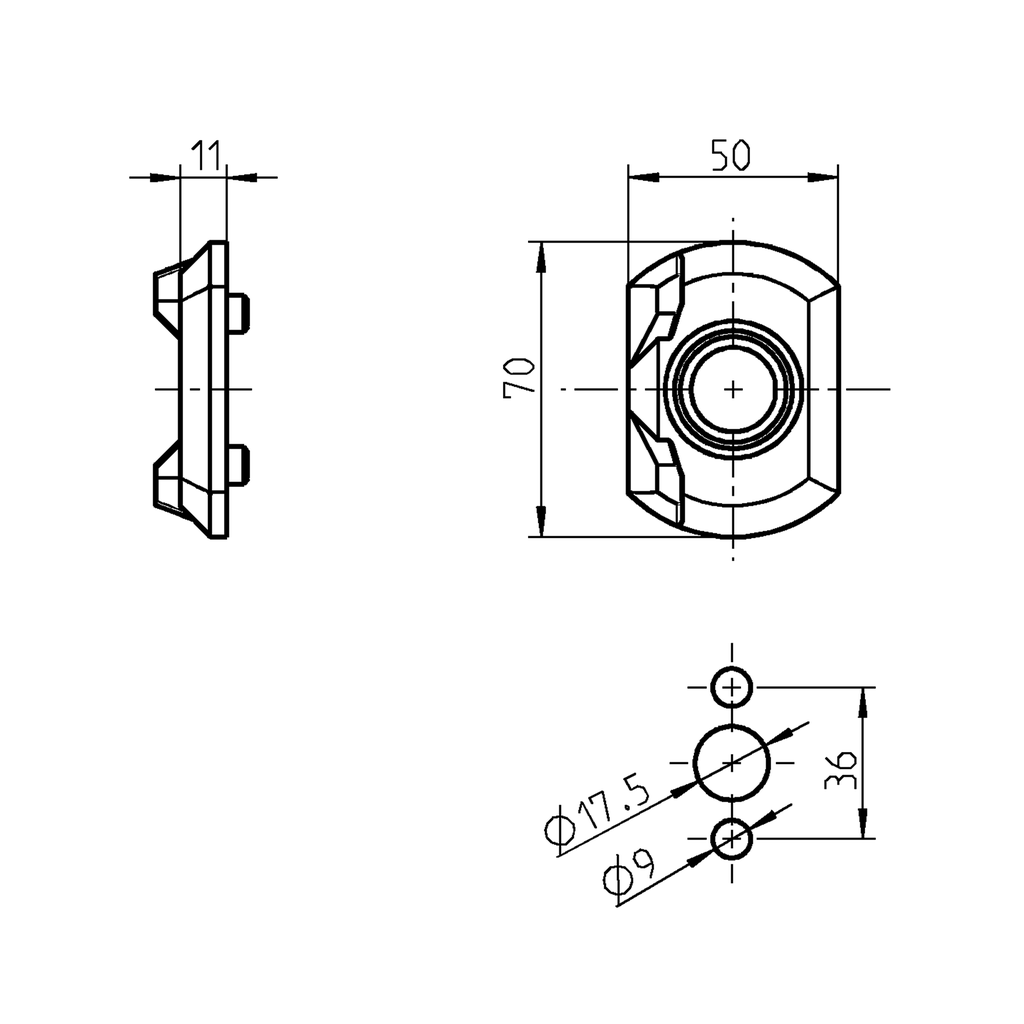

    Rosette: Bezel round Ø 70, width 50 with 180° stopper and foamed for IP 65
    Closure Type: Heavy duty latch, classic
    No Specifications
    View All Products
    Locking cam
    Cam
    HVACR handle outside
    HVACR handle inside
    Spacer
    Shaft
    O-ring and flat seal
    Here you can find the product data sheets and CAD files of this product
