3D Unit connector without recess, Polyamide 66 GF 50 black
3D Unit connector without recess, Polyamide 66 GF 50 black

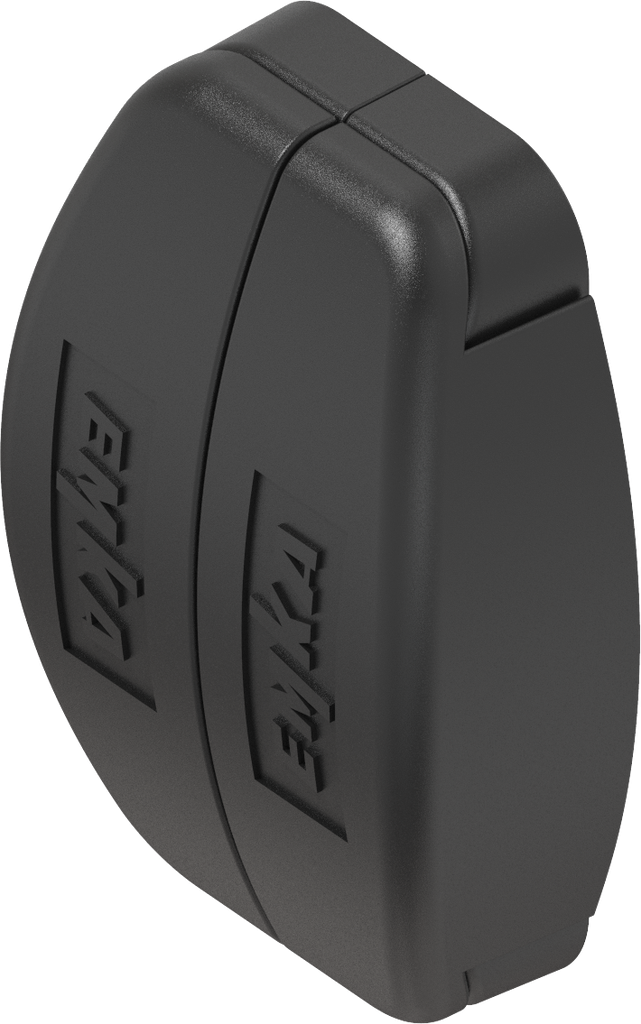

Cover for 3D unit connector, Polyamide black
Cover for 3D unit connector, Polyamide black

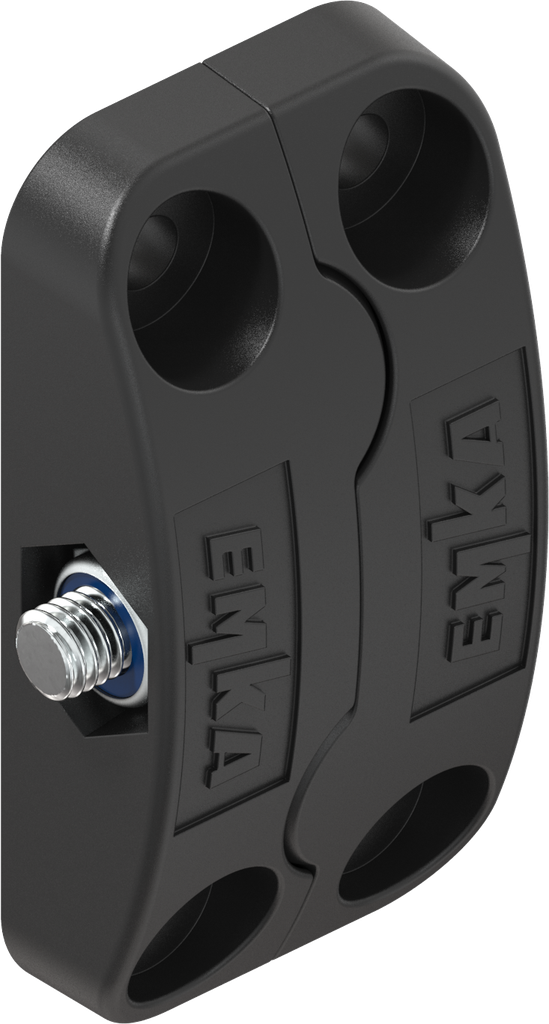

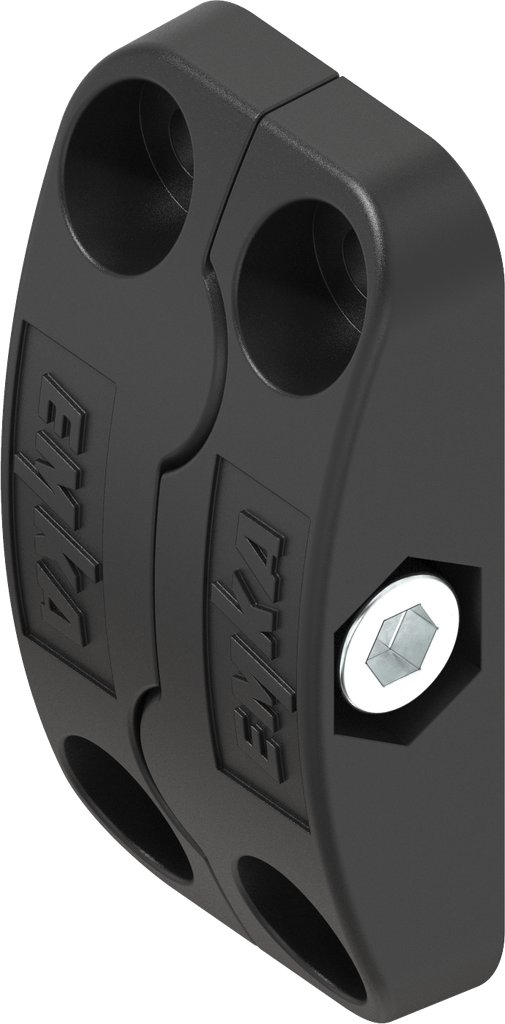

3D Unit connector with recess, Polyamide 66 GF 50 black; 1076-U15

https://www.emka.com/products/1076-u15 https://www.emka.com/web/image/product.template/61840/image_1920?unique=27145b4

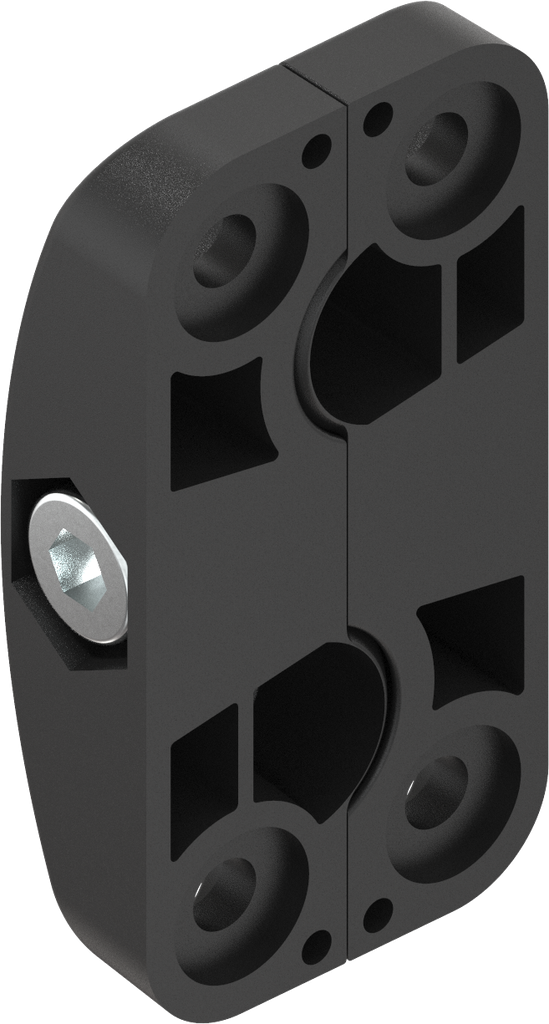

Recess for rivet nut

    This combination does not exist.

    Contact Us

    Product information:

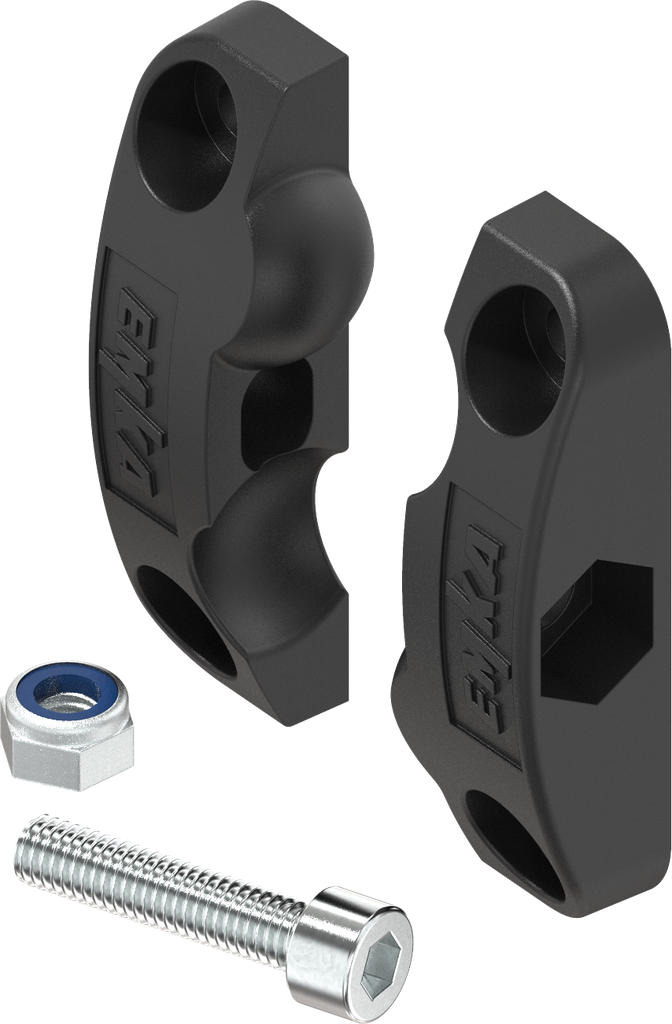

    3D unit connector without fixing material

    Function:

    Spherical shaping allows 3D positioning

    • Lateral offset: 7 mm
    • Hight offset: 5 mm
    • Depth offset: 3 mm

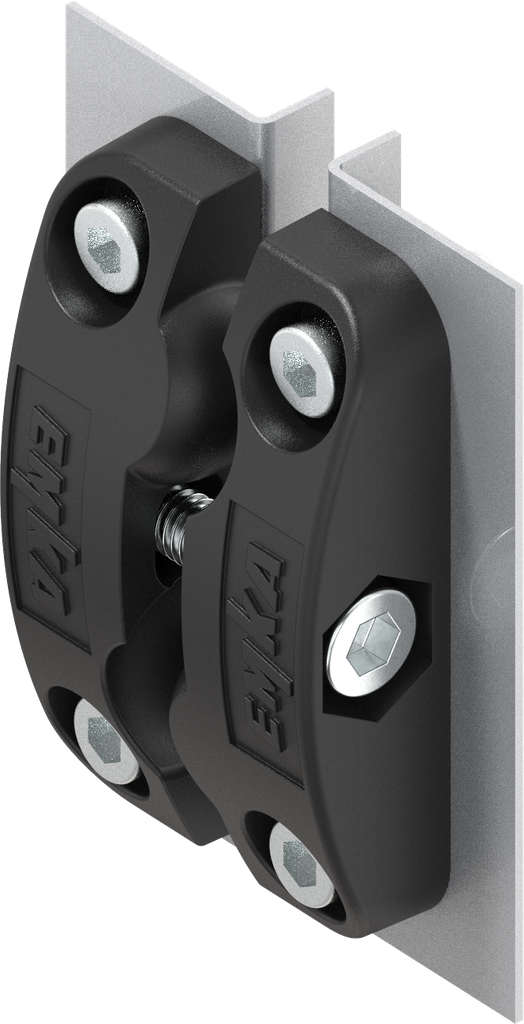

    Assembly instruction:

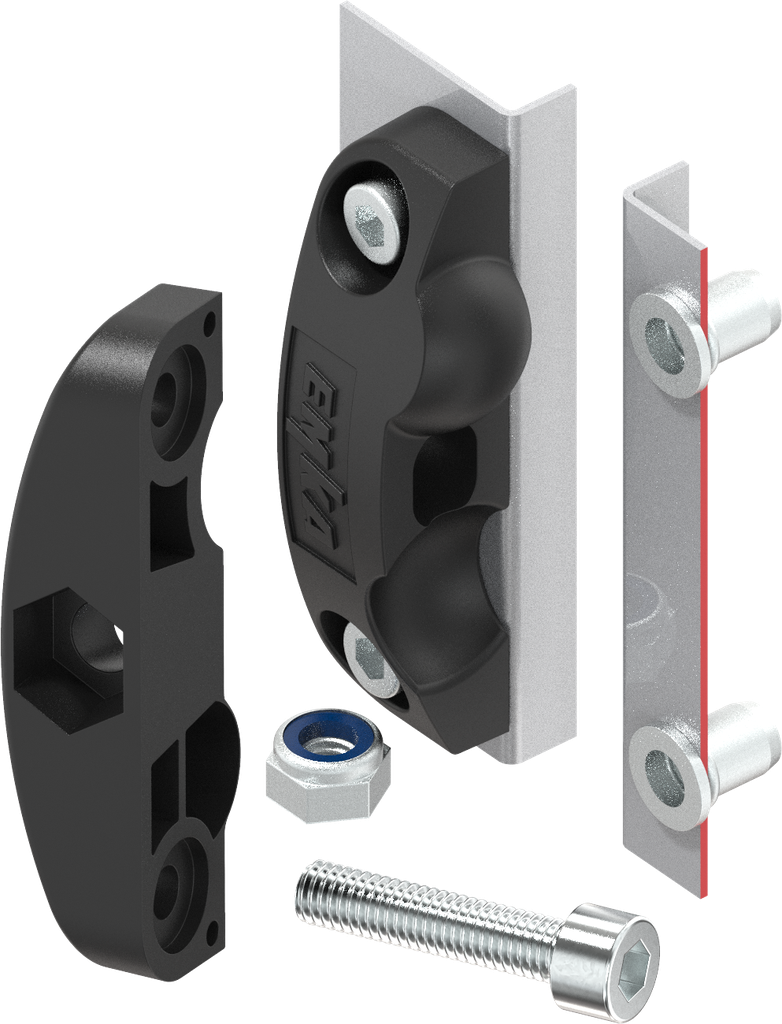

    3D unit connector with recess = for hexagon socket head cap screw M6 DIN EN ISO 4762washer 6 DIN EN ISO 7089 / 7090 and rivet nut
    Internal Reference: 1076-U15
    Product Type: 3D unit connectors
    Program: 1076
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    No Specifications
    View All Products

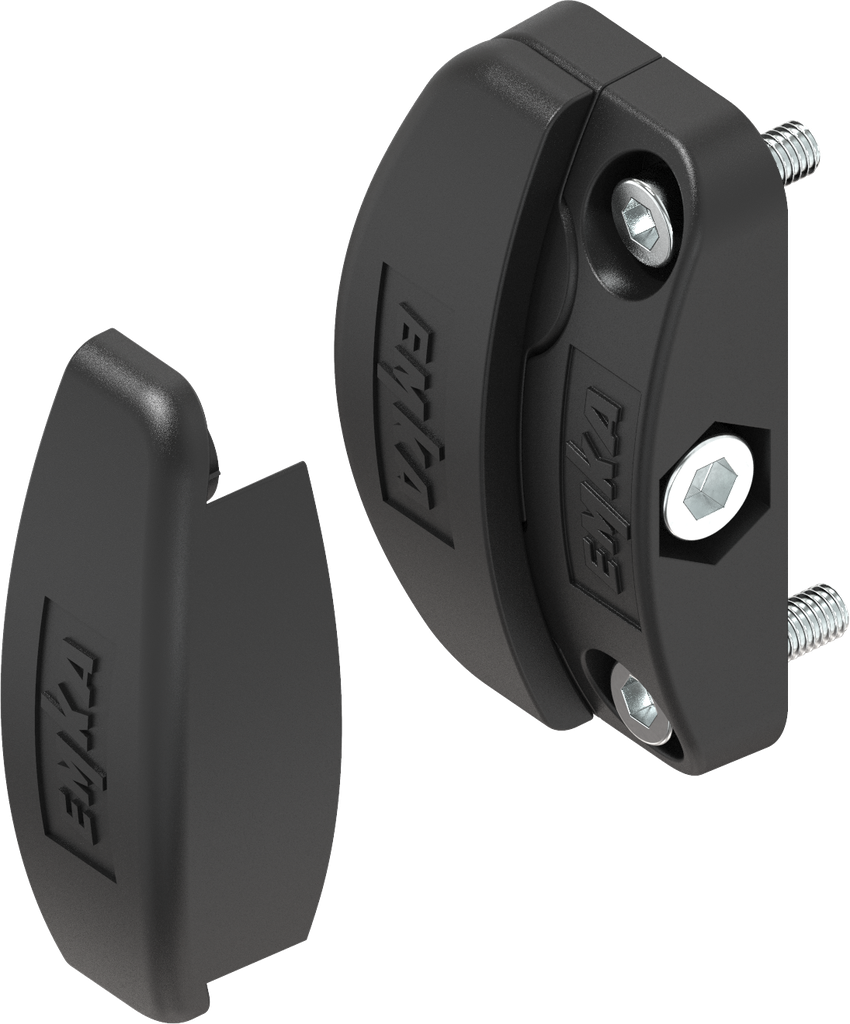

    Cover for 3D unit connector
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1076-U15_igs
    CAD file | 1076-U15_stp
