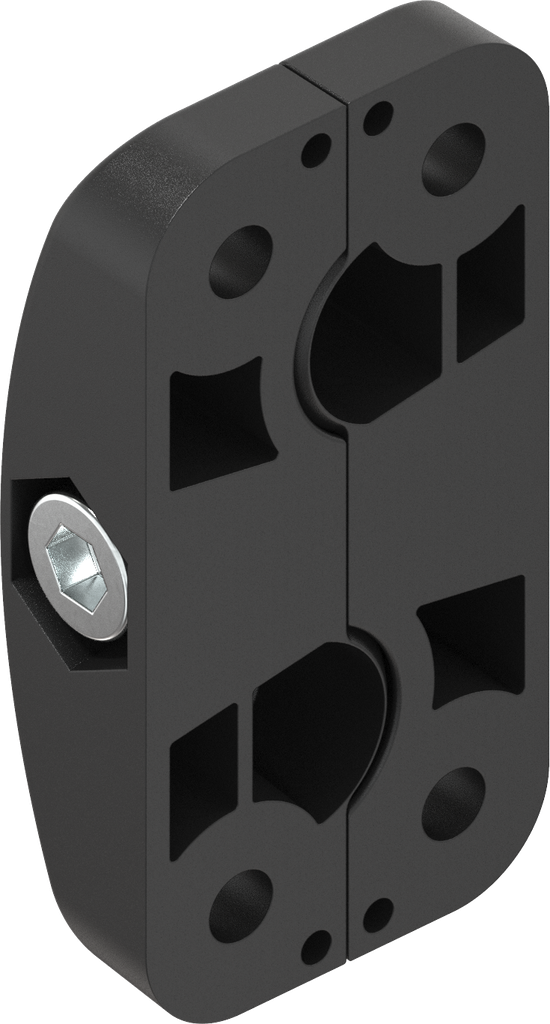

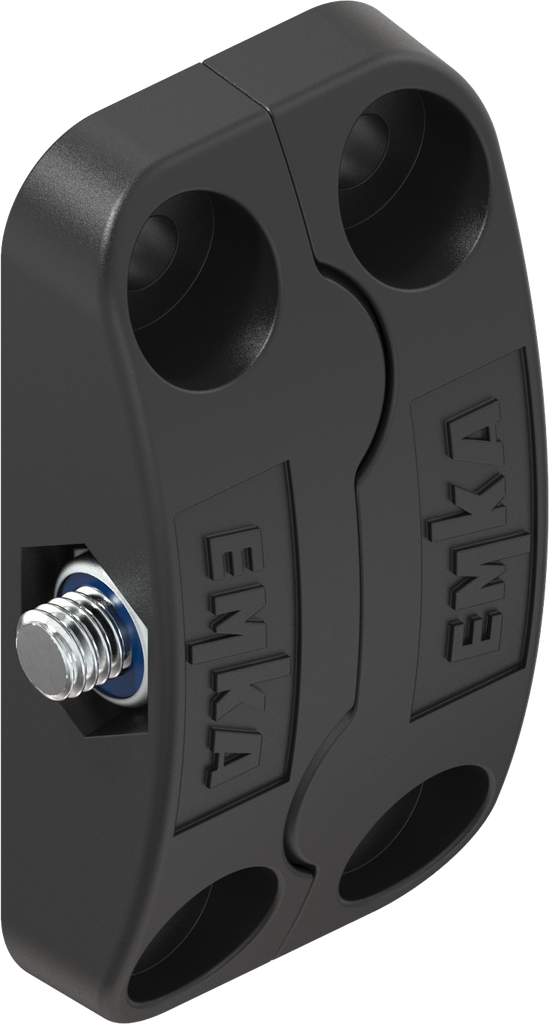

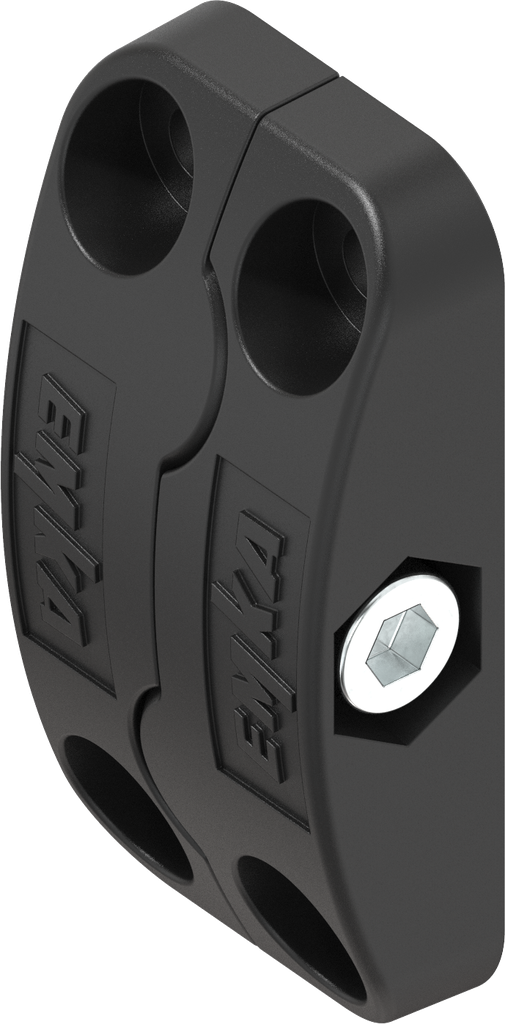

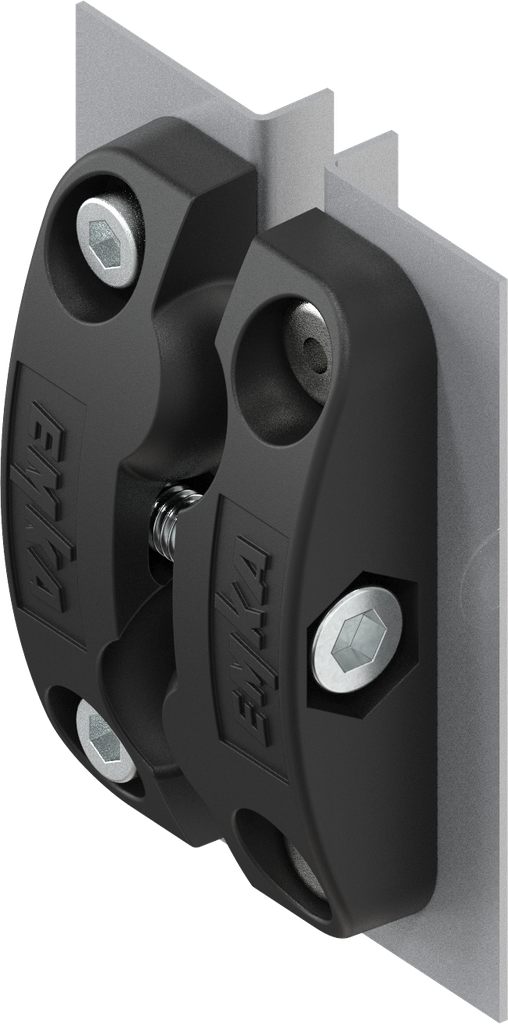

3D Unit connector without recess, Polyamide 66 GF 50 black; 1076-U14

https://www.emka.com/products/1076-u14 https://www.emka.com/web/image/product.template/61839/image_1920?unique=5d3fcde

    This combination does not exist.

    Contact Us

    Product information:

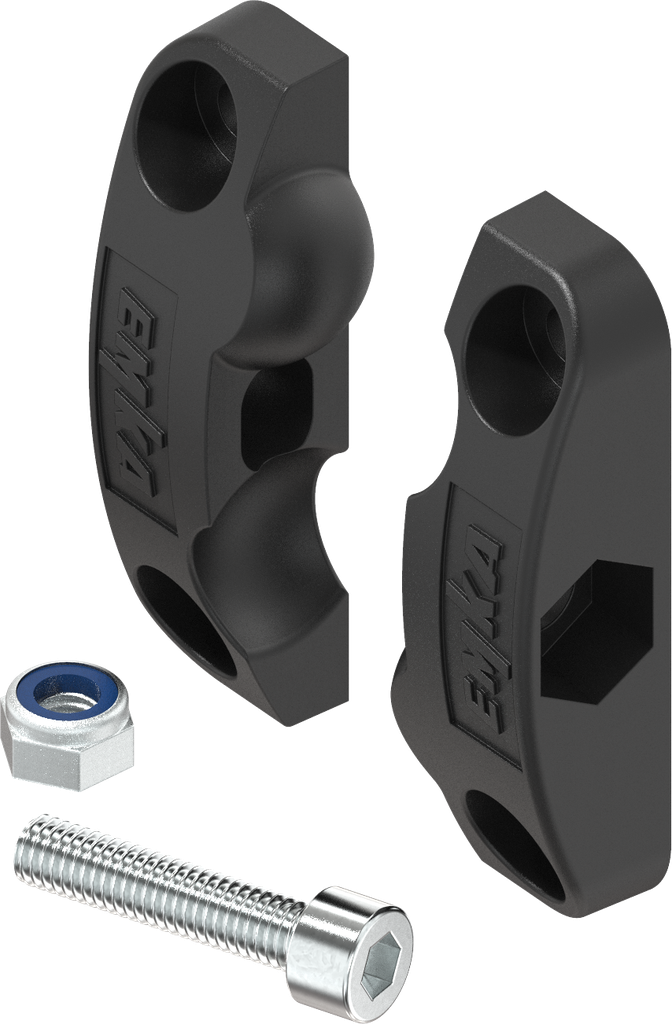

    3D unit connector without fixing material

    Function:

    Spherical shaping allows 3D positioning

    • Lateral offset: 7 mm
    • Hight offset: 5 mm
    • Depth offset: 3 mm

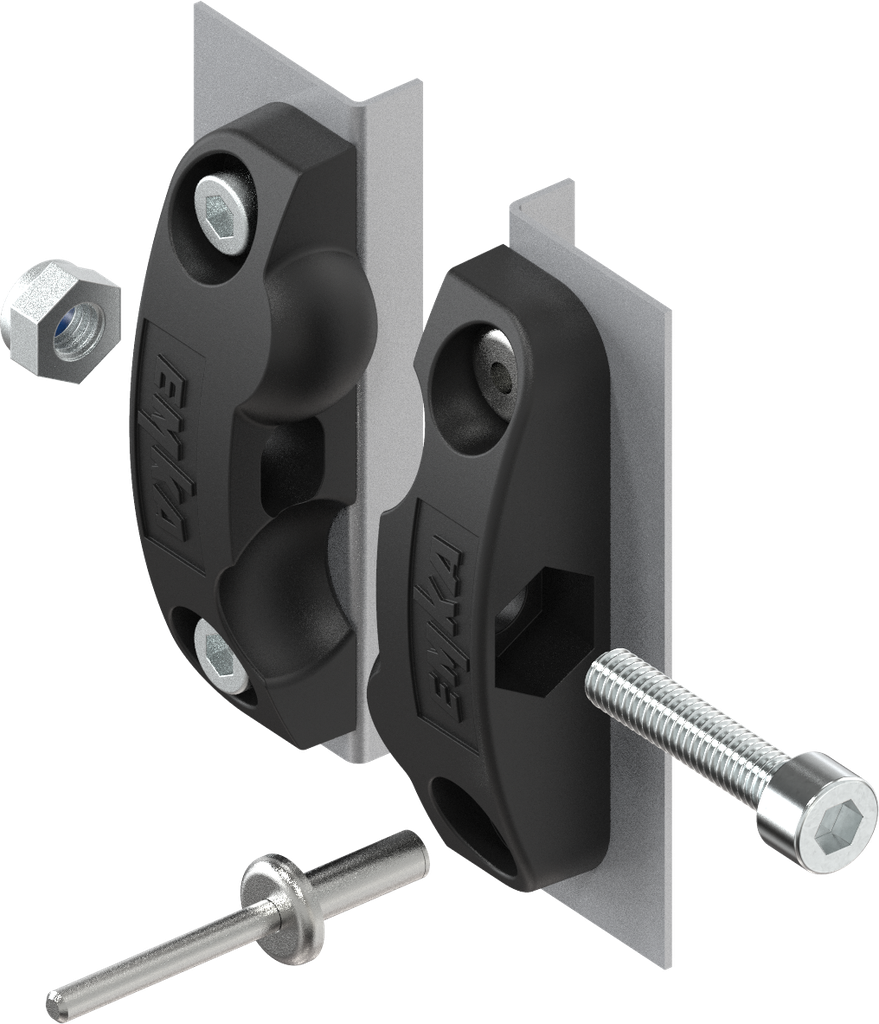

    Assembly instruction:

    3D unit connector without recess = for hexagon socket head cap screw M6 DIN EN ISO 4762 and washer 6 DIN EN ISO 7089 / 7090 or blind rivet with flat head DIN EN ISO 15973
    Internal Reference: 1076-U14
    Product Type: 3D unit connectors
    Program: 1076
    Material of the module : Polyamide 66 GF 50
    Surface of the module: black
    No Specifications
    View All Products

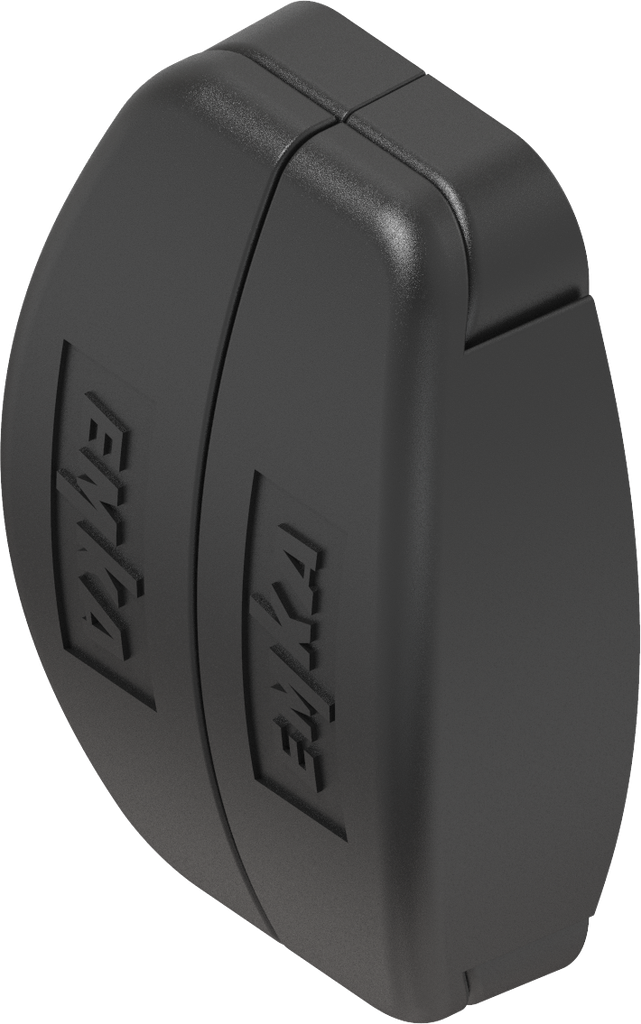

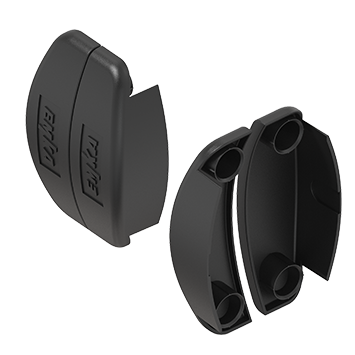

    Cover for 3D unit connector
