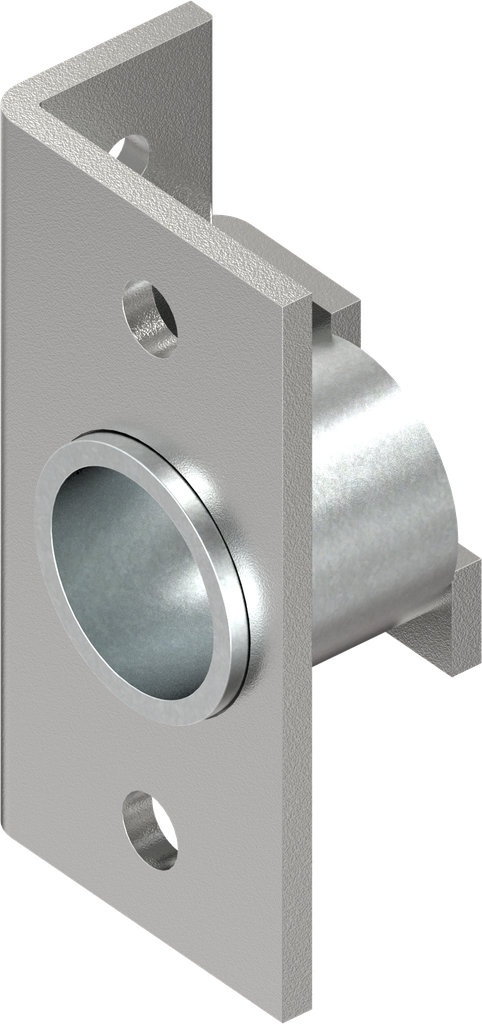

Housing with bush, Zinc die and steel raw

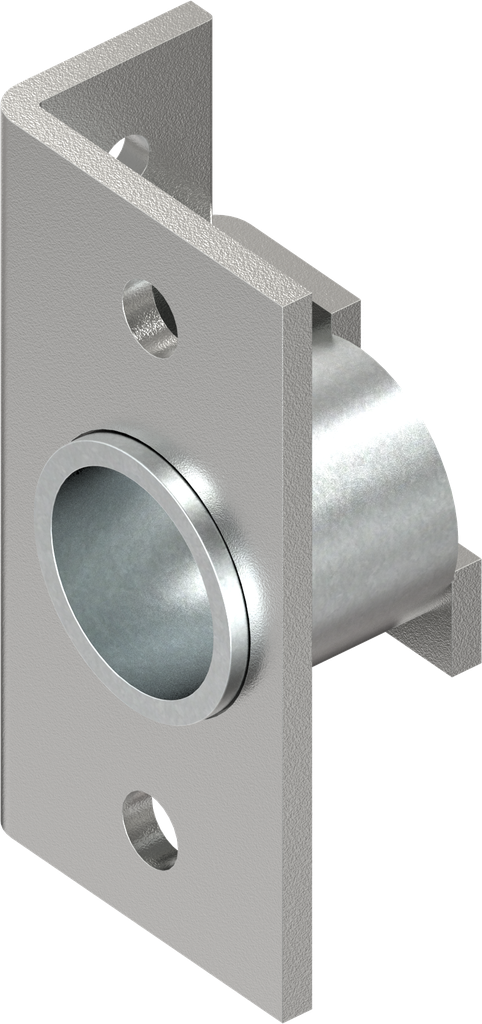

Housing with bush, Zinc die and steel raw
Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated
Rod control, right version, for profile half cylinder and for round rods stroke 18, Steel zinc-plated

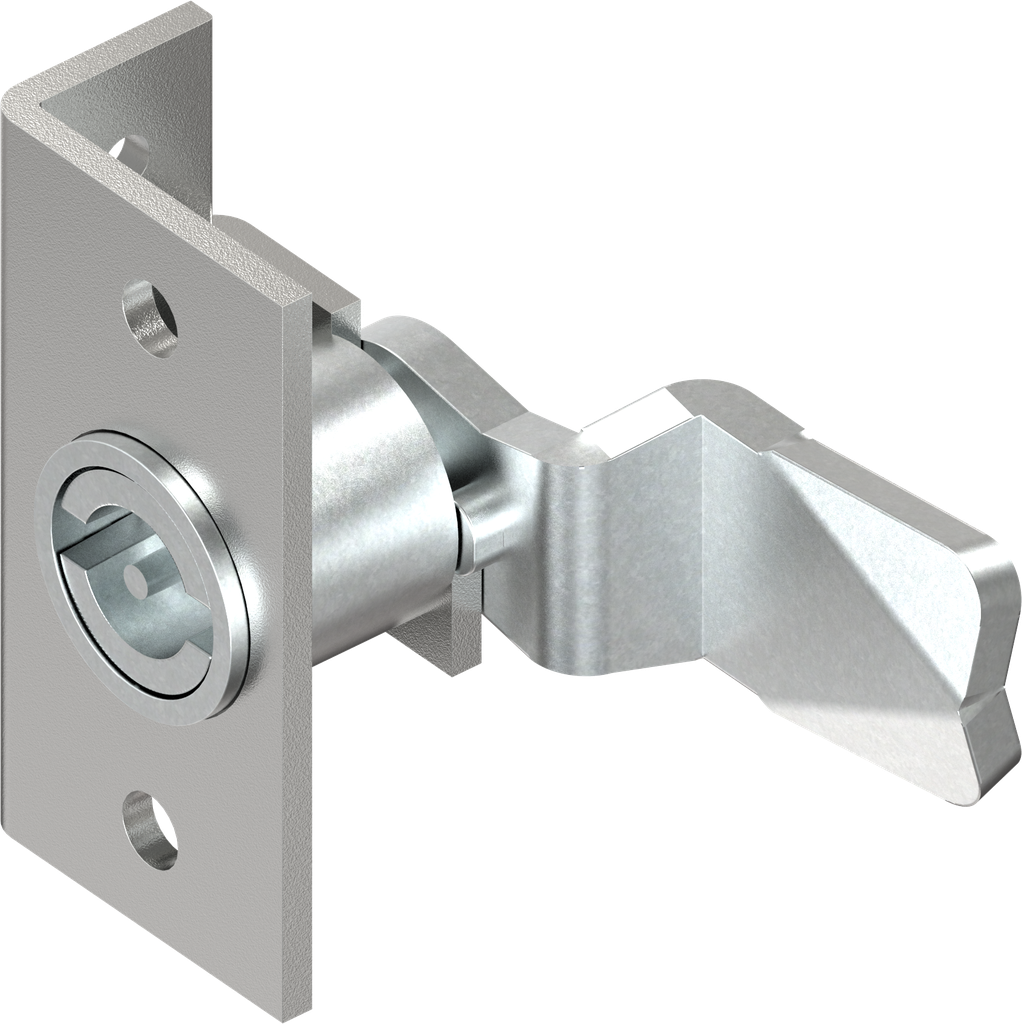

Housing with bush, Zinc die and steel raw; 1057-U2

https://www.emka.com/products/1057-u2 https://www.emka.com/web/image/product.template/61773/image_1920?unique=2a0e3c0

for flush mounting

    This combination does not exist.

    Inside the sealing Left
    Contact Us
    Internal Reference: 1057-U2
    Product Type: Housing
    Program: 1057
    Catalog sheet: 1B-820
    Material of the module : Zinc die and steel
    Surface of the module: raw
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing,weld-on
    Mounting Positions : Inside the sealing
    Housing Head Shape: Special form
    GH Mass: 20 mm
    Suitable for door thicknesses up to: 1.50 mm
    Locking set: Insert
    Door Version : Left
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Assembly
    Insert

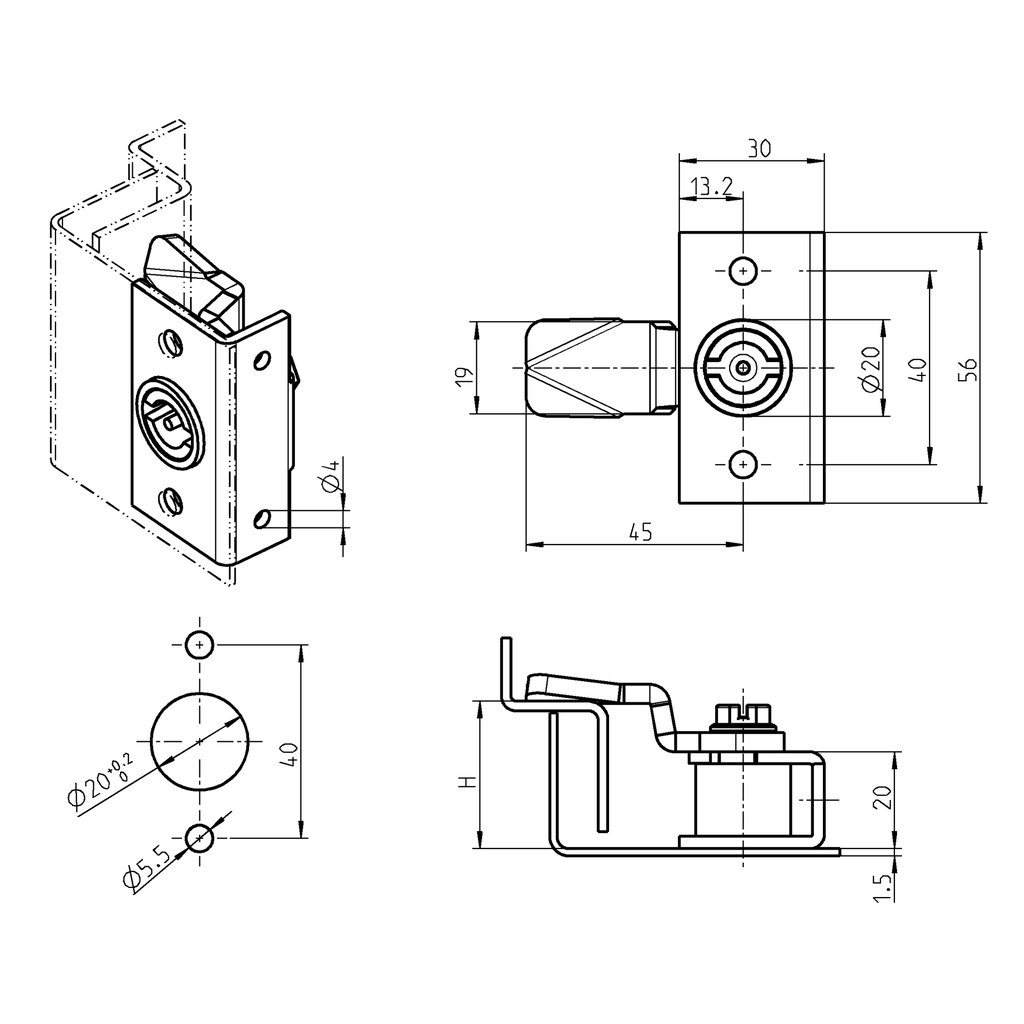

    Here you can find the product data sheets and CAD files of this product
