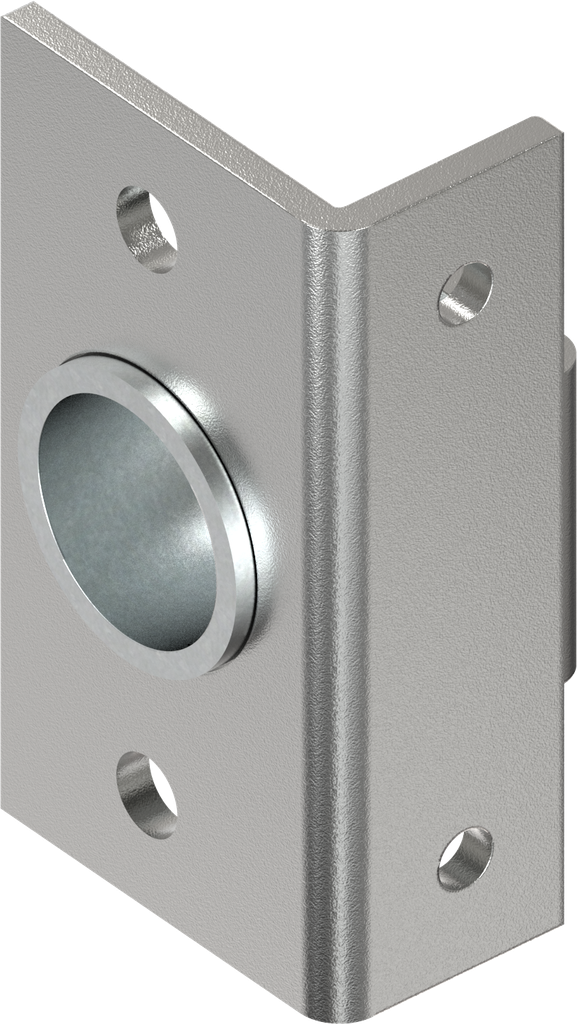

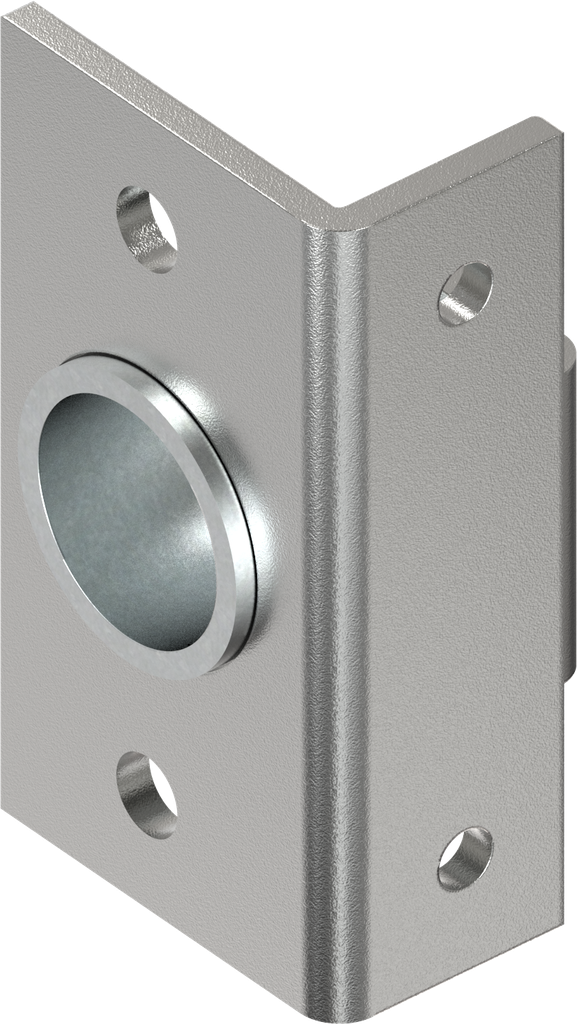

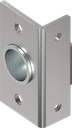

Housing with bush, Zinc die and steel raw
Housing with bush, Zinc die and steel raw

Housing with bush, Zinc die and steel raw; 1057-U1

https://www.emka.com/products/1057-u1 https://www.emka.com/web/image/product.template/61772/image_1920?unique=e6bb2ab

for flush mounting

    This combination does not exist.

    Inside the sealing Right
    Contact Us
    Internal Reference: 1057-U1
    Product Type: Housing
    Program: 1057
    Catalog sheet: 1B-820
    Material of the module : Zinc die and steel
    Surface of the module: raw
    Number of Possible Locking Points: 1 point, 2 points, 3 point
    Fixing type of housing : nut fixing,weld-on
    Mounting Positions : Inside the sealing
    Housing Head Shape: Special form
    GH Mass: 20 mm
    Suitable for door thicknesses up to: 1.50 mm
    Locking set: Insert
    Door Version : Right
    Locking components: Cam
    No Specifications
    View All Products
    Cam

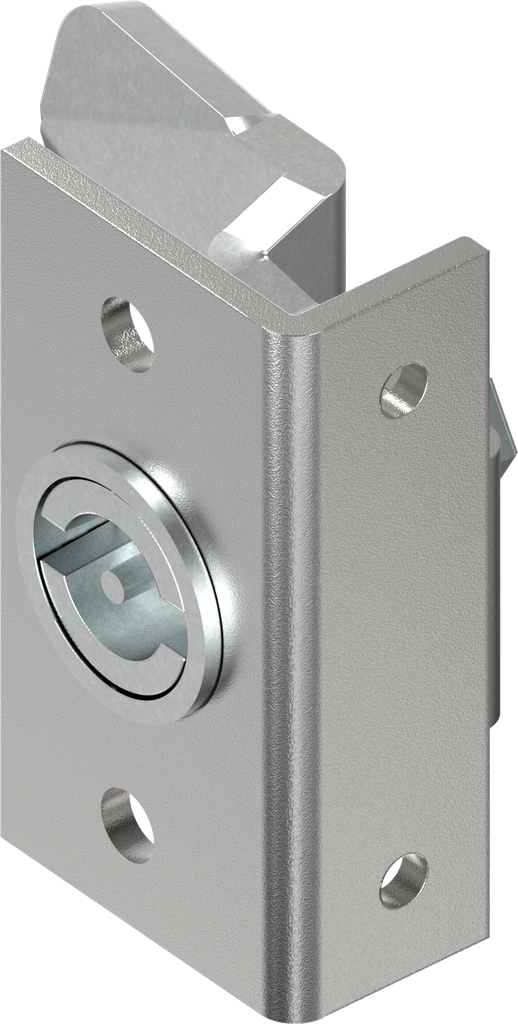

    Assembly
    Insert

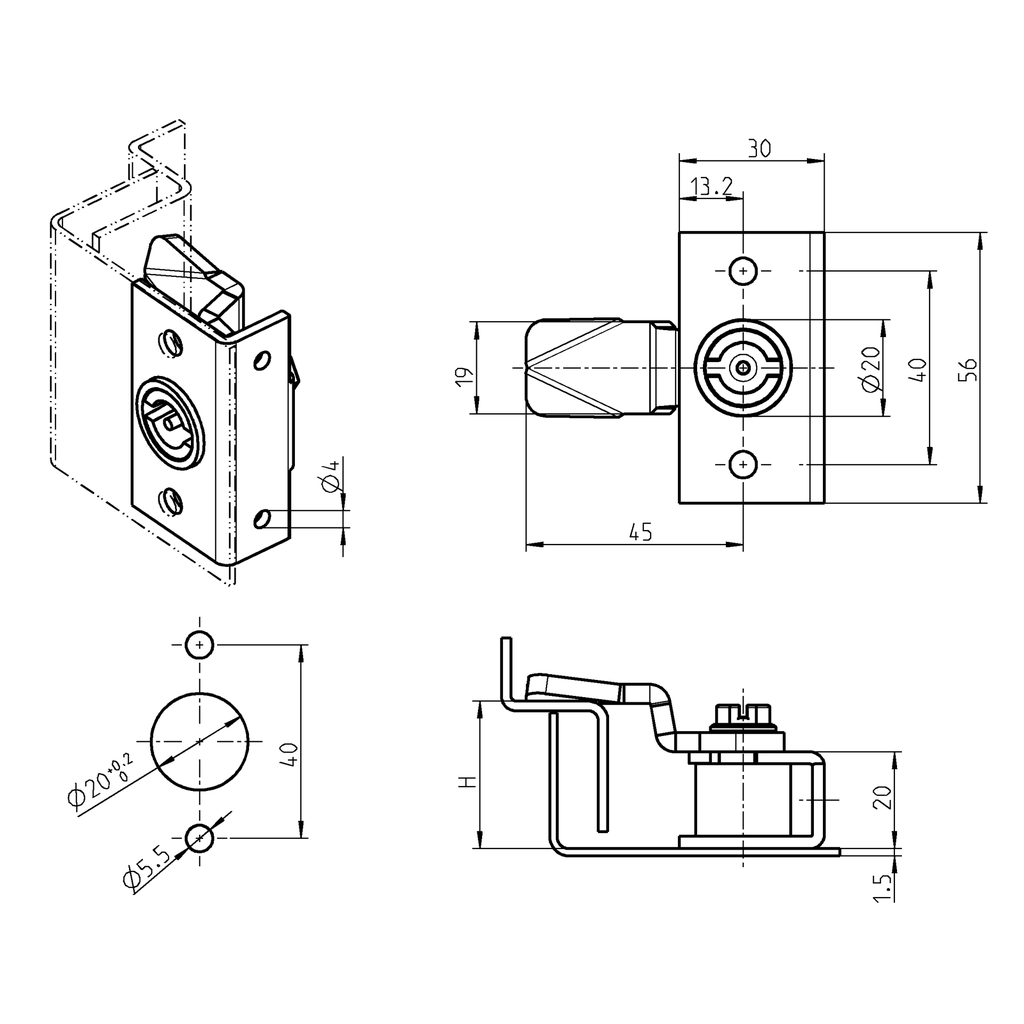

    Here you can find the product data sheets and CAD files of this product
