180° Clip-in hinge, Polyamide GF silver
180° Clip-in hinge, Polyamide GF silver
180° Clip-in hinge, Polyamide GF black
180° Clip-in hinge, Polyamide GF black

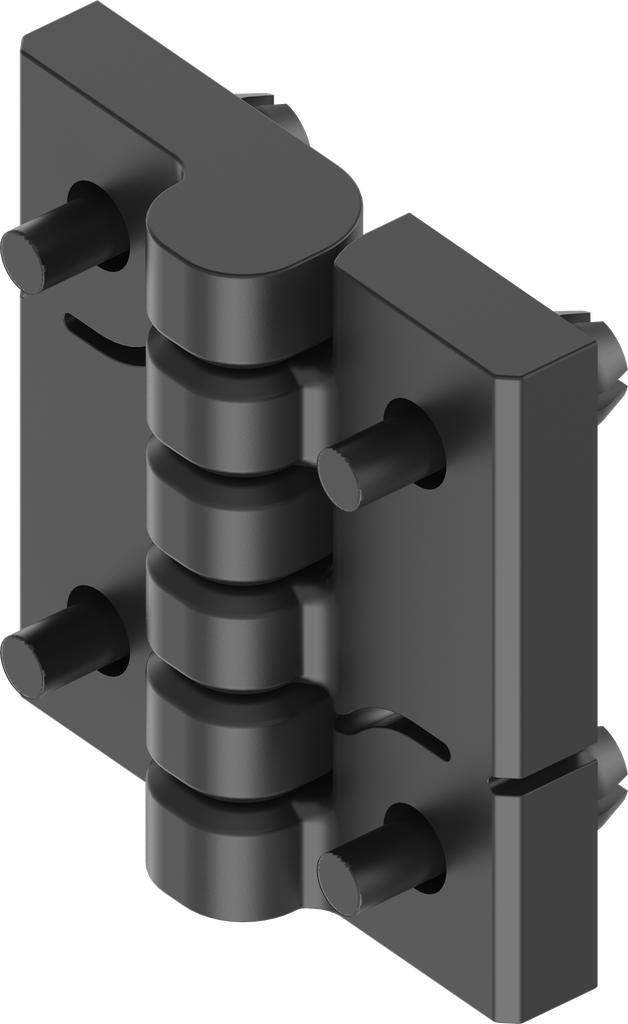

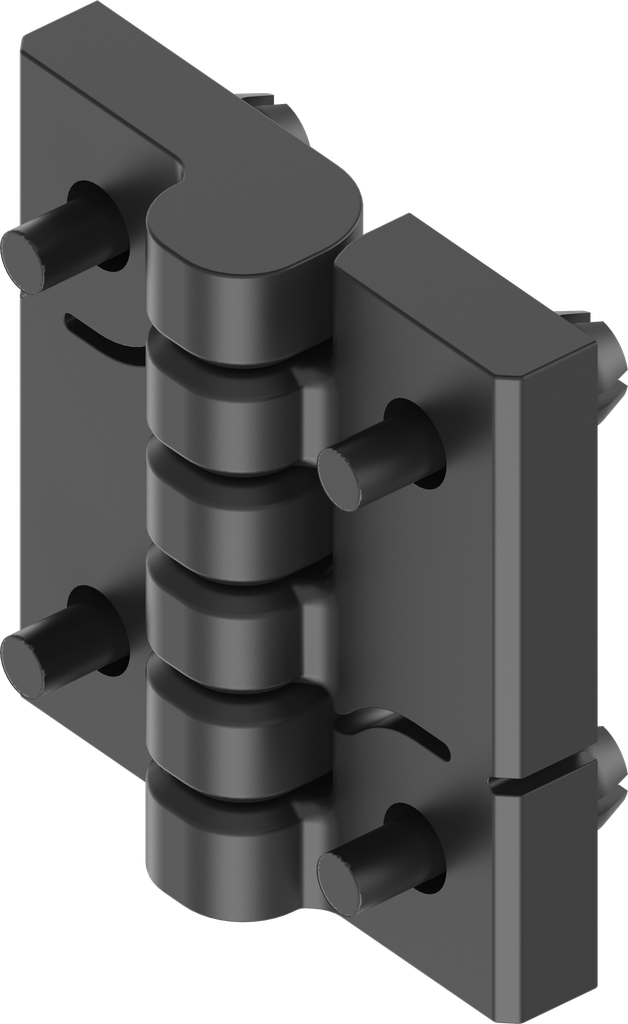

180° Clip-in hinge, Polyamide GF black; 1056-U67

https://www.emka.com/products/1056-u67 https://www.emka.com/web/image/product.template/61766/image_1920?unique=cb89248

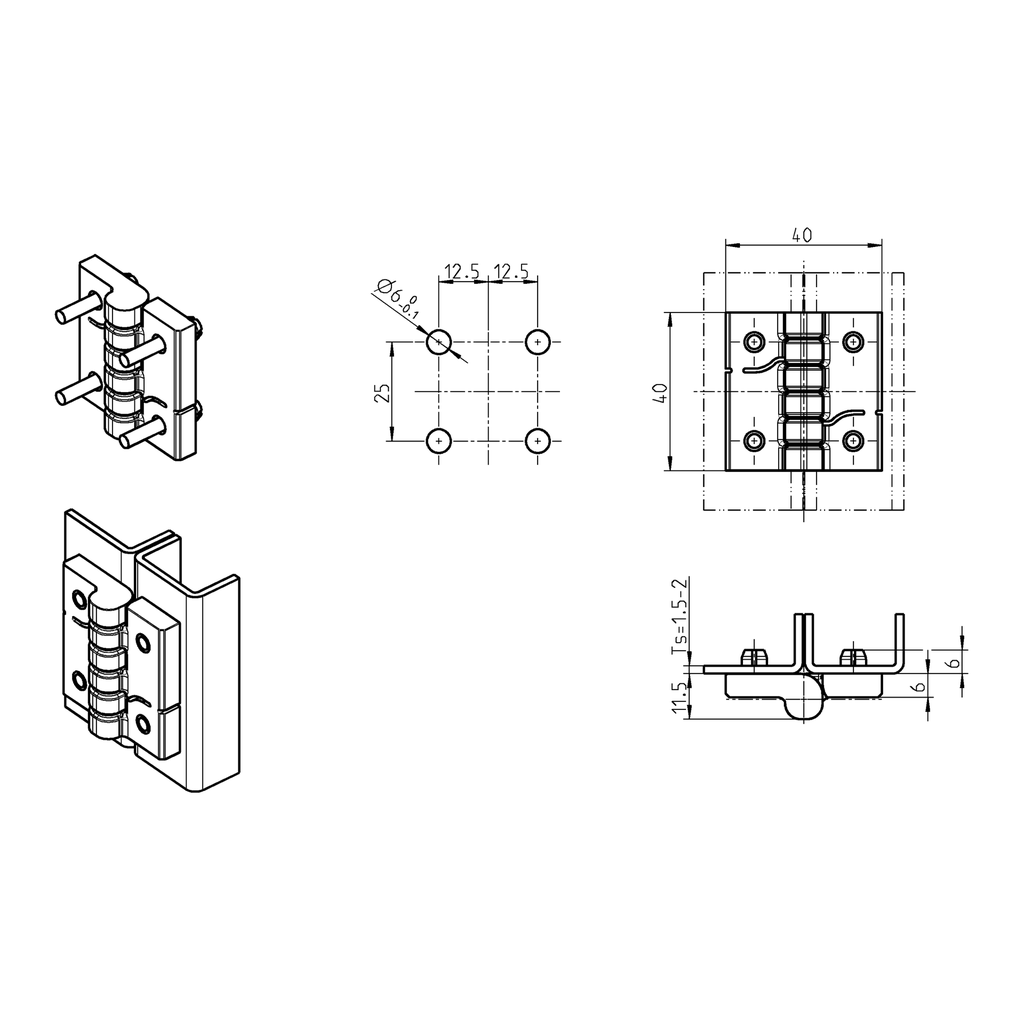

Dimension 50 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1056-U67
    Product Type: Hinge
    Program: 1056
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Article with property rights: Yes
    Type of attachment to the frame: clamp-on / clip fix
    Type of fastening on the door: clamp-on / clip fix
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
