180° Hinge, left version, Zinc die black powder-coated

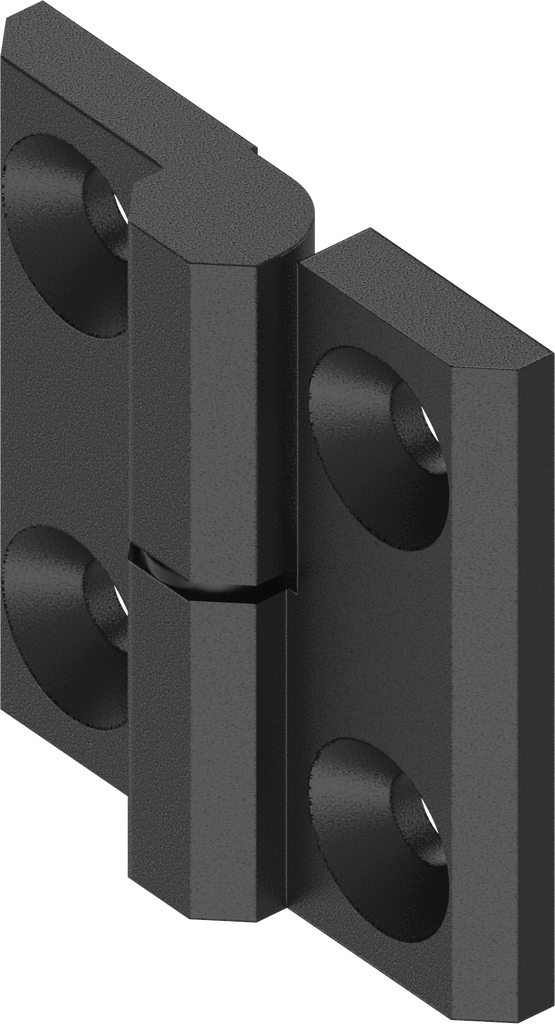

180° Hinge, right version, Zinc die white aluminium powder-coated
Internal Reference:
1056-U55-S
Barcode:
1056-u00055-000000S
Product Type:
Hinge
Program:
8031
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes

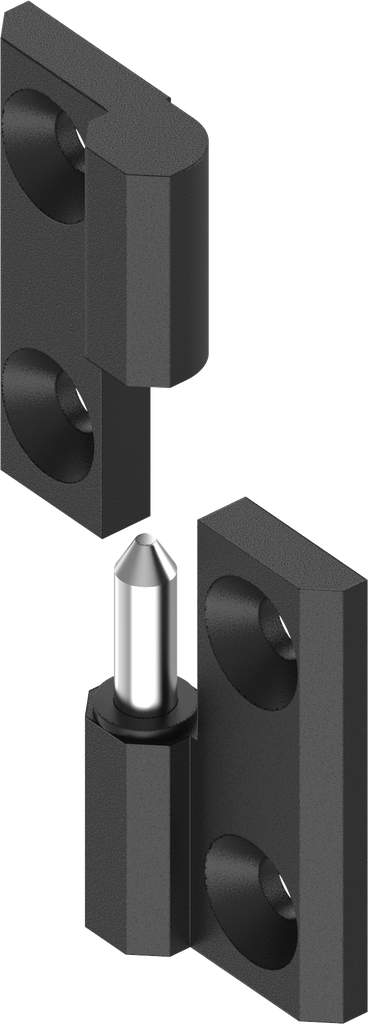

Detachable:
without tools
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Hole pattern required in the door:
Bore holes in the door
Max Opening Angle:
180°
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Right
Captive pen:
Yes
