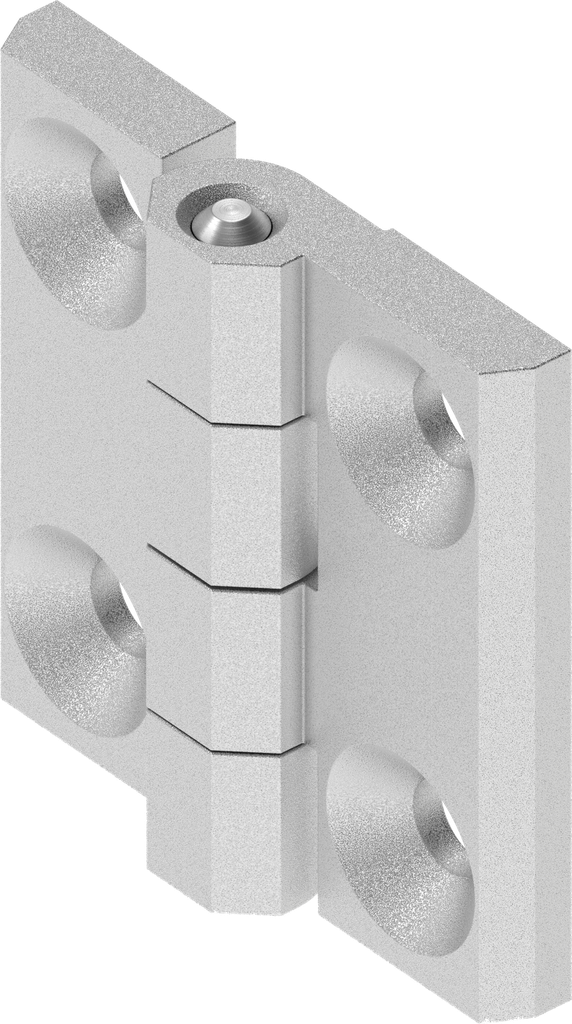

180° Hinge, Stainless steel AISI 316 pickled and passivated; 1056-U5-PVPH

https://www.emka.com/products/1056-u5-pvph-180-hinge-stainless-steel-aisi-316-pickled-and-passivated-213195 https://www.emka.com/web/image/product.template/213195/image_1920?unique=810ce4d

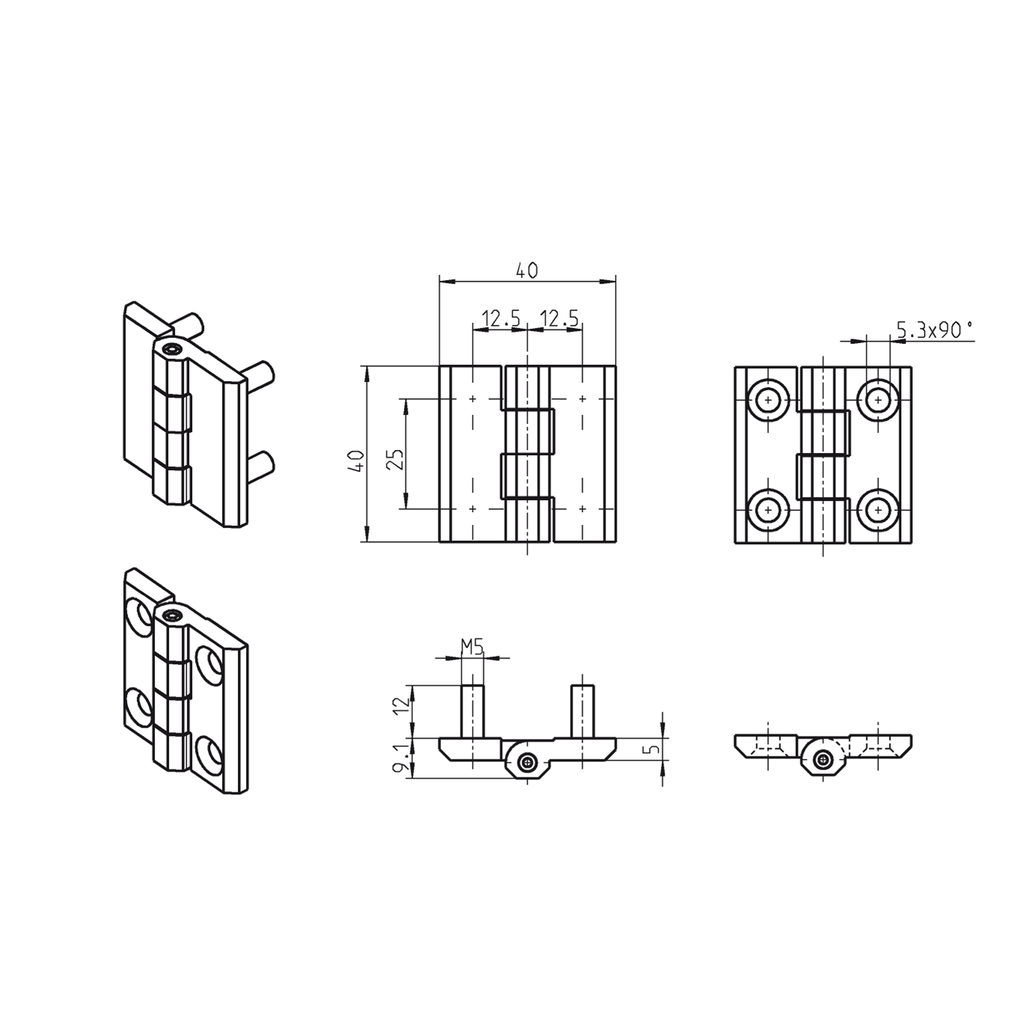

Dimension 40 x 40 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Internal Reference: 1056-U5-PVPH
    Barcode: 1056-u00005-000PVPH
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-190
    Material of the module : Stainless steel AISI 316
    Surface of the module: pickled and passivated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M5x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
