180° Hinge with knuckles, Polyamide GF black
180° Hinge with knuckles, Polyamide GF black
180° Hinge, Polyamide GF black
180° Hinge, Polyamide GF black

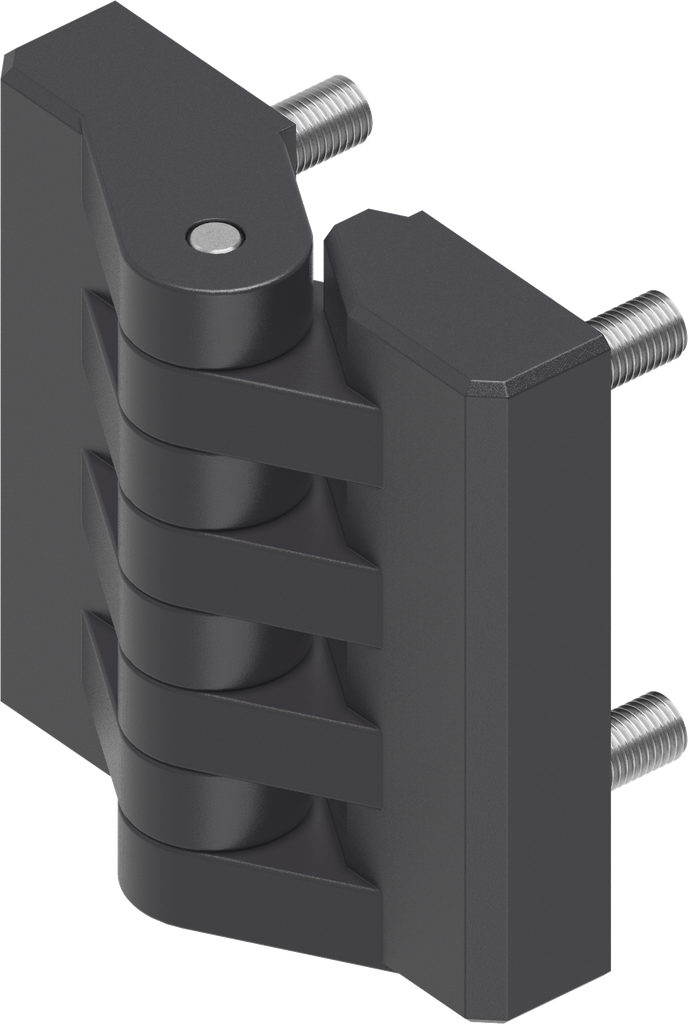

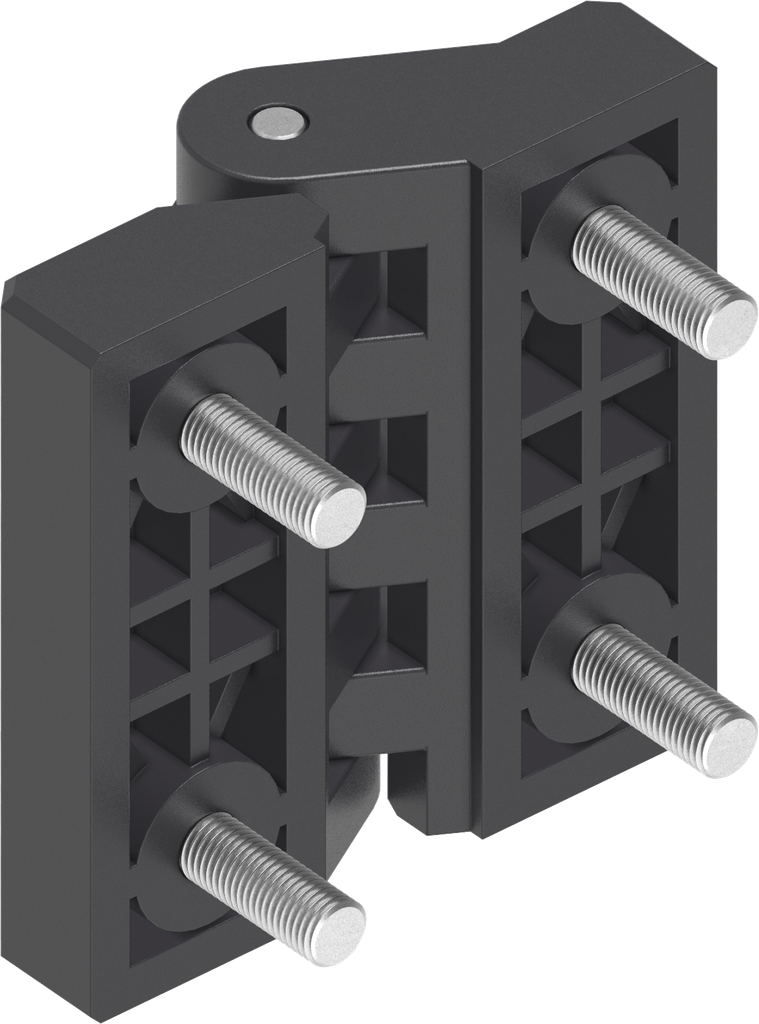

180° Hinge with knuckles, Polyamide GF black; 1056-U40

https://www.emka.com/products/1056-u40 https://www.emka.com/web/image/product.template/61740/image_1920?unique=3267d0e

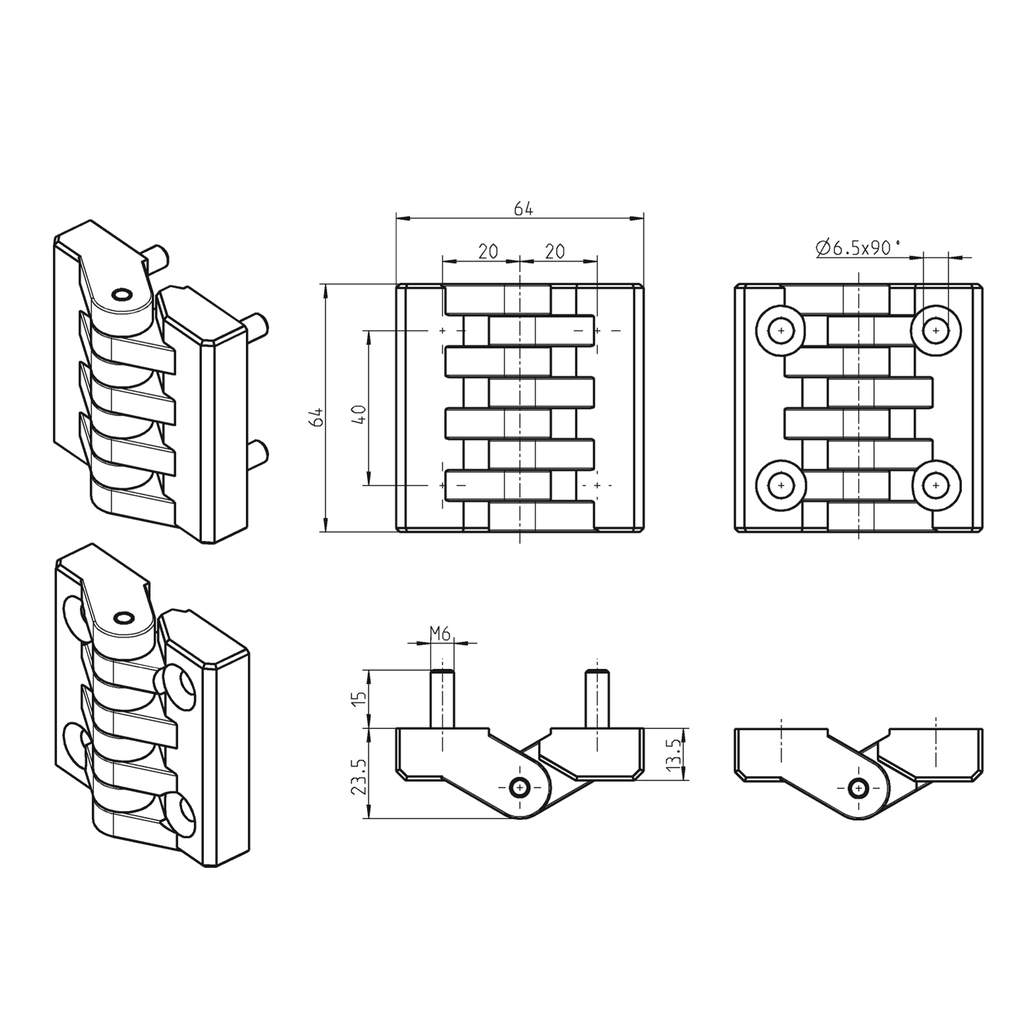

Dimension 64 x 64 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1056-U40
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-245
    Material of the module : Polyamide GF
    Surface of the module: black
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M6 x 15
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    View All Products
    Nut
    Here you can find the product data sheets and CAD files of this product
