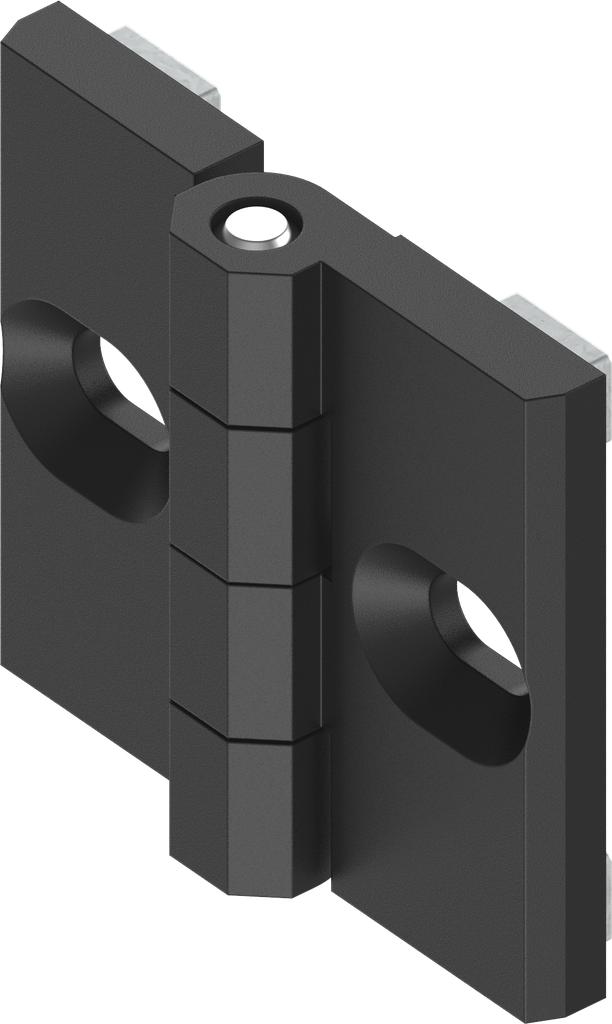

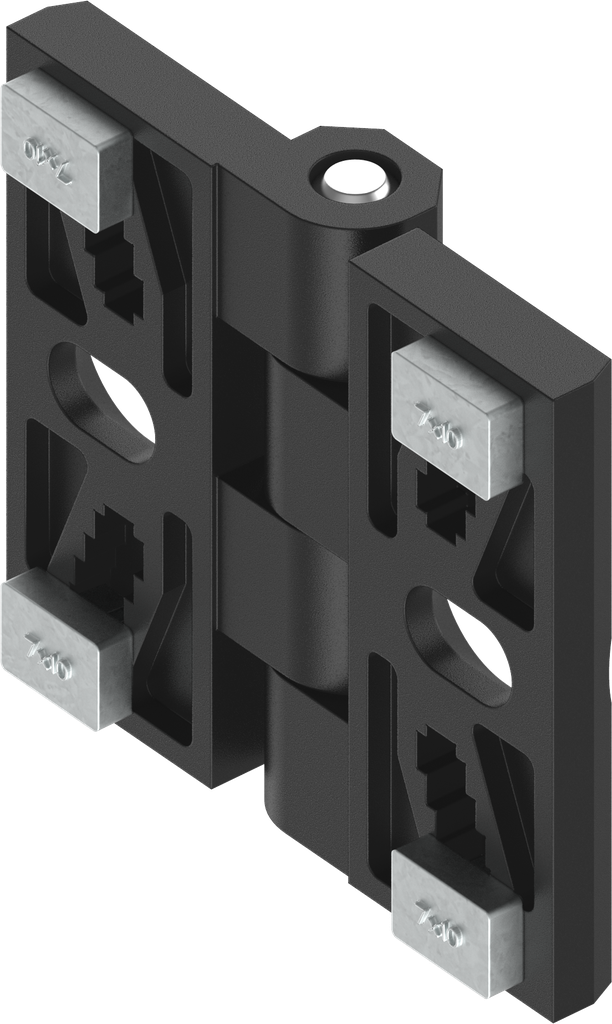

180° Profile rail hinge, Zinc die black powder-coated; 1056-U24

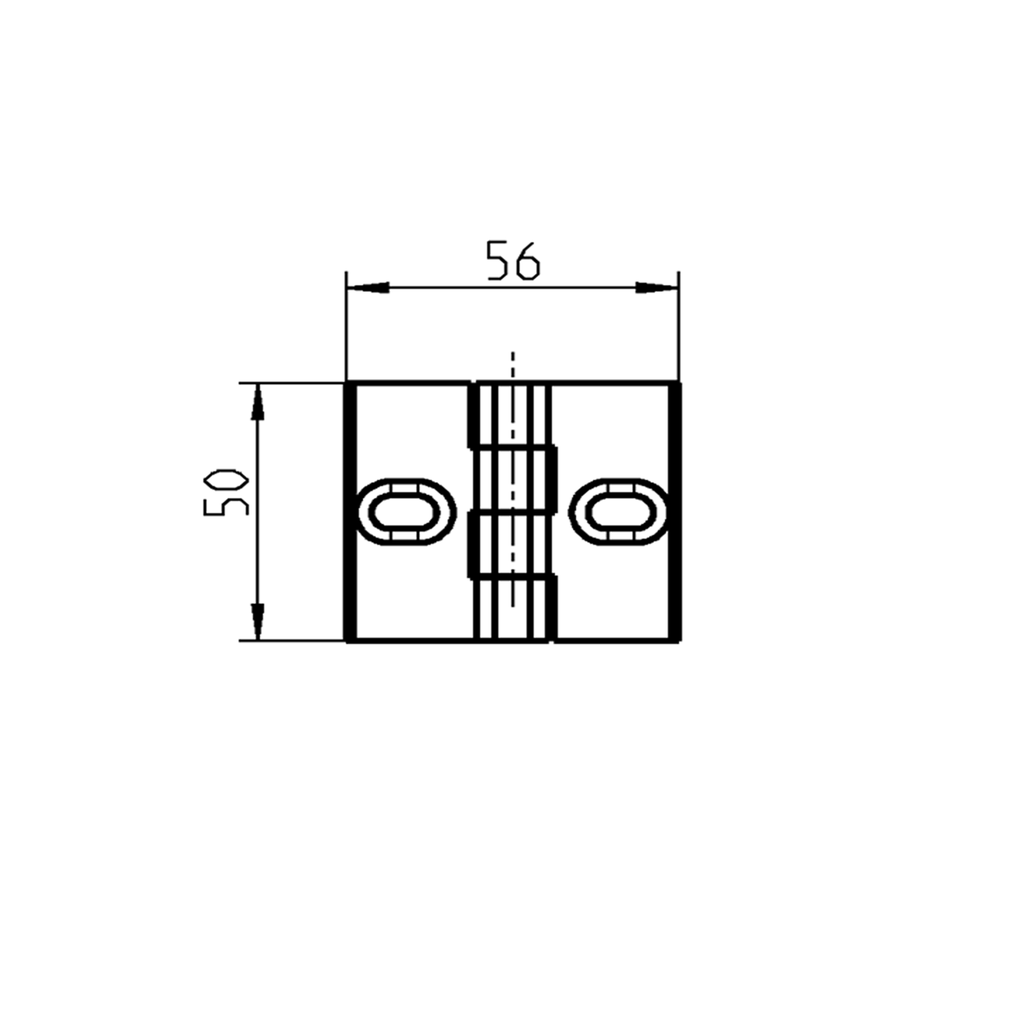

Dimension 50 x 50 mm with plugs 7 x 10 mm
Product Benefits:
Can be used for different profiles

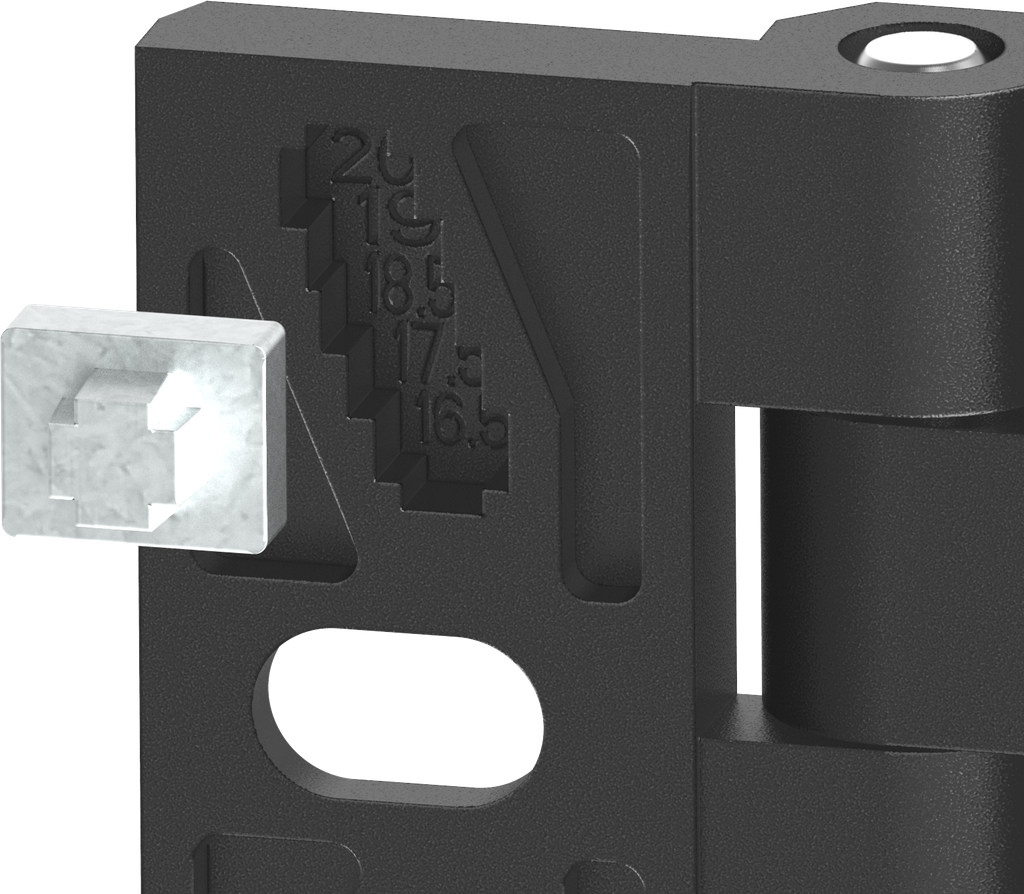

15 different distances (dimension A) possible by changing the locations of the plugs

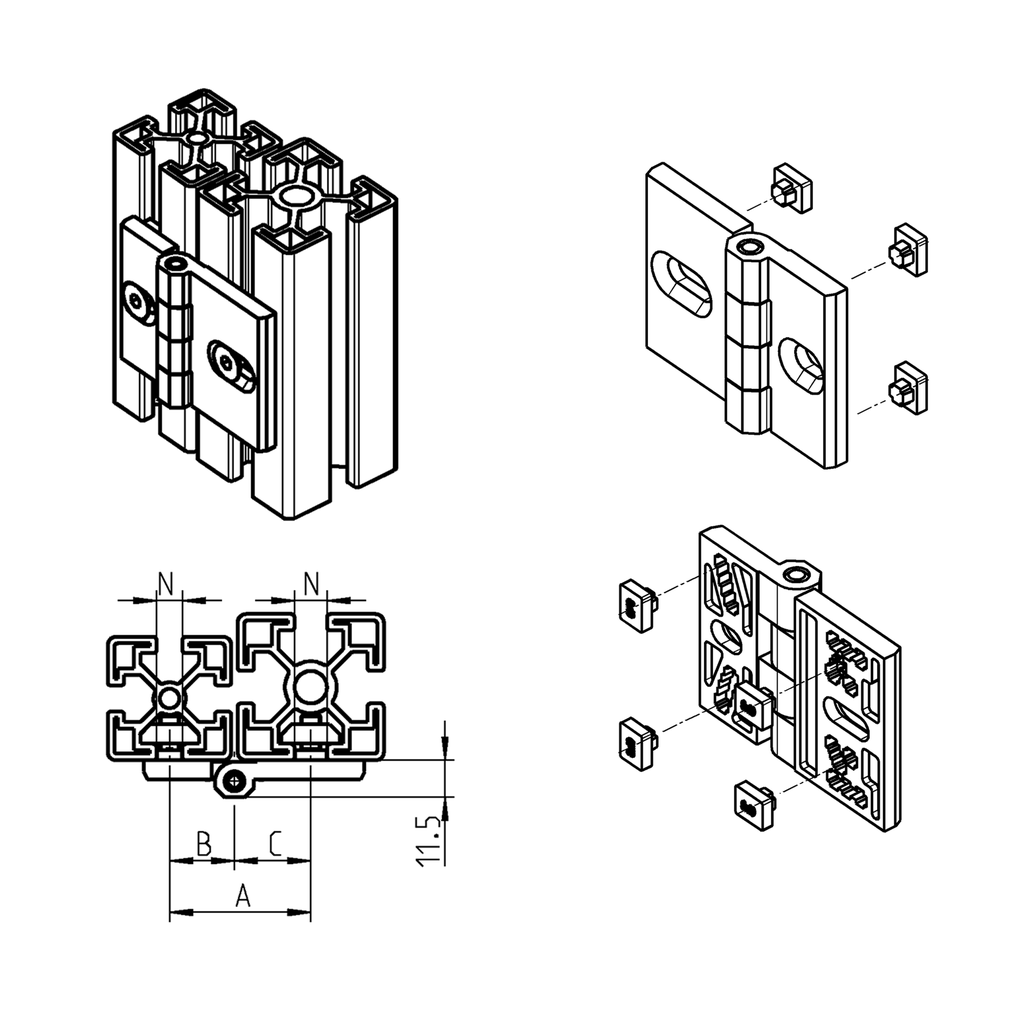

Akeneo Note:
A = 33 to 40 mm
B = 16.5 to 20 mm
C = 16.5 to 20 mm
Internal Reference:
1056-U24
Product Type:
Hinge
Program:
1056
Catalog sheet:
4B-230
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Type of attachment to the frame:
screw-on from outside
Type of fastening on the door:
screw-on from outside
Max Opening Angle:
180°
Hinge for profiles:
Yes
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Countersinking for standard countersunk screws:
Countersink for all standard countersunk screws M6x...
Door position:
concealed
Door Version :
Left,Right
Captive pen:
Yes
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
