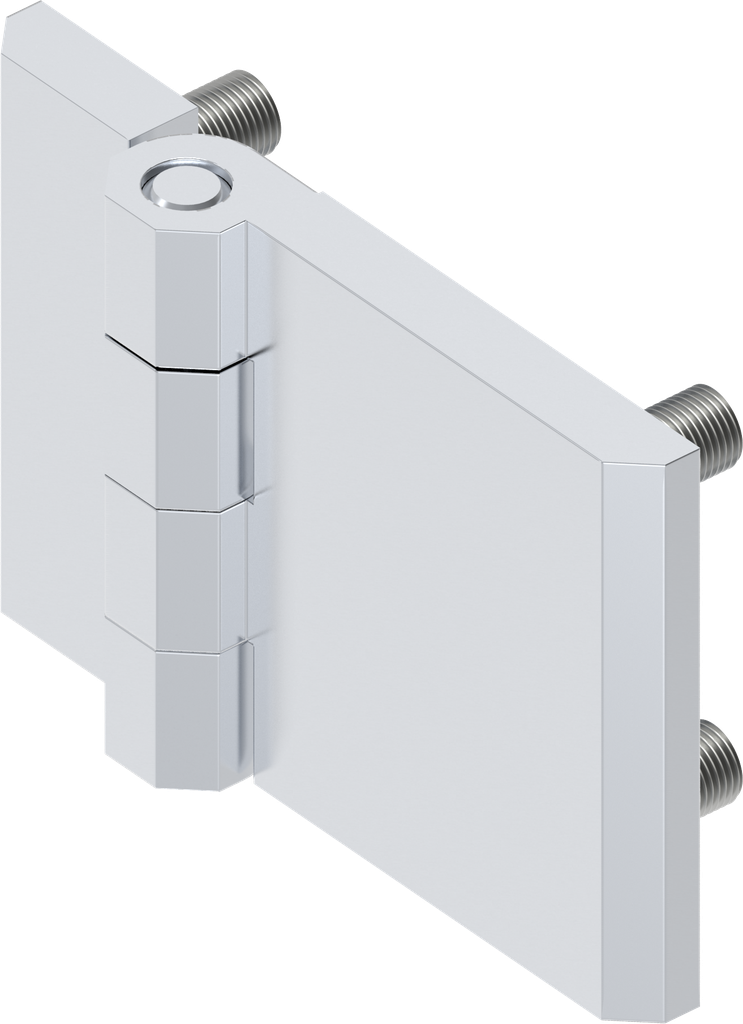

180° Hinge, Zinc die chrome-plated; 1056-U19

https://www.emka.com/products/1056-u19 https://www.emka.com/web/image/product.template/61720/image_1920?unique=3949cdc

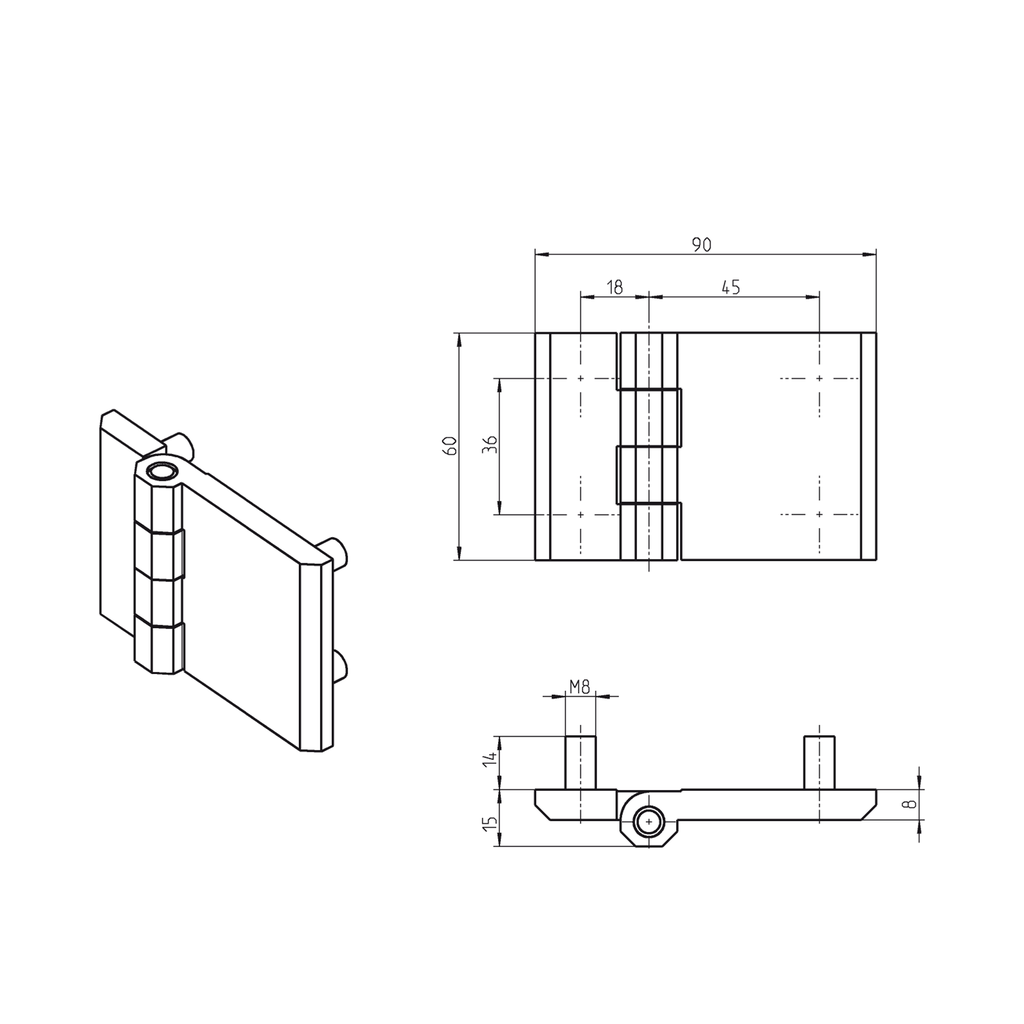

Dimension 90 x 60 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1056-U19
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-210
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M8 x 14
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
