270° Hinge, Zinc die chrome-plated
270° Hinge, Zinc die chrome-plated
270° Hinge, Zinc die black powder-coated
270° Hinge, Zinc die black powder-coated

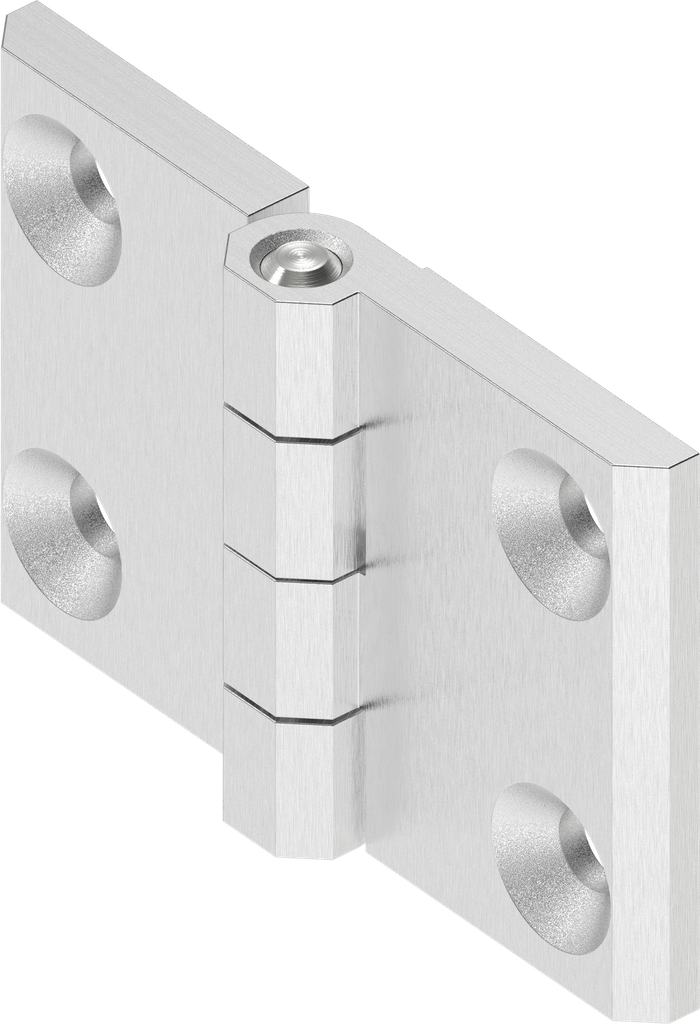

270° Hinge, Stainless steel AISI 316 polished; 1056-U17-PH

https://www.emka.com/products/1056-u17-ph https://www.emka.com/web/image/product.template/61718/image_1920?unique=454594b

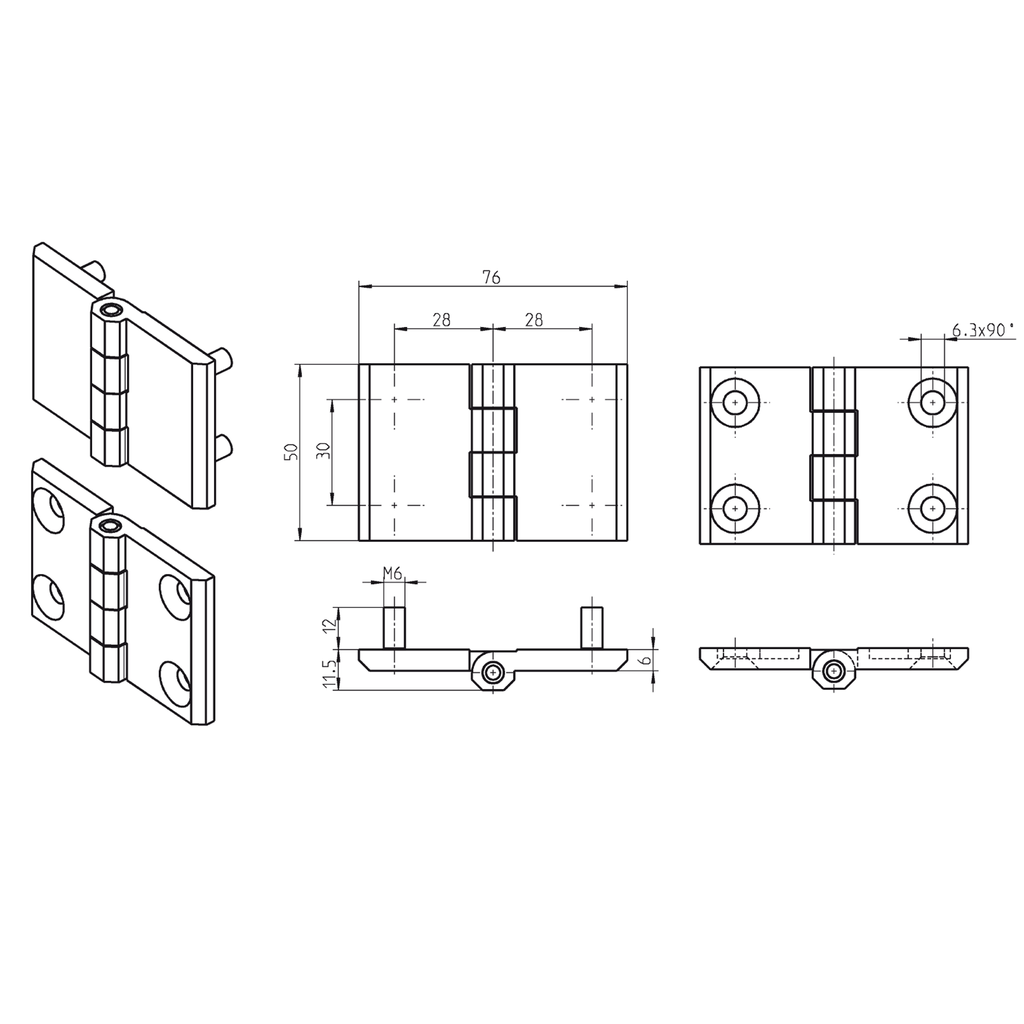

Dimension 76 x 50 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1056-U17-PH
    Product Type: Hinge
    Program: 1056
    Catalog sheet: 4B-200
    Material of the module : Stainless steel AISI 316
    Surface of the module: polished
    Door return variable: Yes
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 270°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Countersinking for standard countersunk screws: Countersink for all standard countersunk screws M6x...
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    No Specifications
    View All Products
    2D nut
    Here you can find the product data sheets and CAD files of this product
