180° Hinge, Zinc die papyrus white powder-coated
180° Hinge, Zinc die papyrus white powder-coated
180° Hinge, Stainless steel AISI 316 black powder-coated
180° Hinge, Stainless steel AISI 316 black powder-coated

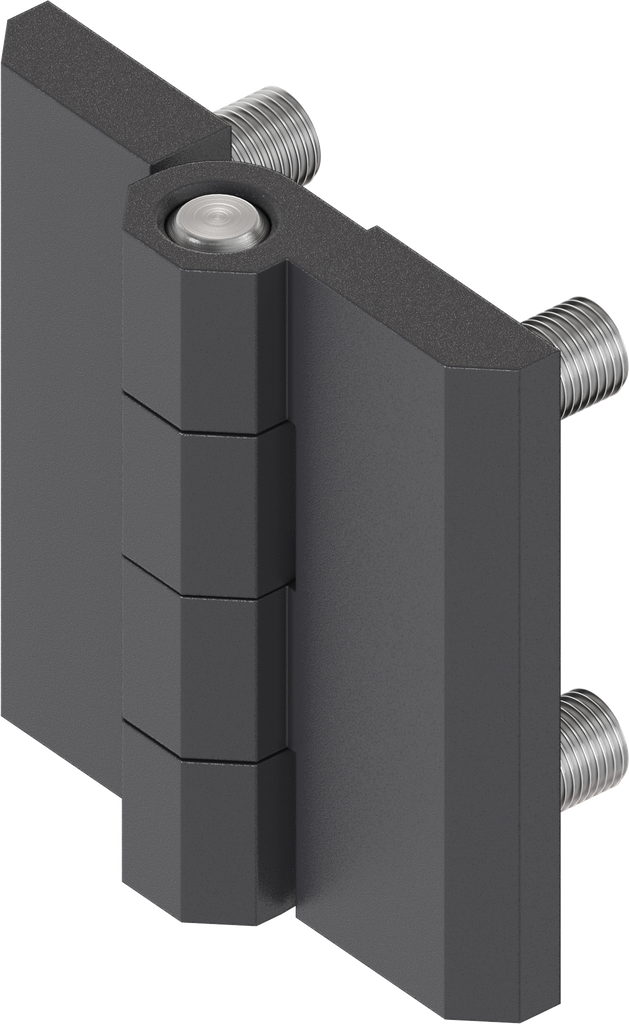

180° Hinge, Zinc die black powder-coated; 1056-U12-S

https://www.emka.com/products/1056-u12-s-180-hinge-zinc-die-black-powder-coated-213222 https://www.emka.com/web/image/product.template/213222/image_1920?unique=2b3b58d

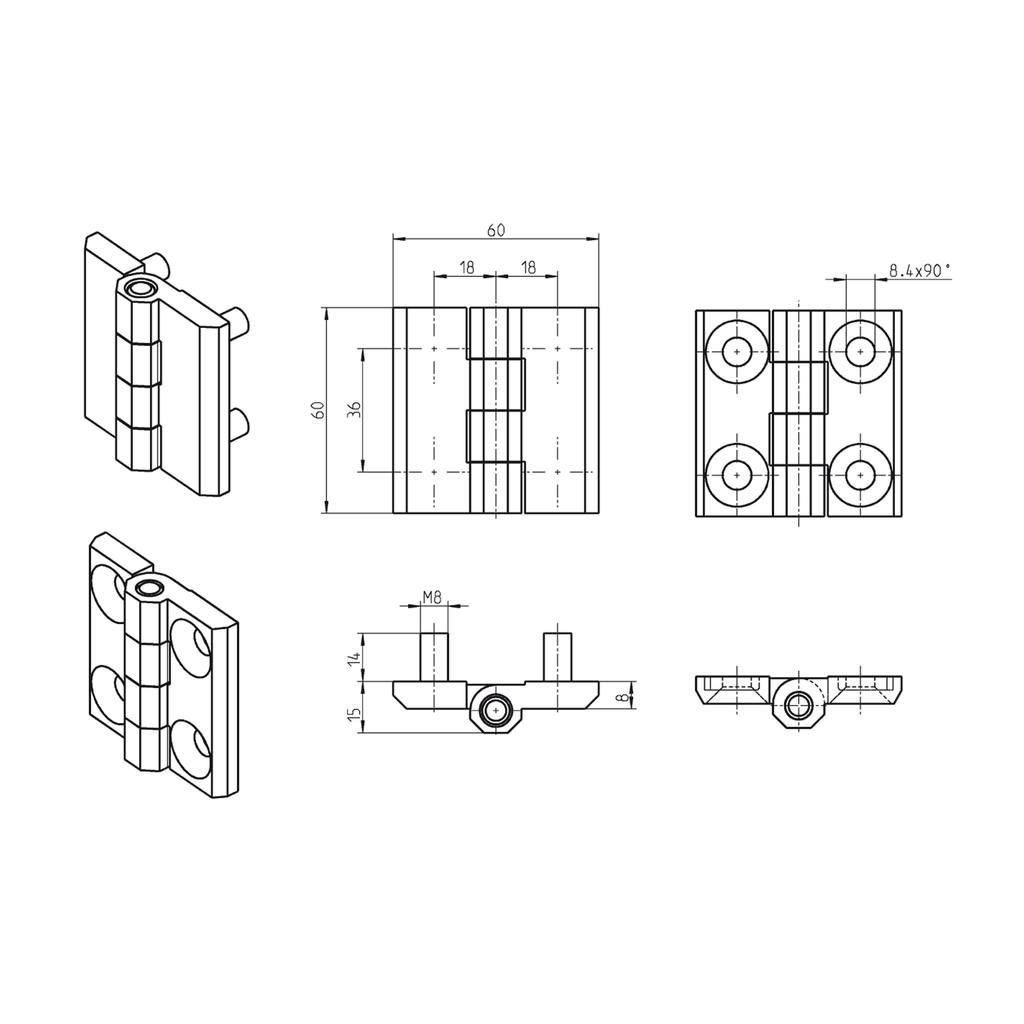

Dimension 60 x 60 mm

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Internal Reference: 1056-U12-S
    Barcode: 1056-U00012-000000S
    Product Type: Hinge
    Program: 8031
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes
    Type of attachment to the frame: screw-on from inside
    Type of fastening on the door: screw-on from inside
    Grub Screw: M8 x 14
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
