180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated
180° Hinge, Steel zinc-plated

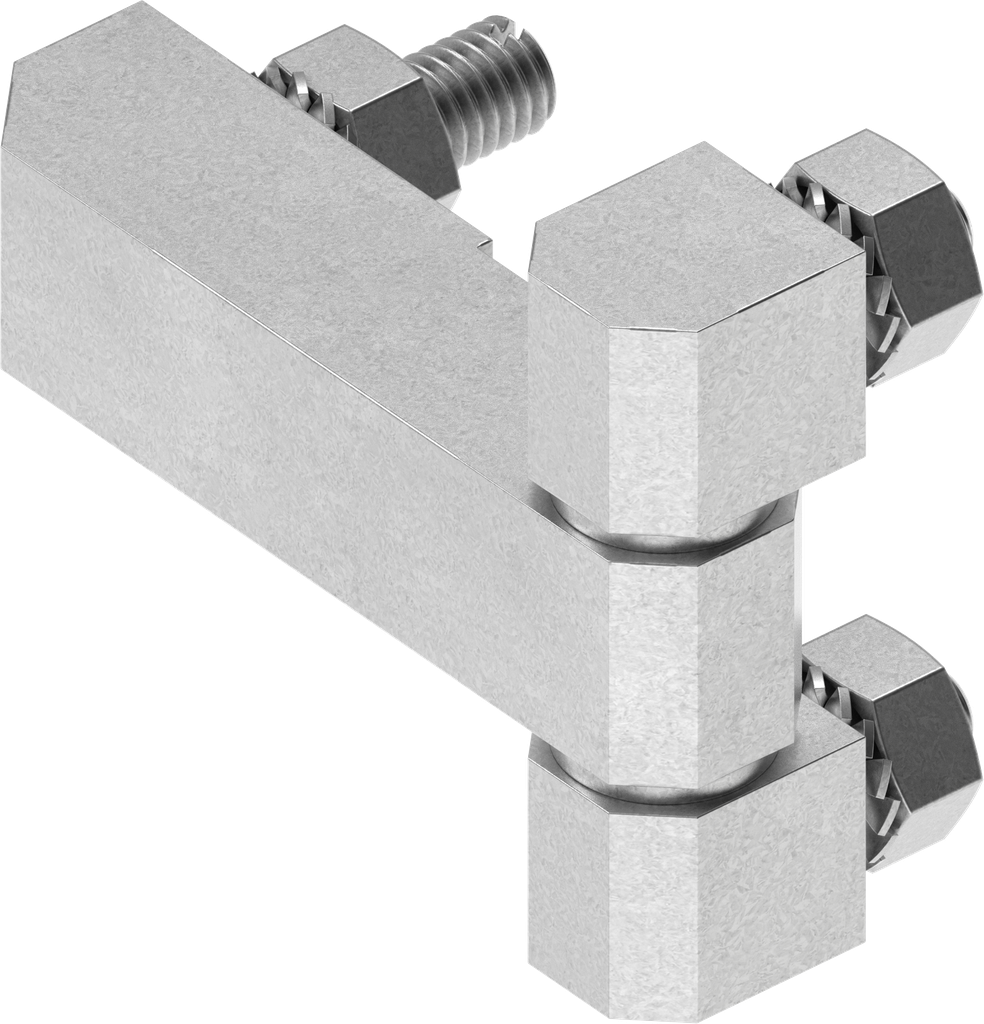

180° Hinge, Steel zinc-plated; 1055-U4

https://www.emka.com/products/1055-u4 https://www.emka.com/web/image/product.template/61591/image_1920?unique=0a32967

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us
    Internal Reference: 1055-U4
    Product Type: Hinge
    Program: 1055
    Catalog sheet: 4B-160
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimension a: 38 mm
    Door return variable: Yes
    Type of attachment to the frame: screw-on
    Type of fastening on the door: screw-on from inside
    Dimension L: 53 mm
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: concealed
    Door Version : Left,Right
    Captive pen: Yes
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
