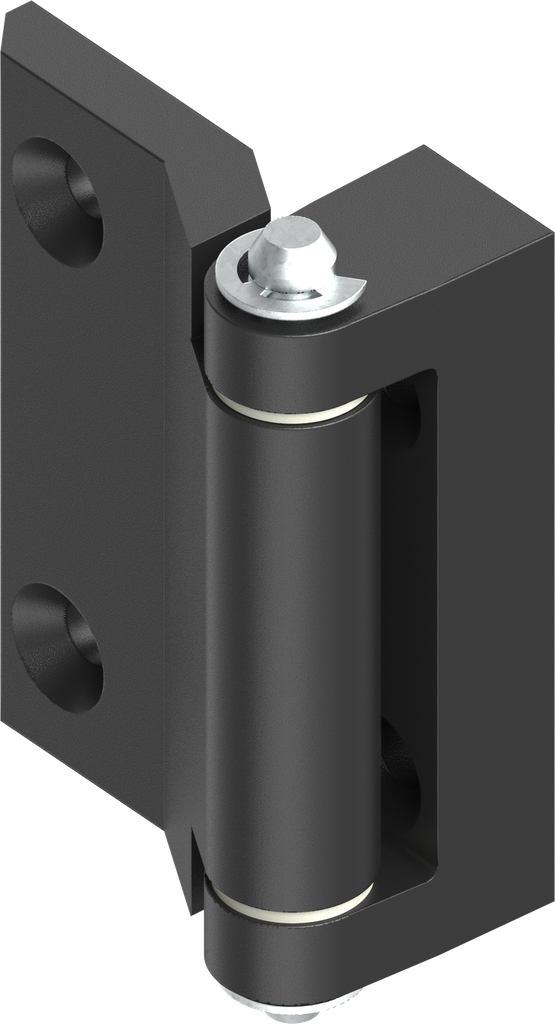

180° Hinge, Zinc die black powder-coated; 1054-U20

https://www.emka.com/products/1054-u20 https://www.emka.com/web/image/product.template/61555/image_1920?unique=8f87b44

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us
    Internal Reference: 1054-U20
    Product Type: Hinge
    Program: 1054
    Catalog sheet: 4B-280
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Door return variable: Yes

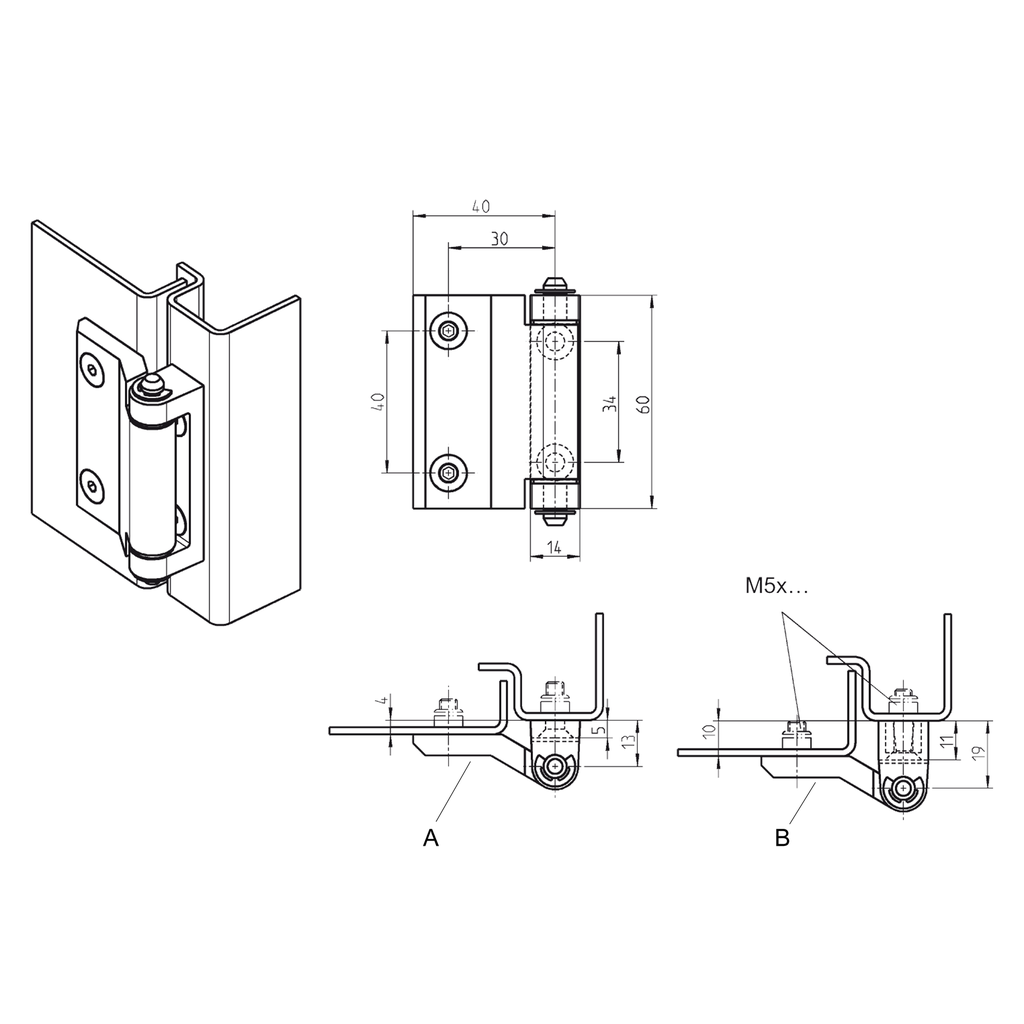

    Execution: B
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from outside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 180°
    Cabinet type : Single cabinets,In-line cabinets with single door
    Countersinking for standard countersunk screws: Countersink for countersunk screw M5x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Door position: concealed,prominent
    Door Version : Left,Right
