Cylinder quarter turn, keyed EK 333, Zinc die chrome-plated
Cylinder quarter turn, keyed EK 333, Zinc die chrome-plated
Cylinder quarter turn, keyed different, Zinc die chrome-plated
Cylinder quarter turn, keyed different, Zinc die chrome-plated

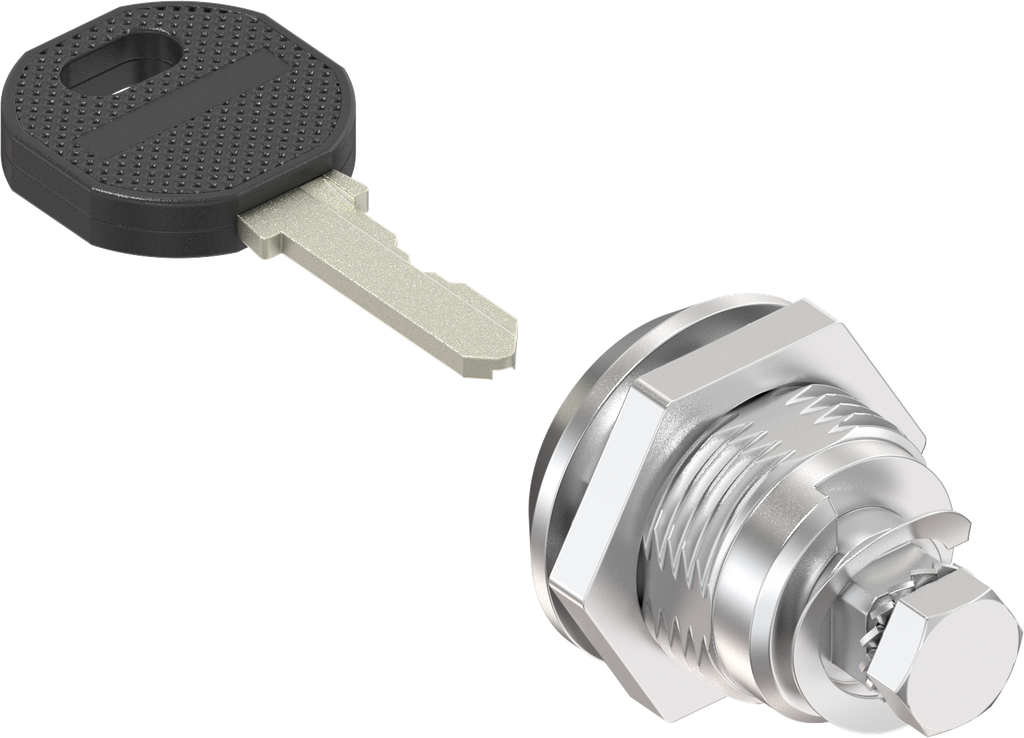

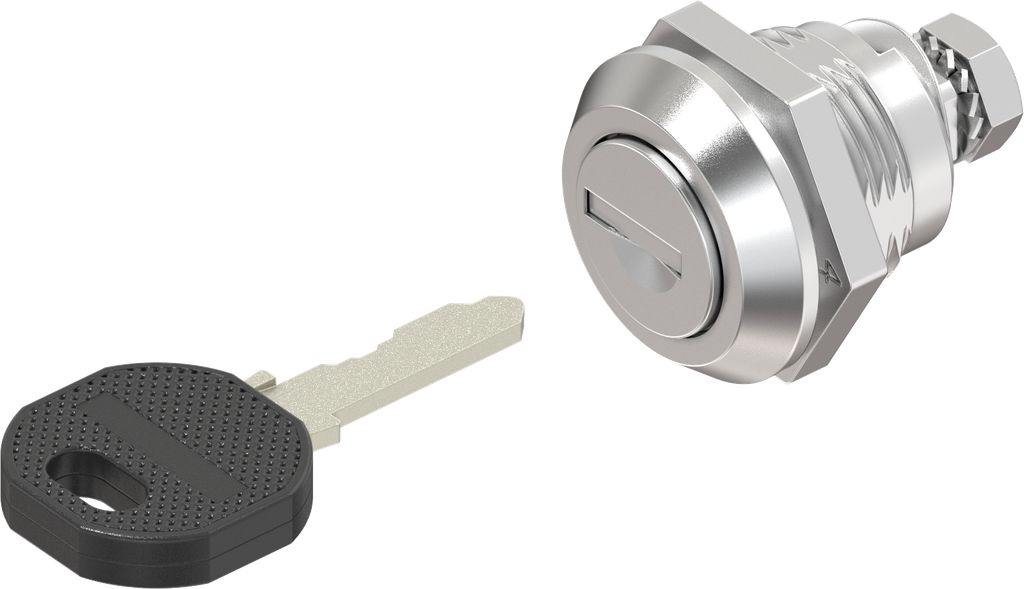

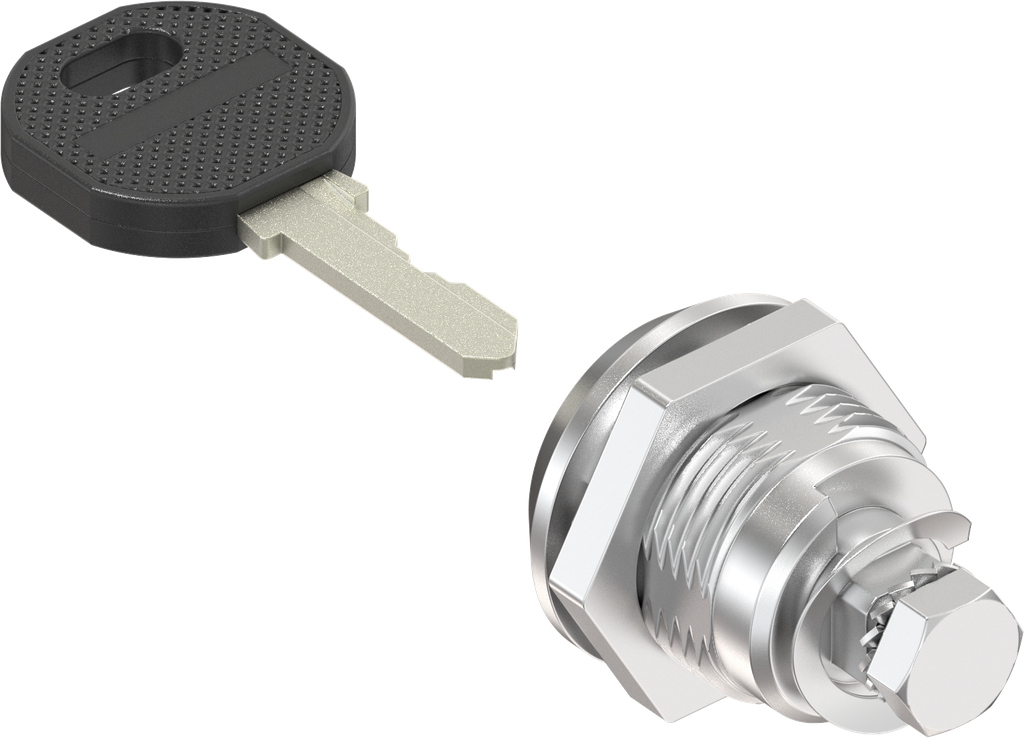

Cylinder quarter turn, keyed EK 333, Stainless steel AISI 316; 1048-U6-PH

https://www.emka.com/products/1048-u6-ph https://www.emka.com/web/image/product.template/61417/image_1920?unique=8108541

with stainless steel nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Product information:

    Key removable in both positions
    Internal Reference: 1048-U6-PH
    Product Type: Quarter turn
    Program: 1048
    Catalog sheet: 1B-420
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

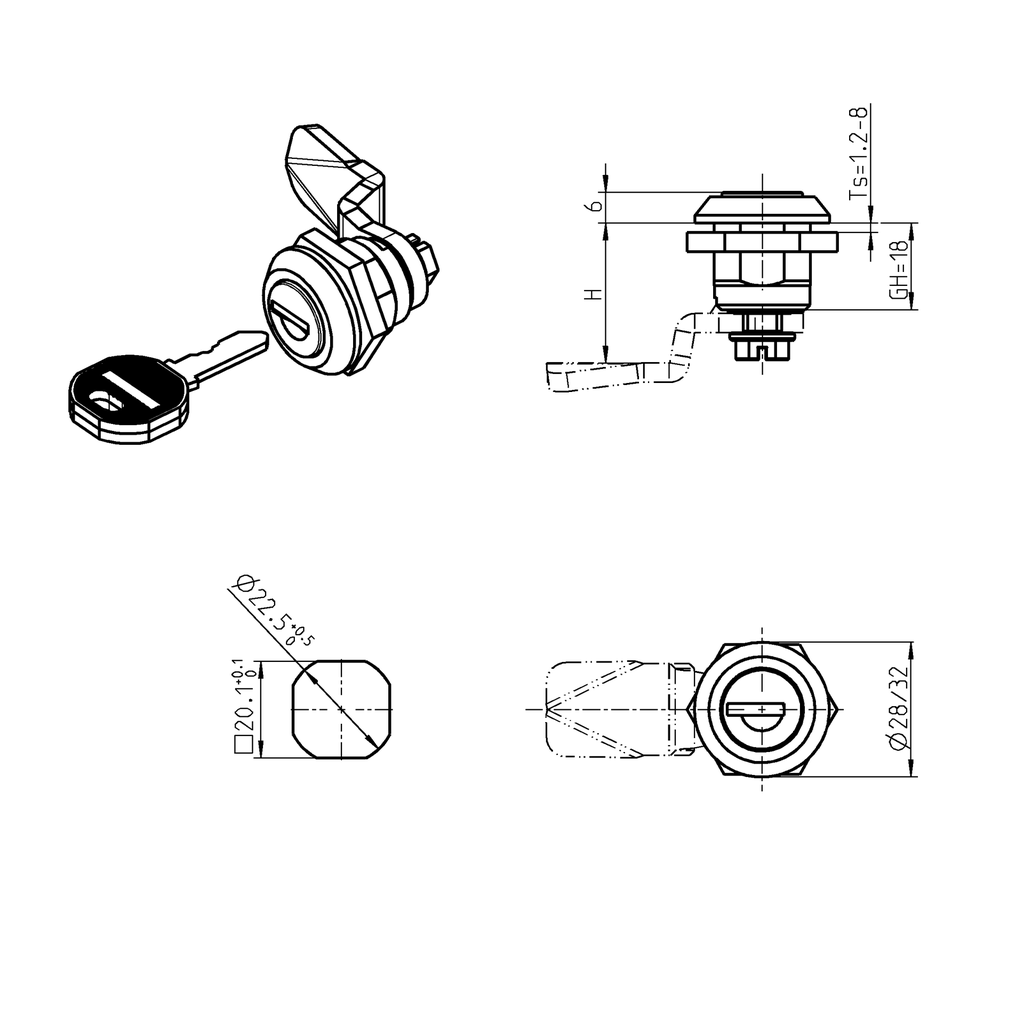

    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Dust cap - Finger pull
    Assembly
    Keys
    Here you can find the product data sheets and CAD files of this product
