Cylinder quarter turn, keyed different, Polyamide GF black
Cylinder quarter turn, keyed different, Polyamide GF black
Cylinder quarter turn, keyed different, Polyamide GF black
Cylinder quarter turn, keyed different, Polyamide GF black

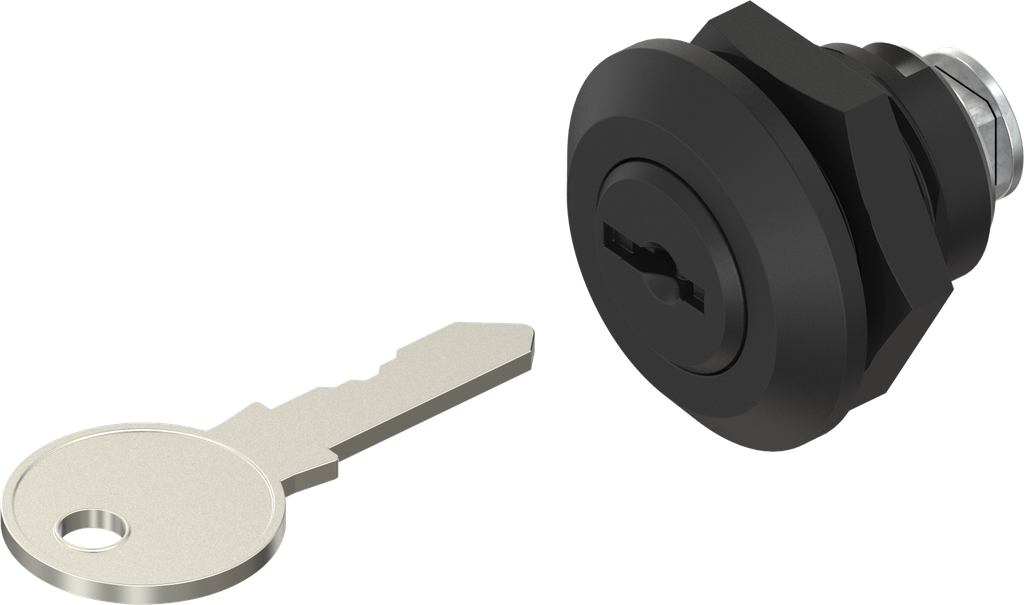

Cylinder quarter turn, keyed EK 333, Polyamide GF black; 1048-U25

https://www.emka.com/products/1048-u25 https://www.emka.com/web/image/product.template/211335/image_1920?unique=f4fbb77

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Product information:

    Key removable in both positions.
    Internal Reference: 1048-U25
    Product Type: Quarter turn
    Program: 1048
    Catalog sheet: 1B-420
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Quarter turn accessories
    Dust cap - Finger pull
    Cam
    Assembly
    Keys

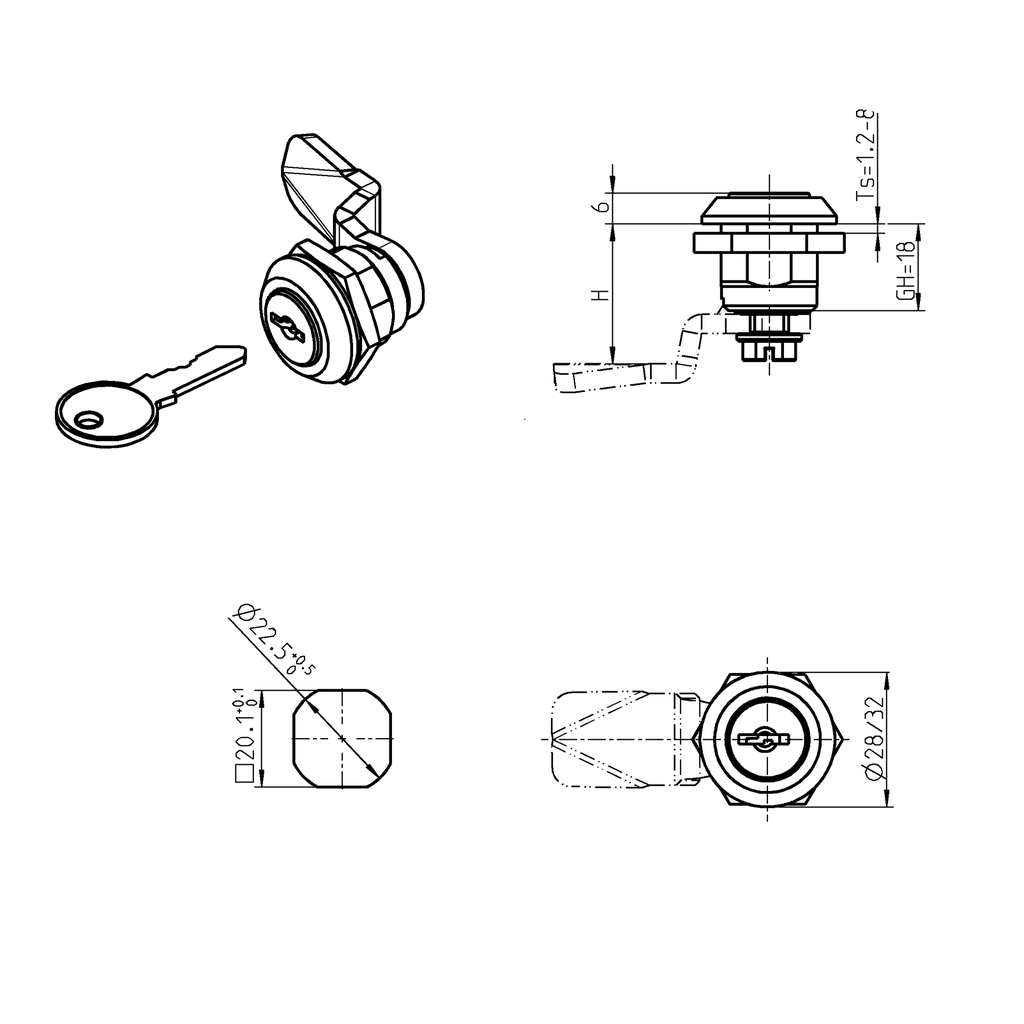

    Here you can find the product data sheets and CAD files of this product
