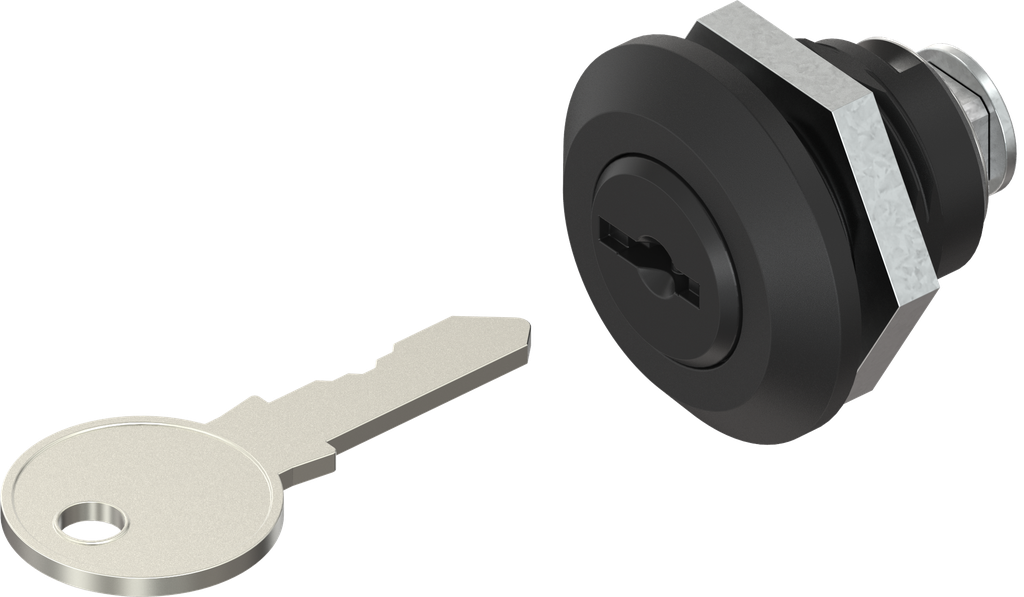

Cylinder quarter turn, keyed different, Polyamide GF black; 1048-U21

https://www.emka.com/products/1048-u21 https://www.emka.com/web/image/product.template/211334/image_1920?unique=f4fbb77

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Product information:

    Key removable in both positions.
    Internal Reference: 1048-U21
    Product Type: Quarter turn
    Program: 1048
    Catalog sheet: 1B-420
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

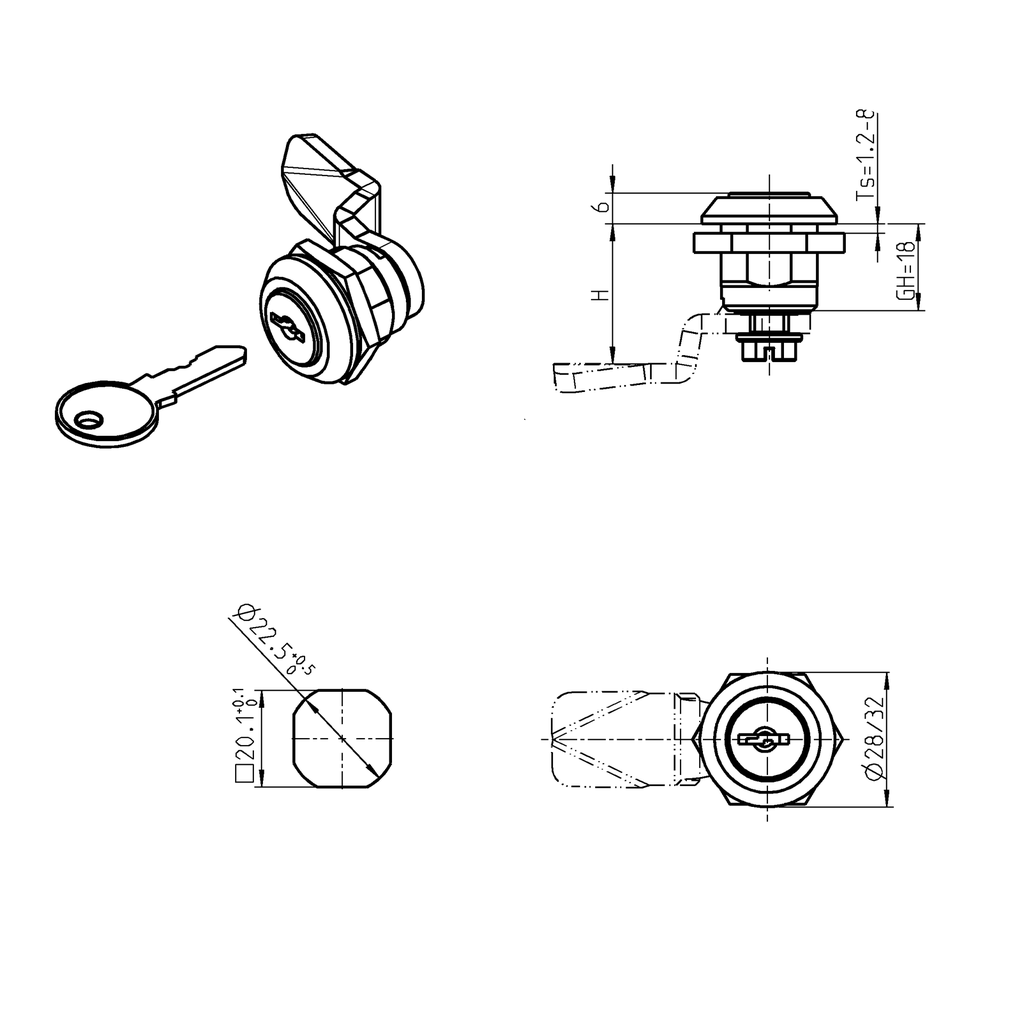

    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
