180° Hinge, left version, Zinc die black powder-coated
180° Hinge, left version, Zinc die black powder-coated
Locking set with profile half cylinder with round cylinder, keyed EK 333, Polyamide GF black
Locking set with profile half cylinder with round cylinder, keyed EK 333, Polyamide GF black

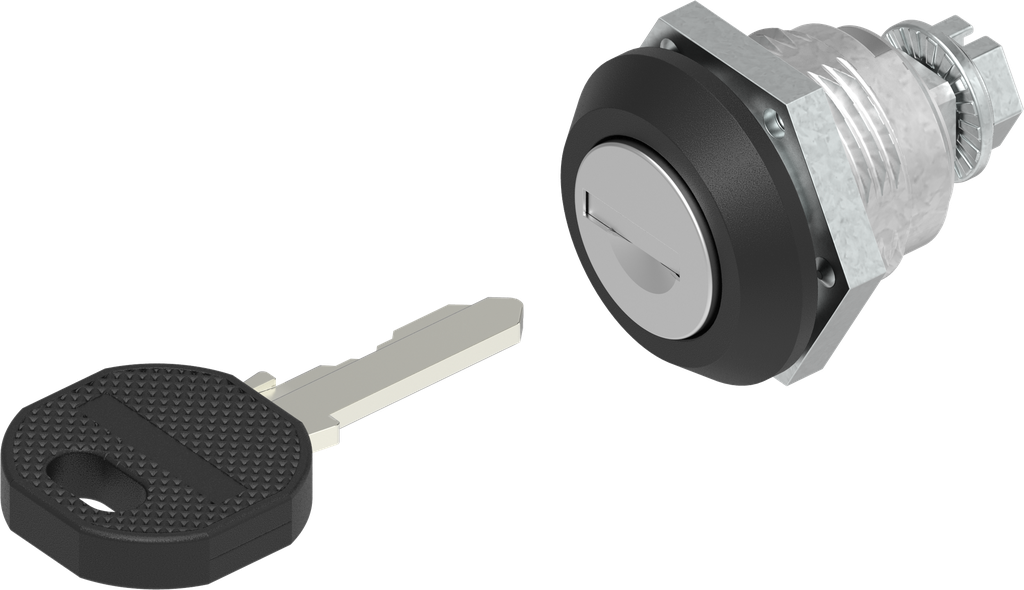

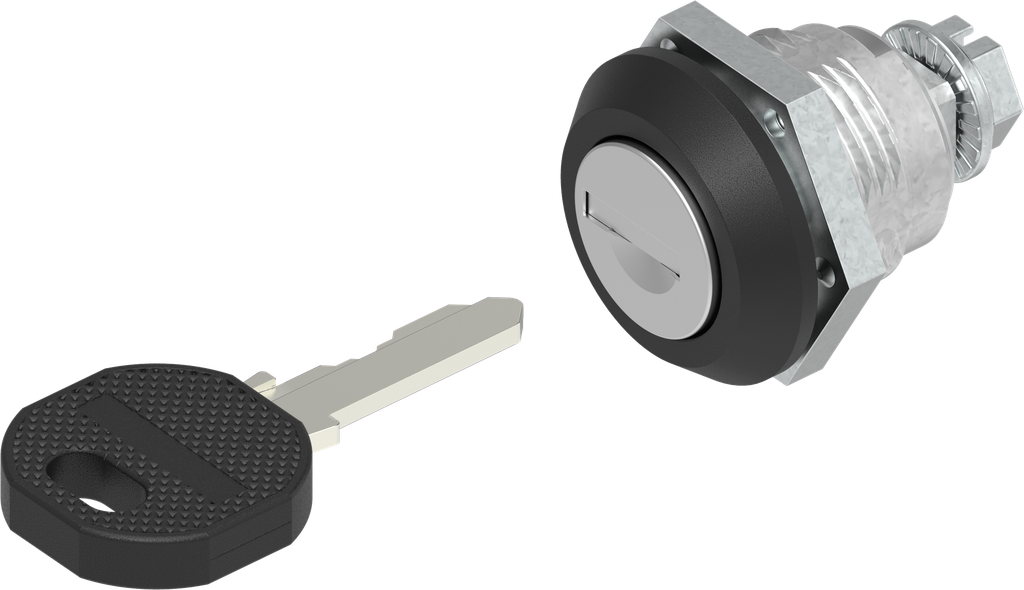

Cylinder quarter turn, keyed different, Zinc die black powder-coated; 1048-U17

https://www.emka.com/products/1048-u17 https://www.emka.com/web/image/product.template/76934/image_1920?unique=56f4792

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Left Right
    Contact Us

    Akeneo Note:

    Further round cylinder key systems available on request
    Internal Reference: 1048-U17
    Product Type: Quarter turn
    Program: 1048
    Catalog sheet: 1B-420
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Dust cap - Finger pull
    Assembly
    Keys
    Here you can find the product data sheets and CAD files of this product
