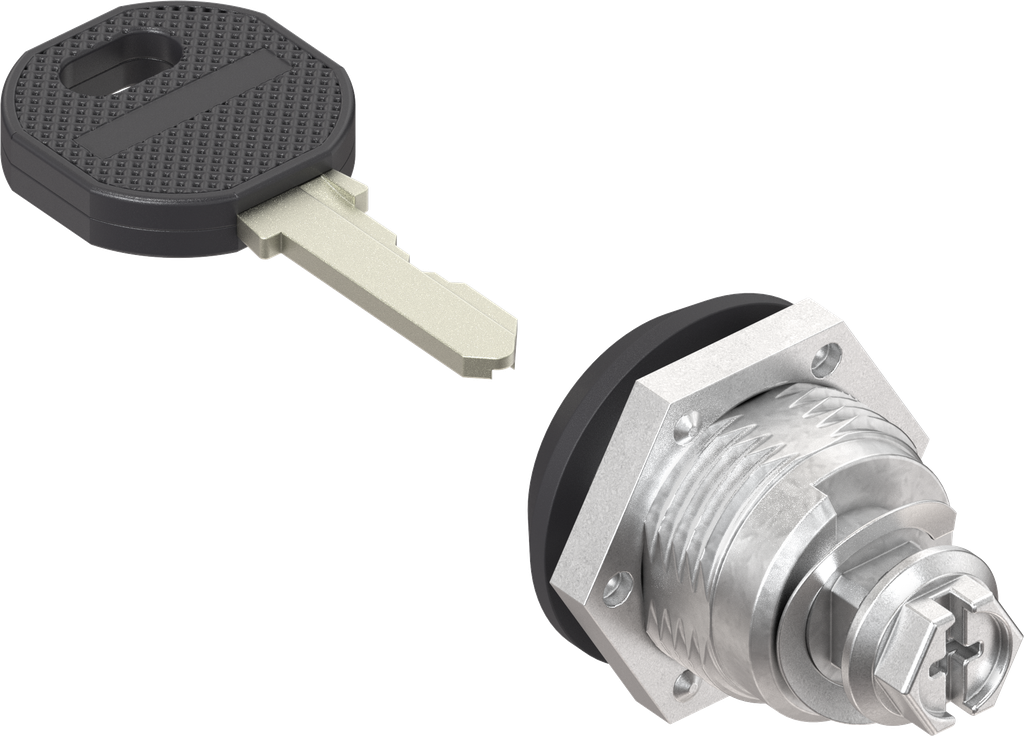

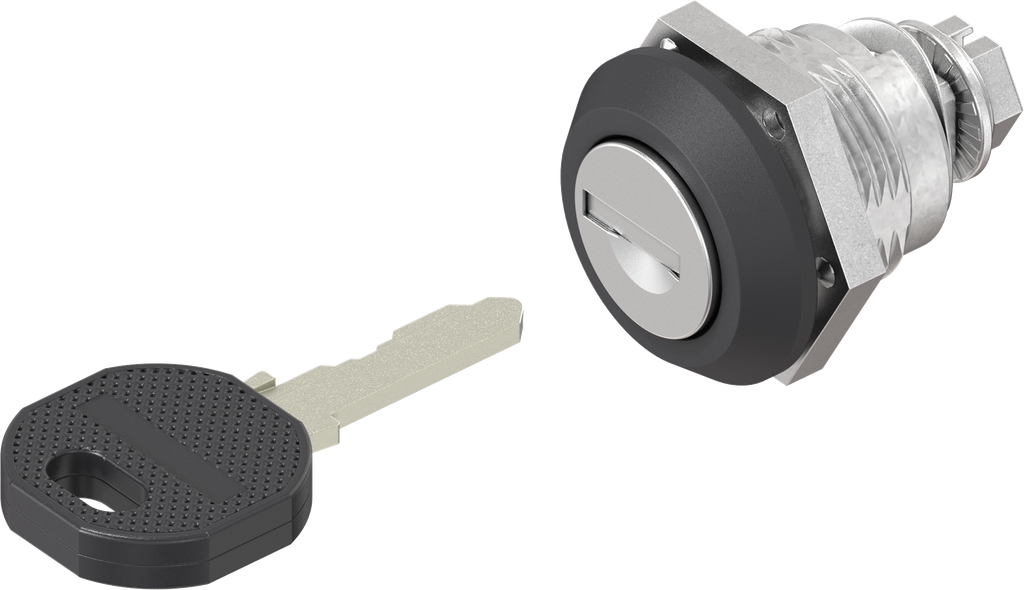

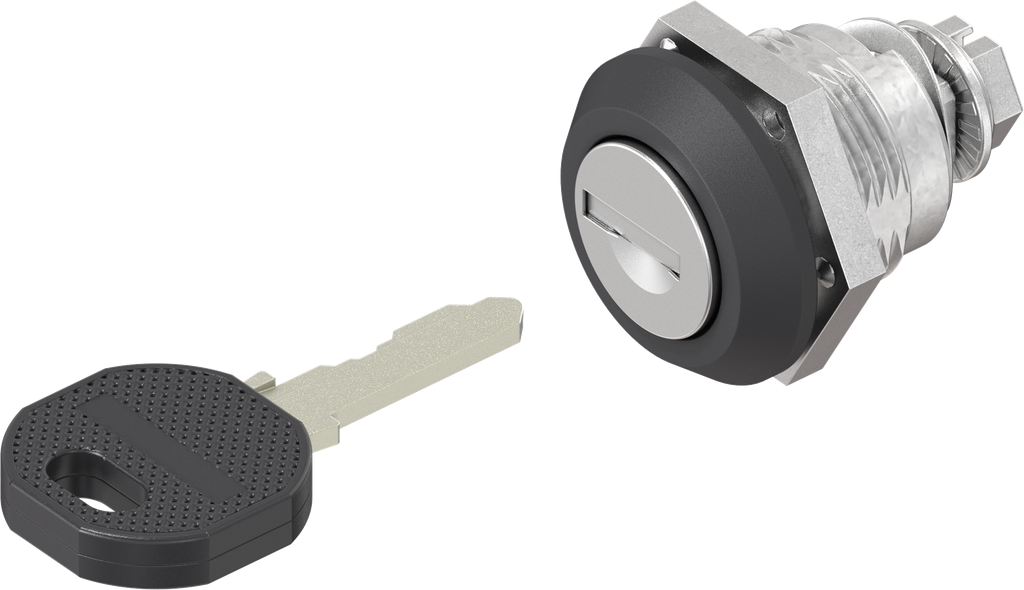

Cylinder quarter turn, keyed EK 333, Zinc die black powder-coated; 1048-U16

https://www.emka.com/products/1048-u16 https://www.emka.com/web/image/product.template/61426/image_1920?unique=da2a09a

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Left Right
    Contact Us

    Akeneo Note:

    Further round cylinder key systems available on request
    Internal Reference: 1048-U16
    Product Type: Quarter turn
    Program: 1048
    Catalog sheet: 1B-420
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round

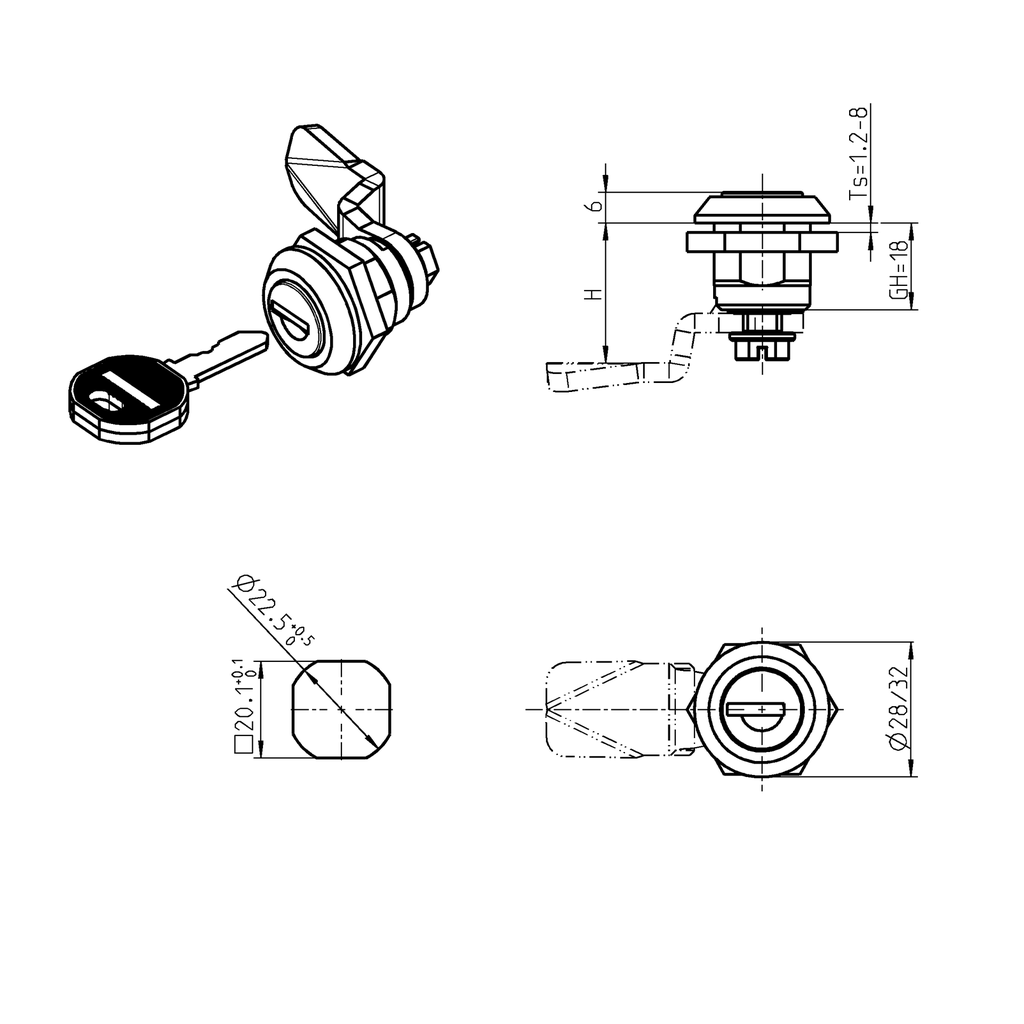

    Housing Head Size: 28 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
