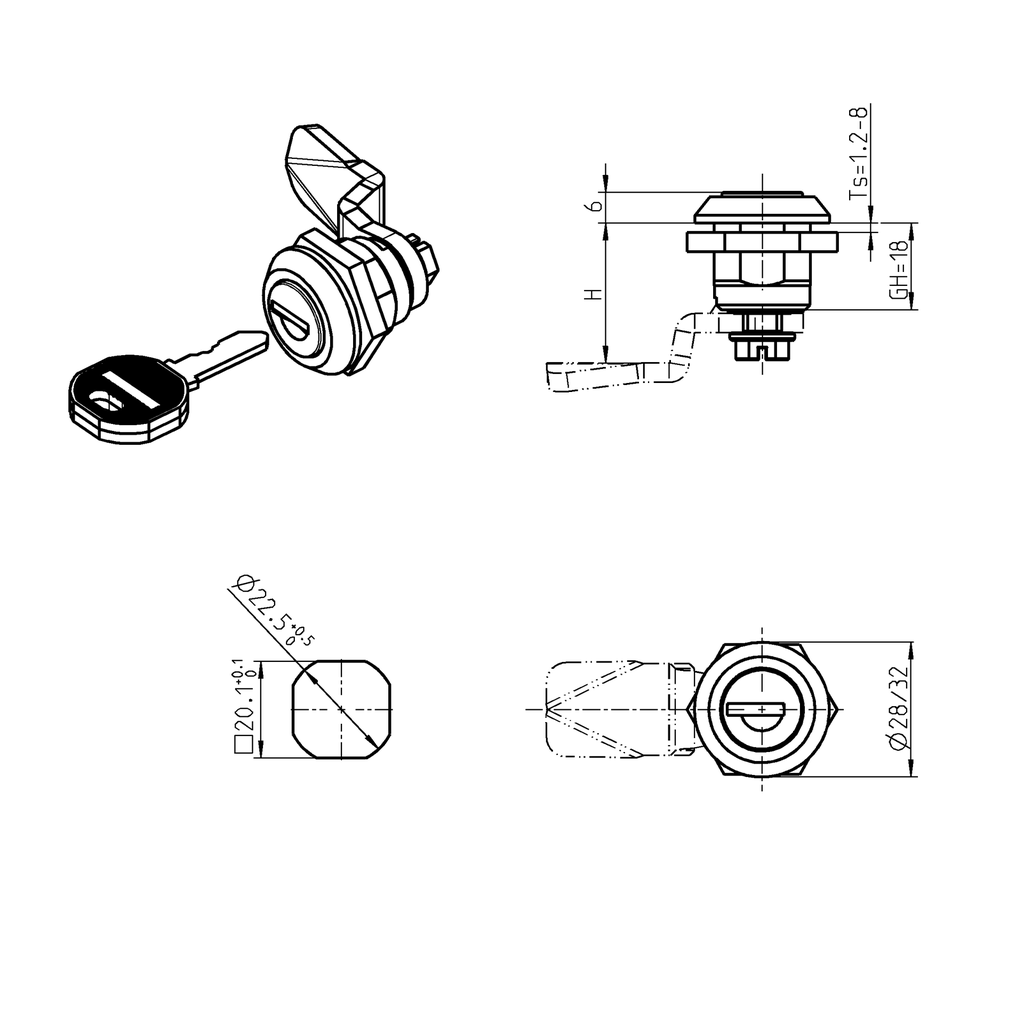

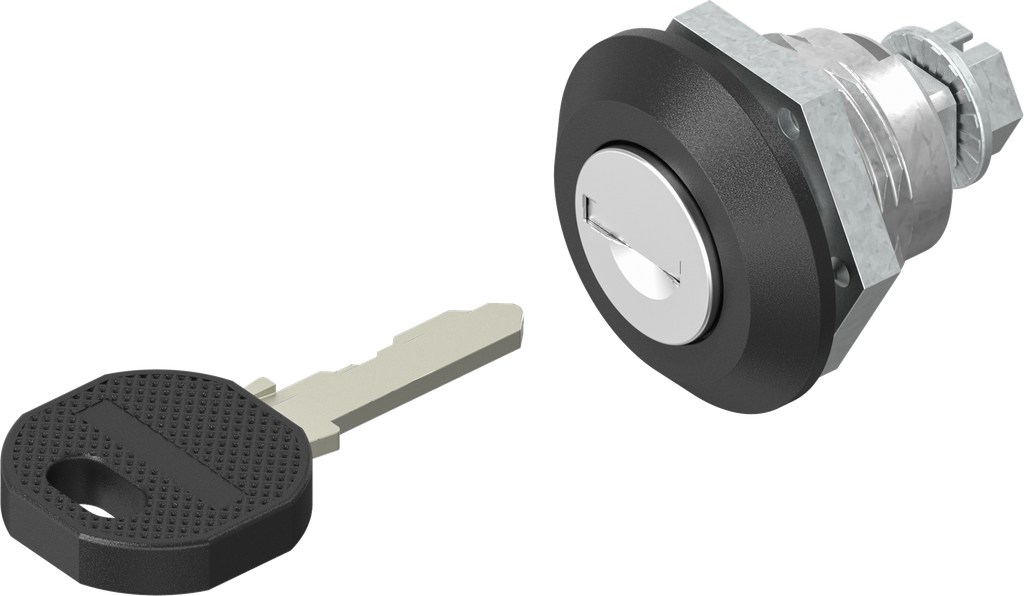

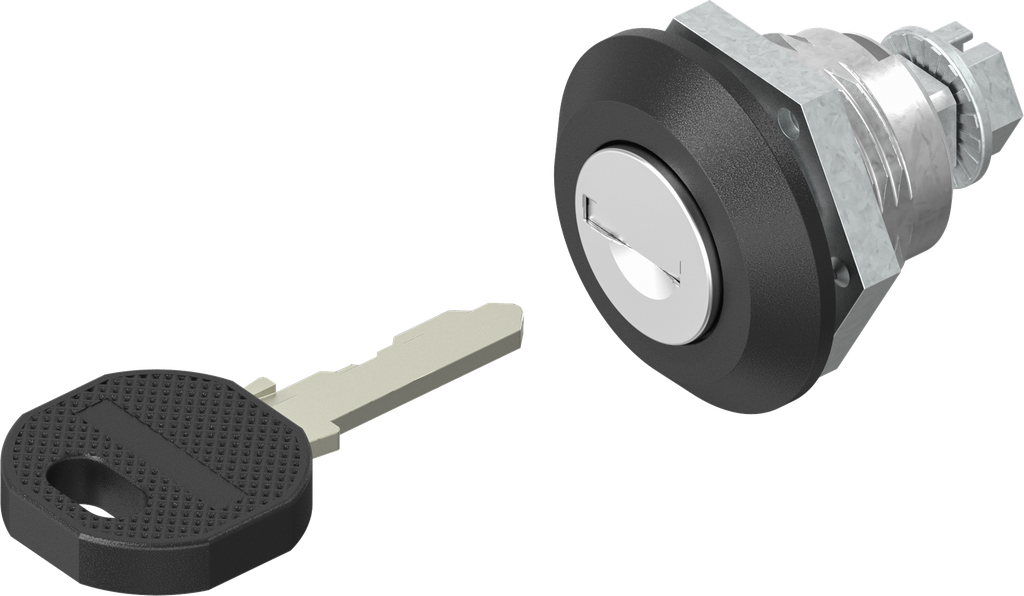

Cylinder quarter turn, keyed EK 333, Zinc die black powder-coated
Cylinder quarter turn, keyed EK 333, Zinc die black powder-coated
Product information:
Key removable in both positions.
Internal Reference:
1048-U12
Product Type:
Quarter turn
Program:
1048
Catalog sheet:
1B-420
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Grounding possible:
Yes
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
GH Mass:
18 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
8 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Door Version :
Left,Right
Quarter turn types:
Quarter turn with cylinder
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
