Cylinder quarter turn, keyed different, Zinc die chrome-plated
Cylinder quarter turn, keyed different, Zinc die chrome-plated
Cylinder quarter turn, keyed different, Zinc die black powder-coated
Cylinder quarter turn, keyed different, Zinc die black powder-coated

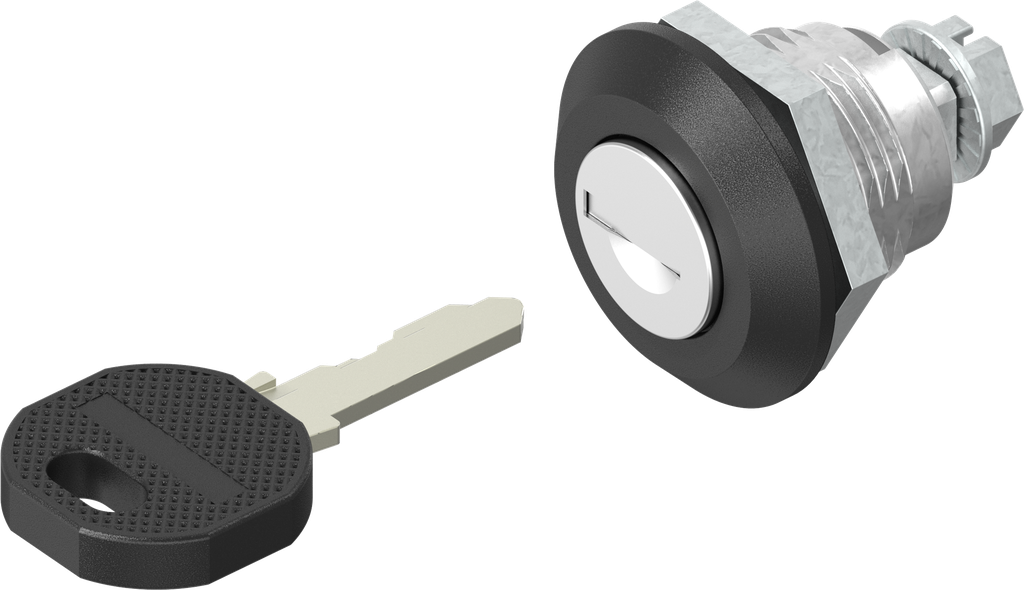

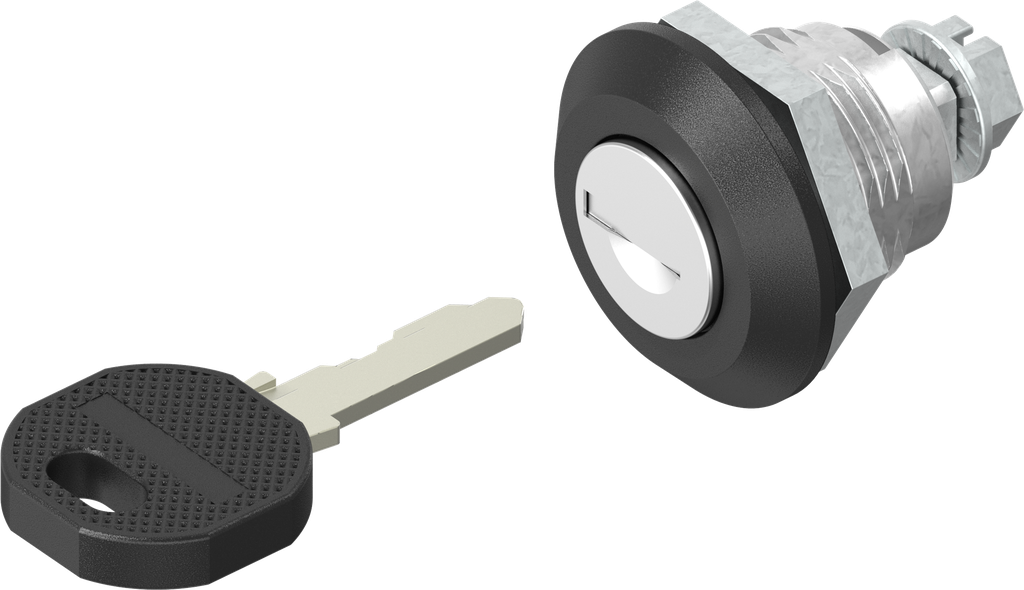

Cylinder quarter turn, keyed different, Zinc die black powder-coated; 1048-U11

https://www.emka.com/products/1048-u11 https://www.emka.com/web/image/product.template/349954/image_1920?unique=3d587ee

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Akeneo Note:

    Further round cylinder key systems available on request
    Internal Reference: 1048-U11
    Product Type: Quarter turn
    Program: 1048
    Catalog sheet: 1B-420
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 32 x 6 mm
    GH Mass: 18 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Quarter turn accessories
    Dust cap - Finger pull
    Assembly
    Keys
    Here you can find the product data sheets and CAD files of this product
