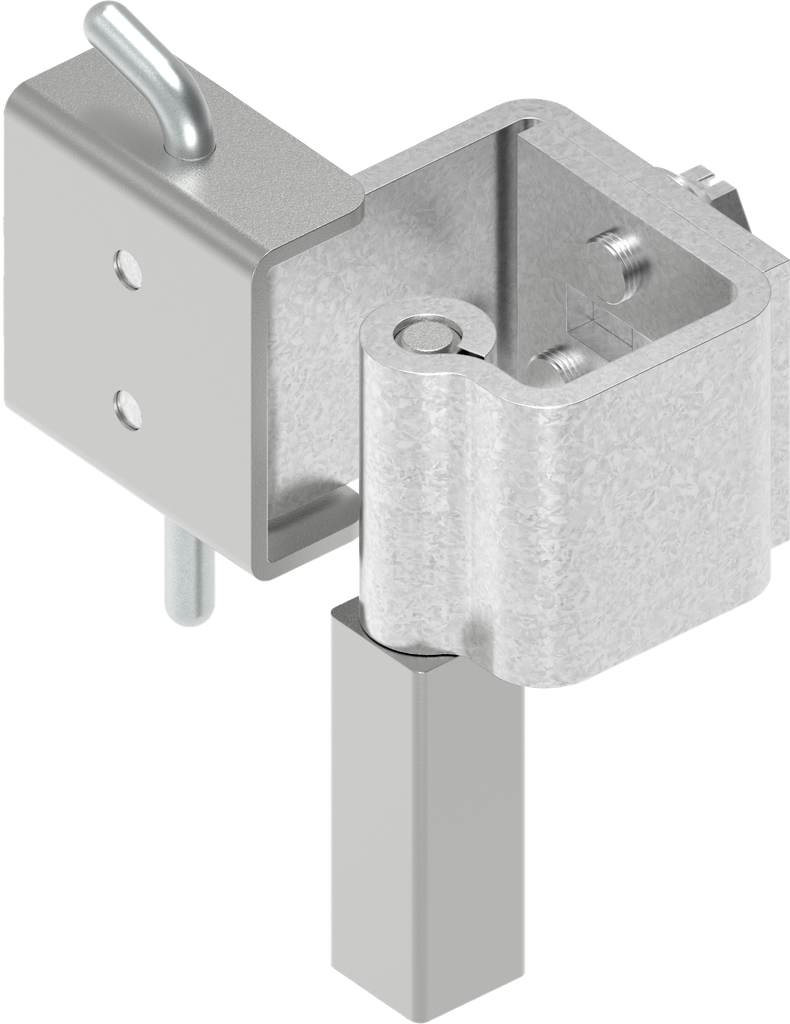

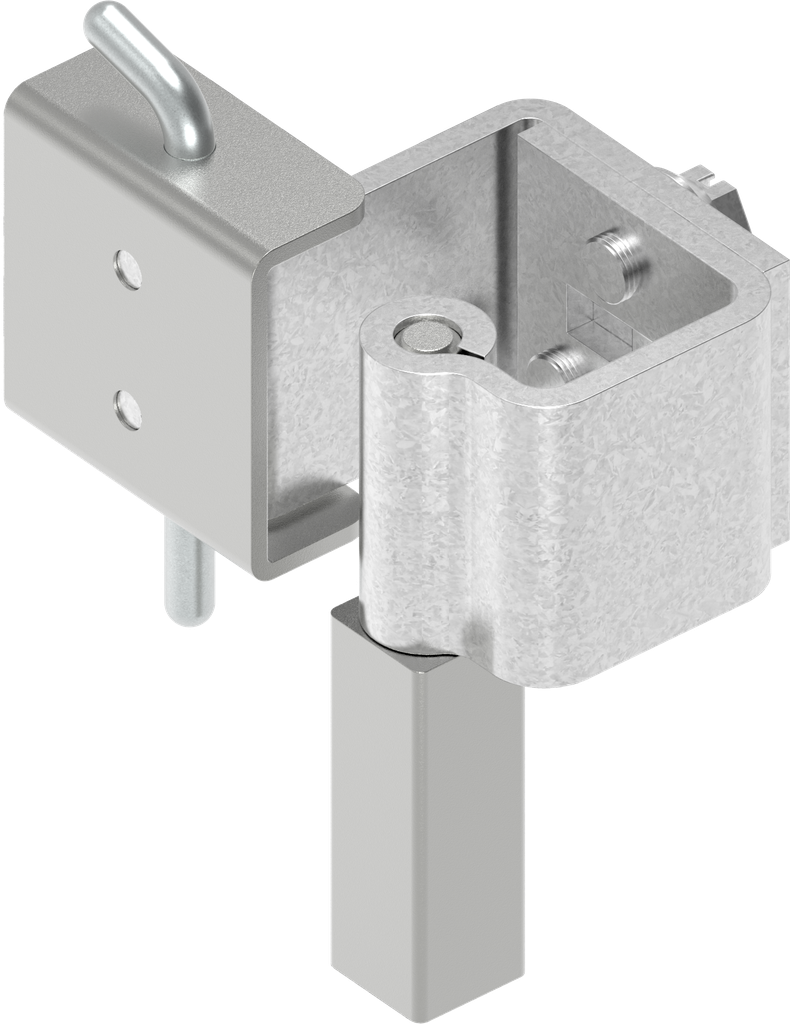

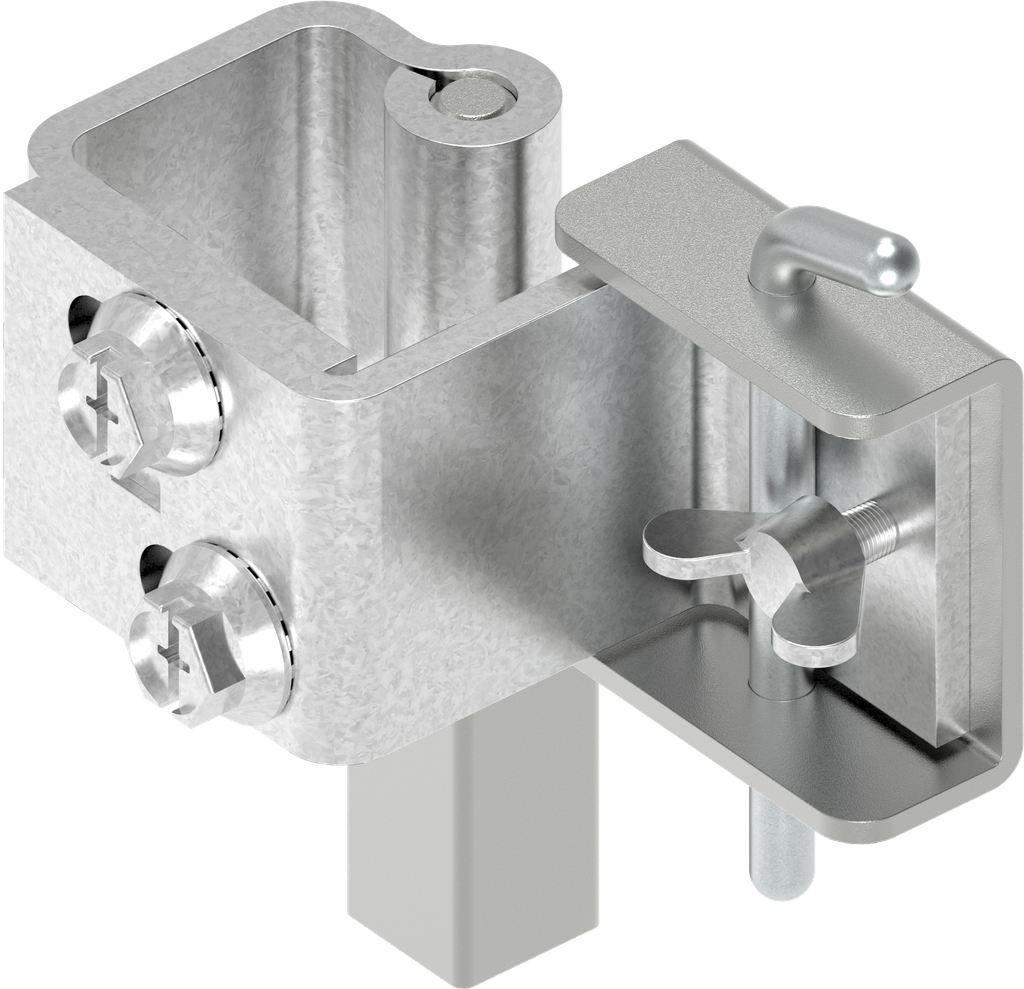

90° Concealed hinge, Steel zinc-plated and raw; 1046-U4

https://www.emka.com/products/1046-u4 https://www.emka.com/web/image/product.template/211079/image_1920?unique=f4fbb77

Connecting part and frame part m.s. raw for welding on

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Left Right
    Contact Us
    Internal Reference: 1046-U4
    Product Type: Hinge
    Program: 1046
    Catalog sheet: 4B-130
    Material of the module : Steel
    Surface of the module: zinc-plated and raw
    Dimension A, Variable: up to 26 mm
    Door return variable: Yes
    Detachable: without tools
    Type of attachment to the frame: weld-on
    Type of fastening on the door: weld-on
    Max Opening Angle: 90°
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Cannot be disassembled from the outside: Yes
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 4B-130
    Product data sheet
    CAD file | 1046-U4_igs
    CAD file | 1046-U4_stp
