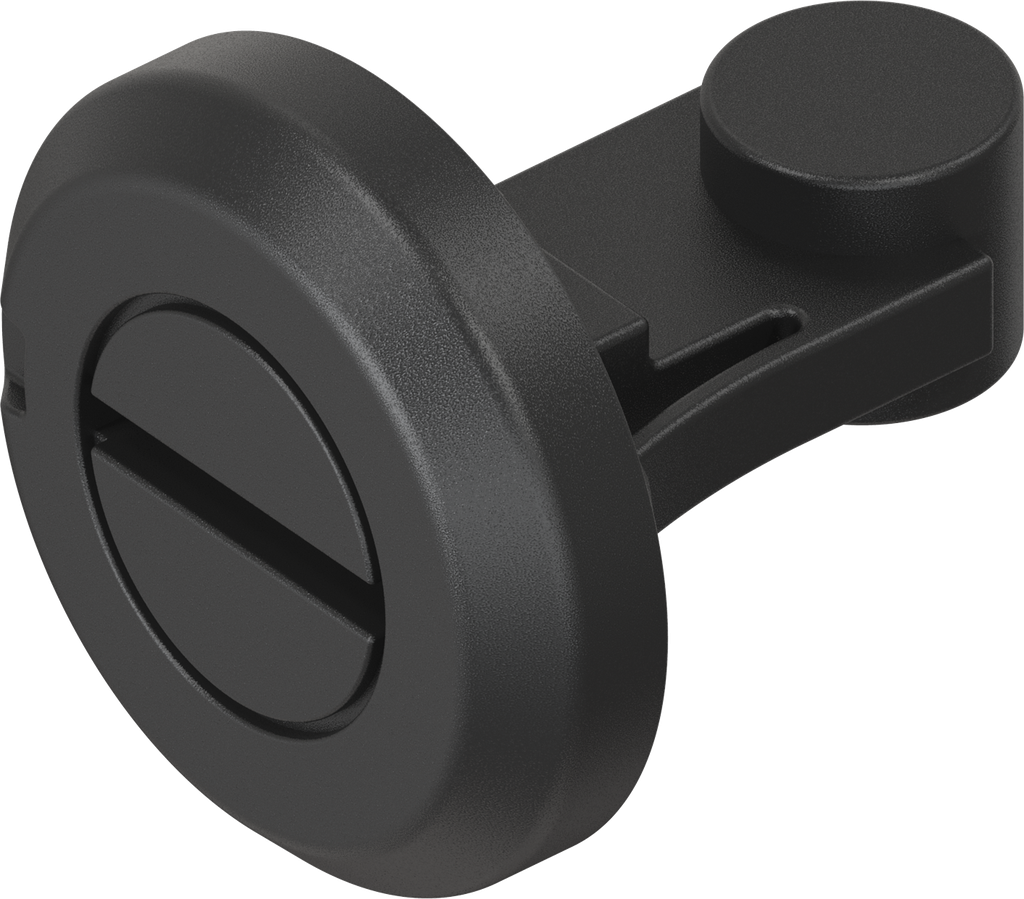

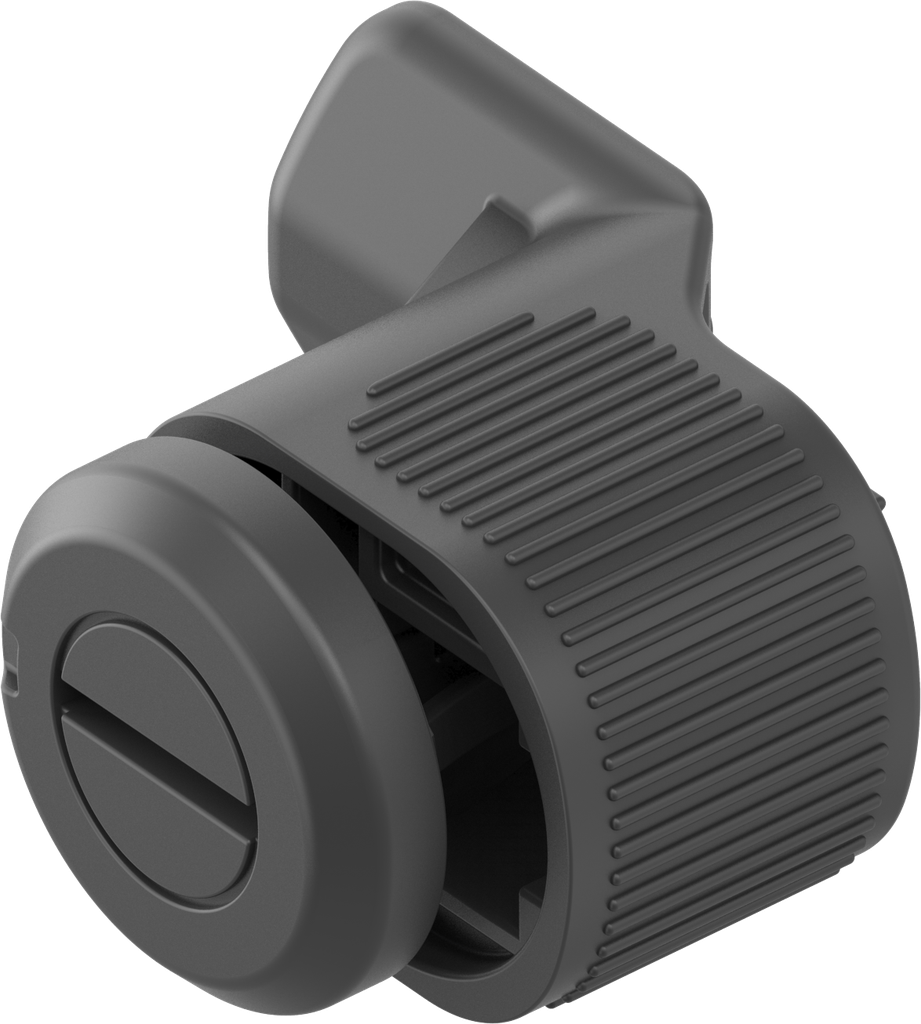

Insert part triangular 6.5, Polyamide GF black
Clamping profile, EPDM 75 ± 5 Shore A black
Product Benefits:
- Cost savings due to assembly and disassembly without tools within seconds
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:

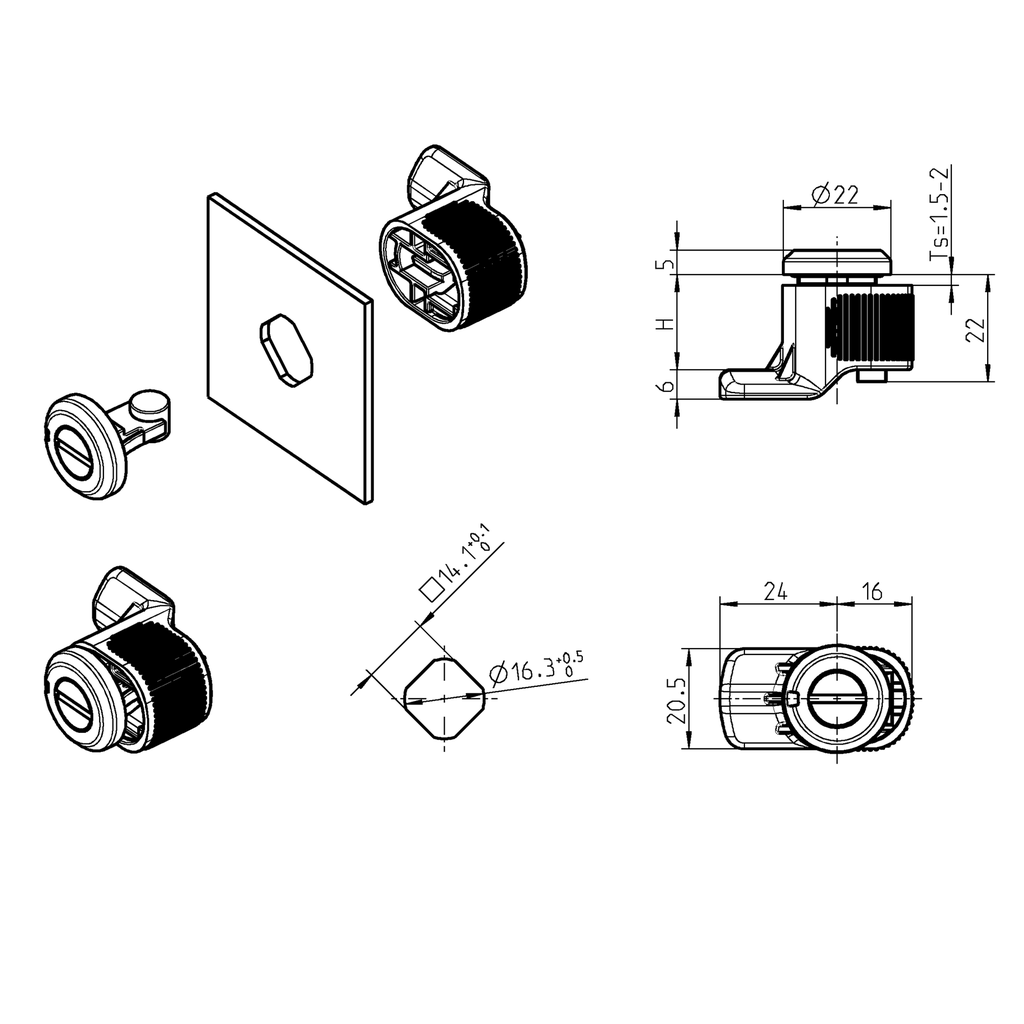

Door gauge incl. surface coating

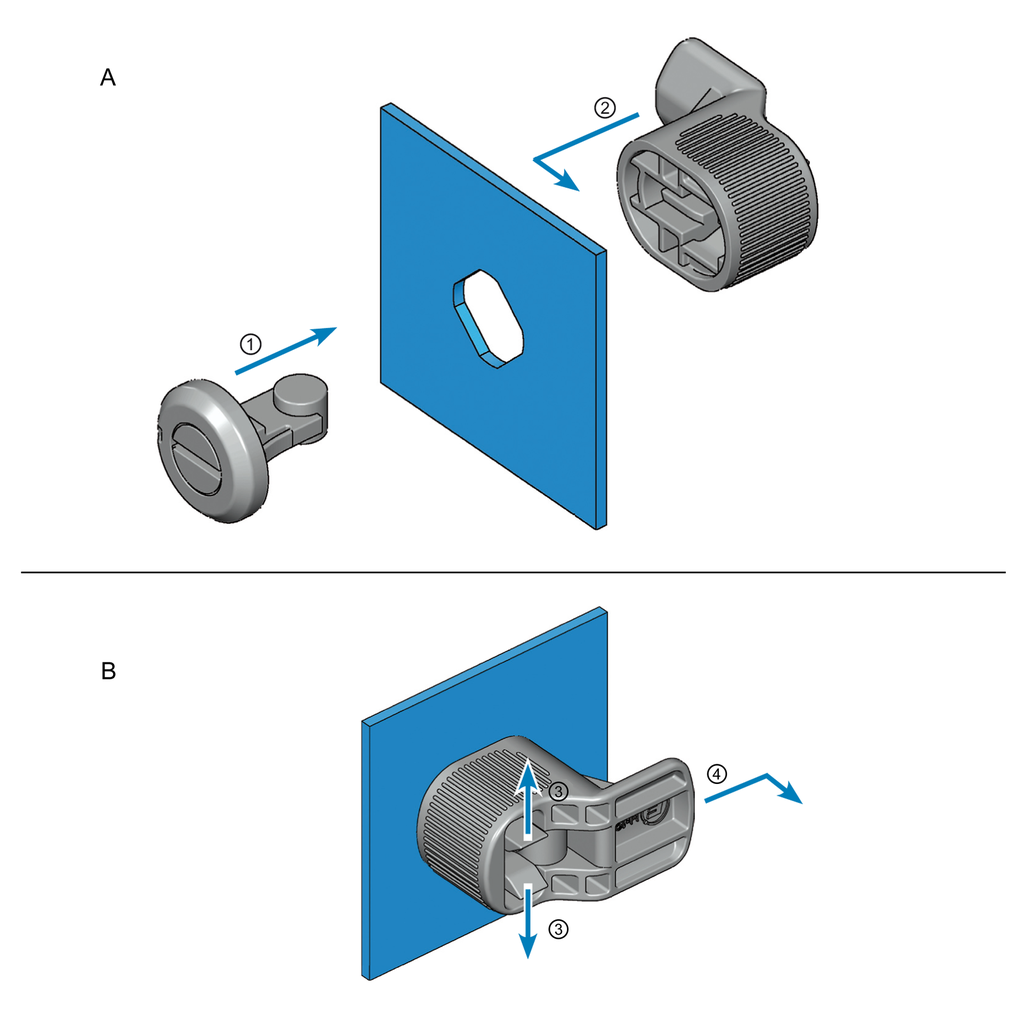

A = Assembly
① = Insert the insert part into the cut out
② = Place the snap-in cam and shift it laterally, acoustic and visual verification of snapping in of snap-in cam
B = Disassembly
③ = Press the locking arms apart
④ = Shift the snap-in cam laterally and remove it
Assembly instruction:
- Assembly door stop on the right:
Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. - Assembly door stop on the left:
Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Internal Reference:
1022-U91
Product Type:
Quarter turn
Program:
1022
Catalog sheet:
1A-320
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Type of actuation:
Slot 1.5 x 3
For GH measure:
13.50 mm
Suitable for door thickness from:
0.50 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Insert
No Specifications
