Insert slot 1.5 x 3, Zinc die chrome-plated
Insert slot 1.5 x 3, Zinc die chrome-plated

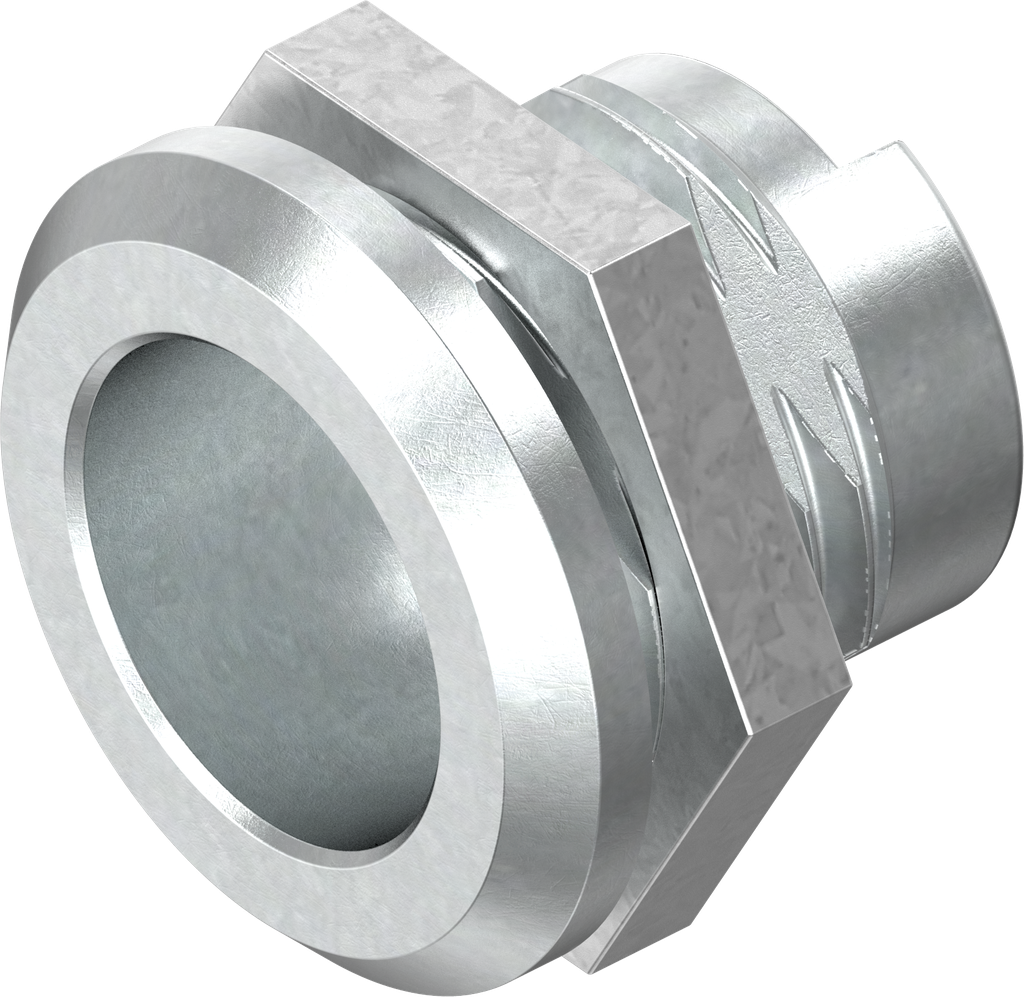

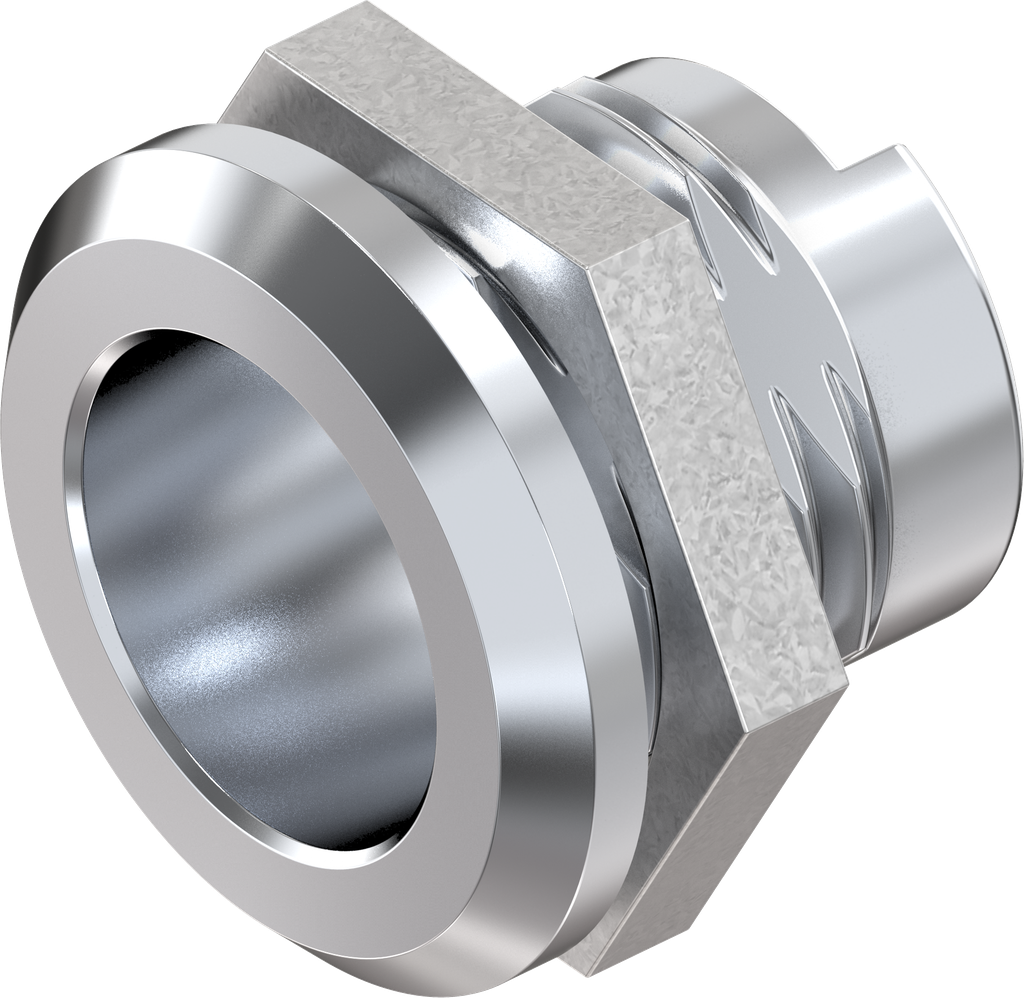

Housing, Zinc die chrome-plated
Housing, Zinc die chrome-plated

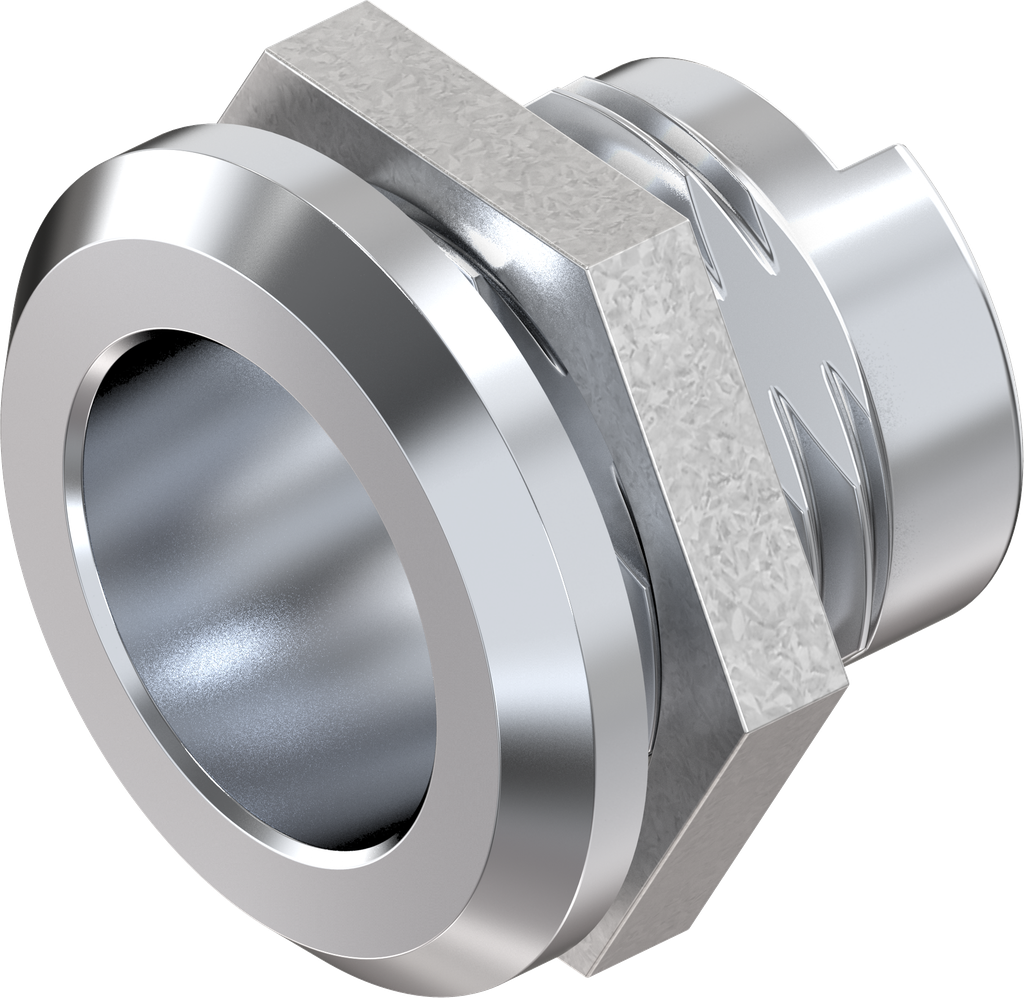

Housing, Zinc die chrome-plated; 1022-U8

https://www.emka.com/products/1022-u8 https://www.emka.com/web/image/product.template/60979/image_1920?unique=15c9396

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-U8
    Product Type: Housing
    Program: 1022
    Catalog sheet: 1A-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 20 x 3 mm
    GH Mass: 13.50 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    O-ring and flat seal
    Dust cap - Finger pull
    Assembly
    Insert
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1A-120
    Product data sheet
    CAD file | 1022-U8_igs
    CAD file | 1022-U8_stp
