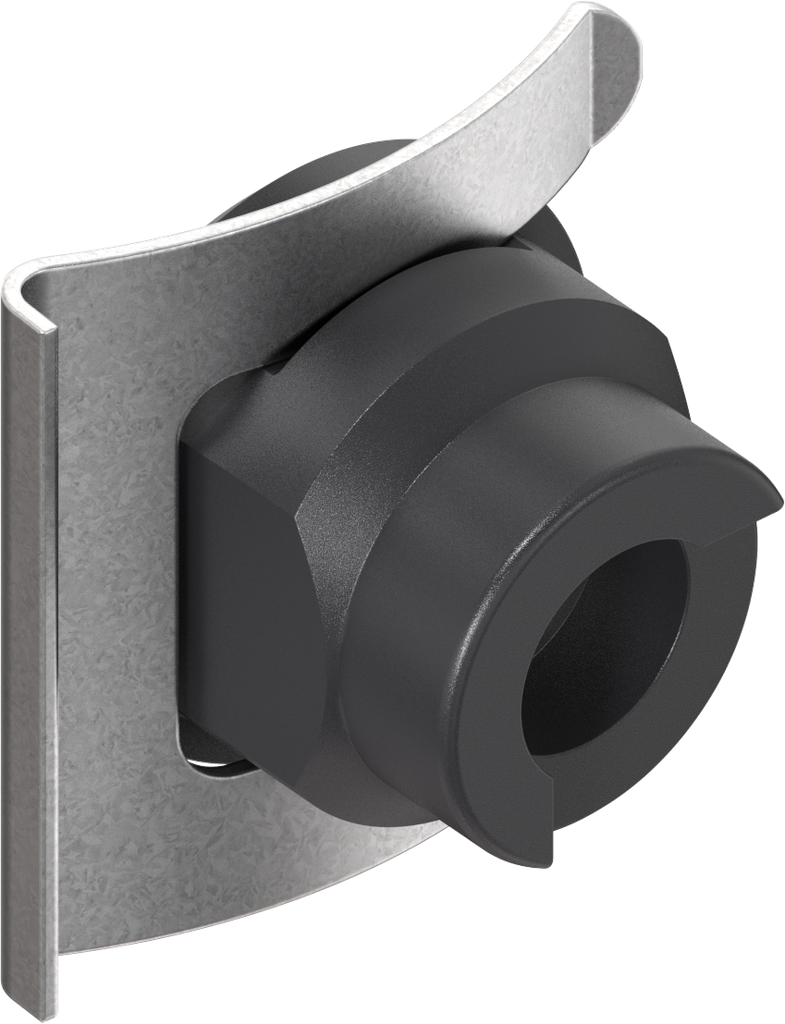

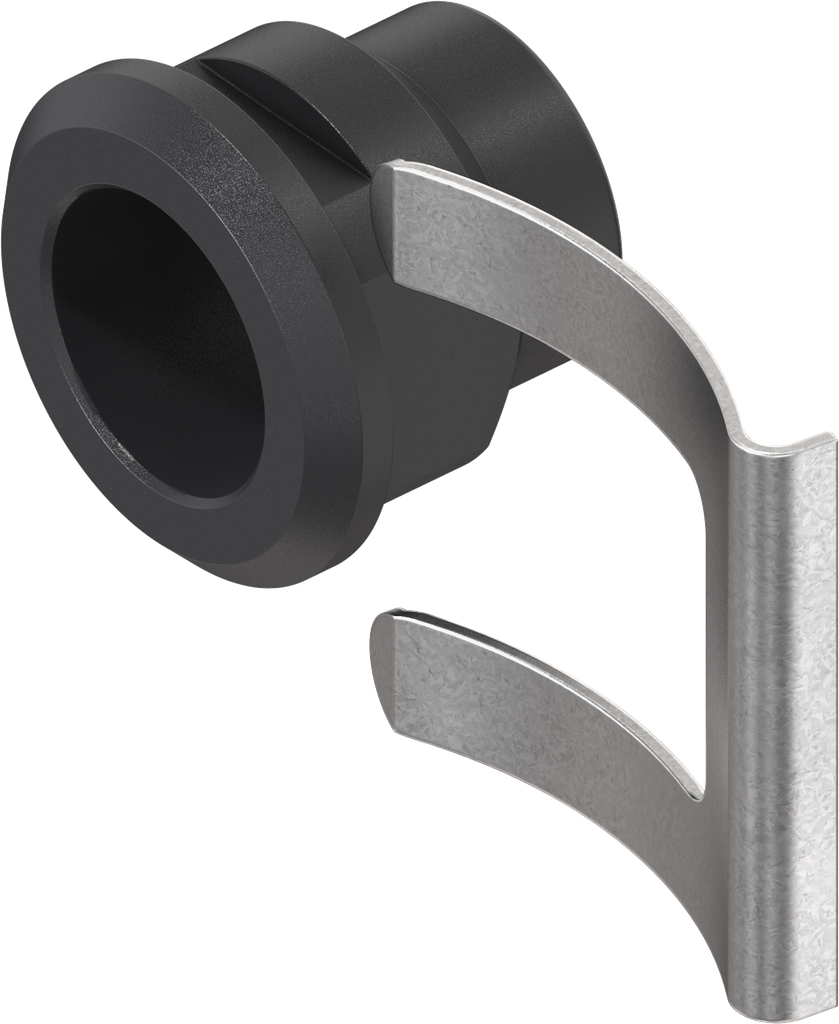

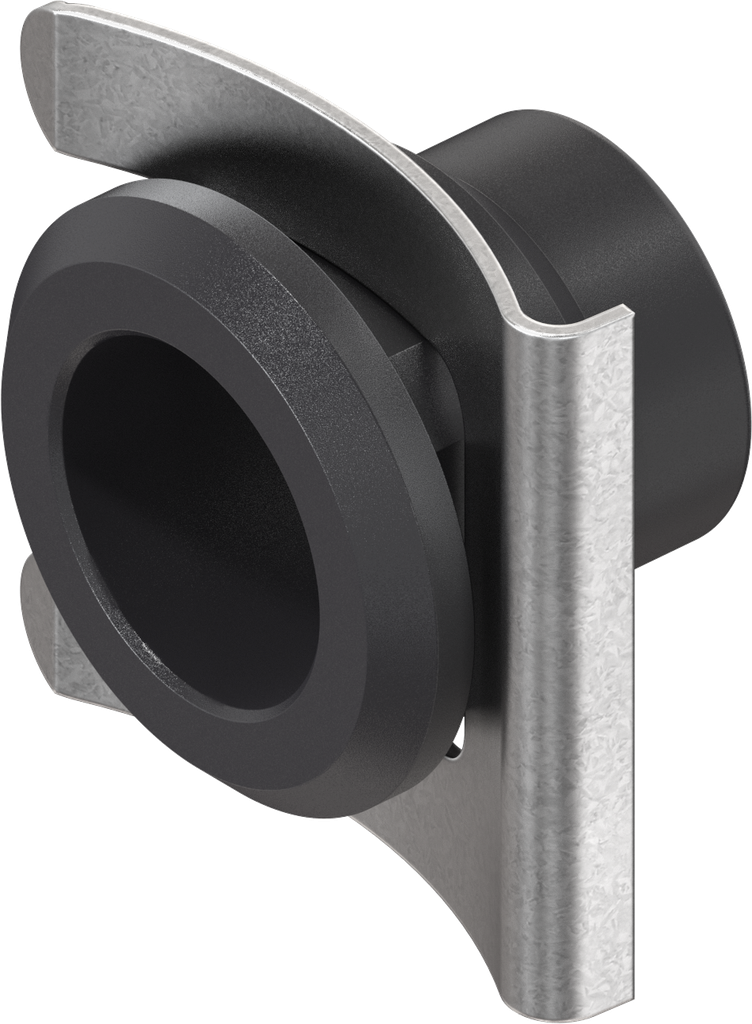

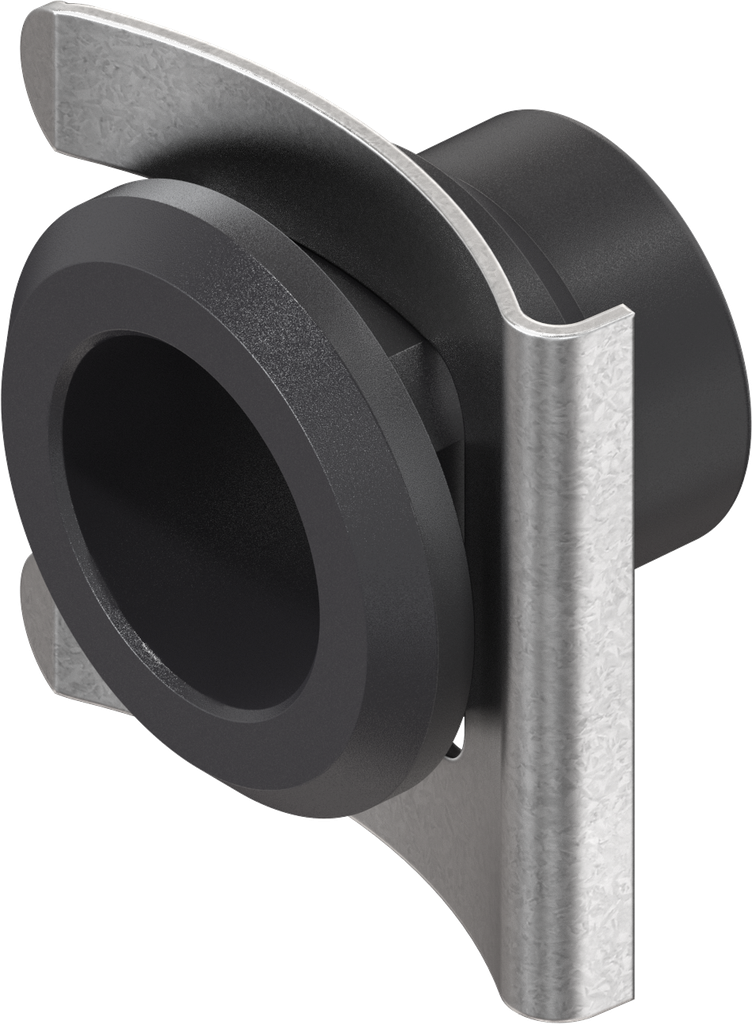

Housing with spring fixing, Polyamide black; 1022-U78

https://www.emka.com/products/1022-u78 https://www.emka.com/web/image/product.template/61025/image_1920?unique=5f7cccb

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-U78
    Product Type: Housing
    Program: 1022
    Catalog sheet: 1A-120
    Material of the module : Polyamide
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : spring fixing
    Mounting Positions : Inside the sealing

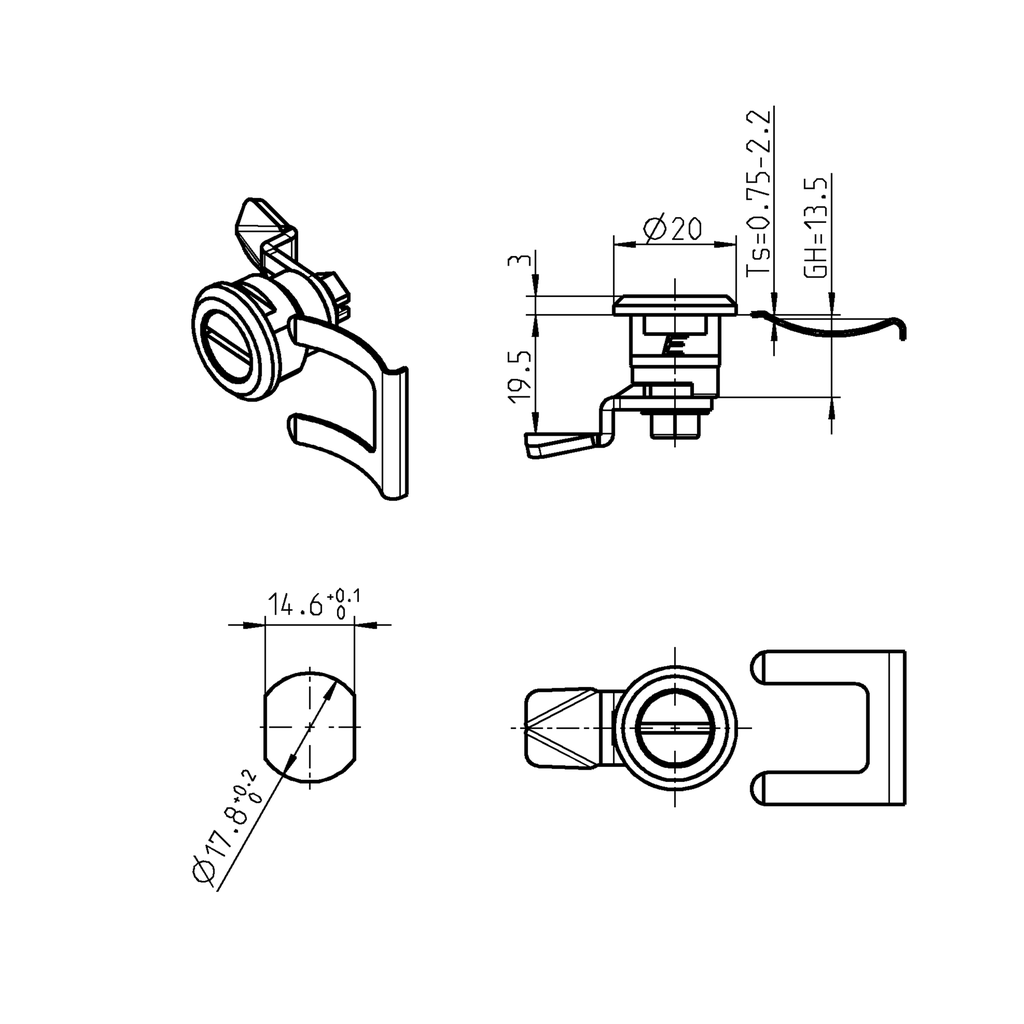

    Housing Head Shape: Round
    Housing Head Size: 20 x 3 mm
    GH Mass: 13.50 mm
    Suitable for door thickness from: 0.75 mm
    Suitable for door thicknesses up to: 2.20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
