Insert slot 1.5 x 3, Polyamide 66 GF 50 black

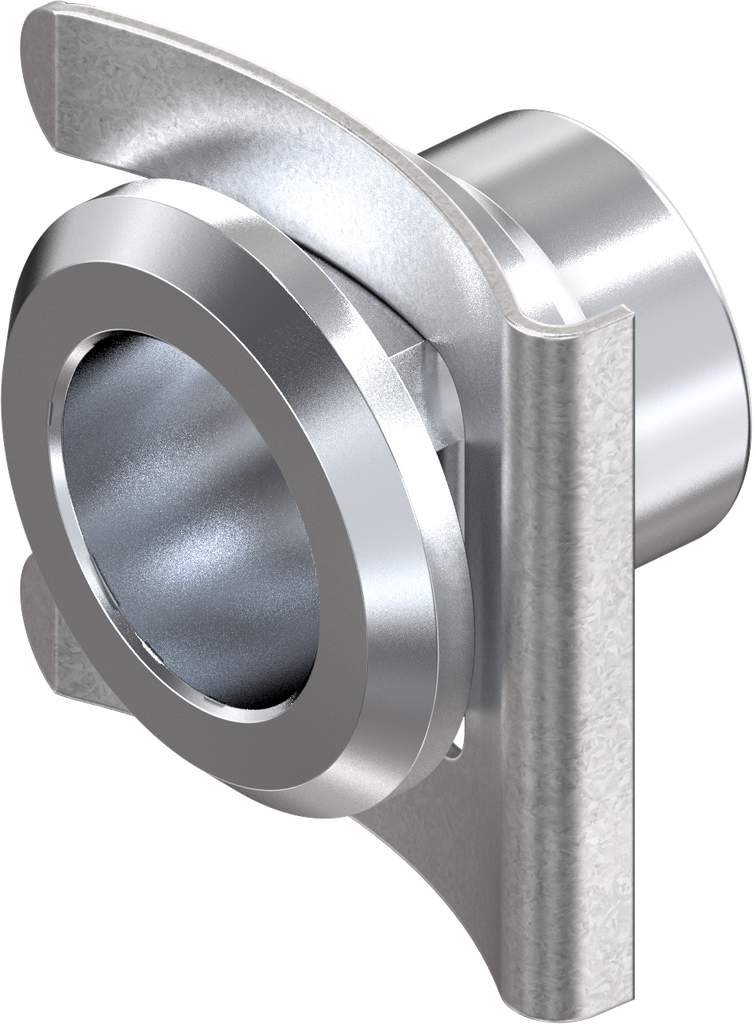

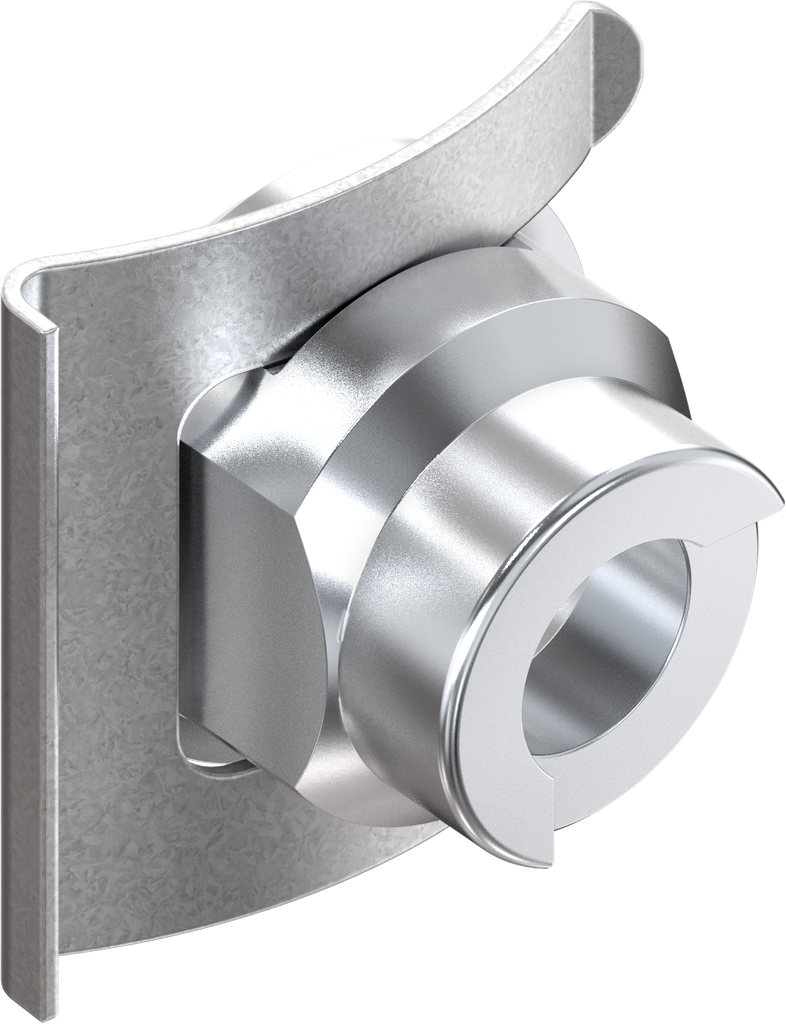

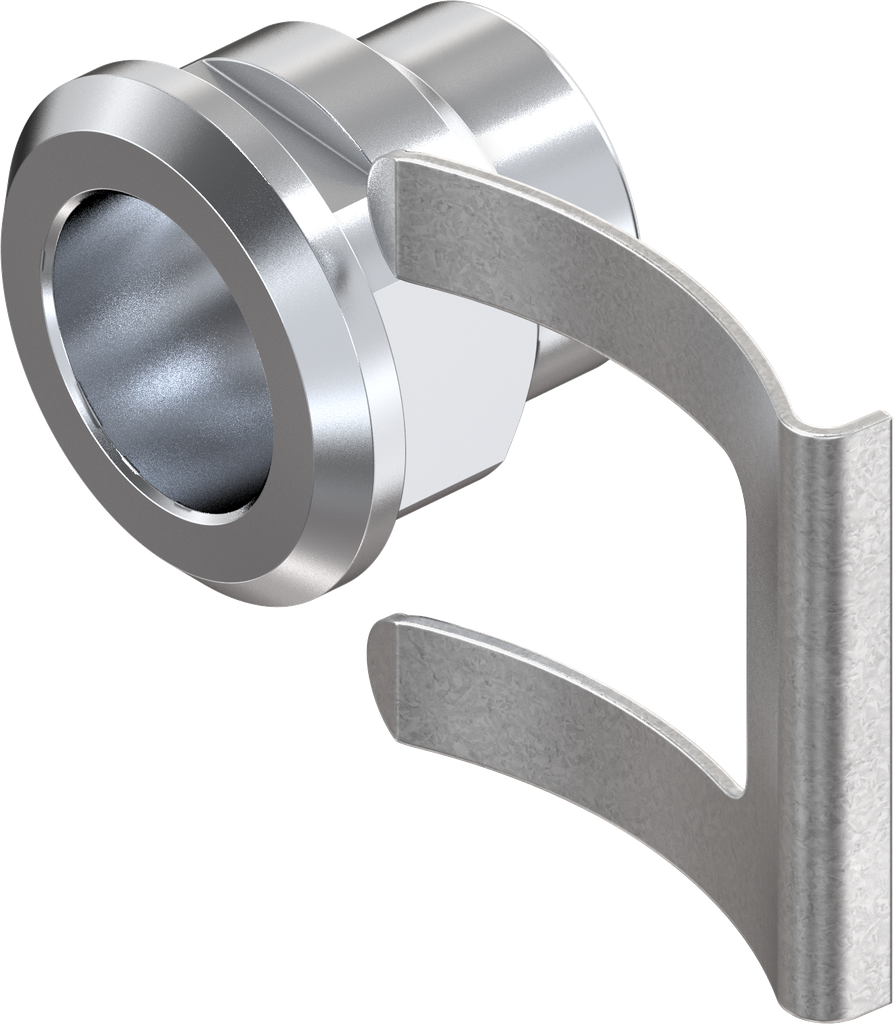

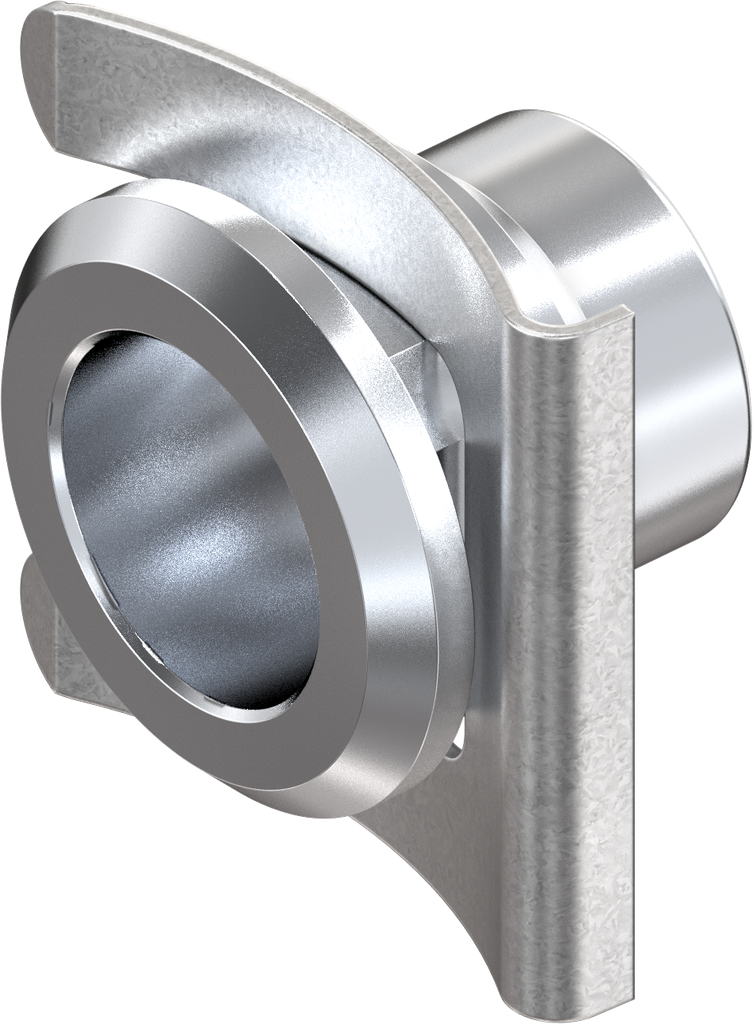

Housing with spring fixing, Polyamide black
Akeneo Note:
Door version depending on cut out arrangement
Internal Reference:
1022-U76
Product Type:
Housing
Program:
1022
Catalog sheet:
1A-120
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
spring fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
20 x 3 mm
GH Mass:
13.50 mm
Suitable for door thickness from:
0.75 mm
Suitable for door thicknesses up to:
2.20 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
