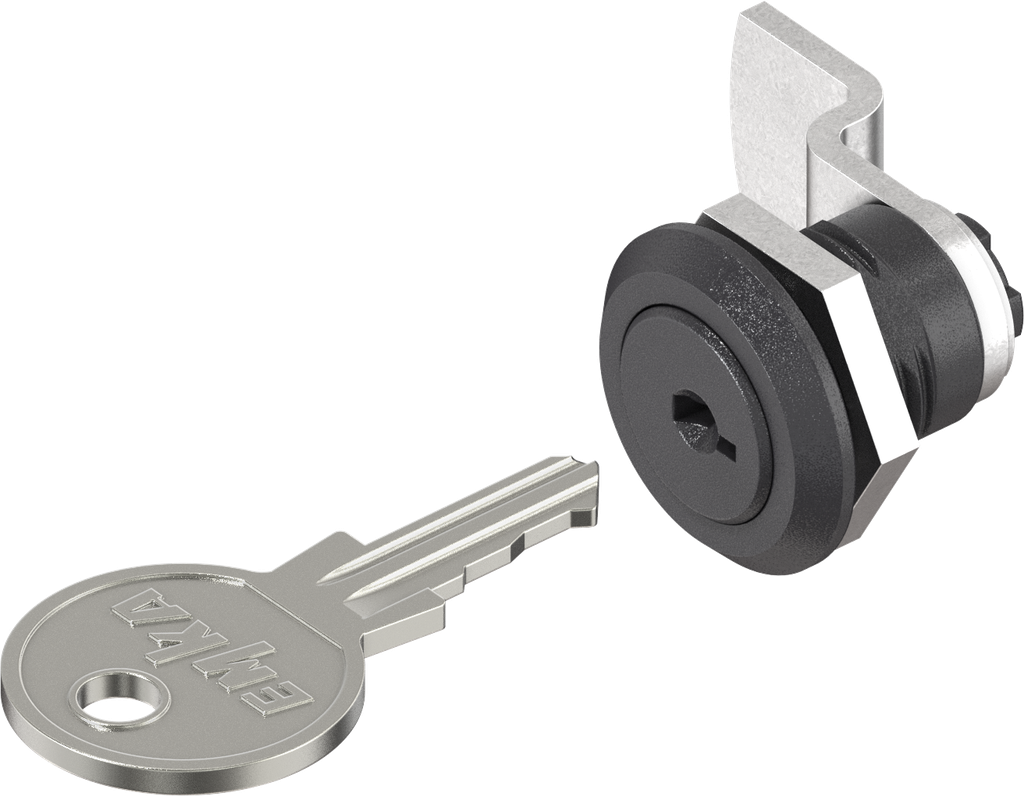

Cylinder quarter turn, keyed different, Polyamide GF black

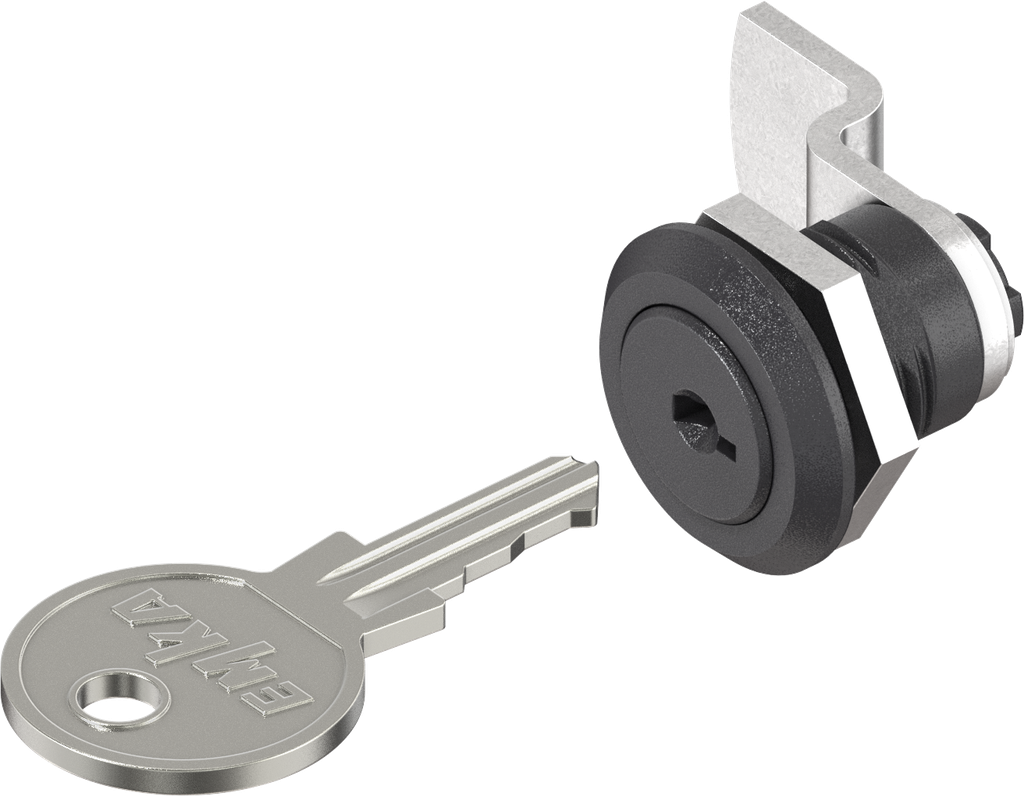

Cylinder quarter turn, keyed different, Polyamide GF black
Housing, Polyamide black
Housing, Polyamide black

Cylinder quarter turn, keyed different, Polyamide GF black; 1022-U70

https://www.emka.com/products/1022-u70 https://www.emka.com/web/image/product.template/61020/image_1920?unique=639d761

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-U70
    Product Type: Quarter turn
    Program: 1022
    Catalog sheet: 1A-160
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

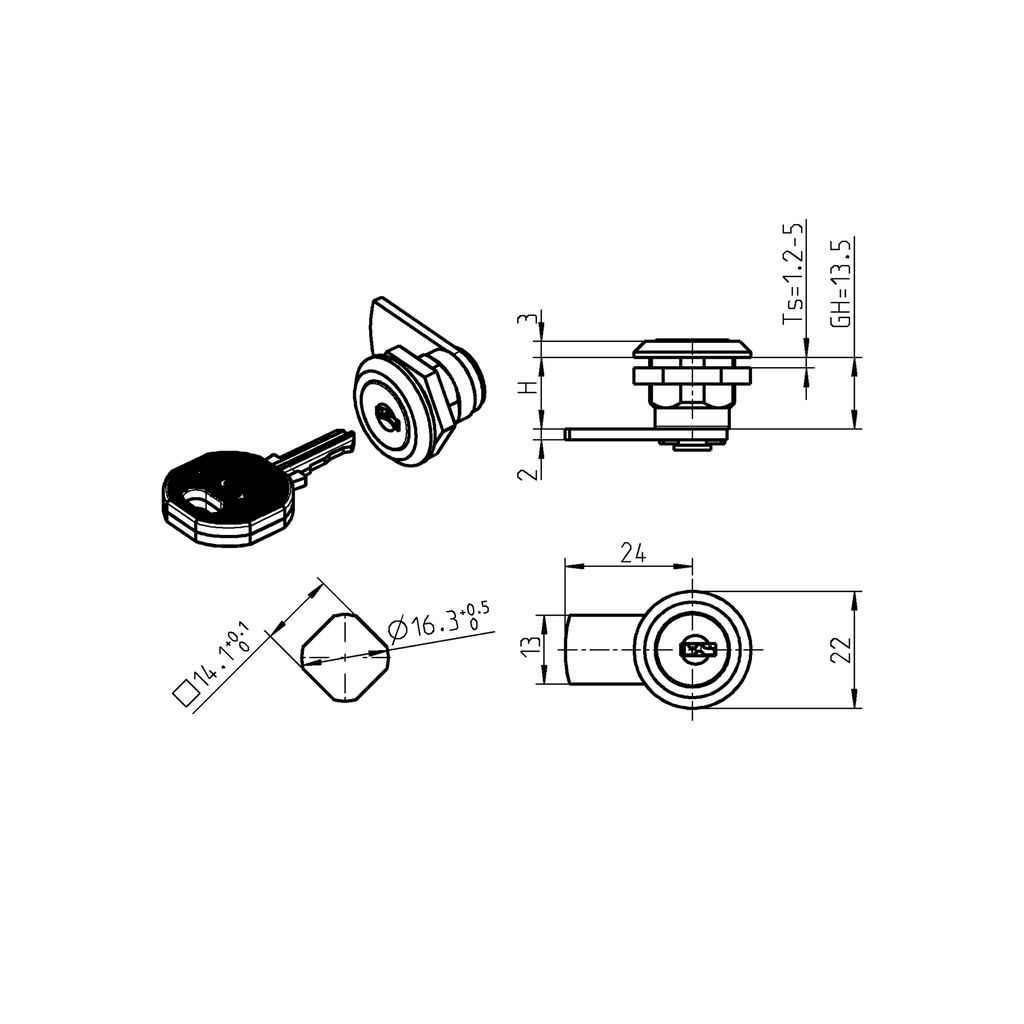

    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Dimension H: 19.50 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Round Cylinder Type: EMKA X, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
    No Specifications
    View All Products
    Dust cap - Finger pull
    Keys
    Here you can find the product data sheets and CAD files of this product
