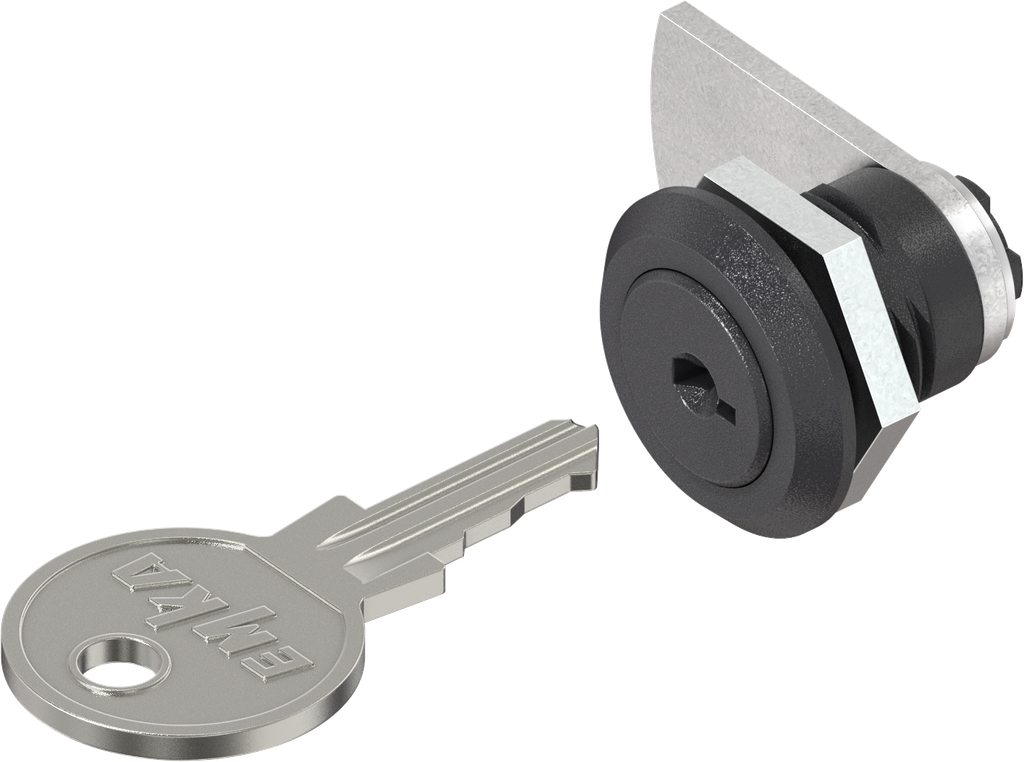

Cylinder quarter turn, keyed different, Polyamide GF black; 1022-U69

https://www.emka.com/products/1022-u69 https://www.emka.com/web/image/product.template/209204/image_1920?unique=30ca5c5

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-U69
    Product Type: Quarter turn
    Program: 1022
    Catalog sheet: 1A-160
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Dimension H: 13.50 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Round Cylinder Type: EMKA X, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with cylinder
