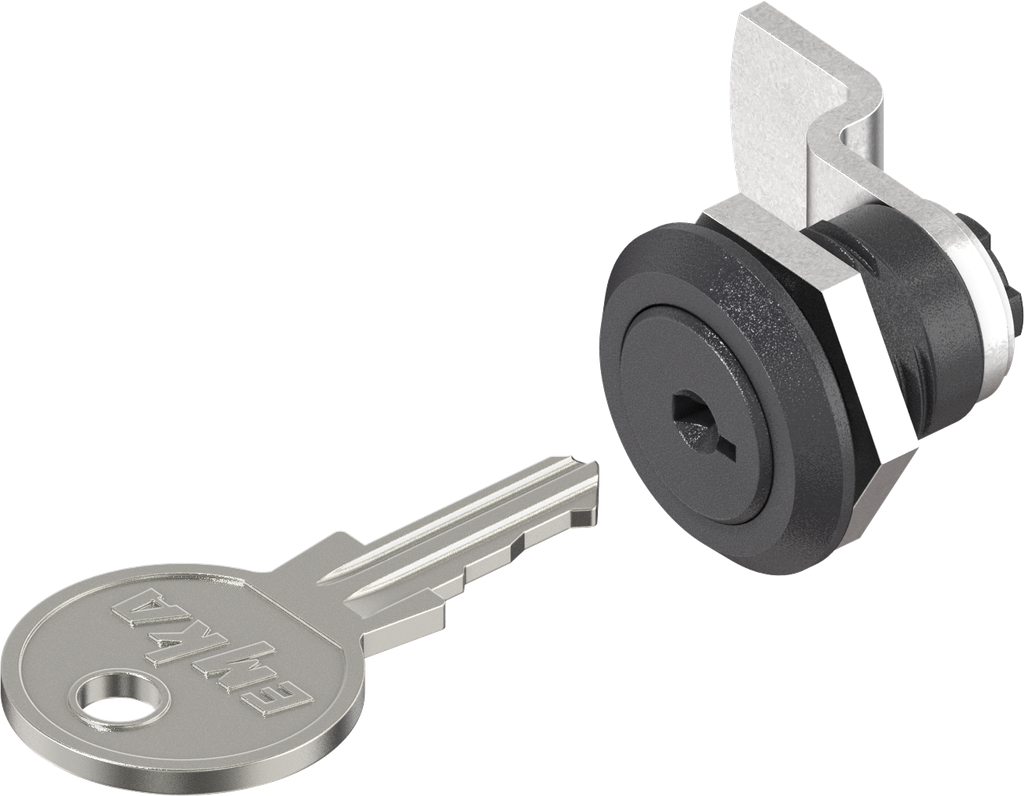

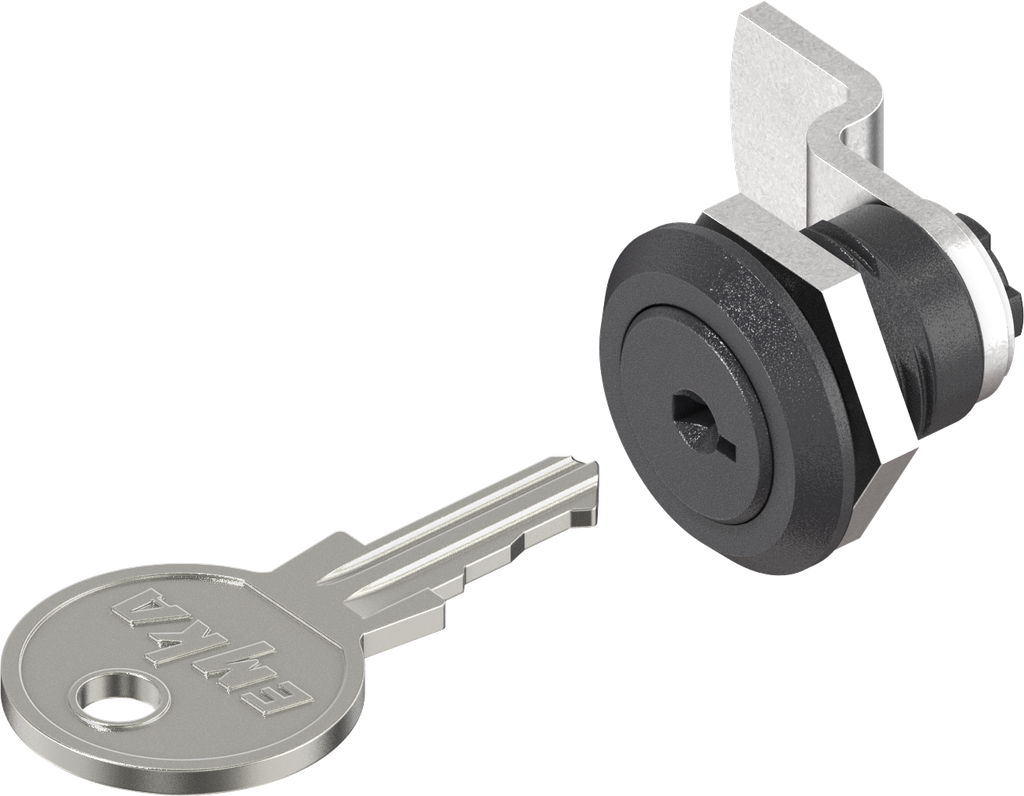

Cylinder quarter turn, keyed 2233X, Polyamide GF black
Cylinder quarter turn, keyed different, Polyamide GF black
Internal Reference:
1022-U67
Product Type:
Quarter turn
Program:
1022
Catalog sheet:
1A-160
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
22 x 3 mm
GH Mass:
13.50 mm
Dimension H:
19.50 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
5 mm
Round Cylinder Type:
EMKA X, keyed 2233X
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with cylinder
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
