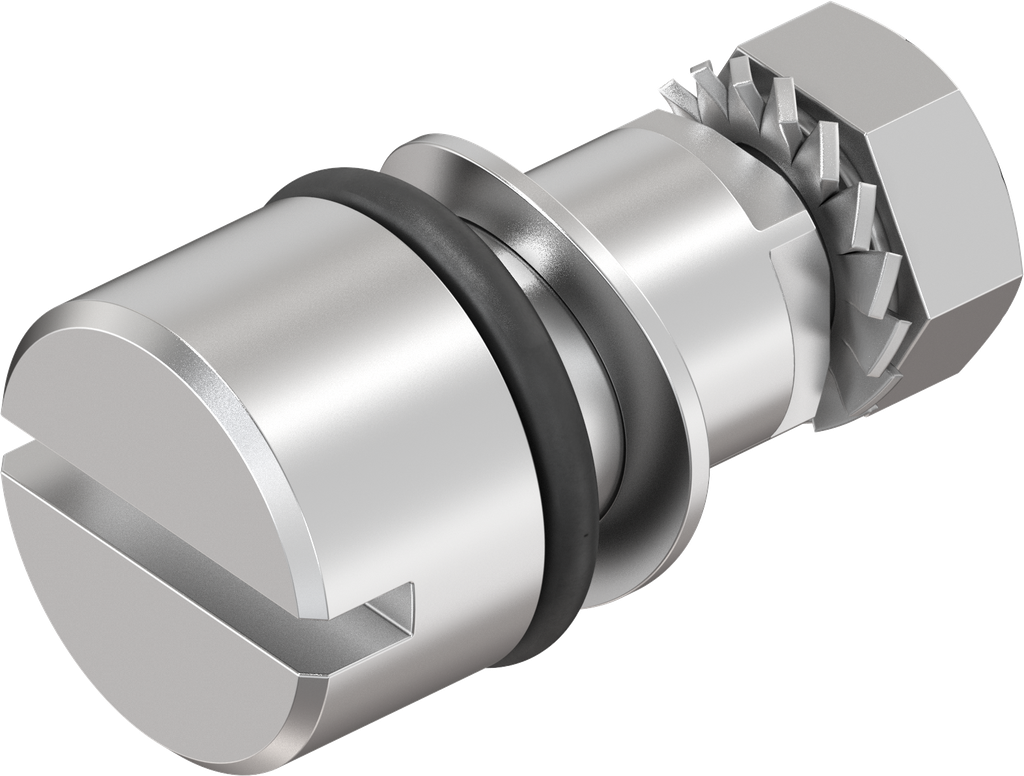

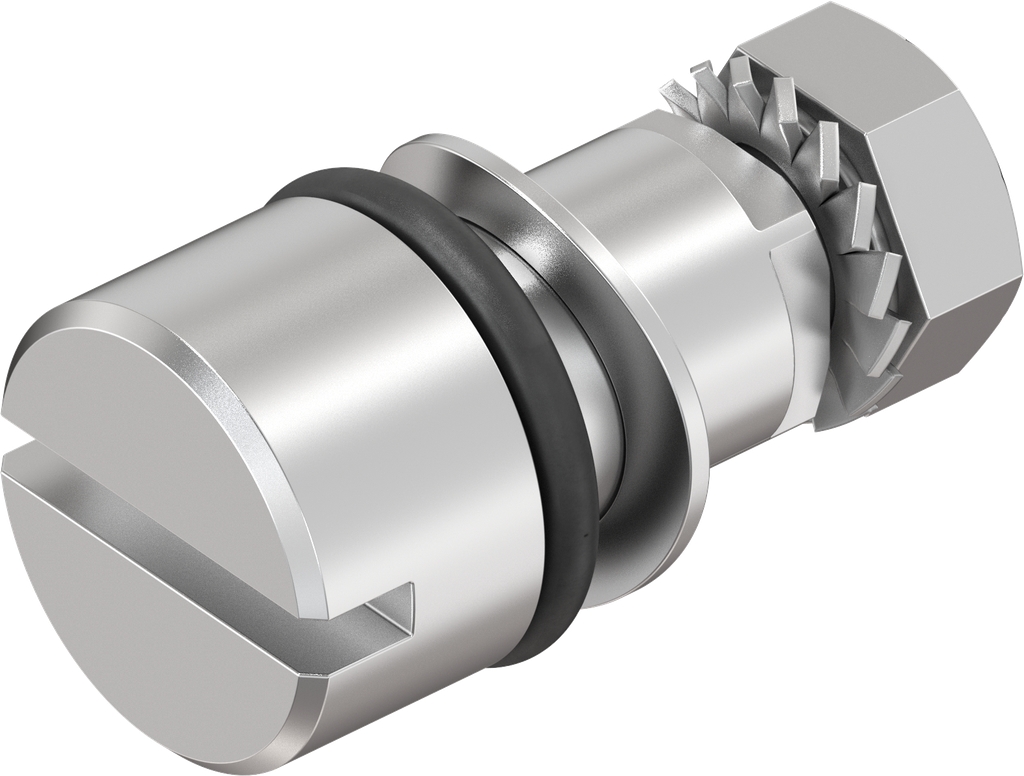

Insert slot 1.5 x 3, Stainless steel AISI 303; 1022-U63

https://www.emka.com/products/1022-u63 https://www.emka.com/web/image/product.template/61015/image_1920?unique=dcf0abc

with O-ring

    This combination does not exist.

    Protection class IP 65
    Contact Us
    Internal Reference: 1022-U63
    Product Type: Insert
    Program: 1022
    Catalog sheet: 1A-120
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point
    Insert for: Insert for housing, classic
    Type of actuation: Slot 1.5 x 3
    For GH measure: 13.50 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products
    Housing
    Keys
    Assembly
    Here you can find the product data sheets and CAD files of this product
