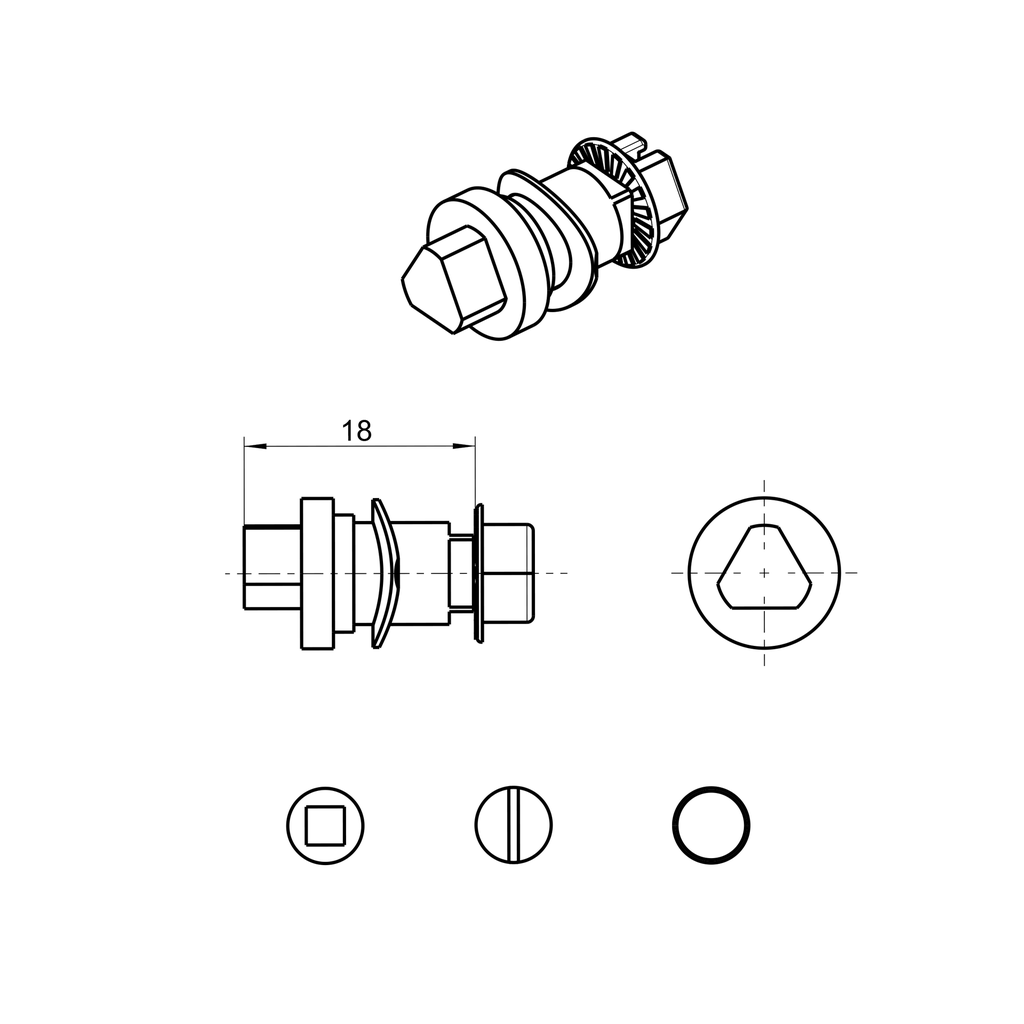

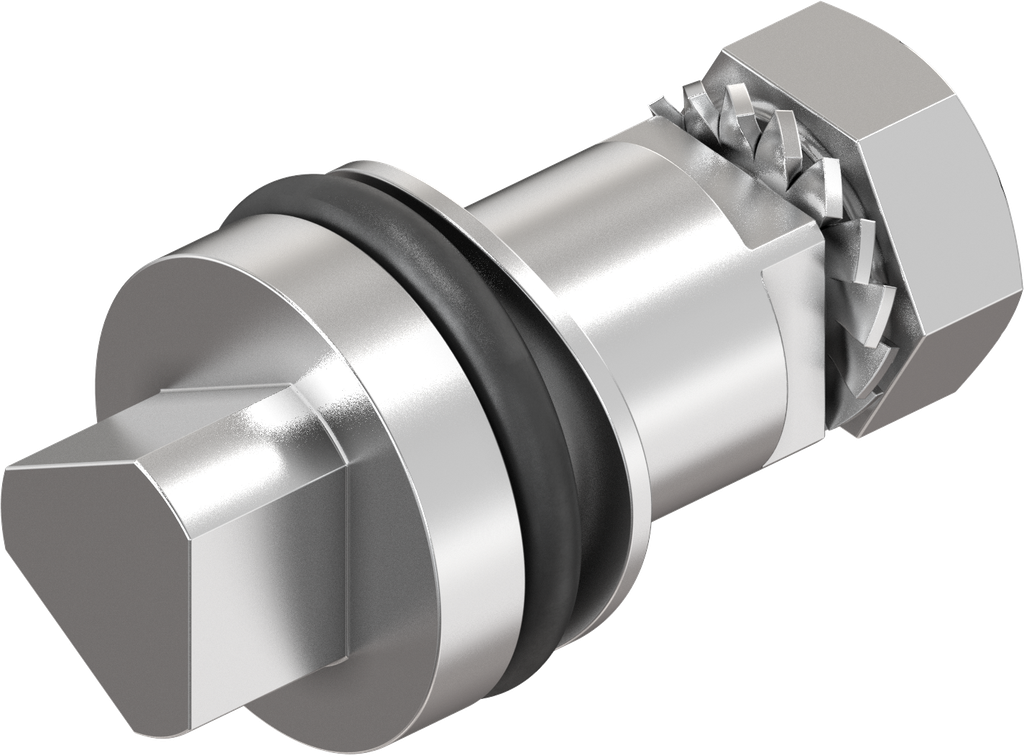

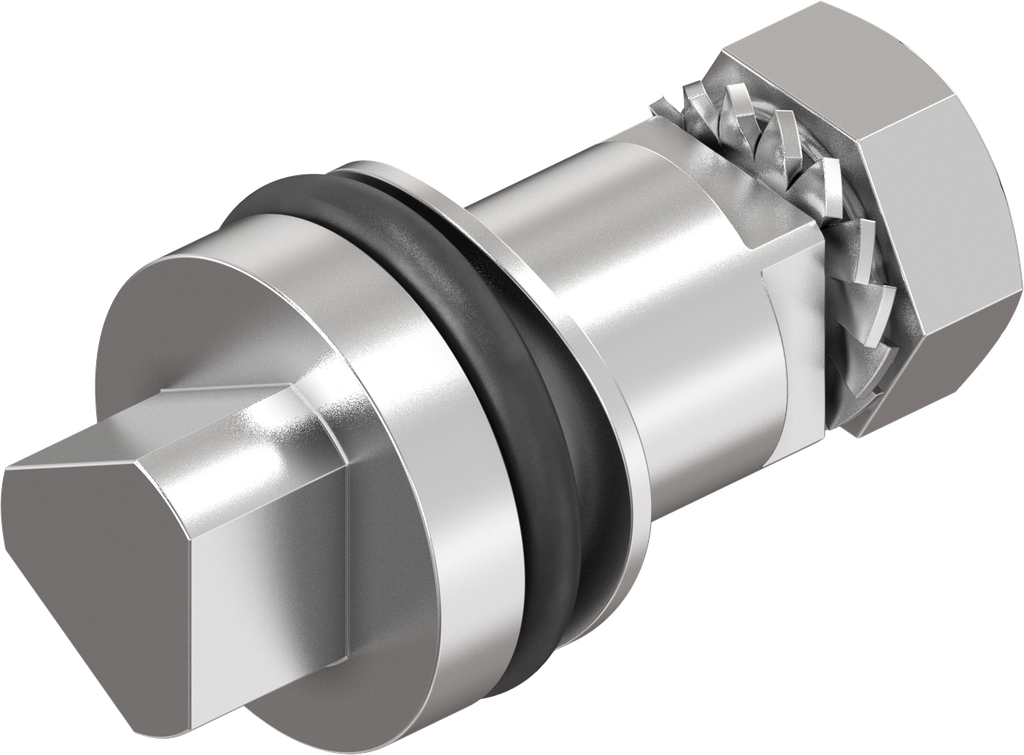

Insert triangular 6.5, Stainless steel AISI 303; 1022-U62

https://www.emka.com/products/1022-u62 https://www.emka.com/web/image/product.template/61014/image_1920?unique=59860ac

with O-ring

    This combination does not exist.

    Protection class IP 65
    Contact Us
    Internal Reference: 1022-U62
    Product Type: Insert
    Program: 1022
    Catalog sheet: 1A-120
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point
    Insert for: Insert for housing, classic
    Type of actuation: Triangular 6.5
    For GH measure: 13.50 mm
    O-ring position: Hub
    Locking set: Insert
    Screw Fastening: Metric
    No Specifications
    View All Products
    Housing
    Keys
    Assembly
    Here you can find the product data sheets and CAD files of this product
