Wing knob quarter turn, keyed 2233X, Zinc die black powder-coated
Wing knob quarter turn, keyed 2233X, Zinc die black powder-coated
Insert square 6, Stainless steel AISI 303
Insert square 6, Stainless steel AISI 303

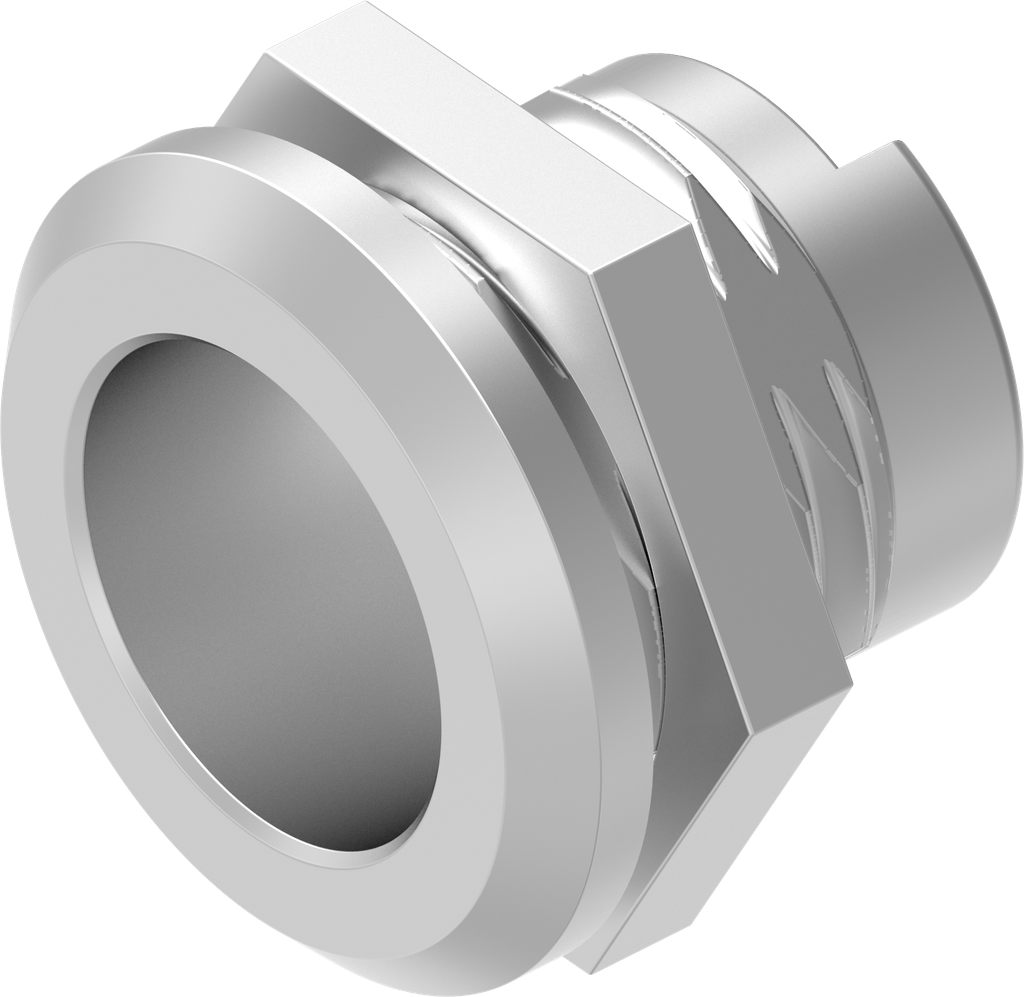

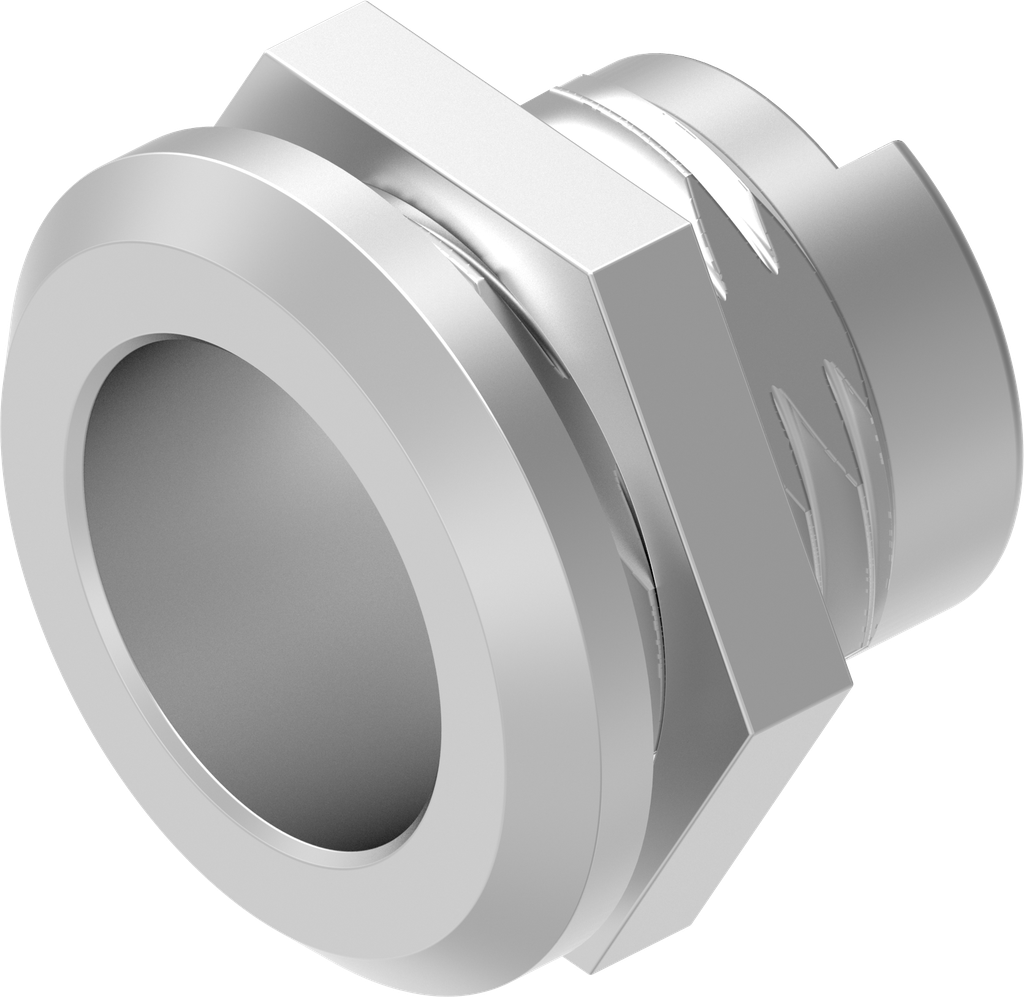

Housing, Stainless steel AISI 303; 1022-U60

https://www.emka.com/products/1022-u60 https://www.emka.com/web/image/product.template/61012/image_1920?unique=847da22

with stainless steel nut

    This combination does not exist.

    Inside the sealing Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1022-U60
    Product Type: Housing
    Program: 1022
    Catalog sheet: 1A-120
    Material of the module : Stainless steel AISI 303
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing

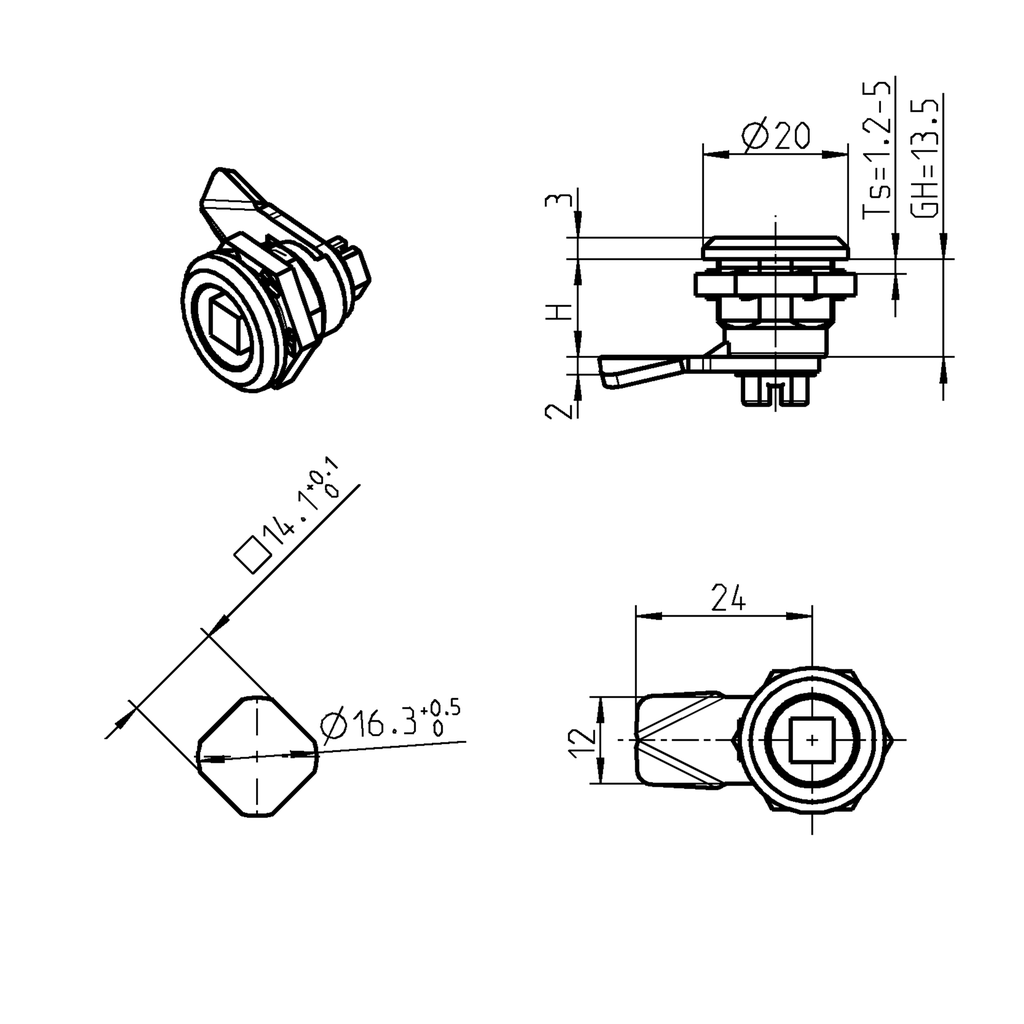

    Housing Head Shape: Round
    Housing Head Size: 20 x 3 mm
    GH Mass: 13.50 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Dust cap - Finger pull
    Assembly
    Insert
    Here you can find the product data sheets and CAD files of this product
