Wing knob quarter turn, non-keyed, Zinc die black powder-coated
Wing knob quarter turn, non-keyed, Zinc die black powder-coated
Wing knob quarter turn, keyed 2233X, Zinc die black powder-coated
Wing knob quarter turn, keyed 2233X, Zinc die black powder-coated

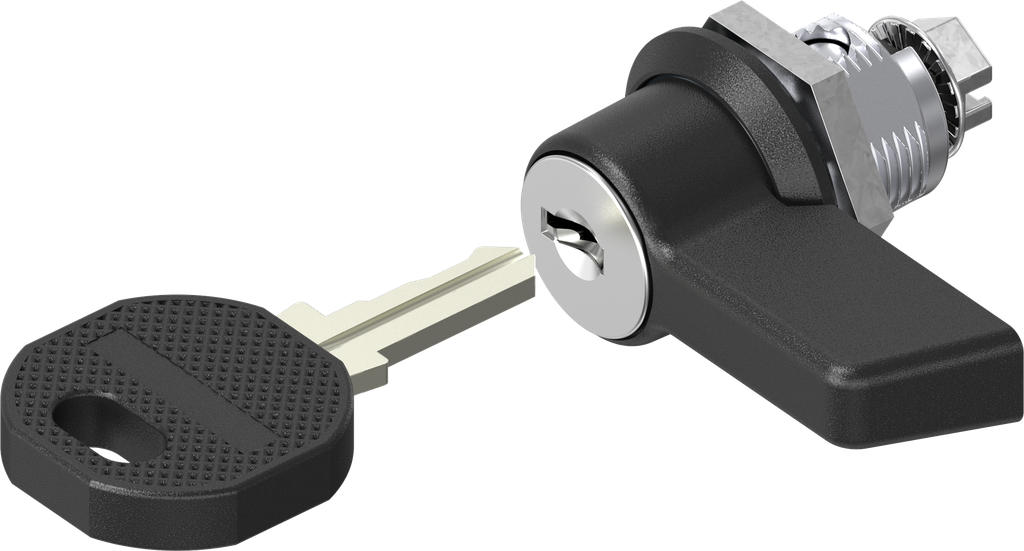

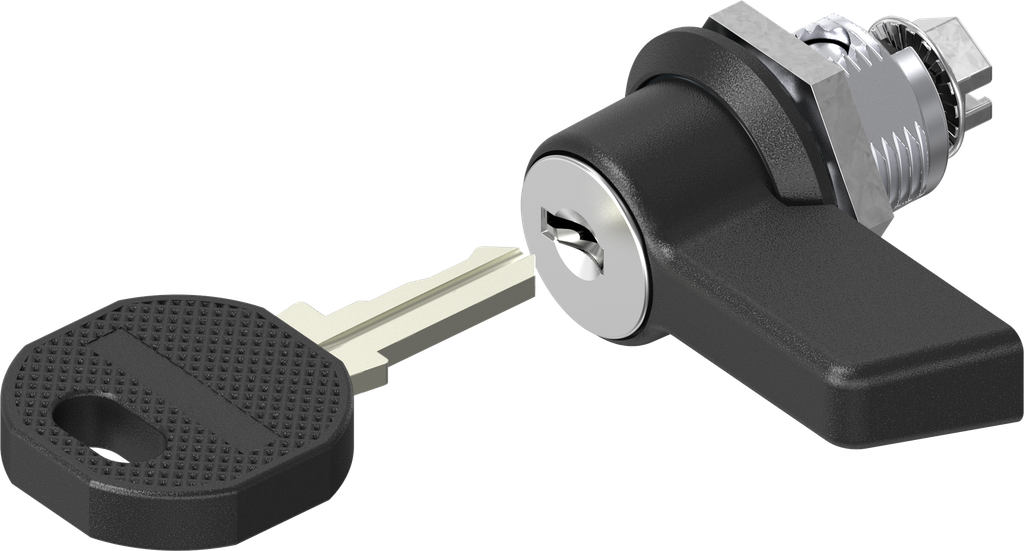

Wing knob quarter turn, keyed 2233X, Zinc die black powder-coated; 1022-U56

https://www.emka.com/products/1022-u56 https://www.emka.com/web/image/product.template/61010/image_1920?unique=8436470

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-U56
    Product Type: Quarter turn
    Program: 1022
    Catalog sheet: 1A-140
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

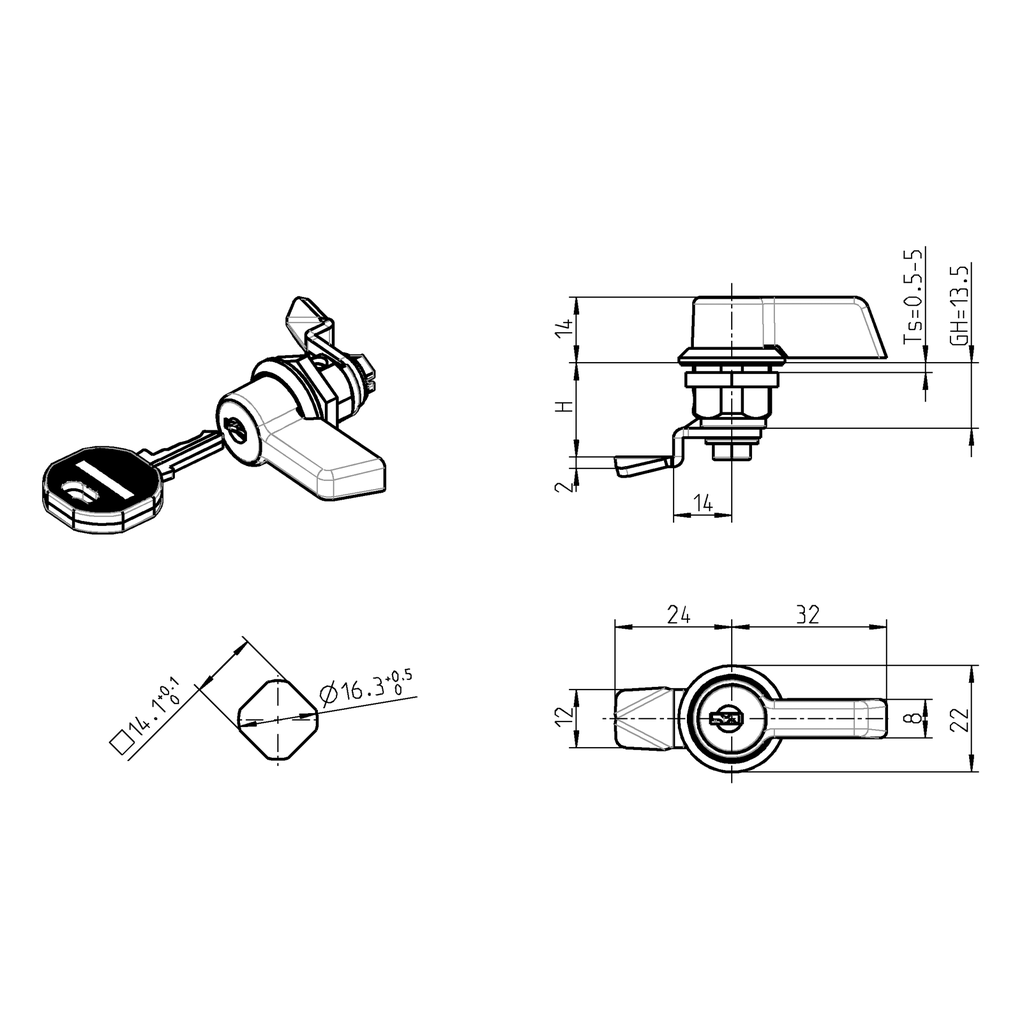

    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 0.50 mm
    Suitable for door thicknesses up to: 5.50 mm
    Round Cylinder Type: EMKA X, keyed 2233X
    Locking set: Round cylinder
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle,Quarter turn with cylinder
    No Specifications
    View All Products
    Cam
    Assembly
    Keys
    Here you can find the product data sheets and CAD files of this product
