Insert slot 1.5 x 3, Zinc die black powder-coated
Insert slot 1.5 x 3, Zinc die black powder-coated
Housing, Zinc die black powder-coated
Housing, Zinc die black powder-coated

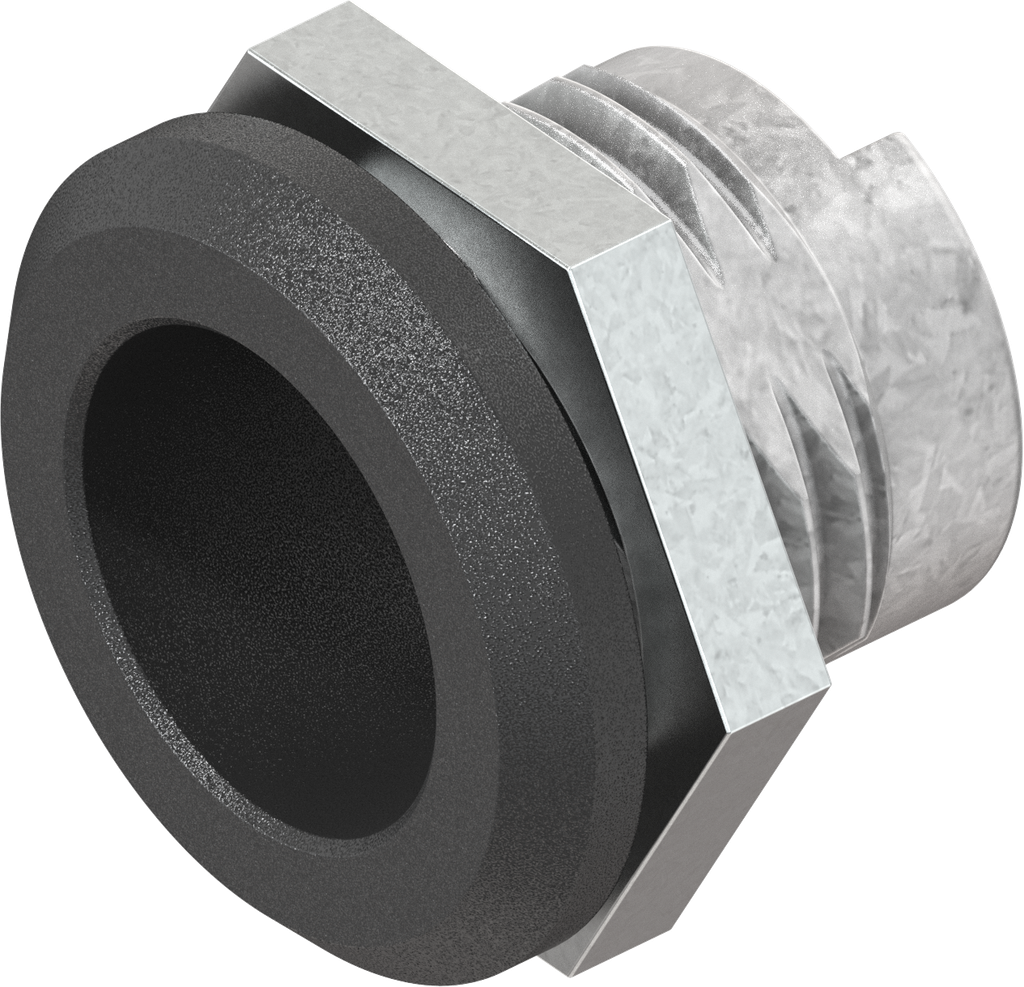

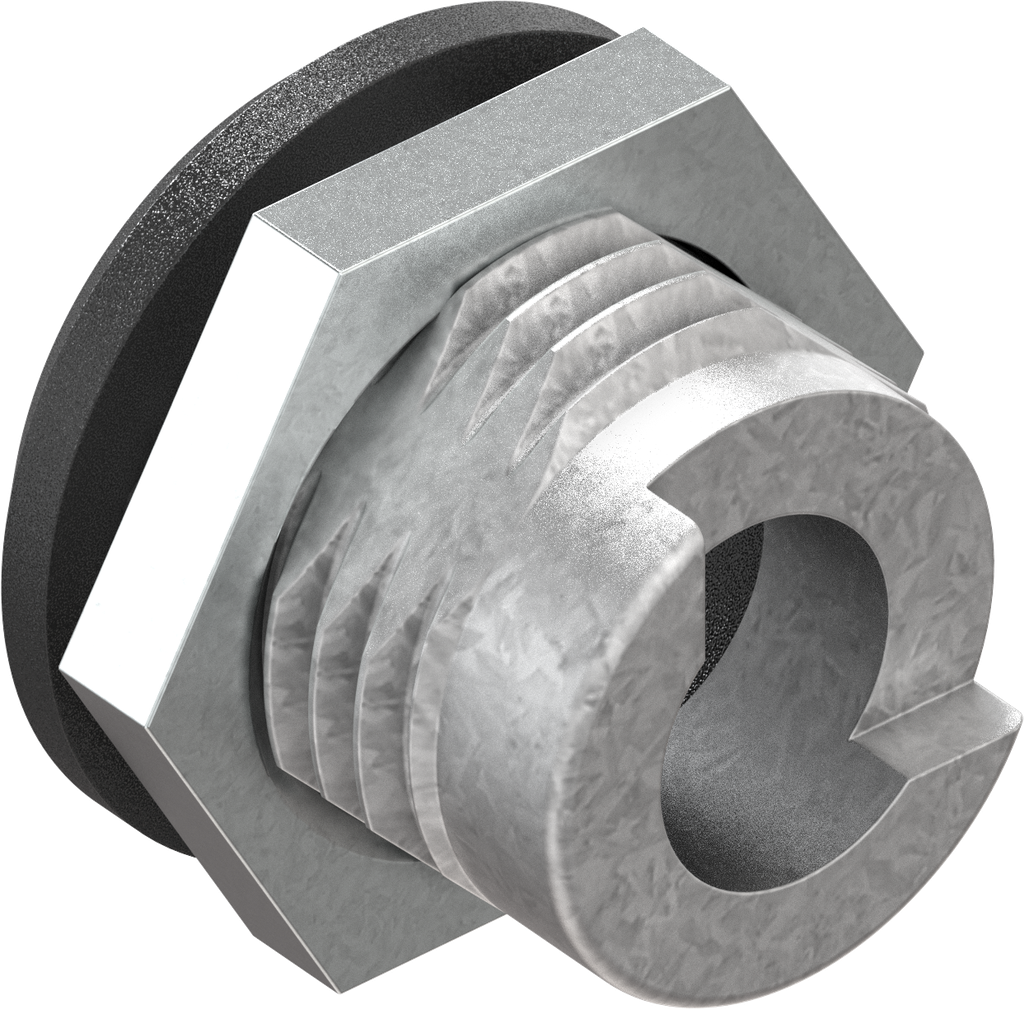

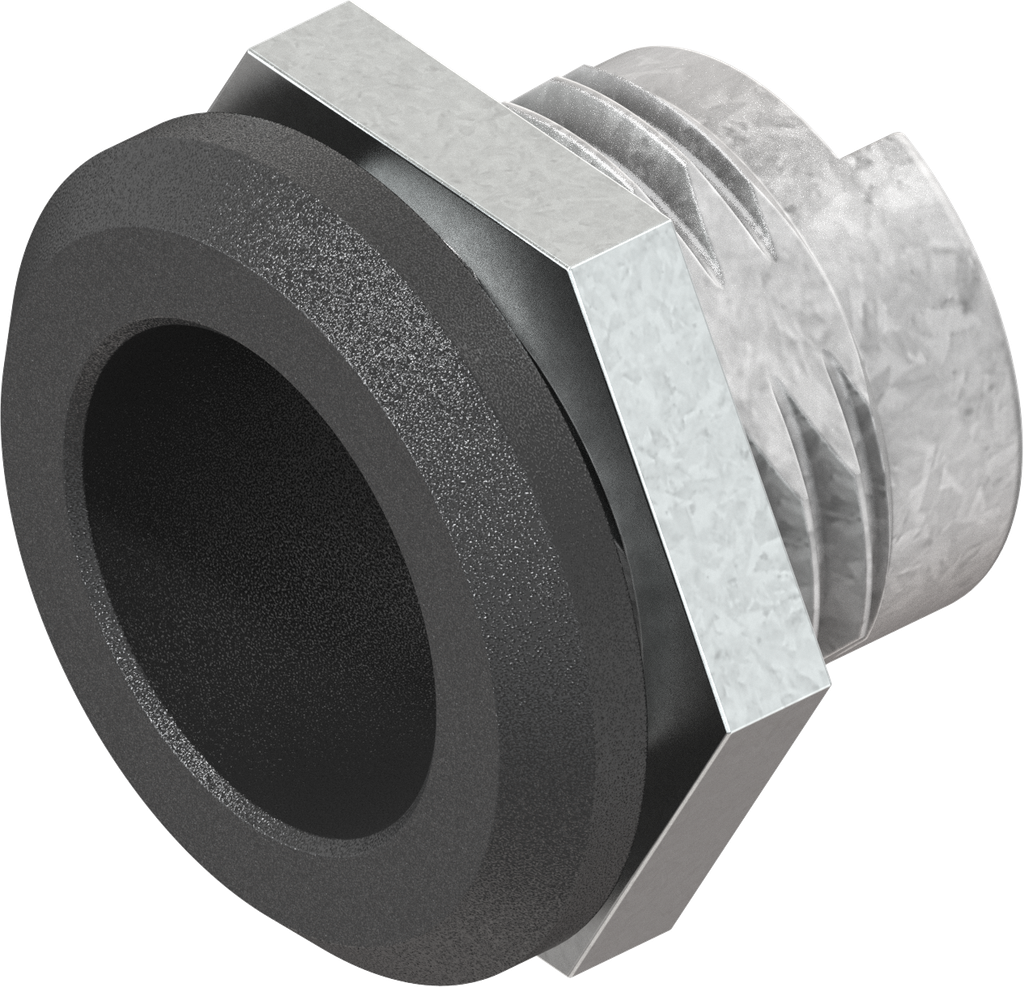

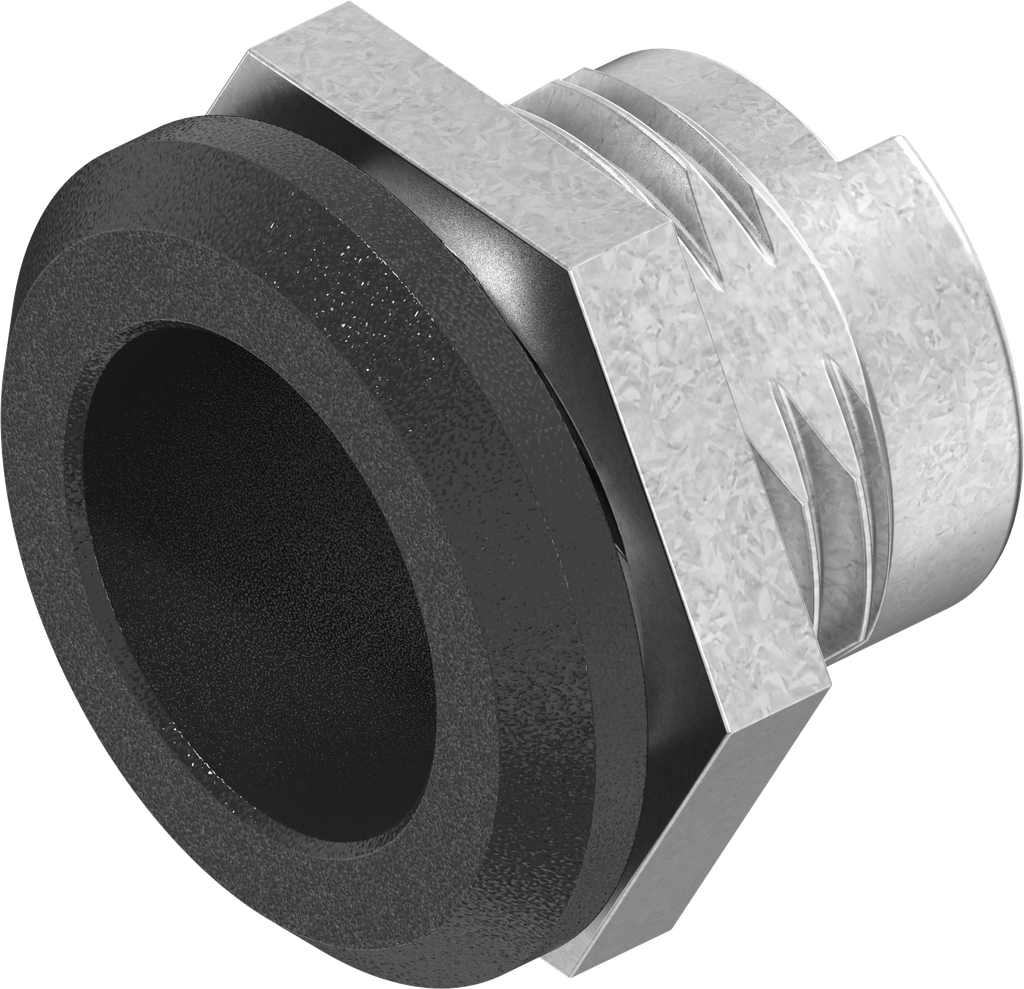

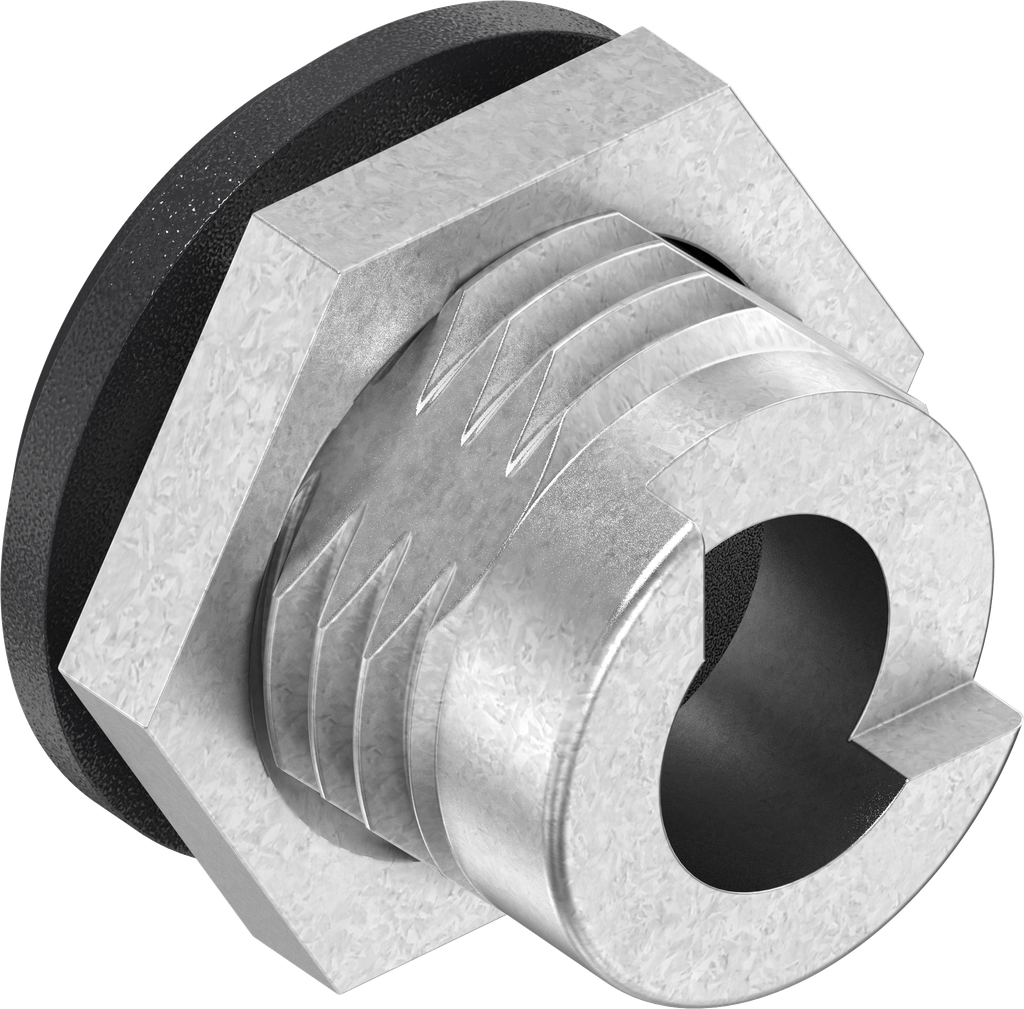

Housing, Zinc die black powder-coated; 1022-U46

https://www.emka.com/products/1022-u46 https://www.emka.com/web/image/product.template/61002/image_1920?unique=ec84a7c

with nut

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-U46
    Product Type: Housing
    Program: 1022
    Catalog sheet: 1A-120
    Material of the module : Zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 20 x 3 mm
    GH Mass: 13.50 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    O-ring and flat seal
    Dust cap - Finger pull
    Assembly
    Insert
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1A-120
    Product data sheet
    CAD file | 1022-U46_igs
    CAD file | 1022-U46_stp
