Wing knob quarter turn, non-keyed, Zinc die chrome-plated
Wing knob quarter turn, non-keyed, Zinc die chrome-plated
Wing knob quarter turn, keyed 2233X, Zinc die chrome-plated
Wing knob quarter turn, keyed 2233X, Zinc die chrome-plated

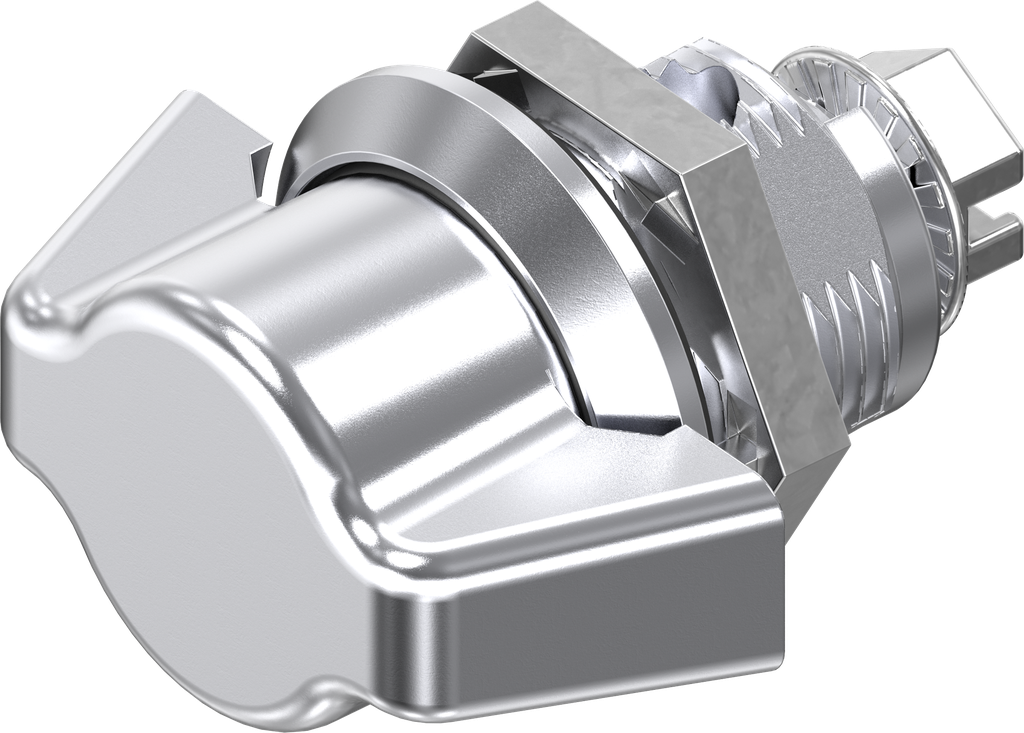

Wing knob quarter turn, non-keyed, Zinc die and steel chrome-plated; 1022-U30

https://www.emka.com/products/1022-u30 https://www.emka.com/web/image/product.template/60992/image_1920?unique=2387619

with earthing nut

    This combination does not exist.

    Inside the sealing Grounding possible Protection class IP 65 Left Right
    Contact Us
    Internal Reference: 1022-U30
    Product Type: Quarter turn
    Program: 1022
    Catalog sheet: 1A-140
    Material of the module : Zinc die and steel
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Grounding possible: Yes
    Housing Head Shape: Round
    Housing Head Size: 22 x 3 mm
    GH Mass: 13.50 mm
    Handle Art: Wing knob
    Suitable for door thickness from: 0.50 mm
    Suitable for door thicknesses up to: 5 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Cam
    Assembly

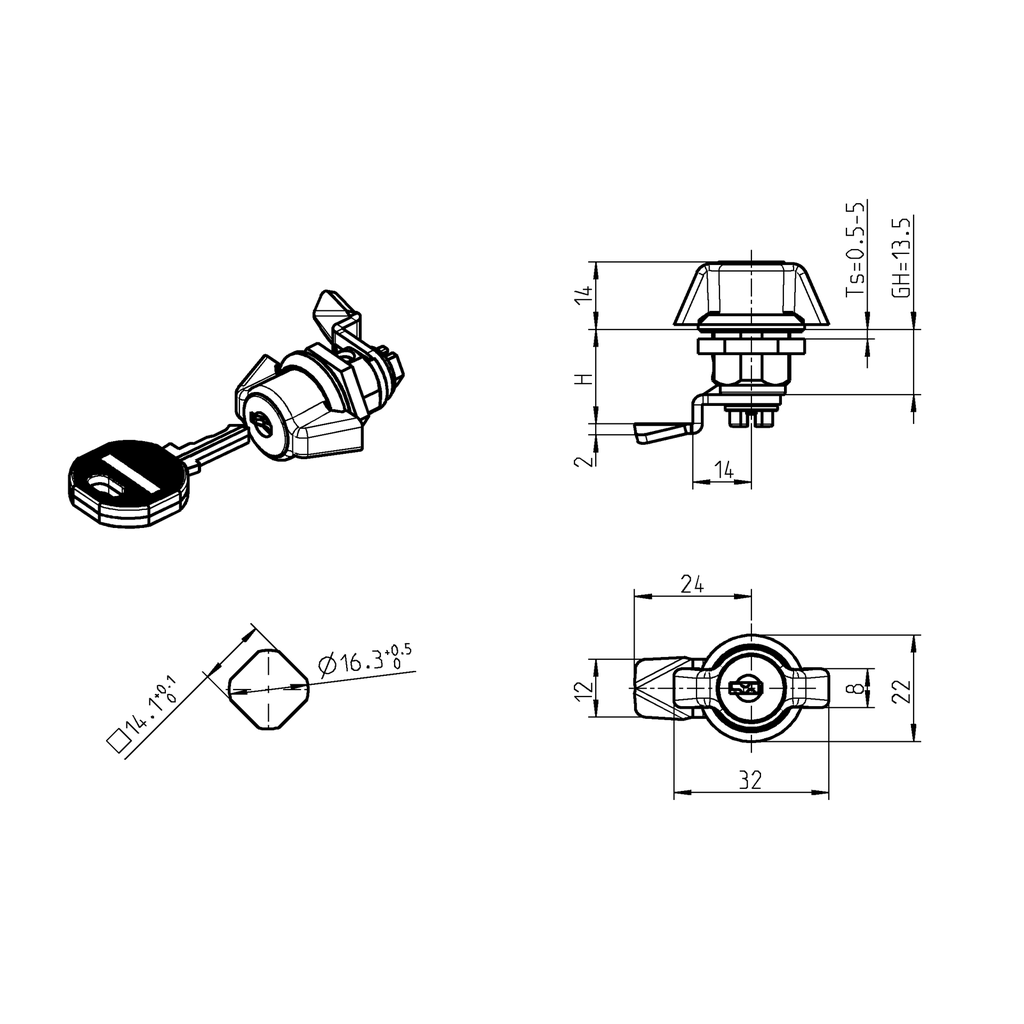

    Here you can find the product data sheets and CAD files of this product
