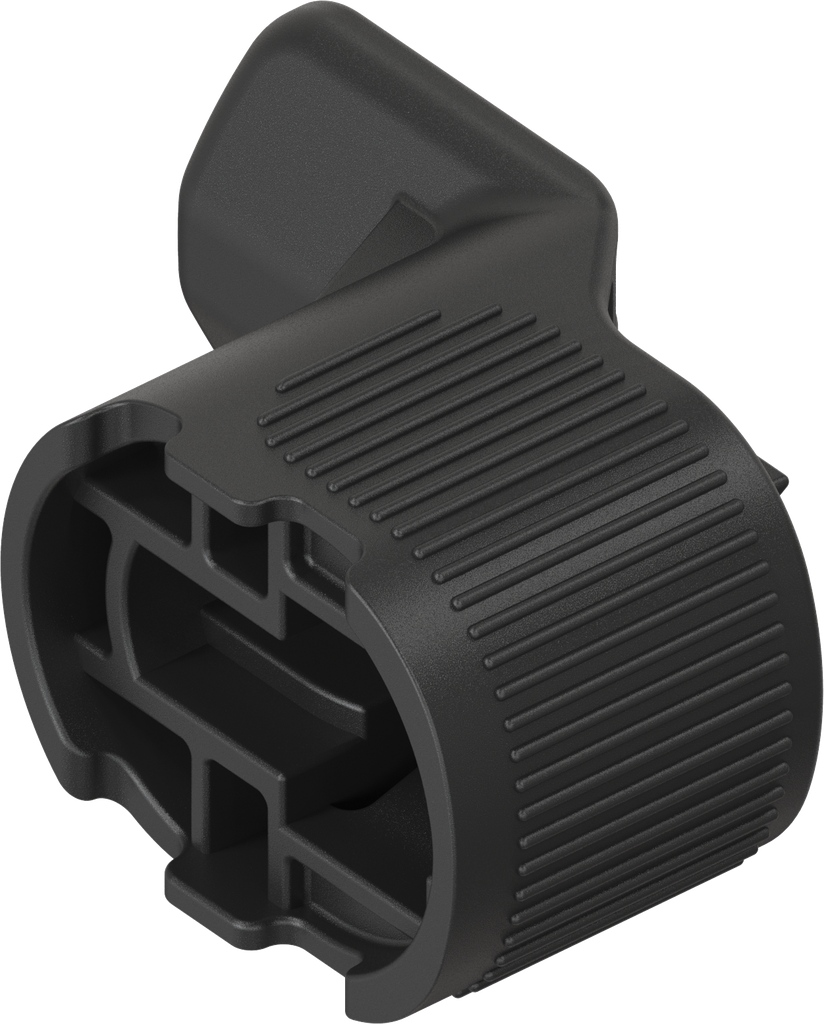

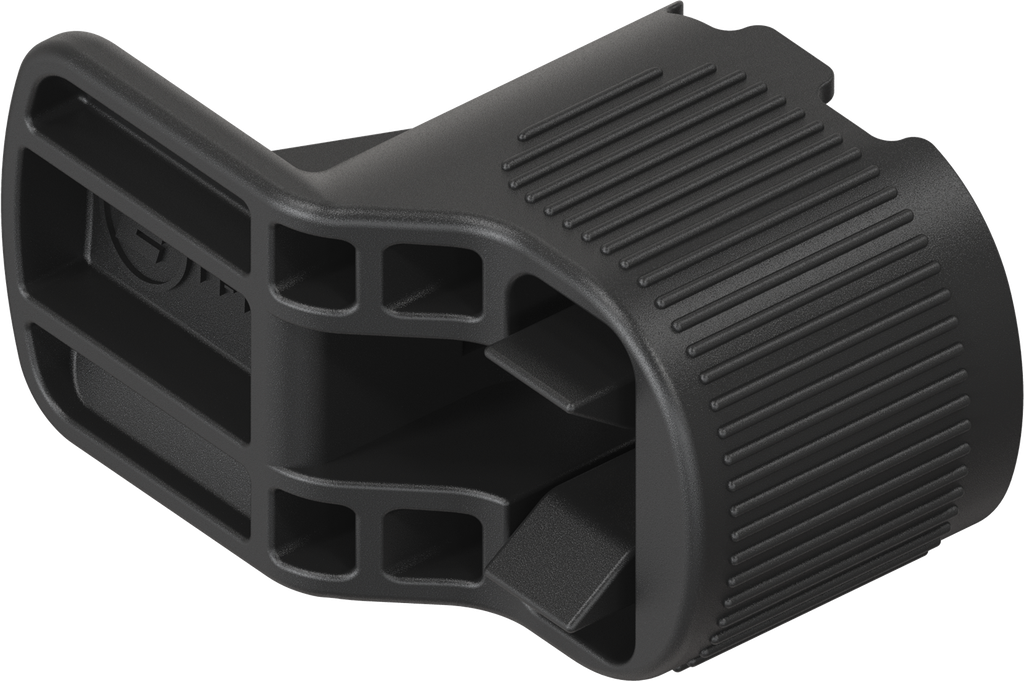

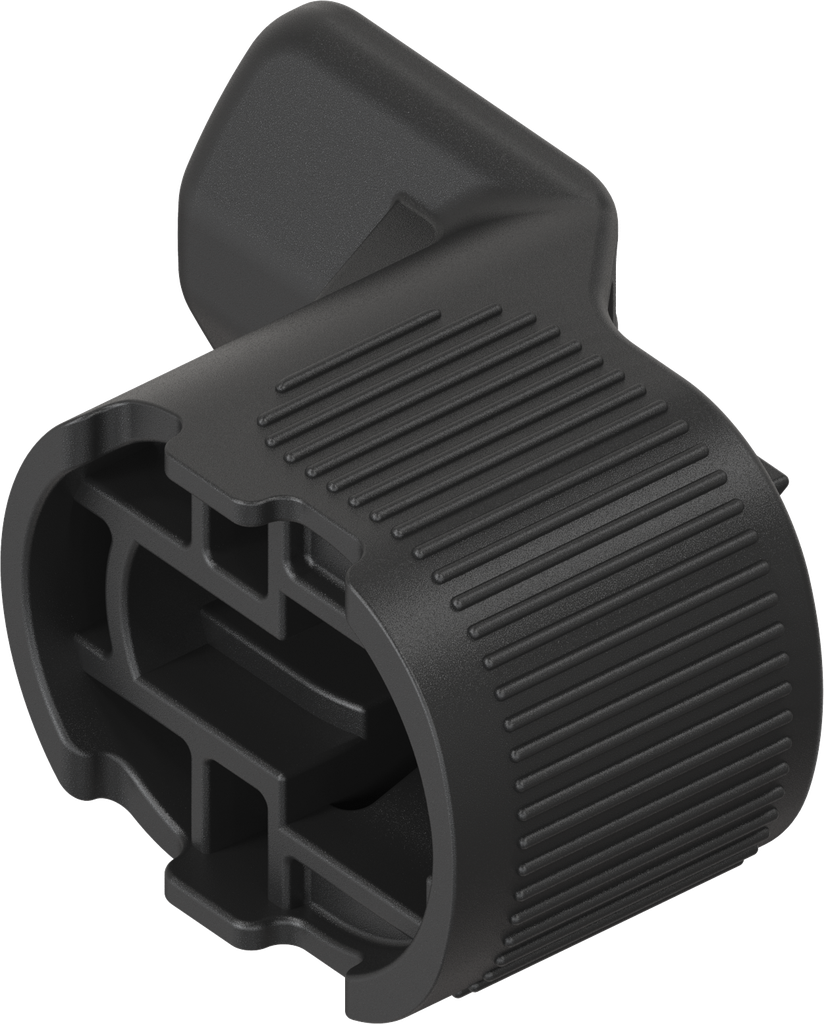

Snap-in cam H = 19.5 mm, Polyamide GF black; 1022-56-03

• Cost savings due to assembly and disassembly without tools within seconds
• Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
• Smooth operation (no inner rotation due to design)
• Self-sealing design for highest protection requirements (design immanent)
• Increased safeguarding against overwinding
• Standard cut out
• Patented

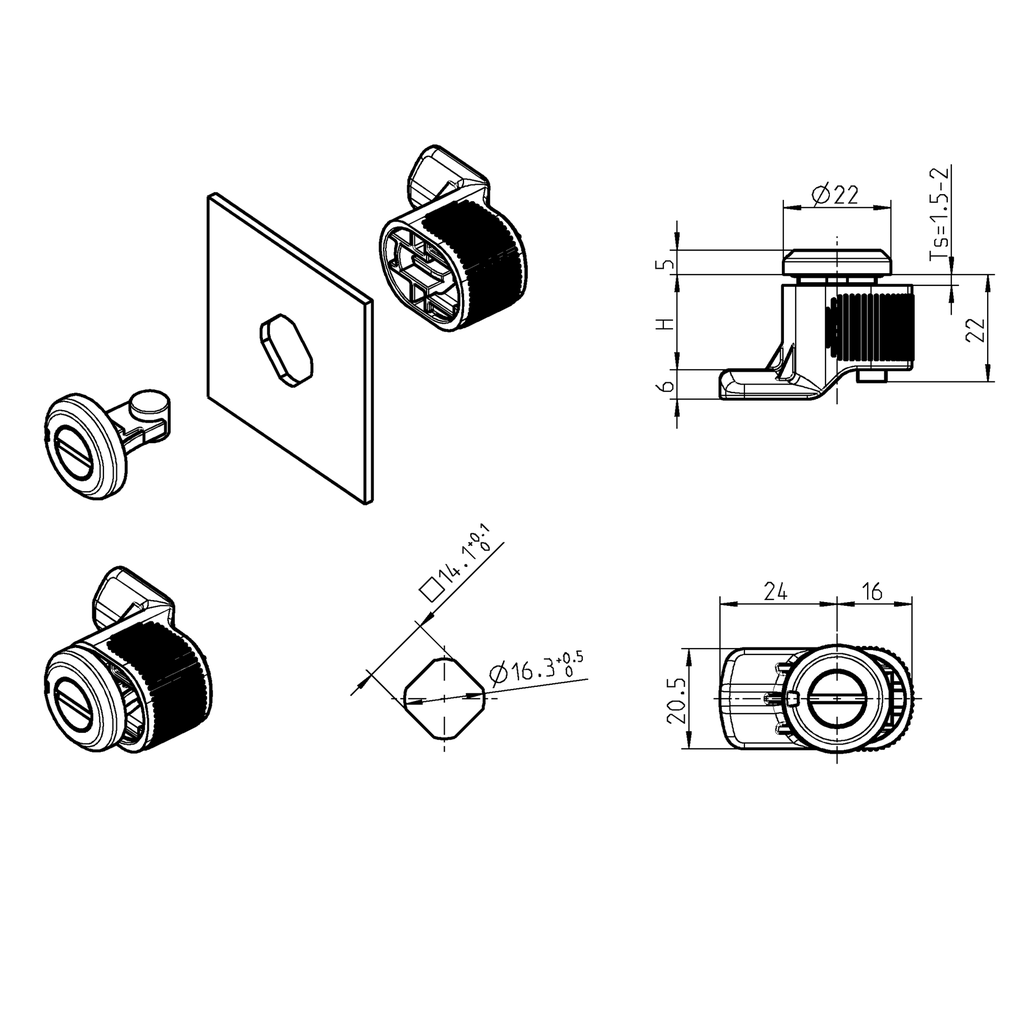

Door gauge incl. surface coating

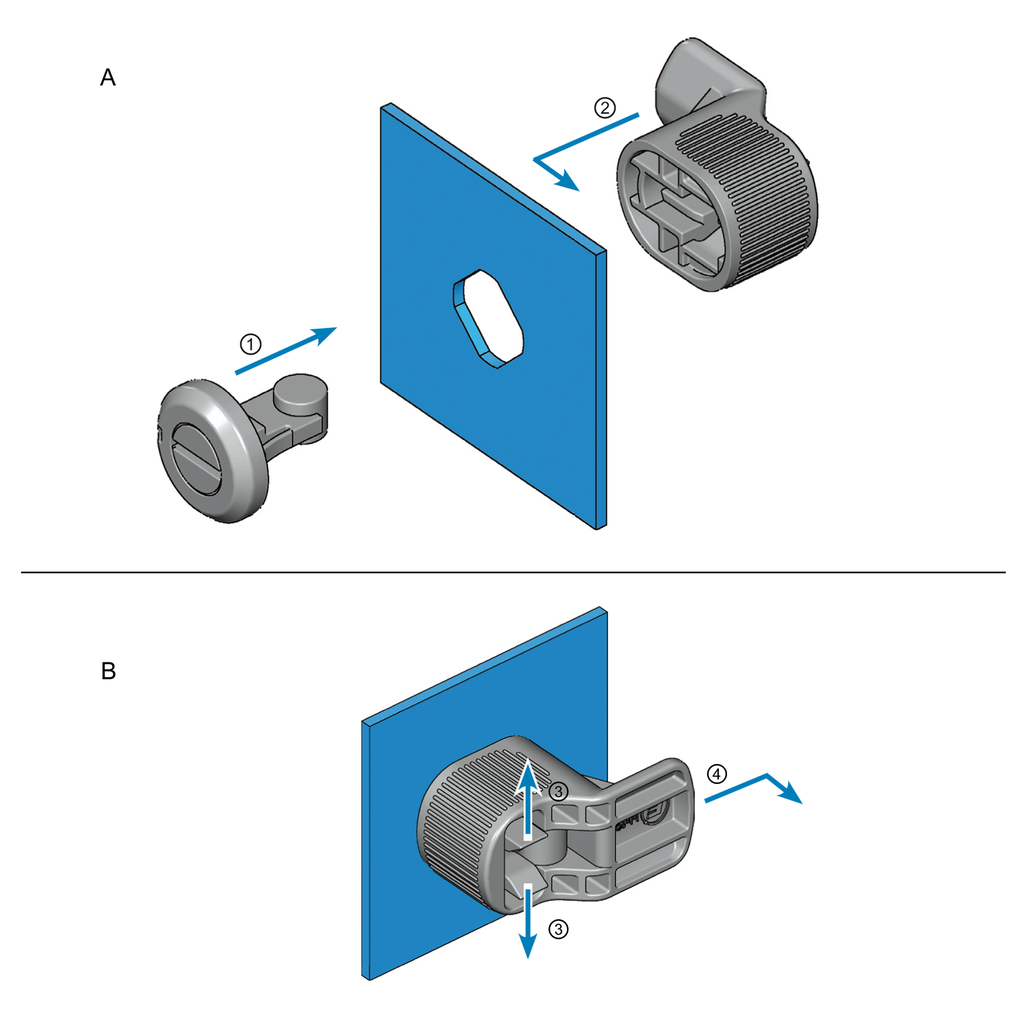

A = Assembly
① = Insert the insert part into the cut out
② = Place the snap-in cam and shift it laterally, acoustic and visual verification of snapping in of snap-in cam

B = Disassembly
③ = Press the locking arms apart
④ = Shift the snap-in cam laterally and remove it

• Assembly door stop on the right:
  Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.
• Assembly door stop on the left:
  Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
