Escutcheon with flap, Stainless steel AISI 316
Cylinder quarter turn, keyed 2233X, Zinc die chrome-plated
Product Benefits:
- Cost savings due to assembly and disassembly without tools within seconds
- Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
- Smooth operation (no inner rotation due to design)
- Self-sealing design for highest protection requirements (design immanent)
- Increased safeguarding against overwinding
- Standard cut out
- Patented
Product information:
Door gauge incl. surface coating
A = Assembly
① = Insert the insert part into the cut out
② = Place the snap-in cam and shift it laterally, acoustic and visual verification of snapping in of snap-in cam
B = Disassembly
③ = Press the locking arms apart
④ = Shift the snap-in cam laterally and remove it
Assembly instruction:
- Assembly door stop on the right:
Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing. - Assembly door stop on the left:
Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
Internal Reference:
1022-56-02
Product Type:

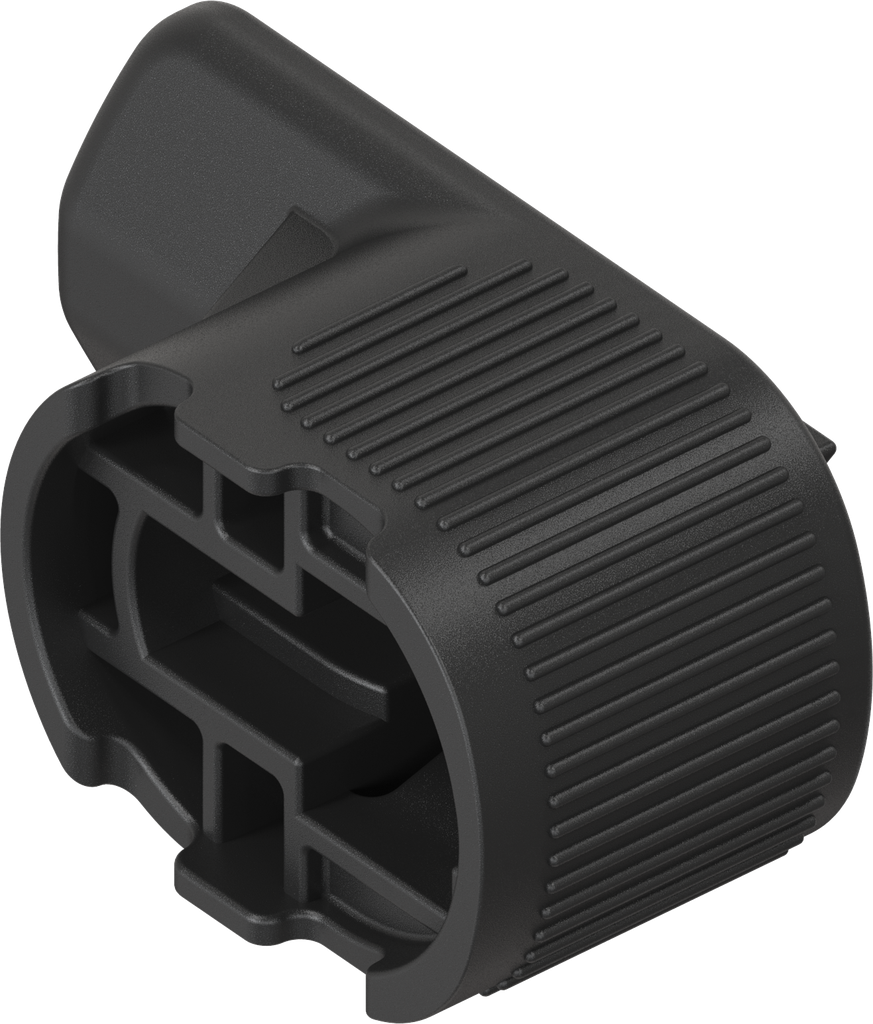

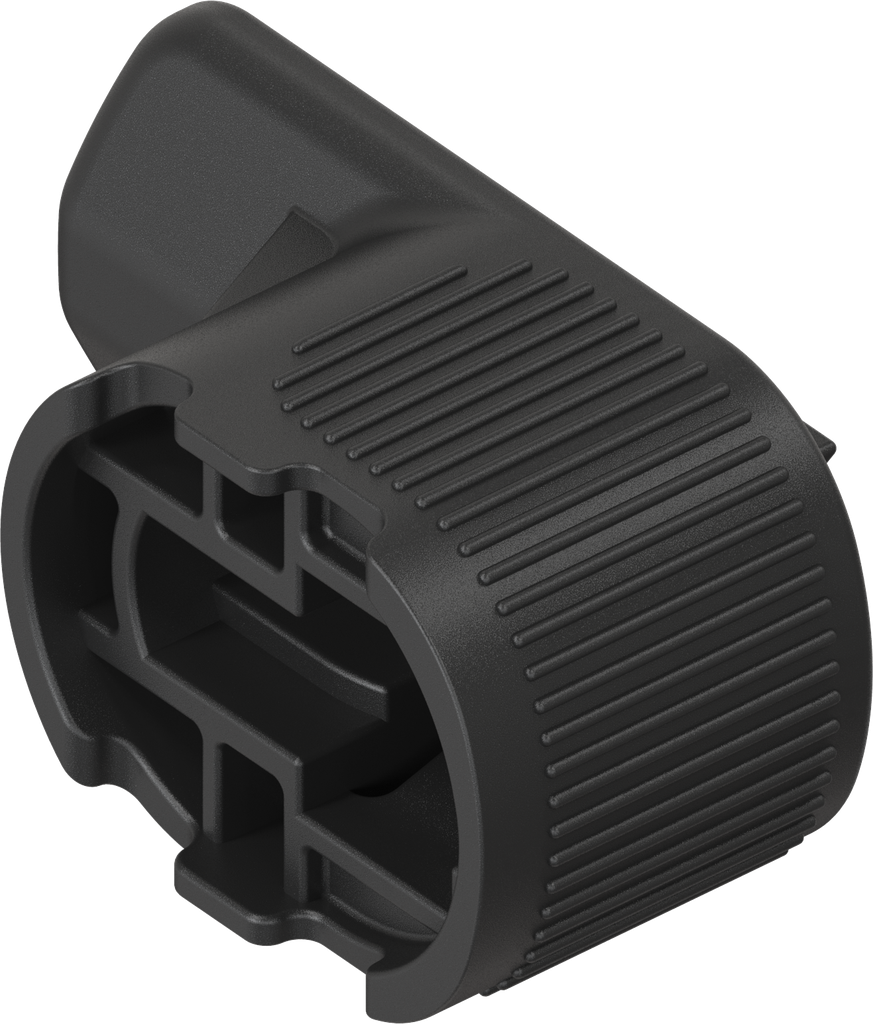

Cam
Material:
Polyamide GF
Program:
1022
Surface:
black
Catalog sheet:
1A-320
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Mounting Positions :
Inside the sealing
Dimension H:
13.50 mm
Compression Value :
4 mm
Dimension L:
24 mm
Spoon:
Yes
Quarter turn types:
Quarter turn with simple insert,Quarter turn for assembly without tools
