Snap-in cam H = 19.5 mm, Polyamide GF black
Snap-in cam H = 19.5 mm, Polyamide GF black
Snap-in cam H = 13.5 mm, Polyamide GF black
Snap-in cam H = 13.5 mm, Polyamide GF black

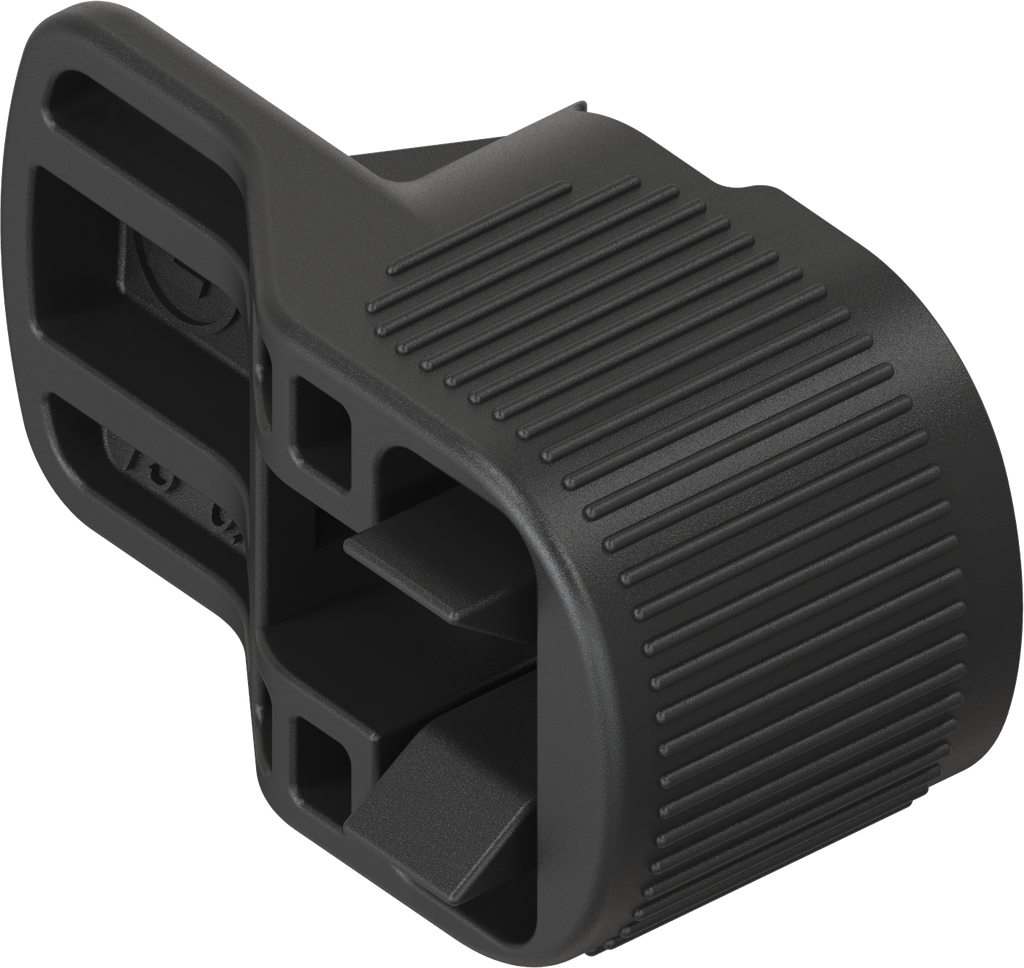

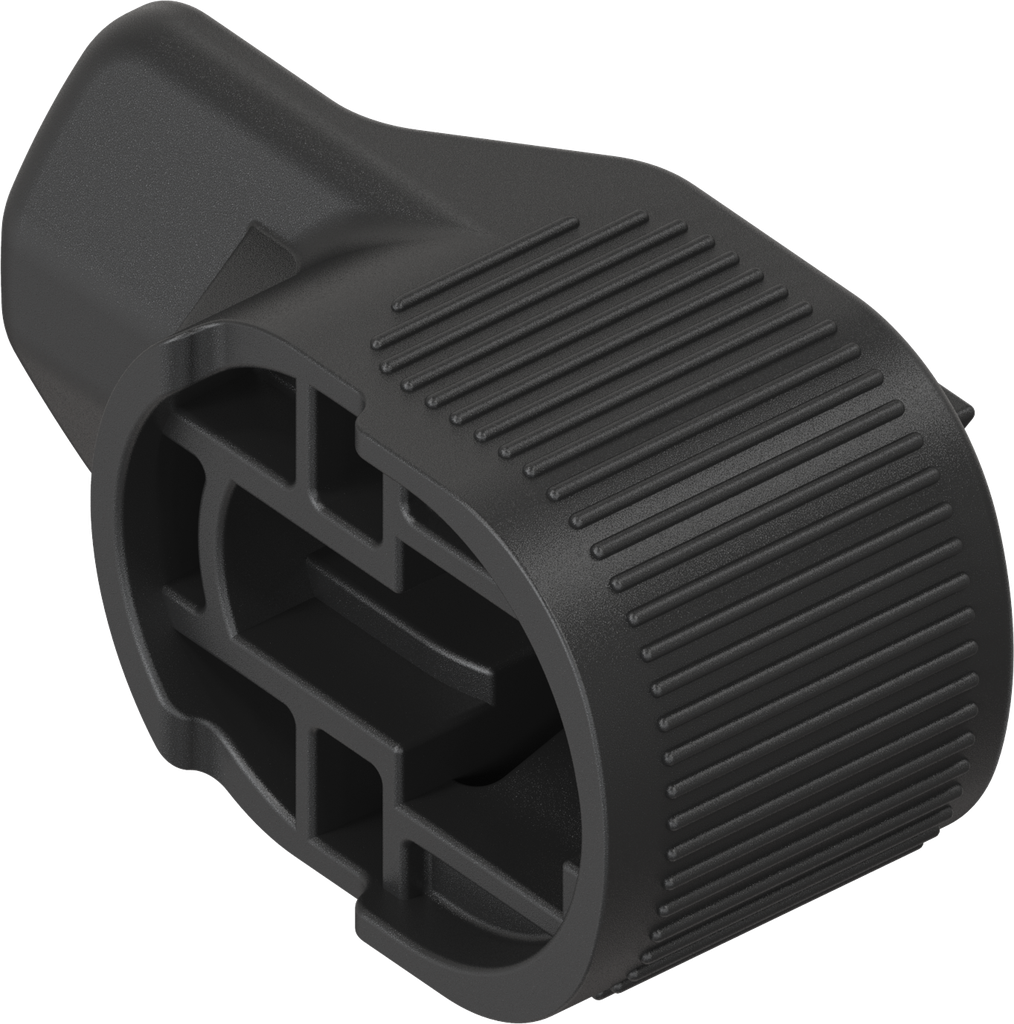

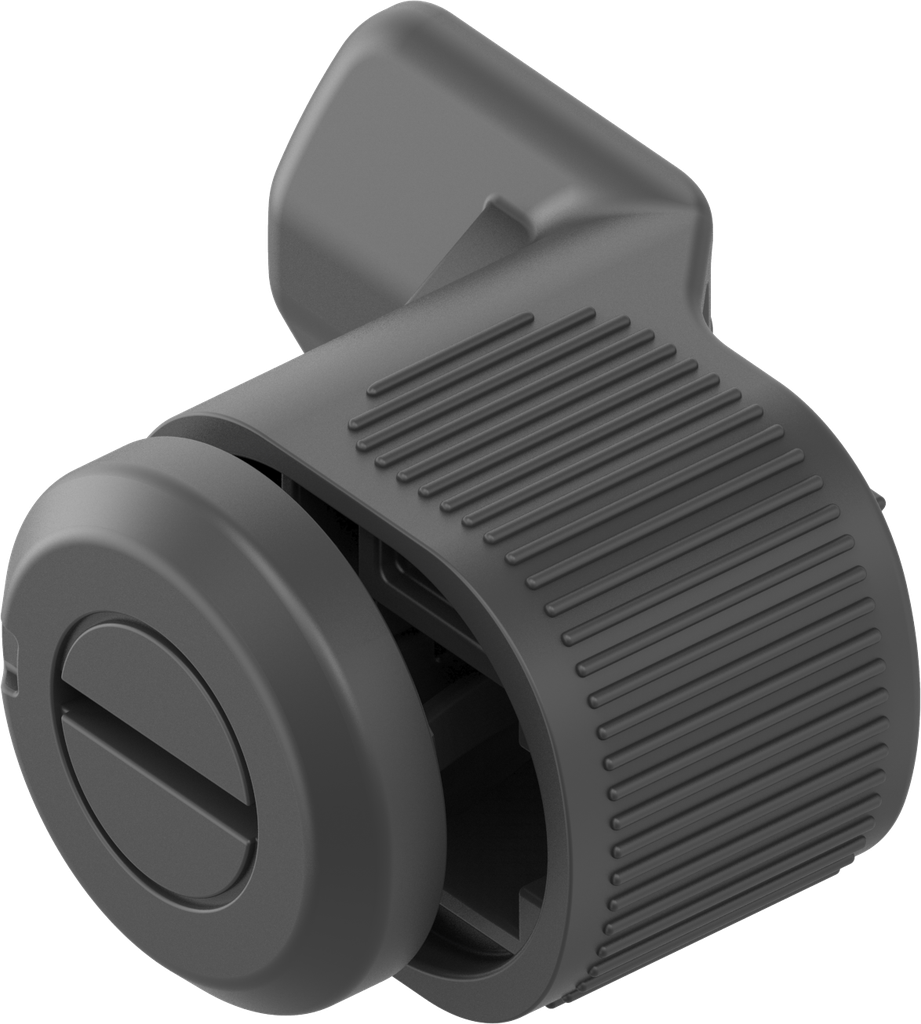

Snap-in cam H = 7.5 mm, Polyamide GF black; 1022-55-01

https://www.emka.com/products/1022-55-01 https://www.emka.com/web/image/product.template/60889/image_1920?unique=dd84174

for Ts = 1.0 - 1.5 mm


    This combination does not exist.

    Inside the sealing Protection class IP 69K


    Product Benefits:

    • Cost savings due to assembly and disassembly without tools within seconds
    • Closing force with cam of steel matches EMKA standard quarter turn of zinc die-cast
    • Smooth operation (no inner rotation due to design)
    • Self-sealing design for highest protection requirements (design immanent)
    • Increased safeguarding against overwinding
    • Standard cut out
    • Patented

    Product information:

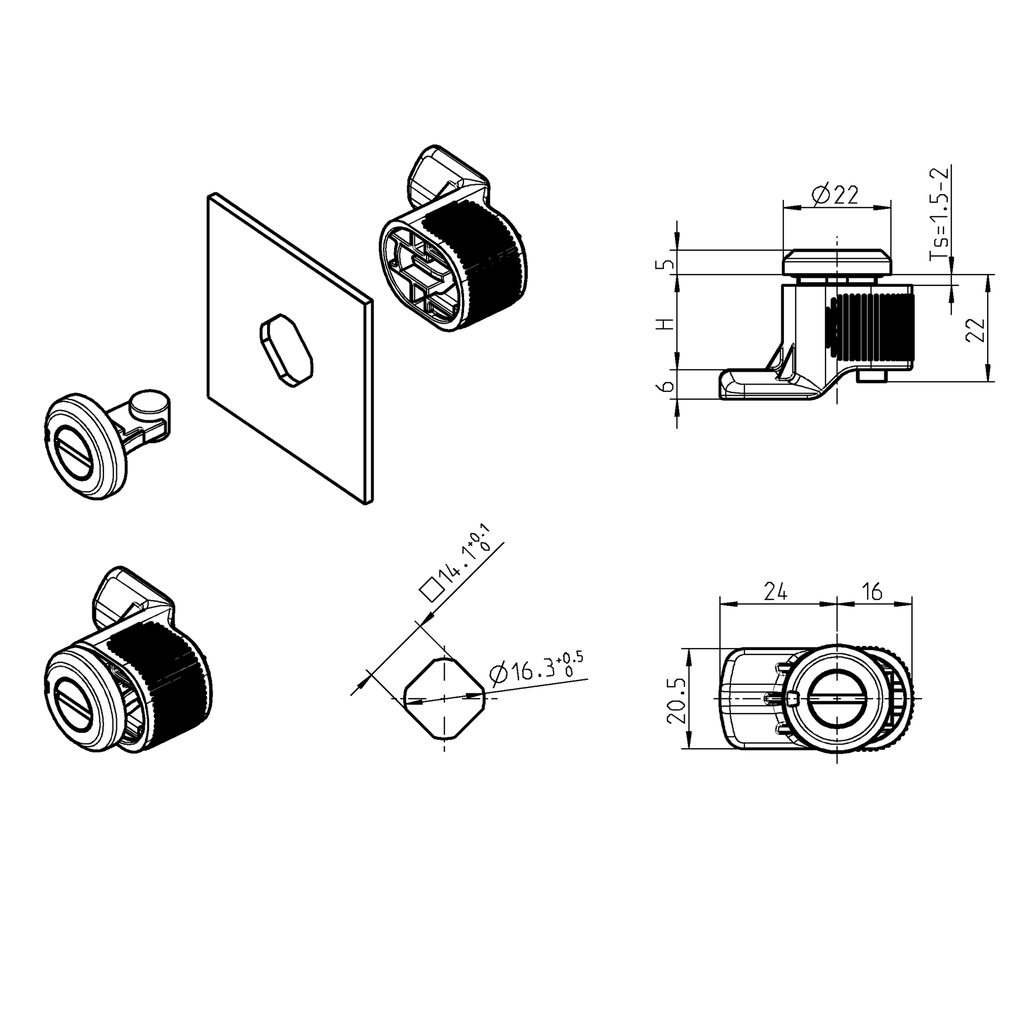

    Door gauge incl. surface coating

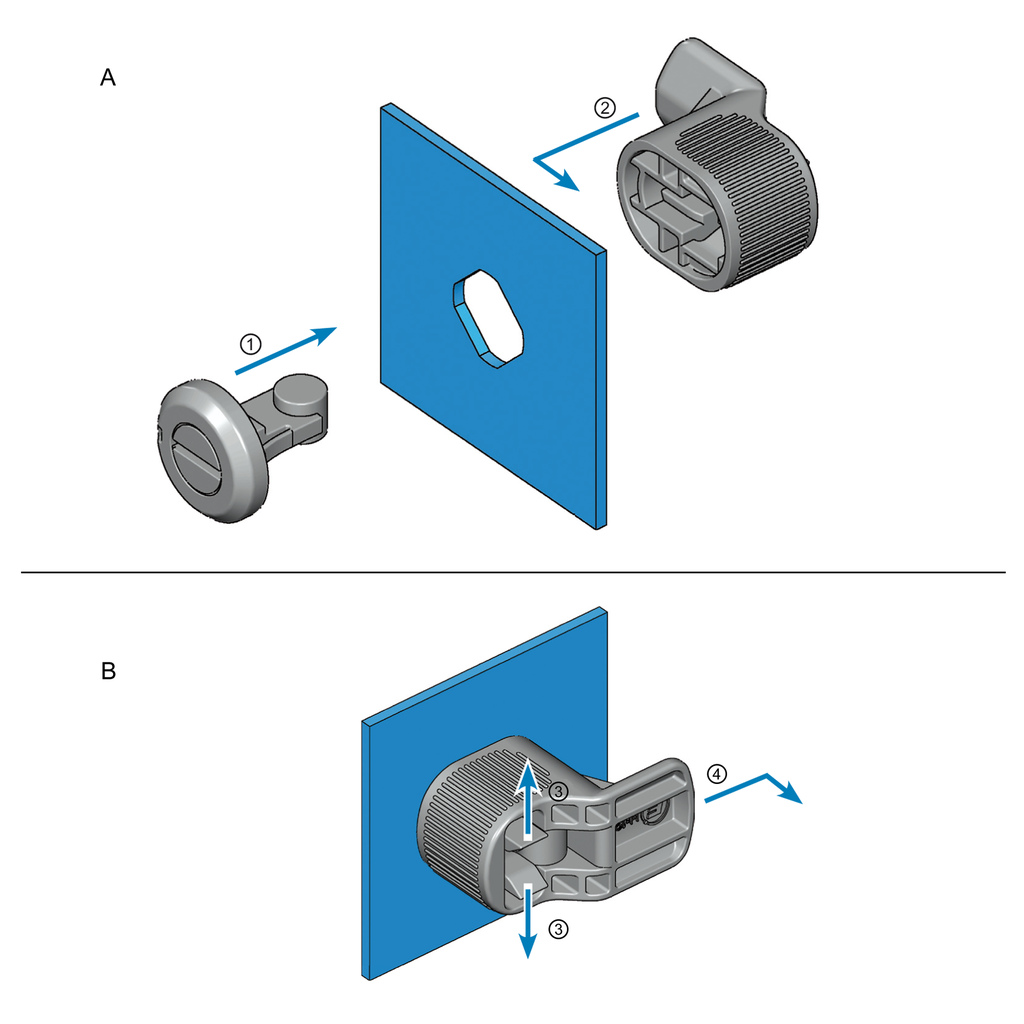

    A = Assembly
    ① = Insert the insert part into the cut out
    ② = Place the snap-in cam and shift it laterally, acoustic and visual verification of snapping in of snap-in cam

    B = Disassembly
    ③ = Press the locking arms apart
    ④ = Shift the snap-in cam laterally and remove it

    Assembly instruction:

    • Assembly door stop on the right:
      Pre-assembled insert part is inserted into the cut out while insert is closed. Then fixed with click-in housing.
    • Assembly door stop on the left:
      Pre-assembled insert part is inserted into the cut out while insert is open. Then fixed with click-in housing.
    Internal Reference: 1022-55-01
    Product Type: Cam
    Material: Polyamide GF
    Program: 1022
    Surface: black
    Catalog sheet: 1A-320
    Number of Possible Locking Points: 1 point
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Dimension H: 7.50 mm
    Compression Value : 4 mm
    Dimension L: 24 mm
    Spoon: Yes
    Quarter turn types: Quarter turn with simple insert,Quarter turn for assembly without tools
    No Specifications
