Rotary piston, Polyamide and steel zinc-plated
Rotary piston, Polyamide and steel zinc-plated
Nut M16 x 1, Steel zinc-plated
Nut M16 x 1, Steel zinc-plated

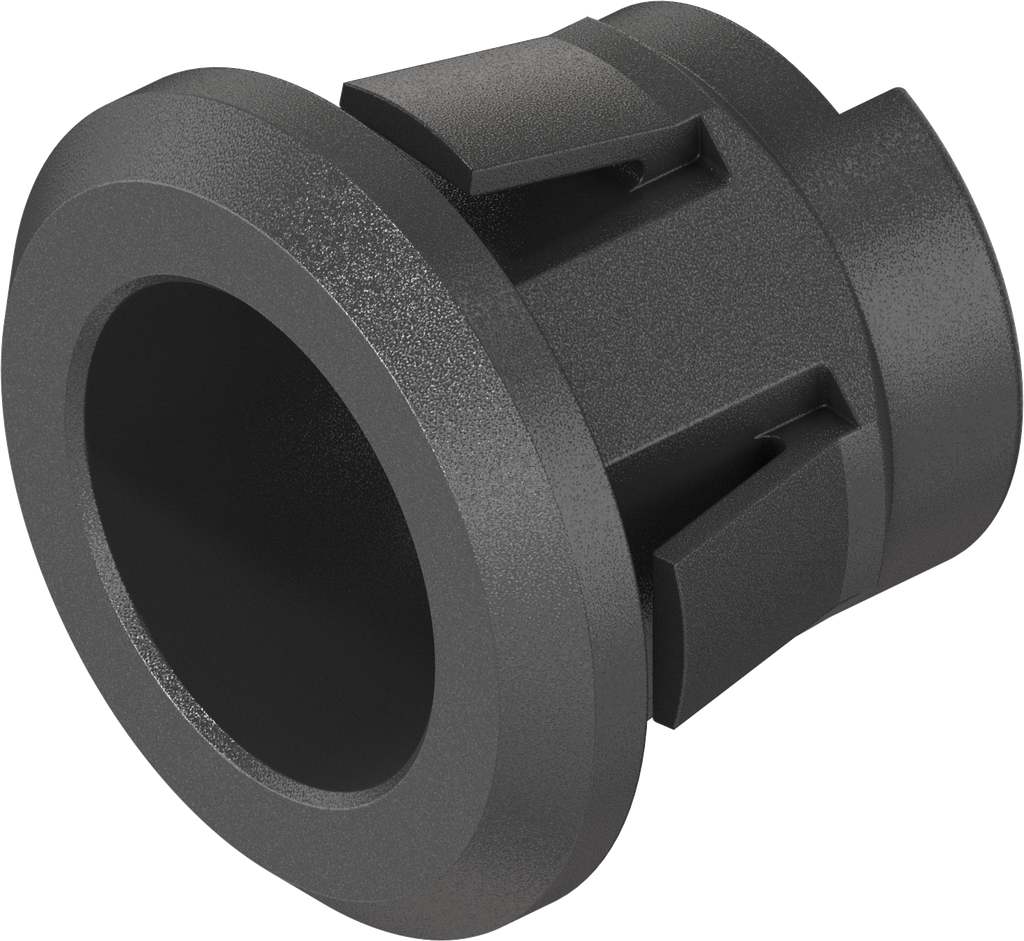

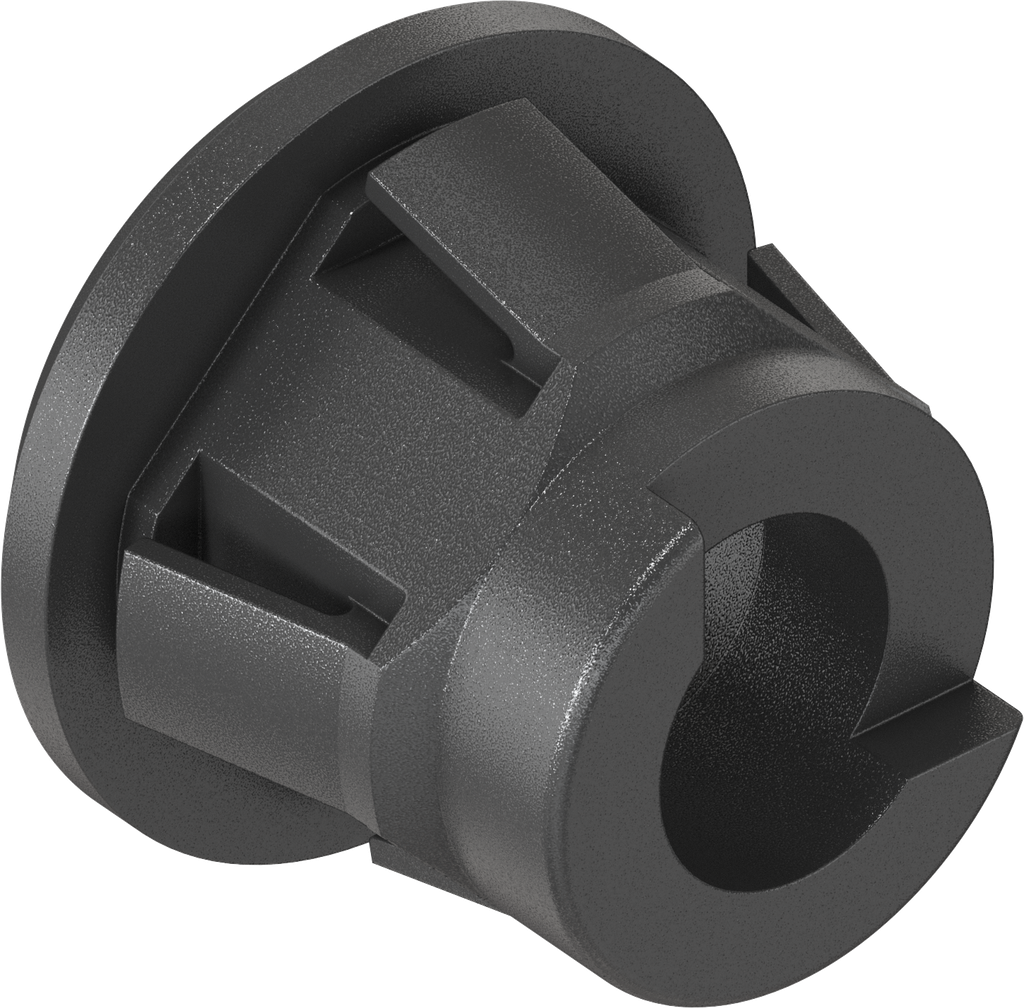

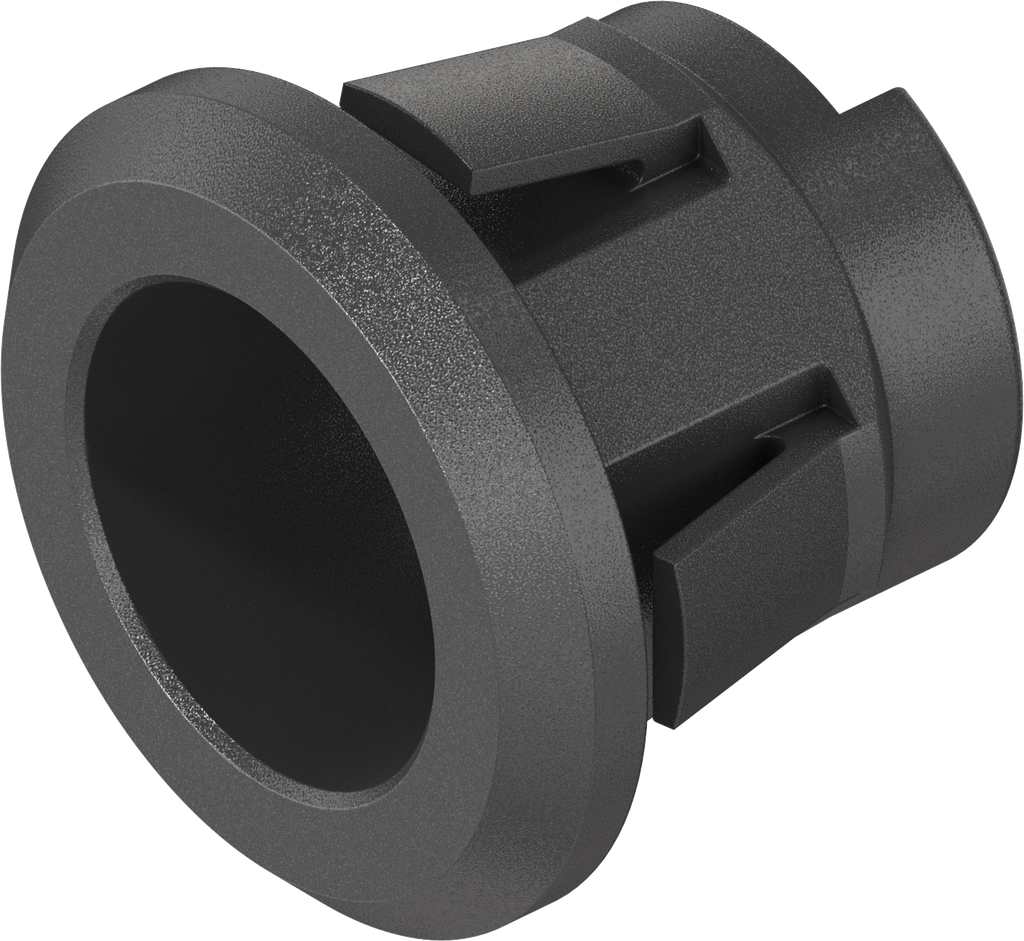

Housing clip-in, Polyamide black; 1022-01-02

https://www.emka.com/products/1022-01-02 https://www.emka.com/web/image/product.template/60820/image_1920?unique=f86255a

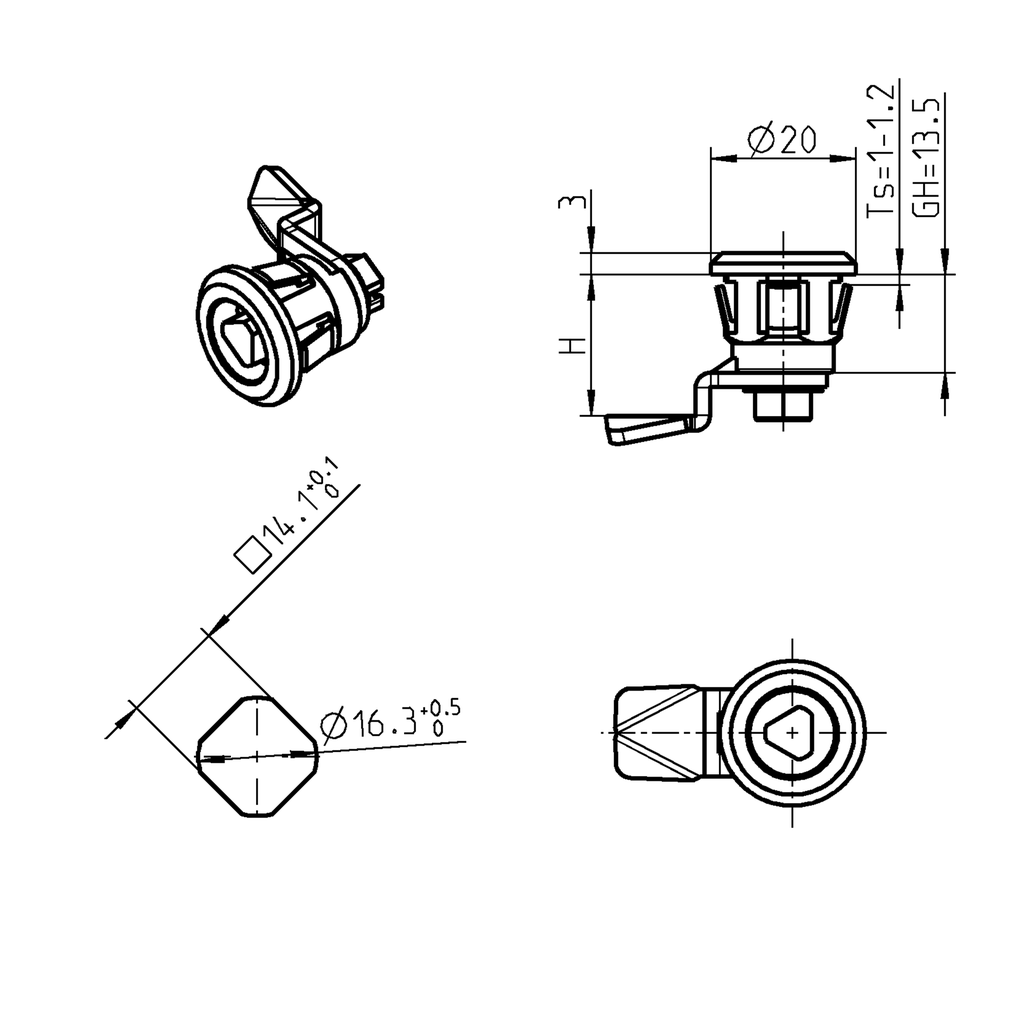

Length of housing (GH) = 13.5 mm

    This combination does not exist.

    clip-in Inside the sealing Left Right
    Contact Us
    Internal Reference: 1022-01-02
    Product Type: Housing
    Material: Polyamide
    Program: 1022
    Surface: black
    Catalog sheet: 1A-120
    Number of Possible Locking Points: 1 point
    Fixing type of housing : clip-in
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 20 x 3 mm
    GH Mass: 13.50 mm
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 1.20 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Cam Body Style: Housing for insert, classic
    Quarter turn types: Quarter turn with simple insert
    No Specifications
    View All Products
    Cam
    Assembly
    Insert
    Here you can find the product data sheets and CAD files of this product
